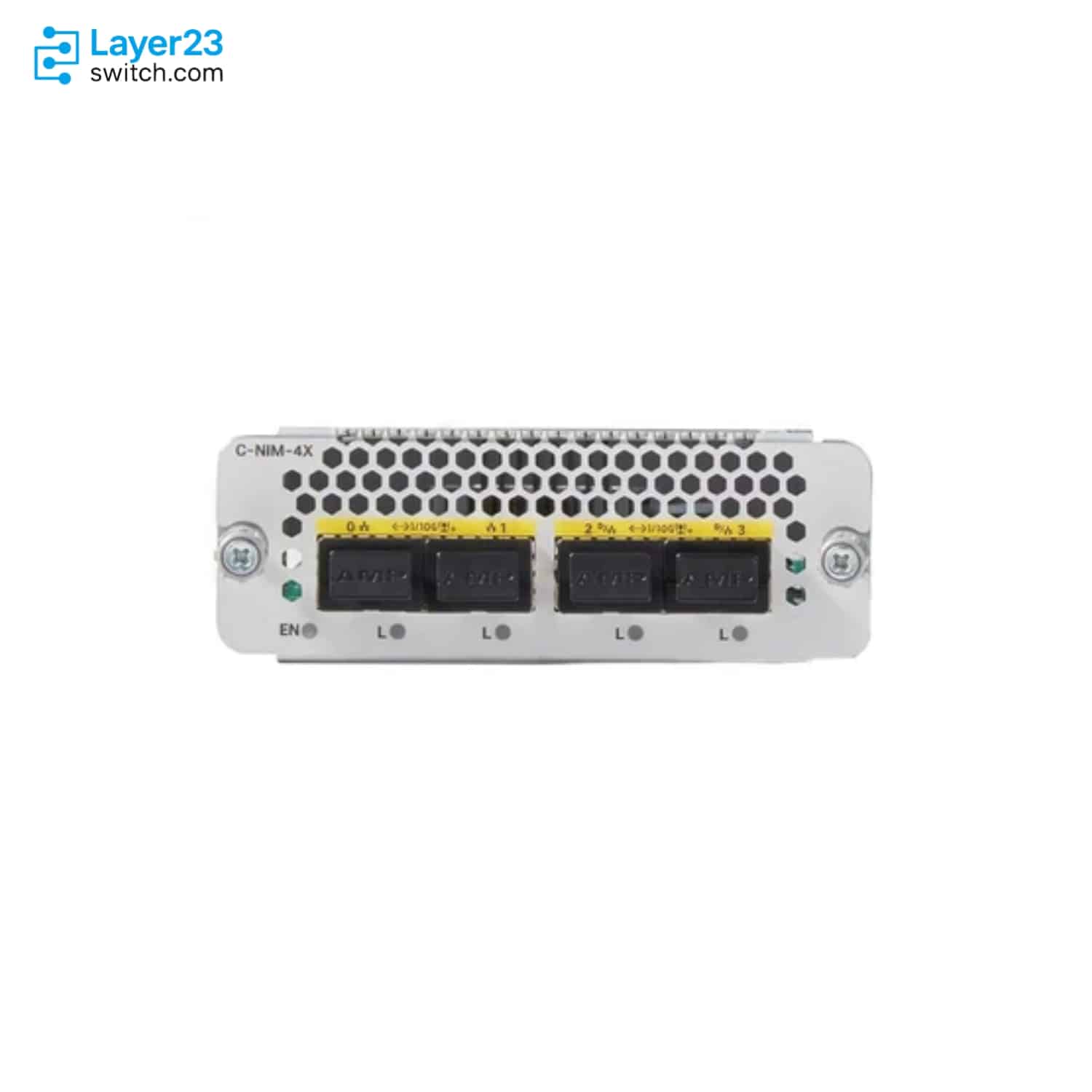

C-NIM-4X Description
The C-NIM-4X is a Cisco Catalyst 8000 Series LAN/WAN network interface module for Catalyst 8300 Series edge platforms that need SFP-based LAN or WAN ports. The module has four SFP/SFP+ ports at 1G or 10G, a 10G backplane connection and no PoE, and its last two ports can run as native Layer 3 ports with WAN MACsec. The module installs only in a direct NIM slot of a Catalyst 8300 Series router, not in the C-SM-NIM-ADPT carrier, and each chassis takes one LAN/WAN module.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C-NIM-4X |
|
Connection media |
4 x SFP/SFP+ |
|
Port speeds |
1G/10G |
|
Power over Ethernet (PoE) |
Not supported |
|
Native Layer 3 ports |
Configurable on the last two ports |
|
MACsec support |
IEEE 802.1AE; WAN MACsec on the last two flex ports |
|
Supported platforms |
C8300-1N1S-6T, C8300-1N1S-4T2X, C8300-2N2S-6T, C8300-2N2S-4T2X |
|
Installation slot |
NIM slot only; C-SM-NIM-ADPT carrier not supported |
|
LAN/WAN modules per chassis |
1 |
|
Minimum Cisco IOS XE release |
17.11.1 Universal Image |
Application Scenarios
At a branch where the service provider hands off a 10G circuit on SFP+, one of the module’s last two ports runs as a routed Layer 3 interface on the Catalyst 8300 and can encrypt that WAN link with MACsec.
A small branch office can use the four SFP/SFP+ ports as Layer 2 switch ports on the router itself, trunking voice and data VLANs to downstream switches over 1G or 10G links with one fewer device to manage.
Product Comparison
|
Parameter |
C-NIM-4X | ||
|---|---|---|---|
|
Port speeds |
1G/10G |
10M/100M/1G |
100M/1G/2.5G |
|
Connection media |
4x SFP/SFP+ |
8x RJ-45 |
8x RJ-45 |
|
Power over Ethernet (PoE) |
No |
No |
Yes, 802.3af, 802.3at and 802.3bt compliant |
|
10G backplane connection |
Yes |
Yes |
Yes |
|
Catalyst 8000 edge platforms family support |
Catalyst 8300 Series |
Catalyst 8300 and 8200 Series and 8200L |
Catalyst 8300 and 8200 Series and 8200L |
|
Minimum required Cisco IOS version |
17.11.1 |
17.11.1 |
17.12.2 |
C-NIM-4X is the SFP-based module of this group: its four SFP/SFP+ ports run at 1G or 10G, while C-NIM-8T and C-NIM-8M each carry eight RJ-45 copper ports. Sites that connect copper endpoints at 10M, 100M or 1G order C-NIM-8T, and sites that must power access points or other endpoints from the router need C-NIM-8M, the only one of the three with 802.3af, 802.3at and 802.3bt PoE and the only one at 2.5G. C-NIM-4X installs only in Catalyst 8300 Series routers, so a Catalyst 8200 or 8200L host is limited to the two RJ-45 modules. The PoE model also needs a later release, Cisco IOS XE 17.12.2 against 17.11.1 for the other two.
Ordering Checklist
- Catalyst 8300 hosts: C8300-1N1S-6T, C8300-1N1S-4T2X, C8300-2N2S-6T and C8300-2N2S-4T2X, with the module in a direct NIM slot. Catalyst 8200 and 8200L routers and the C-SM-NIM-ADPT carrier do not support it.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C-NIM-4X | Cisco ordering description | Cisco 4-port 1G/10G LAN/WAN with IEEE 802.1AE MACsec |
| Spare PID | C-NIM-4X= | Form factor | Network Interface Module (NIM) |
| Connection media | 4 x SFP/SFP+ | Port speeds | 1G/10G |
| Power over Ethernet (PoE) | Not supported | 10G backplane connection | Yes |
| MACsec support | IEEE 802.1AE | WAN MACsec ports | Last two flex ports |
| 10G SFP+ WAN MACsec peers | Up to 16 per port | LAN MACsec | Switch-to-switch supported; switch-to-host not supported |
| Native Layer 3 ports | Configurable on the last two ports | Flex port default mode | Layer 2; converted to Layer 3 with no switchport |
| Layer 3 features | Feature parity with Catalyst 8300 Series onboard ports | First-hop redundancy on VLAN interfaces | HSRP, VRRP and GLBP |
| Layer 2 features | 802.1Q trunking, 802.1D STP, PVST, VTP (client, server, transparent), voice VLAN, IGMP snooping, 802.1X with CoA, SPAN, port security | Layer 2 port-channels | Not supported |
| Maximum number of VLANs supported | 1024 | Maximum number of VLAN IDs | 4095 |
| QoS queues | Eight per port; strict priority by default, SDWRR scheduling | Spanning tree protocol instances | 1 per VLAN (max 128) |
| Secure MAC addresses | Up to 100 | Jumbo frames | 8 kB |
| Jumbo MTU on C8300-2N2S-4T2X and C8300-2N2S-6T | 2048 | 1000BASE-X SFP negotiation | Must match the peer (both auto or both non-auto) |
| Supported platforms | C8300-1N1S-6T, C8300-1N1S-4T2X, C8300-2N2S-6T, C8300-2N2S-4T2X | Catalyst 8200 and 8200L support | Not supported |
| Installation slot | NIM slot only | C-SM-NIM-ADPT carrier support | Not supported |
| LAN/WAN modules per chassis | 1 | NIM slots on host | 1 on C8300-1N1S models; 2 on C8300-2N2S models |
| Minimum Cisco IOS XE release | 17.11.1 Universal Image | Cisco Catalyst SD-WAN manager release | 20.11 or later |
| OIR support | Yes | Flex-Switch mode activation | Router reload after first insertion |
| Dimensions (H x W x D) | 1.25 x 3.50 x 7.24 in. (32 x 89 x 184 mm) | Weight | 6.9 oz (195 g) |
| Operating temperature at sea level | -5°C to 55°C (23°F to 131°F) | Storage temperature | -40°C to 70°C (-38°F to 150°F) |
| Relative humidity | 5 to 95% | Operating humidity | 5 to 85% |
