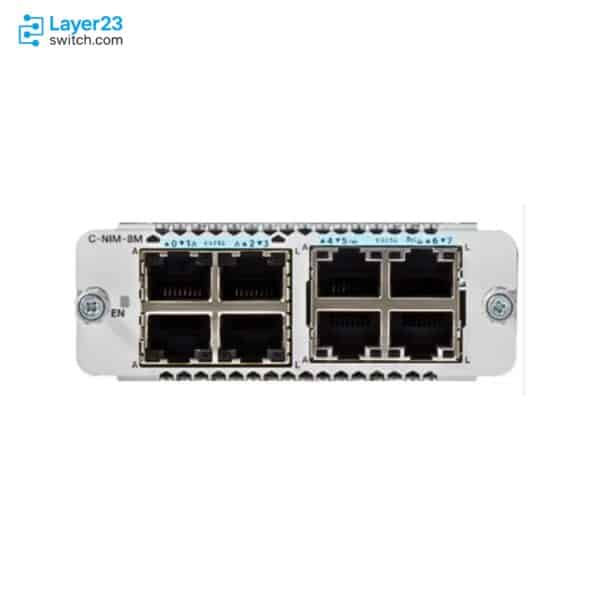

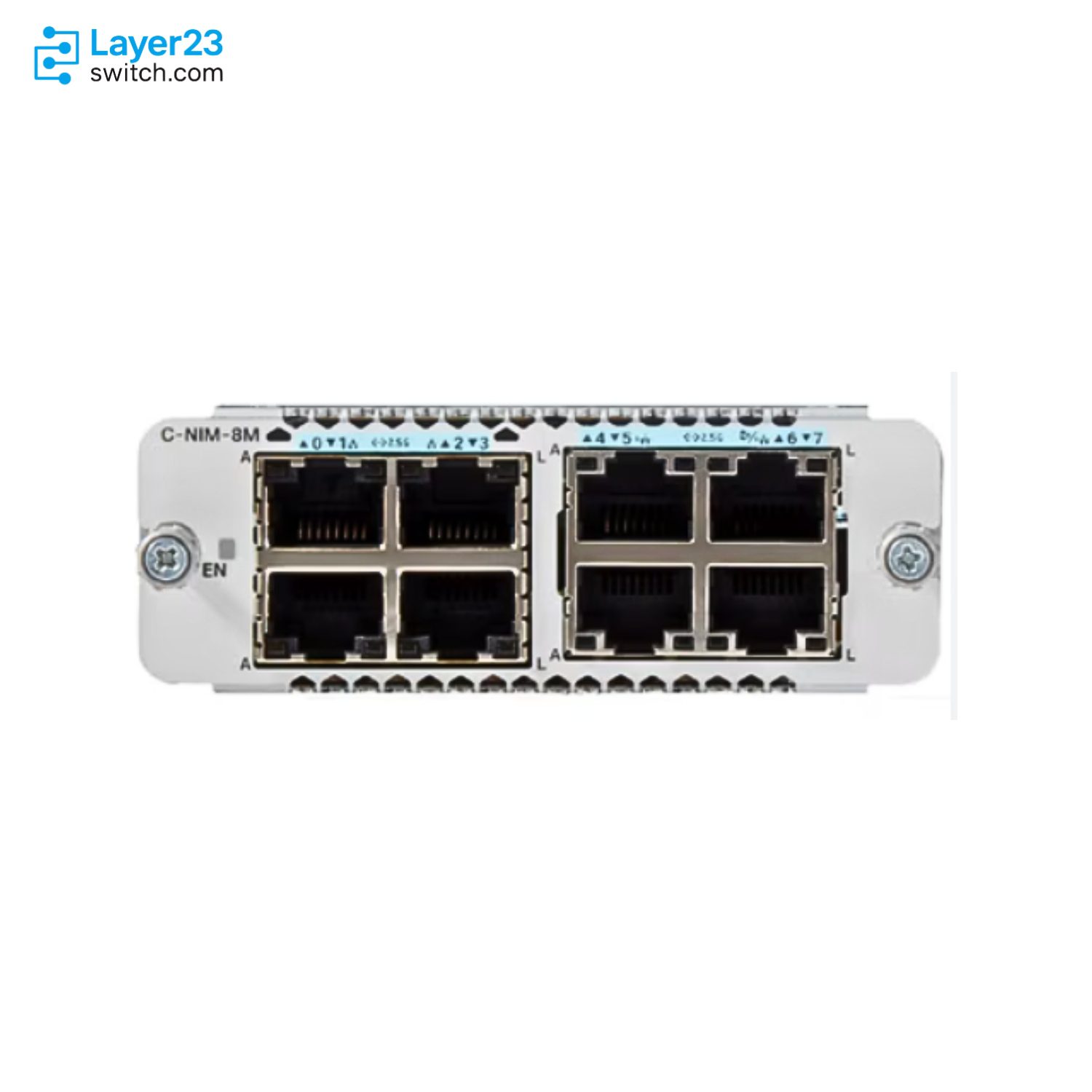

C-NIM-8M – 8×2.5G RJ-45 mGig – Four 90W UPOE+ Ports – Catalyst 8000
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C-NIM-8M Description
C-NIM-8M is a Cisco Catalyst 8000 Series 8-port mGig RJ-45 LAN/WAN Network Interface Module for Catalyst 8300, Catalyst 8200, and Catalyst 8200L edge platforms, used to add copper LAN/WAN expansion ports to branch router deployments. It provides eight RJ-45 interfaces supporting 100M, 1G, and 2.5G BASE-T, does not support 10M operation, supports IEEE 802.1AE MACsec, and provides 802.3af/802.3at/802.3bt PoE on ports 4 through 7 with up to 90W UPOE+ per PoE port when configured on the supported Cisco IOS XE 17.12.2 or later platform baseline.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C-NIM-8M |
|
Product type |
8-port mGig RJ-45 LAN/WAN Network Interface Module |
|
Cisco ordering description |
Cisco 8-port 100M/1G/2.5G LAN/WAN with PoE and IEEE 802.1AE MACsec |
|
Form factor |
Network Interface Module (NIM) |
|
Connection media |
8 x RJ-45 |
|
Supported speeds |
100M/1G/2.5G BASE-T; 10M is not supported |
|
PoE support |
802.3af, 802.3at, and 802.3bt compliant on four ports |
|
UPOE+ power |
Up to 90W per PoE port on ports 4 to 7 |
|
Native Layer 3 ports |
Last two ports configurable as native Layer 3 ports with WAN MACsec |
|
Supported platform family |
Catalyst 8300 Series, Catalyst 8200 Series, and Catalyst 8200L |
|
Minimum Cisco IOS XE release |
IOS XE 17.12.2 Universal Image |
|
C-SM-NIM-ADPT support |
Not supported |
Application Scenarios
Deploy C-NIM-8M when a Catalyst 8200 or Catalyst 8300 router needs eight RJ-45 LAN/WAN ports that can operate at 100 Mbps, 1 Gbps, or 2.5 Gbps.
Use this SKU when four connected endpoints need Cisco UPOE+ class power from the router module, such as Wi-Fi 6 access points or cellular gateways using ports 4 through 7.
Choose C-NIM-8M when the design uses the two highest-numbered ports as routed Layer 3 ports and requires WAN MACsec support on those routed interfaces.
Product Comparison
|
Parameter |
C-NIM-8M | ||
|---|---|---|---|
|
Product type |
8-port mGig RJ-45 LAN/WAN NIM with PoE |
8-port RJ-45 LAN/WAN NIM |
4-port SFP/SFP+ LAN/WAN NIM |
|
Form factor |
Network Interface Module (NIM) |
Network Interface Module (NIM) |
Network Interface Module (NIM) |
|
Connection media |
8 x RJ-45 |
8 x RJ-45 |
4 x SFP/SFP+ |
|
Supported Ethernet speeds |
100M/1G/2.5G BASE-T; 10M not supported |
10M/100M/1G BASE-T |
1G/10G SFP/SFP+ with listed 100M optic support |
|
Power over Ethernet |
Yes; 802.3af, 802.3at, and 802.3bt compliant |
No |
No |
|
PoE port scope |
Ports 4 to 7 support up to 90W per port |
No PoE ports listed |
No PoE ports listed |
|
MACsec support |
IEEE 802.1AE MACsec; WAN MACsec on native Layer 3 ports |
IEEE 802.1AE MACsec; WAN MACsec on native Layer 3 ports |
IEEE 802.1AE MACsec; WAN MACsec on native Layer 3 ports |
|
Native Layer 3 ports |
Configurable on the last two ports |
Configurable on the last two ports |
Configurable on the last two ports |
|
Catalyst platform support |
Catalyst 8300 Series, Catalyst 8200 Series, and Catalyst 8200L |
Catalyst 8300 Series, Catalyst 8200 Series, and Catalyst 8200L |
Catalyst 8300 Series |
|
Minimum Cisco IOS XE version |
17.12.2 |
17.11.1 |
17.11.1 |
|
Number of LAN/WAN modules per chassis |
1 |
1 |
1 |
|
C-SM-NIM-ADPT carrier support |
No |
No |
No |
|
10G backplane connection |
Yes |
Yes |
Yes |
|
Cisco ordering description |
Cisco 8-port 100M/1G/2.5G LAN/WAN with PoE and IEEE 802.1AE MACsec |
Cisco 8-port 10M/100M/1G LAN/WAN with IEEE 802.1AE MACsec |
Cisco 4-port 1G/10G LAN/WAN with IEEE 802.1AE MACsec |
- In a C-NIM-8M vs C-NIM-8T comparison, the table-backed difference is mGig and PoE: C-NIM-8M supports 100M/1G/2.5G BASE-T with four 90W UPOE+ ports, while C-NIM-8T supports 10M/100M/1G RJ-45 without PoE.
- The C-NIM-8M difference from C-NIM-4X is media and platform scope; C-NIM-8M is the eight-port RJ-45 option for Catalyst 8300, 8200, and 8200L, while C-NIM-4X is the four-port SFP/SFP+ option for Catalyst 8300.
- For buyers deciding which model to choose, the C-NIM-8M comparison should start with required copper speed, PoE endpoint count, platform family, and whether legacy 10M or SFP/SFP+ media is part of the approved bill.
Selection Guide
1. Choose it for eight mGig RJ-45 ports
Select C-NIM-8M when the router bill needs eight copper LAN/WAN ports that can run at 100 Mbps, 1 Gbps, or 2.5 Gbps.
2. Use C-NIM-8T for legacy 10M copper
Move to C-NIM-8T when the requirement is eight RJ-45 ports with 10M/100M/1G support and no PoE requirement.
3. Use C-NIM-4X for SFP or SFP+ media
Choose C-NIM-4X instead when the confirmed platform is Catalyst 8300 and the design requires four 1G/10G pluggable SFP/SFP+ interfaces.
4. Validate software, slot, and PoE boundaries
Confirm IOS XE 17.12.2 or later, a direct NIM slot, no C-SM-NIM-ADPT placement, one LAN/WAN module per chassis, and the four-port PoE plan before releasing the hardware line.
PoE Power Planning
|
Planning Item |
Confirmed Value |
Order Check |
|---|---|---|
|
PoE-capable SKU |
C-NIM-8M |
Confirms the order is for the mGig LAN/WAN NIM with PoE rather than C-NIM-8T or C-NIM-4X |
|
PoE ports |
Ports 4, 5, 6, and 7 |
Match powered endpoints only to the four Cisco-documented PoE-capable ports |
|
PoE standards |
IEEE 802.3af, 802.3at, and 802.3bt |
Align the endpoint power class with the Cisco-supported PoE standards |
|
Per-port power |
Up to 90W per PoE port |
Do not size the design as if all eight RJ-45 ports provide PoE |
|
Inline power default |
Default maximum value 90000 in Cisco configuration guidance |
Keep interface power limits consistent with the documented PoE configuration model |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact SKU |
C-NIM-8M |
Separates the 8-port mGig PoE LAN/WAN NIM from C-NIM-8T and C-NIM-4X |
|
Host platform |
Catalyst 8300 Series, Catalyst 8200 Series, or Catalyst 8200L |
Cisco lists C-NIM-8M support on these Catalyst 8000 edge platforms |
|
Software baseline |
Cisco IOS XE 17.12.2 Universal Image or later |
Matches Cisco’s minimum software release for this module |
|
Port and speed requirement |
Eight RJ-45 ports at 100M/1G/2.5G with no 10M support |
Prevents using C-NIM-8M where a 10BASE-T circuit still has to be supported |
|
PoE plan |
Ports 4 to 7 support 802.3bt 90W PoE |
Keeps powered AP or gateway placement within the official port scope |
|
Layer 3 and MACsec plan |
Last two ports can be configured as native Layer 3 ports with WAN MACsec |
Aligns routed WAN interface design with the module’s documented flex-port behavior |
|
Slot and carrier boundary |
Use a direct NIM slot; C-SM-NIM-ADPT is not supported |
Prevents placing this module in the unsupported SM-NIM carrier path |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C-NIM-8M | Product type | 8-port mGig RJ-45 LAN/WAN Network Interface Module |
| Cisco ordering description | Cisco 8-port 100M/1G/2.5G LAN/WAN with PoE and IEEE 802.1AE MACsec | Ordering form | C-NIM-8M (=) |
| Form factor | Network Interface Module (NIM) | LAN/WAN modules per chassis | 1 |
| Connection media | 8 x RJ-45 | Supported speeds | 100M/1G/2.5G BASE-T |
| 10M support | 10M is not supported on C-NIM-8M | PoE support | 802.3af, 802.3at, and 802.3bt compliant |
| PoE-capable ports | Ports 4, 5, 6, and 7 | UPOE+ power | Up to 90W per PoE port |
| Default inline power value | 90000 | MACsec support | IEEE 802.1AE MACsec |
| Native Layer 3 ports | Configurable on the last two ports | WAN MACsec scope | Supported on native Layer 3 ports |
| Layer 3 features | Feature parity with Catalyst 8300 Series onboard ports | 10G backplane connection | Yes |
| Supported Catalyst platforms | Catalyst 8300 Series, Catalyst 8200 Series, and Catalyst 8200L | C8200L support note | Yes with 1G uplink |
| Minimum Cisco IOS XE version | 17.12.2 Universal Image | C-SM-NIM-ADPT support | Not supported |
| Installation slot | Direct NIM slot only | Online insertion and removal | Yes |
| Dimensions | 1.25 x 3.50 x 7.24 in. (32 x 89 x 184 mm) | Weight | 10.7 oz (300 g) |
| Operating temperature | 23 to 131 degrees F (-5 to 55 degrees C) | Storage temperature | -38 to 150 degrees F (-40 to 70 degrees C) |
| Relative humidity | 5% to 95% | Operating humidity | 5% to 85% |
