C-NIM-1X Description

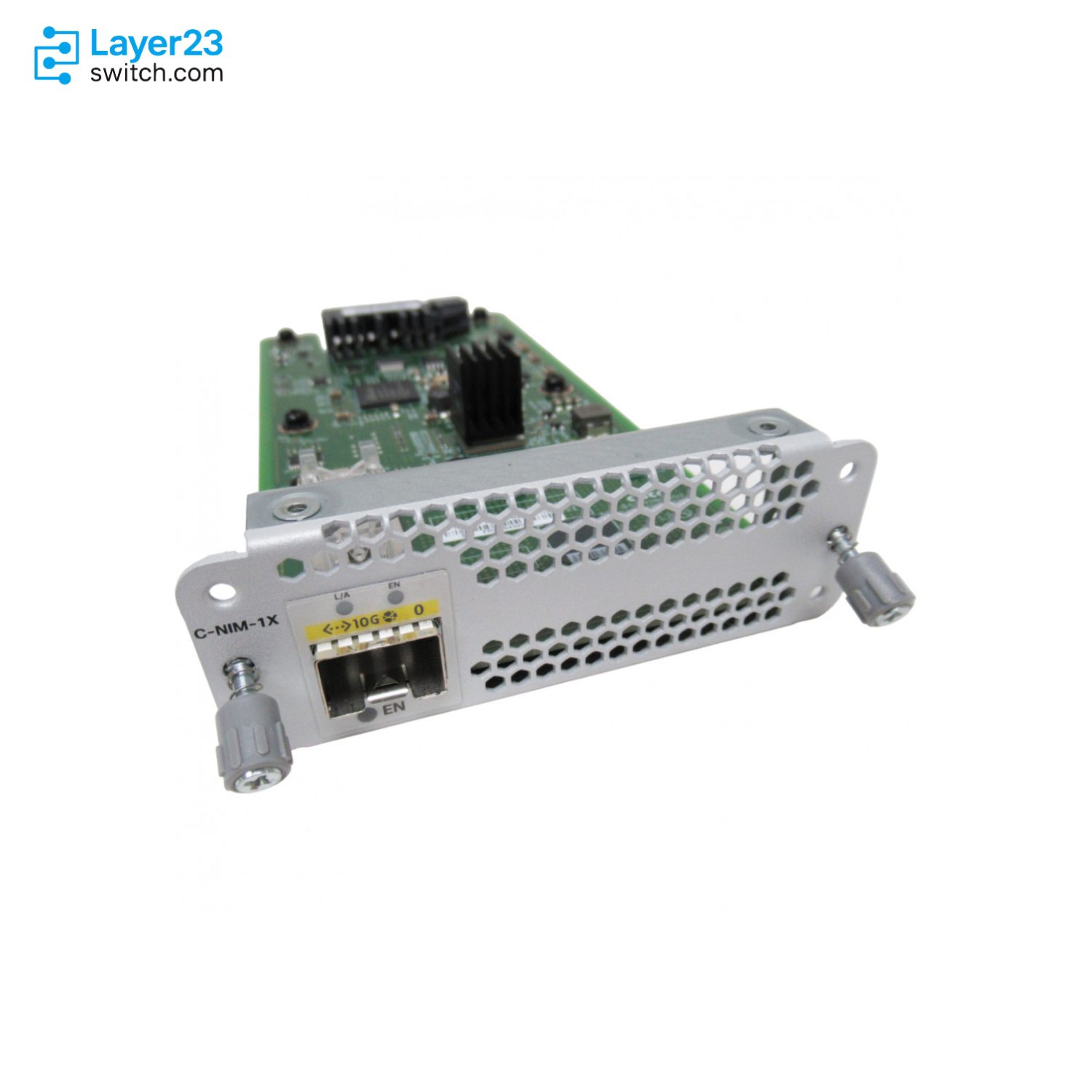

The C-NIM-1X is a Cisco Catalyst 8000 Gigabit Ethernet WAN module for Catalyst 8300 Series edge routers that terminate 10G Ethernet WAN circuits. The module has one SFP+ port that runs at 1G or 10G as a routed Layer 3 interface, reaches the forwarding engine over a non-oversubscribed 10G backplane link and supports 256-bit WAN MACsec. The module requires Cisco IOS XE 17.3.2, does not install in Catalyst 8200 or 8200L routers, and accepts neither copper RJ-45 SFPs nor 100M or 10M SFP modules.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C-NIM-1X |
|
Connection media |
1x SFP/SFP+ |
|
WAN connection |
1000BASE-X SFP or 10-Gbps SFP+ |
|
Port mode |
Routed Layer 3 WAN port |
|
MACsec support (IEEE 802.1AE) |
256-bit |
|
10G backplane connection to forwarding engine |
Yes, non-oversubscribed |
|
Power over Ethernet |
No |
|
Catalyst 8000 edge platforms supported |
Catalyst 8300 Series |
|
Installation |
NIM slot or C-SM-NIM-ADPT carrier |
|
Required Cisco IOS XE release |
17.3.2 |
Application Scenarios
At a regional office where the service provider delivers a 10G Ethernet circuit on fiber, the module’s SFP+ port terminates the circuit as a routed interface on the Catalyst 8300 and can encrypt the link with 256-bit WAN MACsec.
A Catalyst 8300 at the edge of a small server room can connect to the top-of-rack switch over a 10G optic or direct-attach cable. VLAN trunks from that switch end on the router port, and the router routes every packet it receives there.
Product Comparison
|
Parameter |
C-NIM-1X | |||
|---|---|---|---|---|
|
Connection media |
1x SFP/SFP+ at 1G or 10G |
4x SFP/SFP+ at 1G or 10G |
2x RJ-45/SFP groups at 100M or 1G, one port per group |
1x RJ-45 at 100M, 1G or 2.5G |
|
Power over Ethernet |
No |
No |
No |
90W IEEE 802.3af/at/bt |
|
MACsec support (IEEE 802.1AE) |
256-bit WAN MACsec |
WAN MACsec on the last two ports |
256-bit WAN MACsec |
No |
|
10G backplane connection to forwarding engine |
Yes |
Yes |
No |
No |
|
Catalyst 8000 edge platforms supported |
Catalyst 8300 Series, NIM slot or C-SM-NIM-ADPT |
Catalyst 8300 Series, NIM slot only |
Catalyst 8300 and 8200 Series, 8200L |
Catalyst 8300 and 8200 Series, 8200L |
|
Required Cisco IOS XE release |
17.3.2 |
17.11.1 |
17.6.1 |
17.6.1 |
C-NIM-1X and C-NIM-4X both run SFP+ optics at 1G or 10G over a 10G backplane connection, but C-NIM-1X carries a single routed WAN port with 256-bit MACsec, while C-NIM-4X has four ports with WAN MACsec limited to the last two. A Catalyst 8300 that needs more than one fiber port in a single NIM slot takes the four-port module, which requires Cisco IOS XE 17.11.1 against 17.3.2 and fits only a direct NIM slot. Catalyst 8200 and 8200L routers take neither SFP+ module, so a 1G fiber or copper circuit there runs on C-NIM-2T, which keeps 256-bit MACsec. A 2.5G copper handoff, or an endpoint powered from the router at up to 90W, needs C-NIM-1M, which has no MACsec.
Ordering Checklist
- Catalyst 8300 hosts: C8300-1N1S-4T2X, C8300-1N1S-6T, C8300-2N2S-4T2X and C8300-2N2S-6T take the module in a NIM slot. Catalyst 8200, 8200L and Cisco 4000 Series ISR routers do not support it.
- SM slot through C-SM-NIM-ADPT: Add a C-SM-NIM-ADPT carrier when the module goes in an SM slot or must be removable with the router running. A direct NIM slot allows online insertion only, not online removal.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C-NIM-1X | Cisco ordering description | Cisco 1-port 10-Gbps/1-Gbps SFP+ WAN, Network Interface Module |
| Spare PID | C-NIM-1X= | Form factor | NIM |
| Connection media | 1x SFP/SFP+ | WAN connection | 1000BASE-X SFP or 10-Gbps SFP+ |
| Port mode | Routed Layer 3 port; the host router routes all traffic entering the module | Layer 2 switching | Not supported between module ports or to other router ports; Layer 2 trunks from external switches terminate on the port |
| Feature support | Identical to the onboard Gigabit Ethernet and SFP/SFP+ ports of the Catalyst 8000 edge platforms | Cisco SD-WAN support | Yes, from day 1, including vManage |
| MACsec support (IEEE 802.1AE) | 256-bit WAN MACsec | 10G backplane connection to forwarding engine | Yes; 10G WAN connection is non-oversubscribed |
| Power over Ethernet | No | Unsupported SFP types | SFPs for RJ-45 copper media; 100BASE and 10BASE SFP modules |
| Supported 10G SFP+ modules | SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-LRM, SFP-10G-BXD-I, SFP-10G-BXU-I, SFP-10G-BX40D-I, SFP-10G-BX40U-I, SFP-H10GB-ACU-7M, SFP-H10GB-ACU-10M, DWDM-SFP10G | Supported 1G SFP modules | SFP-GE-S, SFP-GE-L, SFP-GE-Z, GLC-SX-MM, GLC-SX-MMD, GLC-LH-SM, GLC-LH-SMD, GLC-ZX-SM, GLC-ZX-SMD, GLC-EX-SMD, GLC-BX-D, GLC-BX-U, GLC-BX40-D-I, GLC-BX40-U-I, GLC-BX40-DA-I, GLC-BX80-D-I, GLC-BX80-U-I, GLC-LX-SM-RGD, DWDM-SFP |
| Catalyst 8000 edge platforms supported | All Catalyst 8300 Series platforms: C8300-1N1S-4T2X, C8300-1N1S-6T, C8300-2N2S-4T2X, C8300-2N2S-6T | Catalyst 8200 series support | Not supported, including Catalyst 8200L |
| Cisco 4000 series ISR | Not compatible | NIM slots on host | 1 on C8300-1N1S-4T2X and C8300-1N1S-6T; 2 on C8300-2N2S-4T2X and C8300-2N2S-6T |
| C-SM-NIM-ADPT carrier support | Supported; two NIMs per carrier over two 10-Gbps backplane links | Maximum NIMs with C-SM-NIM-ADPT | 6 on C8300-2N2S-4T2X and C8300-2N2S-6T; 3 on C8300-1N1S-4T2X and C8300-1N1S-6T |
| OIR support | Online insertion only in a NIM slot; full OIR in C-SM-NIM-ADPT | Required Cisco IOS XE release | 17.3.2 |
| LED indicators | EN system status; SFP+ status | Dimensions (H x W x D) | 1.25 x 3.50 x 7.24 in. (32 x 89 x 184 mm) |
| Weight | 240 grams | Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | -40°C to 70°C (-38°F to 150°F) | Relative humidity | 5% to 95% |
| Operating humidity | 5% to 85% |
