C8500L-8S4X – 8x1G SFP + 4×1/10G SFP+ Ports – 1RU Edge Router – 19 Gbps SD-WAN IPsec
Shop Expert-Recommended Accessories for the C8500L-8S4X
Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.-
SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMFOriginal price was: $853.95.$52.00Current price is: $52.00. -
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMFOriginal price was: $2,439.88.$150.00Current price is: $150.00. -
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $1,260.58.$95.80Current price is: $95.80. -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $570.10.$70.00Current price is: $70.00. -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $633.46.$59.00Current price is: $59.00.
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
C8500L-8S4X Description
The C8500L-8S4X is a Cisco Catalyst 8500L Edge Platform router for SD-WAN aggregation sites that terminate 1G and 10G fiber circuits. The 1RU router has eight 1G SFP ports and four 1/10GE SFP+ ports, up to 19 Gbps of SD-WAN IPsec at 1400 bytes across 6000 overlay tunnels, and 16 GB of DRAM upgradable to 64 GB. Every data port is an SFP or SFP+ cage, and the router runs only under a Cisco DNA Advantage subscription.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C8500L-8S4X |
|
Data ports |
8 x 1G SFP and 4 x 1/10G SFP+ |
|
SD-WAN IPsec throughput |
Up to 19 Gbps (1400 bytes); up to 10 Gbps (IMIX) |
|
SD-WAN overlay tunnels |
6000; 8000 from Cisco IOS XE 17.12.1 |
|
IPv4 forwarding throughput |
Up to 39 Gbps (1400 bytes, autonomous mode) |
|
IPsec throughput (autonomous mode) |
Up to 19 Gbps (1400 bytes); 4000 IPsec SVTI tunnels |
|
DRAM |
16 GB default; 32 GB or 64 GB upgrade |
|
Storage |
16 GB M.2 USB default; 32 GB M.2 USB or 2 TB M.2 NVMe optional |
|
Power supply selection |
2 x PWR-CH1-400WAC 400W AC, 2 x PWR-CH1-400WDC 400W DC or 2 x PWR-CC1-400WHV HVAC/HVDC |
|
Form factor |
1RU, 17 lb with two AC supplies and fan tray |
|
License |
Cisco DNA Advantage subscription, Tier 2 or Tier 3 |
|
Minimum software release |
Cisco IOS XE 17.4.1a; Catalyst SD-WAN Manager 20.4.1 |
Product Performance
Key Features
The eight ports in Bay 0 take SFP optics and stop at 1G. The four ports in Bay 1 accept either a 1G SFP or a 10G SFP+; a 10G SFP+ link does not auto-negotiate, while a 1G SFP in the same port does.
Encryption alone is not the limiting number once inspection is switched on. With NAT, NGFW, IPS, URL filtering and AMP applied to direct internet traffic, the router carries up to 4 Gbps. A mix of 50% IQDF-encrypted traffic and 50% secured internet traffic reaches 5.9 Gbps, both tested on Cisco IOS XE 17.12.2.
The C8000-HSEC export license ships with the hardware and is bound to the chassis serial number. Without it the router would be held to 1000 secure tunnels and 250 Mbps of one-way encrypted traffic, far below the 19 Gbps IPsec rating.
Packet processing runs on an x86 architecture with flow-based forwarding. Data plane cores can be assigned to I/O or to the service plane by configuration.
On the default 16 GB of DRAM the router holds 4M IPv4 and 4M IPv6 routes, 2M NAT sessions and 2M firewall sessions across 8000 VRFs. Memory can grow to 32 GB or 64 GB, and a 2 TB M.2 NVMe drive adds local storage.
Two supplies run as N+1 in AC, DC or HVAC/HVDC form, and AC and DC units cannot share one chassis. In IOS XE routing mode the software side can also run two IOS XE processes on the same router for control-plane redundancy.
Application Scenarios
At a regional hub, the router terminates the IPsec overlay tunnels from surrounding branch routers and hands the traffic to the data center over its 10G SFP+ ports.
A headquarters internet edge can break traffic out locally and run NAT, NGFW, IPS and URL filtering on the same router that connects the provider circuits.
Where several carrier circuits arrive as 1G fiber hand-offs, the eight SFP ports take them directly while the SFP+ ports link the router to the campus core.
Product Comparison
|
Parameter |
C8500L-8S4X | ||
|---|---|---|---|
|
Interfaces |
8-port 1GE SFP, 4-port 1/10GE SFP+ |
12-port 1/10GE SFP+ |
2 x 10G SFP+, 4 x 1G RJ-45 |
|
SD-WAN IPsec throughput (1400 Bytes, clear text) |
Up to 19 Gbps |
Up to 51 Gbps |
Up to 18.8 Gbps |
|
SD-WAN IPsec throughput (IMIX, clear text) |
Up to 10 Gbps |
Up to 22.6 Gbps |
7.6 Gbps |
|
IPv4 forwarding throughput (1400 bytes) |
Up to 39 Gbps |
Up to 118 Gbps |
Up to 19.7 Gbps |
|
SD-WAN overlay tunnels scale |
6000 (8000 from IOS XE 17.12.1) |
8000 |
6,000 |
|
Module slots |
Not applicable |
Not applicable |
2 SM, 2 NIM, 1 PIM |
|
Memory (DRAM) |
16 GB default, up to 64 GB |
16 GB default, up to 64 GB |
8 GB default, up to 32 GB |
|
Power supplies |
2 x 400W AC, DC or HVAC/HVDC |
2 x PWR-CH1-750WACR AC or PWR-CH1-950WDCR DC |
2 x PWR-CC1-650WAC 650W AC |
C8500L-8S4X and C8500-12X are both 1RU Catalyst 8500 Series routers, but C8500-12X has twelve 1/10GE SFP+ ports against four and reaches 51 Gbps of SD-WAN IPsec against 19 Gbps. A hub that needs more than four 10G ports or more than 19 Gbps of encrypted traffic belongs on C8500-12X. C8500-12X also carries 8000 overlay tunnels against 6000 and forwards up to 118 Gbps against 39 Gbps. C8300-2N2S-4T2X matches the IPsec rating at 18.8 Gbps with only two 10G SFP+ ports, but it adds 2 SM, 2 NIM and 1 PIM slots, so a site that must add interface modules moves to C8300-2N2S-4T2X.
Ordering Checklist
- Cisco DNA subscription: Attach L-DNA-C8500 with a Cisco DNA Advantage term; Tier 2 (DNA-C-T2-A or DNA-P-T2-A) caps aggregate throughput at 2 Gbps, while Tier 3 (DNA-C-T3-A or DNA-P-T3-A) unlocks the platform maximum.
- Software mode: Keep IOSXE-AUTO-MODE for traditional routing or change it to IOSXE-CTRL-MODE for Catalyst SD-WAN.
- Memory and storage: MEM-C8500L-16GB and M2USB-16G are the defaults; change them to MEM-C8500L-32GB or MEM-C8500L-64GB and to M2USB-32G or SSD-M2NVME-2T on the same order when more scale or storage is planned.
- Power supplies and cords: Two supplies ship with the router; select PWR-CH1-400WAC, PWR-CH1-400WDC or PWR-CC1-400WHV, plus the AC power cables for the destination country. AC and DC supplies cannot be mixed in one chassis.
- Rack kit and RFID: C8500L-RM-19-1R and C-RFID-1R are added by default; change the kit to C8500L-RM-23-1R or C8500L-4PT-KIT for other racks, and use C-RFID-NONE to drop the RFID tag.
Optional Add-ons
|
Model |
Description |
|---|---|
|
MEM-C8500L-32GB |
Cisco C8500L 32 GB DRAM upgrade |
|
MEM-C8500L-64GB |
Cisco C8500L 64 GB DRAM upgrade |
|
M2USB-32G |
Cisco Catalyst 8000 Edge 32 GB M.2 USB storage |
|
SSD-M2NVME-2T |
Cisco C8500L 2 TB M.2 NVMe SSD |
|
PWR-CH1-400WAC= |
Cisco C8500L 400W AC power supply, spare |
|
PWR-CH1-400WDC= |
Cisco C8500L 400W DC power supply, spare |
|
PWR-CC1-400WHV= |
Cisco C8500L 400W HVDC power supply, spare |
|
C8500L-FAN-1R= |
Cisco C8500L 1RU fan tray, spare |
|
C8500L-RM-23-1R |
Cisco Catalyst 8500L 23-inch 1RU rack-mount kit |
|
C8500L-4PT-KIT |
Cisco C8500L extension rails and brackets for 4-post mounting |

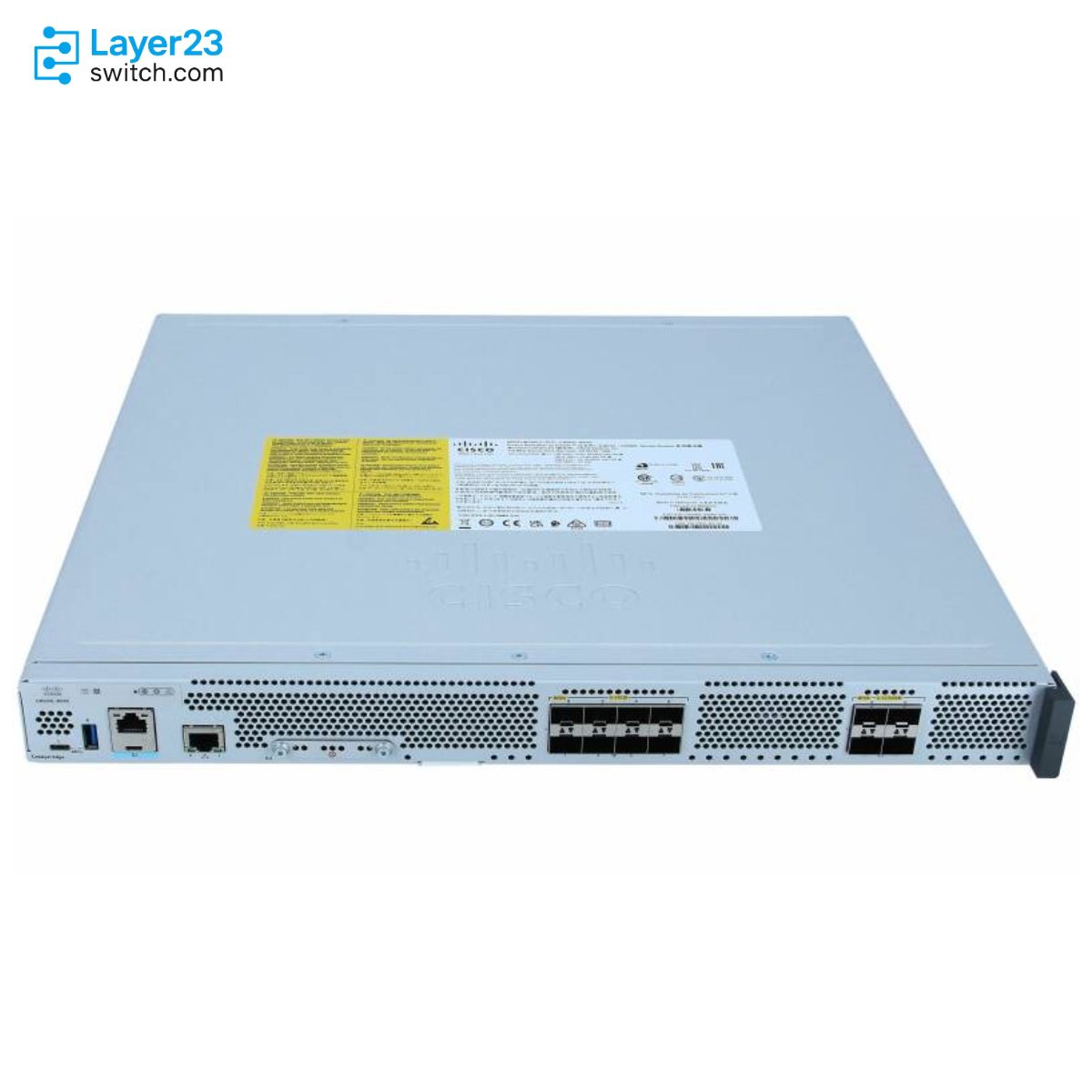

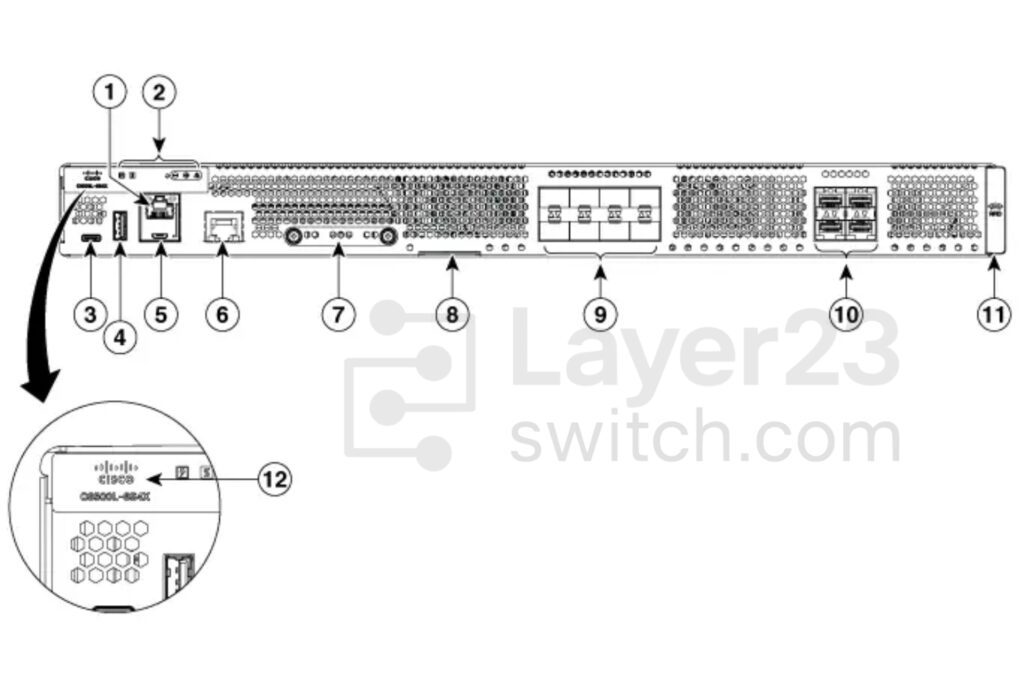

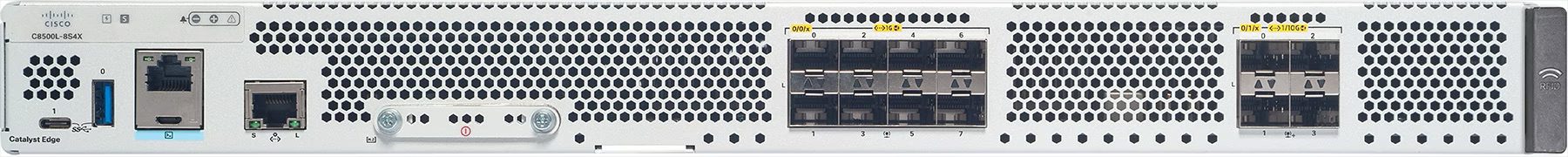

C8500L-8S4X Front View
|
1 |
RJ45 Console Port |
2 |
Status Indicator LEDs |
|
3 |
USB Type C Slot |
4 |
USB Type A Slot |
|
5 |
Micro-USB Console |
6 |
Management Ethernet Port GigabitEthernet0 |
|
7 |
M.2 USB/NVMe Card Slot |
8 |
Device Label Tray |
|
9 |
SFP Ports GigabitEthernet 0/0/0-0/0/7 |
10 |
SFP+ Ports TenGigabitEthernet 0/1/0-0/1/3 |
|
11 |
RFID (Provisionable) |
12 |
Backlit Logo |

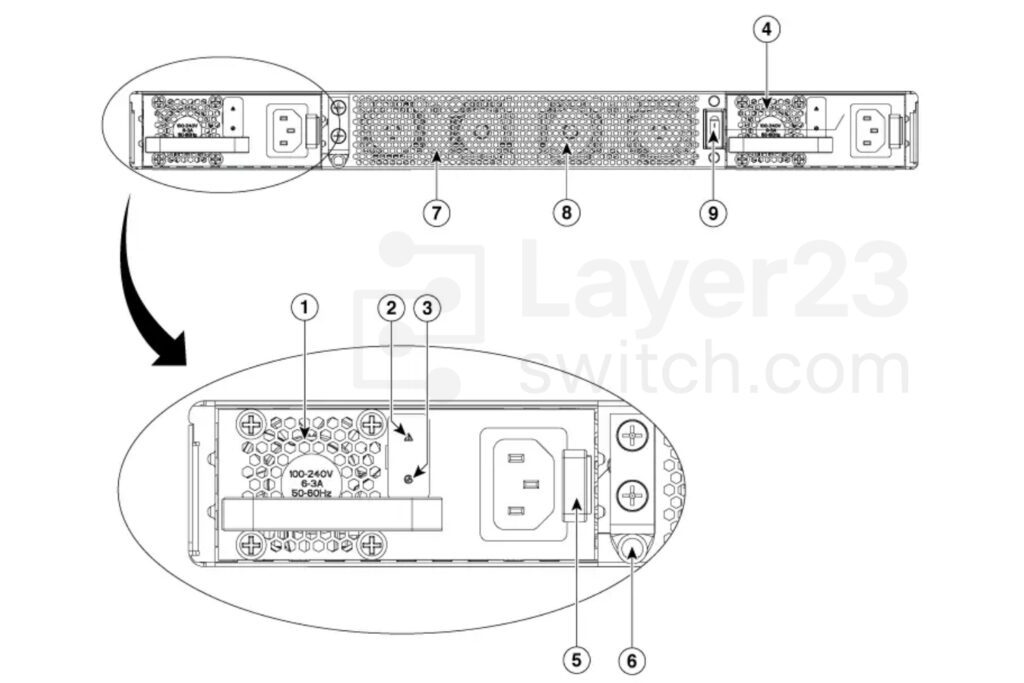

C8500L-8S4X Rear View
|
1 |
Power Supply 1 (PSU1) |
2 |
ALARM Fail LED |
|
3 |
Status LED |
4 |
Power Supply 0 (PSU0) |
|
5 |
PSU Latch |
6 |
Ground Lug |
|
7 |
Fan Tray Vent |
8 |
Internal Fans |
|
9 |
Power Switch |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C8500L-8S4X | Platform architecture | x86-based, flow-based forwarding with dynamic core allocation |
| 1GE SFP ports | 8 (GE 0/0/0-0/0/7), up to 1 Gbps | 1/10GE SFP+ ports | 4 (TenGE 0/1/0-0/1/3), 1G SFP or 10G SFP+ |
| Max 1GE ports | 12 | Max 10GE ports | 4 |
| Management interface | 1 x RJ-45 10/100/1000 Mbps (GigabitEthernet0) | Console port | 1 x RJ-45 and 1 x micro-USB (Type B) |
| USB port | 2 x USB 3.0 Type-A | Rack units | 1RU |
| SD-WAN IPsec throughput (1400 Bytes, clear text) | Up to 19 Gbps | SD-WAN IPsec throughput (IMIX, clear text) | Up to 10 Gbps |
| SD-WAN overlay tunnels scale | 6000; 8000 with Cisco IOS XE 17.12.1 and SD-WAN 20.12.1 | 50% IQDF + 50% (DIA w. NAT + NGFW + IPS + URLF + AMP) | Up to 5.9 Gbps (IOS XE 17.12.2, firewall EMIX) |
| DIA w. NAT + NGFW + IPS + URLF + AMP | Up to 4 Gbps (IOS XE 17.12.2, firewall EMIX) | IPv4 forwarding throughput (1400 bytes) | Up to 39 Gbps |
| IPsec throughput (1400 bytes, clear text) | Up to 19 Gbps | Number of IPsec SVTI tunnels | 4000 |
| Number of ACLs per system | 4000 | Number of IPv4 ACEs per system | 50K |
| Number of IPv4 routes | 4M with default 16 GB | Number of IPv6 routes | 4M with default 16 GB |
| Number of queues | 16K | Number of NAT sessions | 2M |
| Number of firewall sessions | 2M | Number of VRFs | 8000 |
| System memory (DRAM) | 16 GB default (MEM-C8500L-16GB) | DRAM upgrade options | 32 GB (MEM-C8500L-32GB) or 64 GB (MEM-C8500L-64GB) |
| Boot flash storage | 32 GB internal | M.2 storage | 16 GB M.2 USB default (M2USB-16G); 32 GB M.2 USB or 2 TB M.2 NVMe (SSD-M2NVME-2T) optional |
| Power supply configuration | Two 400W supplies installed, N+1 redundancy; AC and DC not mixed | Power supply options | PWR-CH1-400WAC 400W AC; PWR-CH1-400WDC 400W DC; PWR-CC1-400WHV HVAC/HVDC, 500W output |
| Input voltage | AC: 85 to 264 VAC; DC: -40 to -72 VDC; HVAC: 100 to 277 VAC; HVDC: 240 to 380 VDC | Heat dissipation | 511 BTU/hr; maximum 1,057 BTU/hr |
| Airflow | Air intake on the I/O side; internal fans always on | Fan modules | 1RU fan tray, spare C8500L-FAN-1R= |
| Operating temperature | 0°C to 40°C (32°F to 104°F) | Storage temperature | -40°C to 70°C (-40°F to 150°F) |
| Relative humidity | 10 to 85% operating; 5 to 95% nonoperating and storage, noncondensing | Operating altitude | -500 to 10,000 feet (-152 to 3048 meters) |
| NEBS criteria levels | GR-1089 and GR-63 | Sound pressure | Typical 57 dBA; maximum 76 dBA |
| Sound power | Typical 64 dBA; maximum 82 dBA | Dimensions (H x W x D) | 1.73 x 17.50 x 16.25 in. |
| Weight | 17 lb with 2x AC power supplies and fan tray | MTBF | 240,200 hours |
| Rack installation | Two-post and four-post; 19-inch kit by default, 23-inch and 4-post kits optional | Software redundancy | Two IOS XE processes on one device (IOS XE routing mode) |
| Minimum software requirement | Cisco IOS XE 17.4.1a; Catalyst SD-WAN Manager 20.4.1 | Software modes | Autonomous (IOSXE-AUTO-MODE, default) or controller (IOSXE-CTRL-MODE) |
| License | Cisco DNA Advantage subscription (L-DNA-C8500), Tier 2 up to 2G aggregate or Tier 3 platform maximum; 3-, 5- or 7-year terms | HSEC license | C8000-HSEC included by default, tied to chassis serial number |
| Safety certifications | UL 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1; IEC 60950-1; AS/NZS 60950-1; GB4943 | EMC (emissions) | 47 CFR Part 15 Class A; ICES 003 Class A; AS/NZS CISPR 32 Class A; CISPR 22/CISPR 32 Class A; EN55022/EN55032 Class A; VCCI Class A; CNS-13438 Class A; KN32 Class A |
| EMC (immunity) | IEC/EN 61000-4-2, 61000-4-3, 61000-4-4, 61000-4-5, 61000-4-6, 61000-4-11; KN35 | EMC (ETSI/EN) | EN300 386; EN55022; EN55032; EN55024; EN55035; EN50082-1/EN-61000-6-1 |
