PWR-CC1-650WAC Description

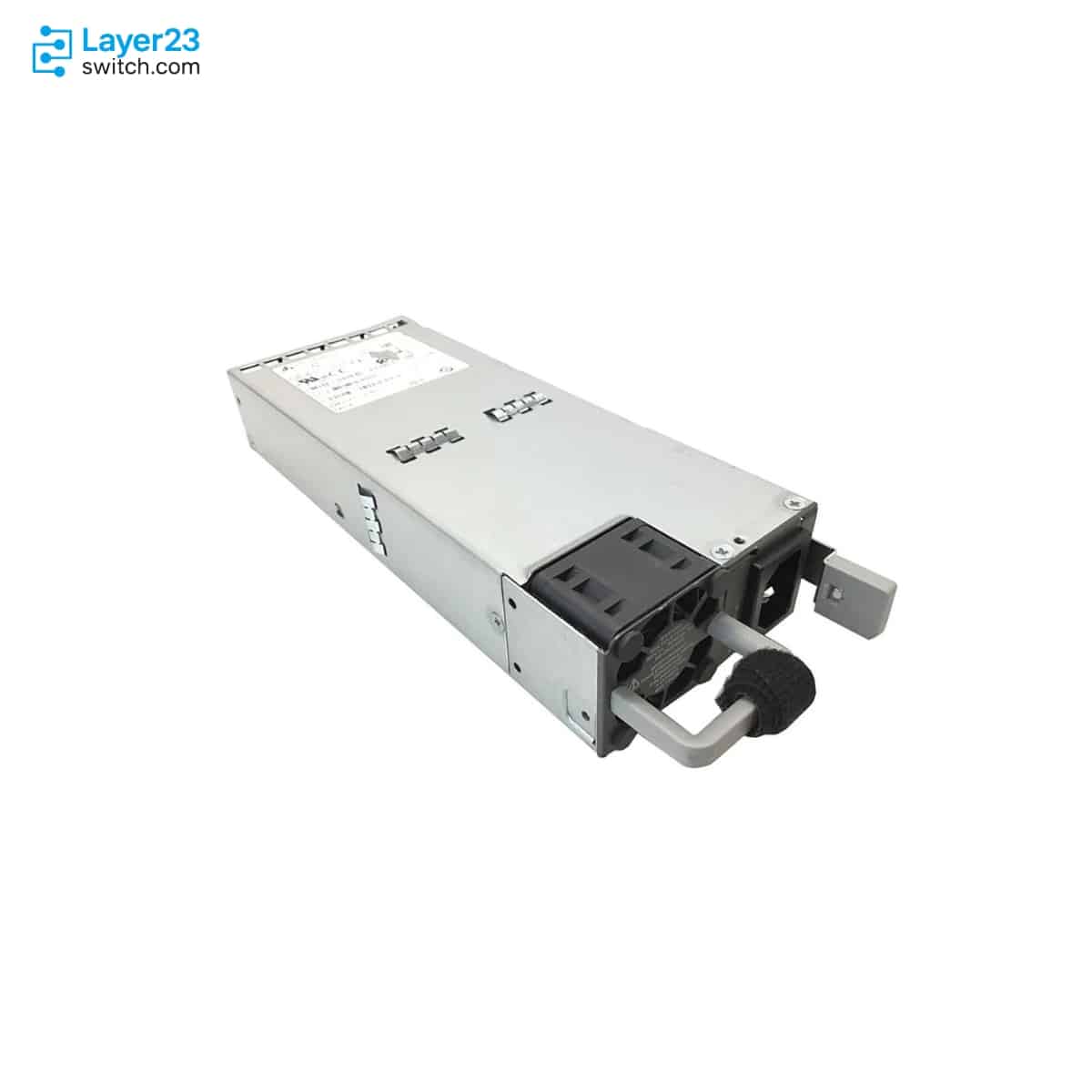

PWR-CC1-650WAC is a Cisco 650W AC power supply for Catalyst 8300 Edge Platform models C8300-2N2S-4T2X and C8300-2N2S-6T. It supports 100 to 240 VAC input, 50 to 60 Hz frequency, 80 Plus Gold efficiency, 7.2A to 3A input current, 12V / 54A output, 20 ms output holdup time, IEC 320 C14 input receptacle, and 10A power cord rating. The supply provides 650W AC system power for supported Catalyst 8300 edge router power planning or replacement.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
SKU |
PWR-CC1-650WAC |
|
Product Type |
AC power supply |
|
Output Power |
650 W |
|
Input Type |
AC |
|
Input Voltage |
100 to 240 VAC |
|
Frequency |
50 to 60 Hz |
|
Efficiency Rating |
80 Plus Gold |
|
Input Current |
7.2 A to 3 A |
|
Output Rating |
12 V, 54 A |
|
Output Holdup Time |
20 ms |
|
Input Receptacle |
IEC 320 C14 |
|
Power Cord Rating |
10 A |
|
Supported Platforms |
C8300-2N2S-4T2X and C8300-2N2S-6T |
Application Scenarios
Use PWR-CC1-650WAC when a C8300-2N2S-4T2X or C8300-2N2S-6T router needs a like-for-like 650W AC spare power supply.
Choose this SKU when the router deployment uses dual redundant AC power supplies and the replacement unit must match the existing 650W AC PSU type.
Keep PWR-CC1-650WAC as spare inventory for Catalyst 8300 2RU sites standardized on the default 650W AC power supply.
Product Comparison
|
Parameter |
PWR-CC1-650WAC |
PWR-CC1-1000WAC= |
PWR-CC1-650WDC= |
|---|---|---|---|
|
Product Type |
AC power supply |
AC PoE power supply |
DC power supply |
|
Output Power |
650 W |
1000 W |
650 W |
|
Input Type |
AC |
AC |
DC |
|
Input Voltage |
100 to 240 VAC |
100 to 240 VAC |
-40 to -72 VDC |
|
Efficiency Rating |
80 Plus Gold |
80 Plus Gold |
80 Plus Gold |
|
Input Current |
7.2 A to 3 A |
11.5 A to 4.63 A |
18 A to 10 A |
|
Output Rating |
12 V, 54 A |
12 V, 83 A |
12 V, 54 A |
|
Input Receptacle |
IEC 320 C14 |
IEC 320 C14 |
Terminal block |
- Choose PWR-CC1-650WAC for like-for-like 650W AC replacement on Catalyst 8300 2RU platforms.
- Choose PWR-CC1-1000WAC= only when the 2RU router needs the 1000W AC PoE power option.
- Choose PWR-CC1-650WDC= when the site power design is DC rather than AC.
- Confirm the router model before ordering because the 650W AC PSU is listed for C8300-2N2S-4T2X and C8300-2N2S-6T, not all Catalyst 8300 models.
Selection Guide
1. Choose PWR-CC1-650WAC for Catalyst 8300 2RU AC replacement
Select PWR-CC1-650WAC when the installed router is C8300-2N2S-4T2X or C8300-2N2S-6T and the requirement is a 650W AC spare PSU.
2. Use the 1000W AC PoE PSU for PoE builds
If the router design includes PoE power requirements, compare PWR-CC1-1000WAC= before quoting the 650W AC spare.
3. Choose the DC PSU for DC-powered sites
If the deployment uses -40 to -72 VDC input power, compare PWR-CC1-650WDC= rather than quoting an AC power supply.
4. Verify power cord and redundancy before purchase
Confirm AC circuit rating, IEC 320 C14 connection, country-specific power cord, existing PSU mix, and whether the router uses one or two power supplies.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Router Model |
C8300-2N2S-4T2X or C8300-2N2S-6T |
Confirms the PSU is being ordered for the documented Catalyst 8300 2RU platform |
|
Exact SKU |
PWR-CC1-650WAC |
Matches the corrected WooCommerce SKU used for this spare PSU |
|
Existing PSU Type |
650W AC, 1000W AC PoE, or 650W DC |
Prevents replacing the wrong power supply type |
|
Input Power |
100 to 240 VAC, 50 to 60 Hz |
Confirms the site power source matches the AC PSU |
|
Output Power |
650 W |
Confirms this is the standard 650W AC PSU rather than the PoE power option |
|
Power Cord |
Country-specific 10A AC power cord |
Power cables must be selected according to deployment country requirements |
|
Redundancy |
Single or dual power supply operation |
Determines whether one spare or a matched redundant pair is required |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| SKU | PWR-CC1-650WAC | Product Type | AC power supply |
| Output Power | 650 W | Input Type | AC |
| Input Voltage | 100 to 240 VAC | Frequency | 50 to 60 Hz |
| Efficiency Rating | 80 Plus Gold | Input Current | 7.2 A to 3 A |
| Output Rating | 12 V, 54 A | Output Holdup Time | 20 ms |
| Input Receptacle | IEC 320 C14 | Power Cord Rating | 10 A |
| Spare Part Number | PWR-CC1-650WAC | Field Replaceable | Yes |
| Supported Platforms | C8300-2N2S-4T2X and C8300-2N2S-6T |
