Dynamic VLAN: Definition, Benefits, and Best Practices

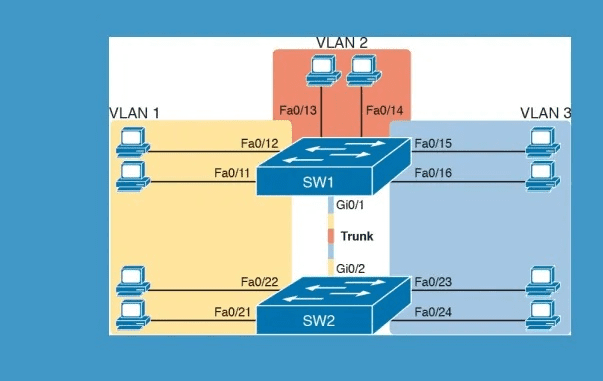

Before diving into dynamic vlan, let’s briefly review VLAN fundamentals and categories. A VLAN is a Layer-2 network segmentation technology that reduces broadcast traffic by splitting a network into multiple broadcast domains, improving security and manageability. VLANs can be created by port, MAC address, protocol, and more. The two most common types are static VLAN and dynamic VLAN.

1. Static VLAN: The most common form of VLAN. An administrator manually assigns a VLAN to each switch port. Any device attached to that port joins the assigned VLAN. This is simple to operate, but less flexible—especially in large networks or where devices move frequently.
2. Dynamic VLAN: Implemented via a VLAN Membership Policy Server (VMPS). Instead of manually assigning a VLAN to every port, dynamic vlan automatically assigns a device to a VLAN based on its MAC address. This approach significantly increases flexibility, particularly in large enterprise networks.

How Dynamic VLAN Works

The core of dynamic vlan is the VMPS server, which centrally manages automatic VLAN assignment for switches across the network. When a device connects to a switch, the switch sends the device’s MAC address to the VMPS server. The server checks its MAC-to-VLAN mapping and returns the appropriate VLAN. If the MAC is not found, the switch may reject the connection or place the device in a fallback VLAN.

Role of the VMPS Server

The VMPS server is the key component in a dynamic VLAN design and takes on the following responsibilities:

• MAC-to-VLAN mapping: Maintains a database of all device MAC addresses and their corresponding VLANs.
• Automatic VLAN assignment: Responds to switch queries by returning the correct VLAN so the access port can be placed in the right VLAN automatically.
• Security control: Unknown MAC addresses can be denied or placed into a restricted fallback VLAN for limited access.

Port Behavior in Dynamic VLAN

Unlike static VLANs, port assignment is managed dynamically by the VMPS server rather than through manual switchport configuration. When a device connects, the switch immediately sends the device’s MAC address to the VMPS server. If a mapping exists, the VMPS server returns the VLAN and the switchport is automatically placed into that VLAN.

Multi-Host Ports

Dynamic VLAN supports multiple hosts on the same port as long as all belong to the same VLAN. However, there are limits. If the number of learned MAC addresses on a single port exceeds the switch’s limit (often around 20), the port may automatically shut down to prevent overload or mitigate security risk.

Dynamic VLAN: Advantages and Limitations

Compared with static VLANs, dynamic vlan brings higher flexibility and automation, reducing the administrator’s workload. It also has limits and specific application scenarios.

Advantages of Dynamic VLAN

• High flexibility: As users move, no manual port reconfiguration is needed. The VMPS server automatically assigns the correct VLAN, ideal for mobile users (e.g., laptops) across the enterprise.
• Simplified operations: Automation eliminates per-port VLAN configuration, saving significant time and labor in large environments.
• Enhanced security: Because VLAN assignment is MAC-based, unauthorized devices have a harder time getting on the network. Unknown MACs can be denied or placed in a restricted fallback VLAN.
• Fallback VLAN support: A fallback VLAN grants limited network access to devices not present in the VMPS database—useful for guests or temporary users without exposing core resources.

Limitations of Dynamic VLAN

• Higher complexity: A VMPS server must be configured and its MAC database maintained. For large environments, upkeep can be time-consuming.
• Compatibility constraints: Not all switches support VMPS. Typically, higher-end enterprise switches (e.g., Cisco Catalyst 4500/6500 series) can act as VMPS servers; budget-constrained environments may not benefit.
• Performance bottlenecks: In very large networks with frequent attachments, the VMPS server can become a bottleneck if it cannot respond quickly to assignment requests.
• Security dependence: Security depends on database accuracy. If an attacker spoofs an authorized MAC, they might bypass controls. The VMPS server itself can also be a target; compromise would impact the whole network.

Dynamic VLAN Configuration Essentials

A working dynamic vlan requires reliable communication between switches and the VMPS server, and accurate MAC entries in the VMPS database.

Configuring the VMPS Server

The VMPS server typically runs on high-end enterprise switches (such as Cisco Catalyst 4500 or 6500 series). Administrators must build the MAC-to-VLAN mapping table and ensure network reachability from all access switches.

Switch–VMPS Communication

After the VMPS server is configured, ensure all switches can communicate with it. Switches send attached device MAC addresses to the VMPS server and apply the VLAN returned.

Key steps include:

• Specify the VMPS server IP: On the switch, configure the VMPS server’s IP so the switch can send VLAN queries. On Cisco, this is often done using the vmps server ip-address command.
• Enable dynamic VLAN mode: Switchports must support dynamic vlan mode rather than static assignment. For Cisco, vmps mode dynamic enables dynamic VLAN operation.
• Default/Access VLAN: Configure a default VLAN for failure scenarios. If the VMPS server is unavailable, the device can still access basic network resources via the default VLAN.

Maintaining the MAC Address Database

The heart of the VMPS server is its MAC-to-VLAN mapping. Keep this database updated so authorized devices always land in the correct VLAN. Unknown devices may be denied or placed into a restrictive fallback VLAN.

• Add/remove MACs: Add new device MACs and map them to the proper VLAN. Remove stale MACs when devices are retired or replaced.
• Synchronize across VMPS servers: Large environments may deploy multiple VMPS servers. Keep databases in sync (via scripts or centralized NMS tools) so VLAN assignment remains consistent.

Configuring a Fallback VLAN

A fallback VLAN is crucial for temporary users or guests. It provides limited access to reduce security exposure.

• Create the fallback VLAN: Allow basic internet access but restrict internal resources. Configure DHCP for the fallback VLAN and limit what destinations are reachable (e.g., no access to internal servers).
• Use cases: Suitable for visitors, contractors, or temporary staff—enabling necessary connectivity without compromising the core network.

Monitoring and Troubleshooting Dynamic VLAN

High automation brings convenience but also increases troubleshooting complexity. Monitor VMPS and switch status to detect and resolve issues early.

• Monitor VMPS health: Use SNMP, NetFlow, or other monitoring tools to ensure the VMPS server is responsive and performing well.
• Troubleshooting checklist:
  • Is the VMPS server running normally?
  • Is communication between the switch and VMPS server intact?
  • Is the device MAC correctly recorded in the VMPS database?
  • Is dynamic vlan mode enabled on the switch?

On Cisco devices, the show vmps status command helps verify VMPS state and pinpoint problems.

Dynamic VLAN Security

Security is a key strength of dynamic vlan in large enterprise networks. By tying access to a device’s MAC address, dynamic VLAN adds another layer of control.

Only authorized MAC addresses can access the network; MACs not present in the VMPS database cannot join the main network. This helps block unauthorized devices from connecting.

Preventing MAC Spoofing: Attackers may try to bypass controls by spoofing authorized MAC addresses. Mitigations include:

• Port Security: Limit the number of MAC addresses allowed per port and record learned MACs. If an unknown or spoofed MAC appears, the port can shut down automatically.
• Dynamic ARP Inspection (DAI): Detect and block ARP spoofing attempts to further harden dynamic vlan environments.

Dynamic VLAN can be combined with other security mechanisms like ACLs, firewalls, and intrusion detection systems (IDS):

• ACLs: Apply VLAN-specific ACLs to control inter-VLAN communication. Even if an attacker gains access to one VLAN, they cannot reach others.
• Firewalls & IDS: Use firewalls at network perimeters to block malicious traffic; deploy IDS to monitor traffic in real time and detect suspicious behavior.
