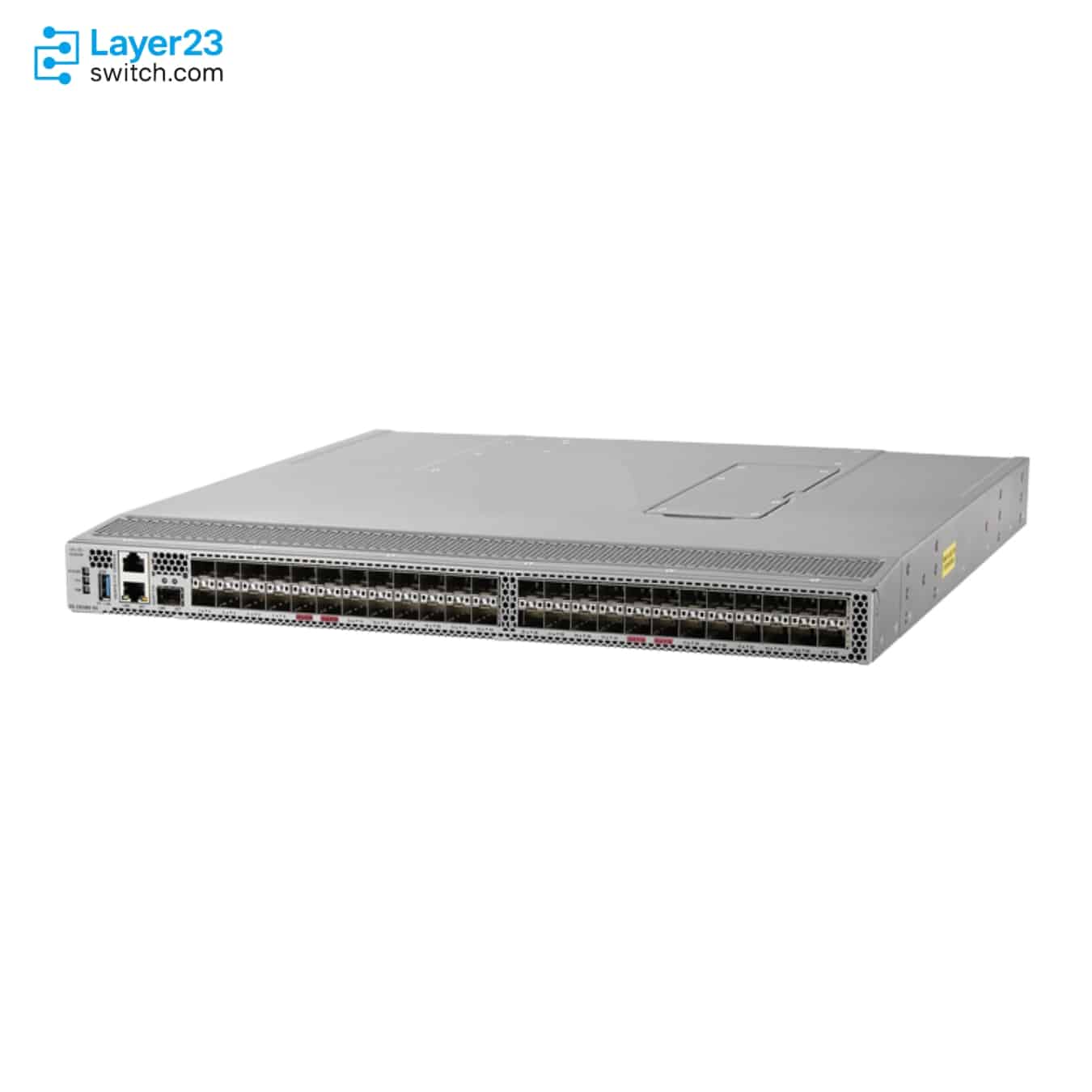

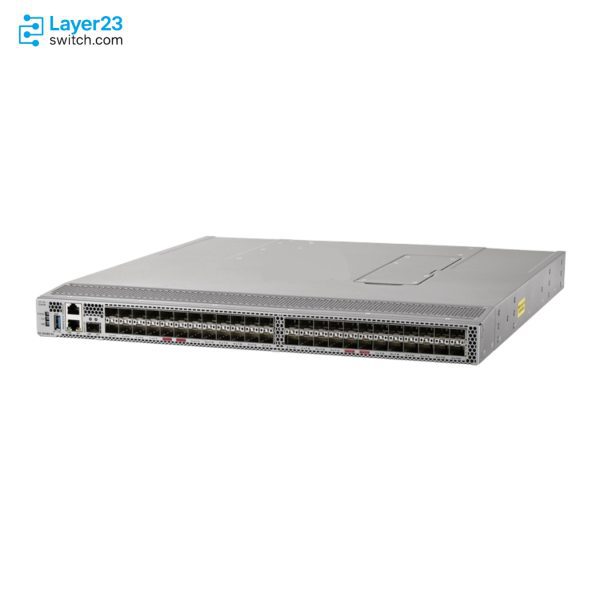

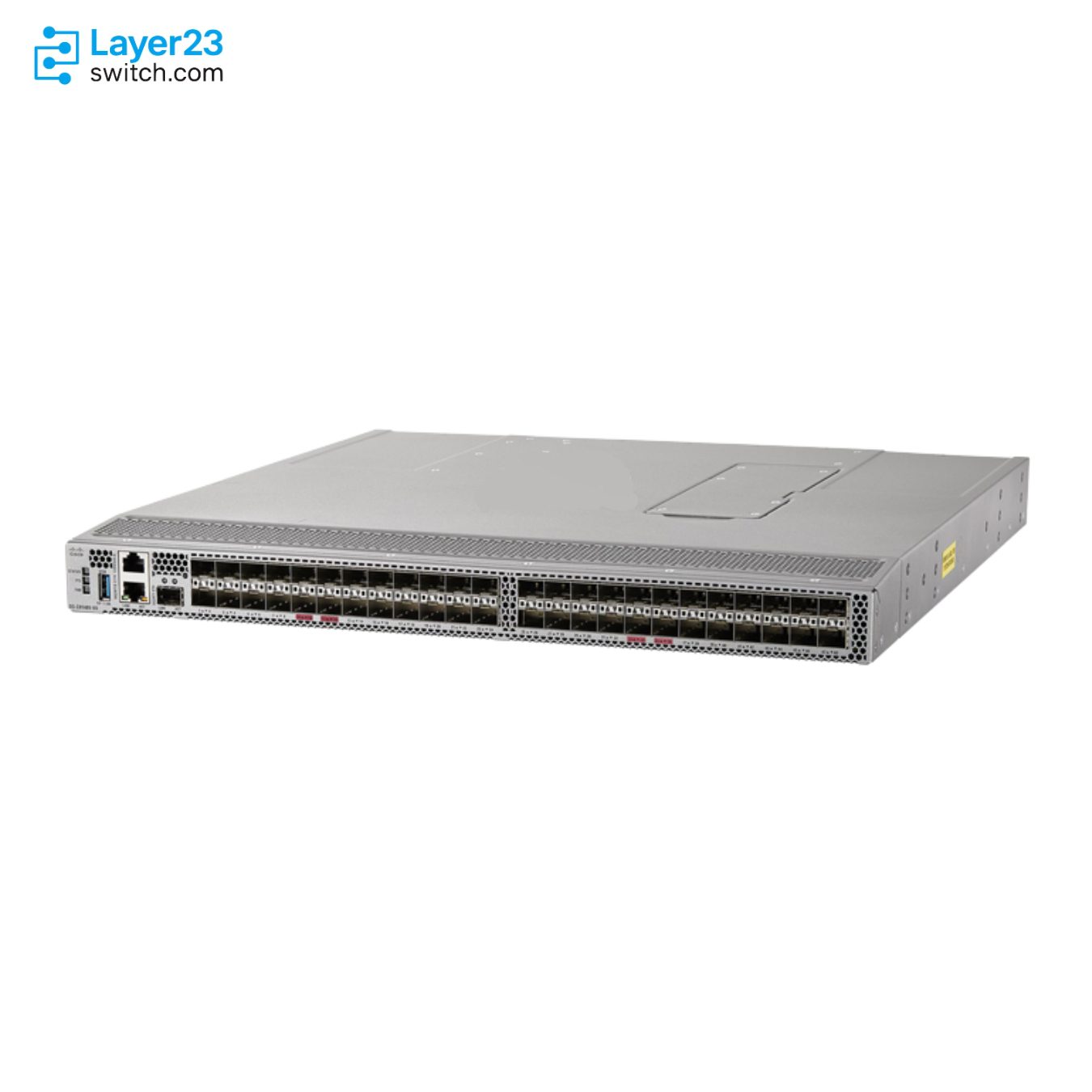

DS-C9148T-24PITK9 Description
The DS-C9148T-24PITK9 is a Cisco MDS 9148T 32G Fibre Channel switch for server-rack and storage-edge SAN fabrics that cool from the port side. The 1RU switch has 48 SFP+ ports at 4, 8, 16 or 32 Gbps, with 24 ports active, 24 Cisco 32G shortwave optics and 1.5 Tbps of aggregate bandwidth. Ports beyond the first 24 need M9148T-PL8 licenses, which activate 8 ports at a time up to 48.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
DS-C9148T-24PITK9 |
|
Product type |
32G Fibre Channel SAN switch bundle |
|
Form factor |
1RU fixed-switch form factor |
|
Chassis Fibre Channel ports |
48 SFP+ ports base |
|
Active ports at order |
24 active FC ports |
|
Included optics |
24 x 32G FC shortwave optics |
|
Airflow |
Port-side intake |
|
Included hardware |
4 fans and 2 PSUs |
|
Port activation path |
M9148T-PL8 8-port activation license |
|
Minimum NX-OS release |
Cisco MDS NX-OS 8.3(1) or later |
Product Performance
Key Features
The 24 Cisco 32G shortwave optics ship with the switch, so the first 24 links run over multimode fiber without sourcing optics separately.
All 48 SFP+ slots are physically present and 24 are active. Each M9148T-PL8 license adds 8 ports, taking the switch to 32, 40 and then 48 active ports with no hardware change.
Ports autosense 4, 8, 16 and 32 Gbps, and each carries 32 Gbps of dedicated bandwidth. The chassis totals 1.5 Tbps of full-duplex aggregate bandwidth.
The 48 ports sit in three groups of 16, each with up to 8,300 buffer credits. The default is 500 credits per port and a single port can take up to 8,270, which is the headroom longer inter-switch links draw on.
Air enters at the port side. The four fan modules and the power supplies have to be intake versions as well, because intake and exhaust parts are separate and a mismatch reverses the airflow.
Two 80 Plus Platinum 650W AC supplies accept 100 to 240 VAC. With 24 32G shortwave optics installed the switch draws a typical 251W.
Application Scenarios
In a server row, hosts and storage arrays attach to the 24 active ports over multimode fiber with the included 32G shortwave optics, and each port keeps 32 Gbps of dedicated bandwidth.
A storage team that adds hosts and arrays over several quarters starts with 24 active ports and then turns on 8 more at a time with M9148T-PL8 licenses until all 48 ports are in use.
Where the port side of the rack faces the cold aisle, the port-side intake airflow of this switch draws cooling air in across the optics and cables.
Product Comparison
|
Parameter |
DS-C9148T-24PITK9 | |||
|---|---|---|---|---|
|
Fibre Channel ports |
48 SFP+ ports |
48 SFP+ ports |
48 SFP+ ports |
48 SFP+ ports |
|
Active ports |
24 |
24 |
24 |
48 |
|
Fibre Channel speed |
4/8/16/32 Gbps autosensing |
4/8/16/32 Gbps autosensing |
4/8/16/32 Gbps autosensing |
4/8/16/32 Gbps autosensing |
|
Aggregate bandwidth |
1.5 Tbps full duplex |
1.5 Tbps full duplex |
1.5 Tbps full duplex |
1.5 Tbps full duplex |
|
Buffer credits |
Up to 8,300 per port group |
Up to 8,300 per port group |
Up to 8,300 per port group |
Up to 8,300 per port group |
|
Airflow |
Port-side intake |
Port-side exhaust |
Port-side intake |
Port-side intake |
|
Included optics |
24 x 32G SW |
24 x 32G SW |
Not included |
48 x 32G SW |
|
Port upgrade license |
M9148T-PL8 8-port activation |
M9148T-PL8 8-port activation |
M9148T-PL8 8-port activation |
Not applicable |
DS-C9148T-24PITK9 and DS-C9148T-24PETK9 carry the same 24 active ports and 24 included 32G SW optics and differ only in airflow: DS-C9148T-24PITK9 is port-side intake and DS-C9148T-24PETK9 is port-side exhaust, so the choice follows the airflow direction of the rack. A SAN map that needs all 48 ports active at delivery should order DS-C9148T-48PITK9, which ships 48 active ports and 48 optics, instead of growing this SKU with M9148T-PL8 licenses in steps of 8 ports. DS-C9148T-24IK9 is the same intake switch with 24 active ports and no factory optic bundle, which suits sites that buy their optics separately.
Ordering Checklist
- Airflow of spares: Order replacement PSU DS-CAC-650W-I= and fan module DS-C32S-FAN-I= to match the port-side intake airflow. Intake and exhaust PSU and fan PIDs are separate parts, and a mismatched part reverses the airflow of the chassis.
- Port growth: Add M9148T-PL8 for 32, 40 or 48 ports; M9148T-PL8T adds 8 x 32G SW optics with the 8-port license. The bundle ships with 24 active ports, and every port beyond 24 needs its own license line.
- Power cords: Select a region cord from the CAB-9K10A-* series, CAB-9K12A-NA or CAB-250V-10A-BR, or a CAB-C15-CBN cabinet jumper. The two 650W AC supplies need cords that fit the site’s outlet or cabinet PDU.
- Optional software: Add Enterprise Package M9100ENT1K9= or SAN Insights Package L-D-M91S-AXK9= if the fabric needs them. These packages are listed as separate Table 2 licenses and are not part of the bundle PID.
Optional Add-ons
|
Model |
Description |
|---|---|
|
M9148T-PL8 |
Cisco MDS 9148T 8-port On-Demand Activation license |
|
M9148T-PL8= |
Cisco MDS 9148T 8-port On-Demand Activation spare license |
|
M9148T-PL8-SL= |
Cisco MDS 9148T 8-port activation Smart License spare |
|
M9148T-PL8T |
Cisco MDS 9148T 8-port activation license with 8 x 32G SW optics |
|
DS-CAC-650W-I= |
AC PSU port-side intake spare for MDS 9148T |
|
DS-C32S-FAN-I= |
MDS 9148T fan module port-side intake spare |
|
Cisco 32 Gbps Fibre Channel shortwave SFP+ LC optic | |
|
Cisco 32 Gbps Fibre Channel longwave SFP+ LC spare optic | |
|
DS-9148T-KIT-CSCO |
MDS 9148T accessory kit for Cisco |
DS-C9148T-24PITK9 Front View
|
1 |
Serial console port |
7 |
Activity status LED |
|
2 |
System status LED |
8 |
Ethernet management ports (2) |
|
3 |
Power status LED |
9 |
Fixed FC ports |
|
4 |
Fan status LED |
10 |
FC port status LEDs (48) |
|
5 |
USB port |
11 |
Airflow grill |
|
6 |
Link status LED |

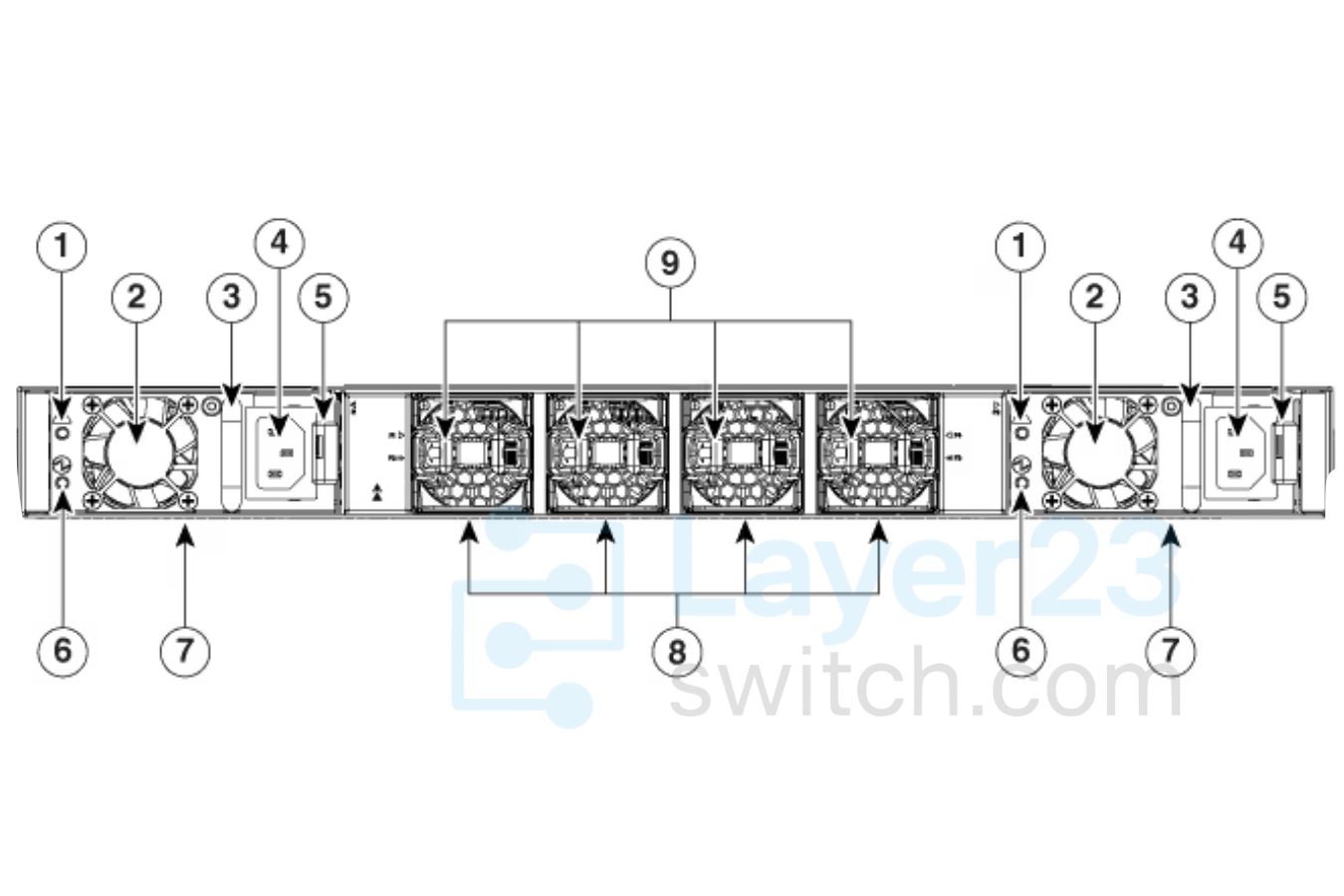

DS-C9148T-24PITK9 Rear View
|
1 |
Power supply failure status LED |
6 |
Power supply status LED |
|
2 |
Power supply unit fan |
7 |
Power supply units (2 units) |
|
3 |
Power supply unit handle |
8 |
Chassis fan modules (4 units) |
|
4 |
Unswitched power receptacle |
9 |
Chassis fan module release latches (8) |
|
5 |
Power supply unit latch release |
|
1 |
Power supply unit slot 1 |
4 |
Chassis fan module slot 3 |
|
2 |
Chassis fan module slot 1 |
5 |
Chassis fan module slot 4 |
|
3 |
Chassis fan module slot 2 |
6 |
Power supply unit slot 2 |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | DS-C9148T-24PITK9 | Product compatibility | Cisco MDS 9000 Family |
| Product type | 32G Fibre Channel SAN switch bundle | Order configuration | 24 active FC ports, 24 x 32G SW optics, 4 fans, 2 PSUs, port-side intake airflow |
| Rack units | 1RU fixed-switch form factor | Fibre Channel ports | 48 SFP+ ports base |
| Active ports at order | 24 active FC ports | Port activation license | M9148T-PL8 8-port upgrade license |
| Maximum active ports | 48 active FC ports | Fibre Channel speed support | 4, 8, 16, and 32 Gbps autosensing |
| Dedicated bandwidth per port | 32 Gbps | Switching capacity | 1.5 Tbps end-to-end full duplex |
| Port groups | 3 port groups of 16 ports each | Buffer credits | Up to 8300 for a group of 16 ports, 500 default per port, 8270 maximum for a single port in the group |
| Port channel support | Up to 16 load-balanced physical links in one port channel | Fibre Channel port types | E, F, B, SD, ST, NP, and TE |
| Included optic type | 32G Fibre Channel shortwave SFP+ optics | 32G SW optic product ID | DS-SFP-FC32G-SW |
| 32G SW connector | Dual LC connector | 32G SW fiber type | 850 nm MMF |
| 32G SW reach | 20 m on OM2, 70 m on OM3, 100 m on OM4/OM5 at 28.05 GBd | FC-NVMe support | FC-NVMe listed in the protocol support |
| Advanced functions | VSAN, NPV, IVR, port channel with multipath load balancing, and flow- and zone-based QoS | Security functions | VSAN isolation, hardware zoning ACLs, FC-SP, RBAC, SFTP, SSHv2, SNMPv3, control-plane security, TrustSec payload encryption, secure boot, and anti-counterfeit technology |
| Diagnostics | POST, OHMS, internal loopbacks, SPAN, Fibre Channel traceroute, Fibre Channel ping, Fibre Channel debug, Cisco Fabric Analyzer, syslog, port-level statistics, link diagnostics, and read diagnostic parameter | High availability components | Hot-swappable dual redundant power supplies, hot-swappable fan module, and hot-swappable SFP+ optics |
| Management port | mgmt0 10/100/1000BASE-T and mgmt1 1/10G SFP+ port | Console port | RS-232 serial console port |
| USB port | USB power-on auto-provision port | Programmability | NX-API RESTful interfaces, onboard Python interpreter, Cisco DCNM web services API, EEM, and NX-OS scheduler |
| Minimum NX-OS release | Cisco MDS NX-OS 8.3(1) or later | Minimum Cisco DCNM release | Cisco DCNM 11(0) or later |
| Default power supply | DS-CAC-650W-I 650W AC port-side intake power supply; two supplies in the order configuration | AC input voltage | 100 to 240 VAC, 10 percent range |
| AC input frequency | 50 to 60 Hz nominal | Typical power with 24 optics | 251W for 48-port switch with 24 32G SW optics under typical conditions |
| Typical power with 48 optics | 297W for 48-port switch with 48 32G SW optics under typical conditions | Airflow | Front to back inward from ports using port-side intake fans |
| Airflow rate with system fan assembly | 50 CFM through system fan assembly at 77F (25C) | Airflow rate | 100 CFM maximum |
| Dimensions | 1.72 x 17.3 x 22.3 in. (4.37 x 43.94 x 56.64 cm), excluding PSU and fan module handles | Weight | 8.5 kg (18.73 lb) |
| Operating temperature | 32 to 104F (0 to 40C) with exhaust and intake airflow variants | Operating humidity | 10 to 90 percent noncondensing |
| Operating altitude | -197 to 6500 ft (-60 to 2000 m) | Included accessory kit | Cisco-specific MDS 9148T accessory kit shipped as standard |
| Supported FC optics listed by Cisco | 32G SW, 32G LW, 16G SW, 16G LW, 8G SW, and 8G LW optics |
