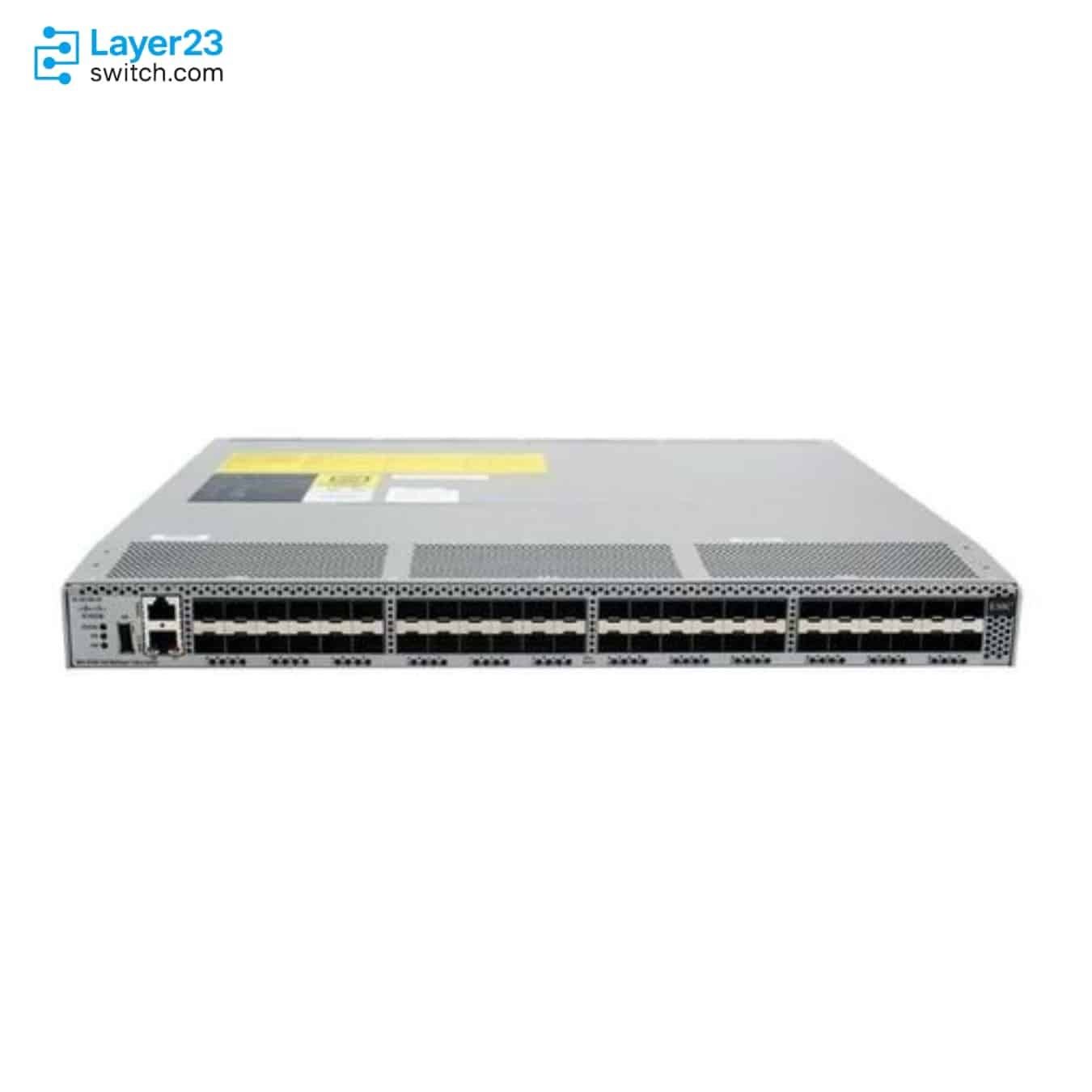

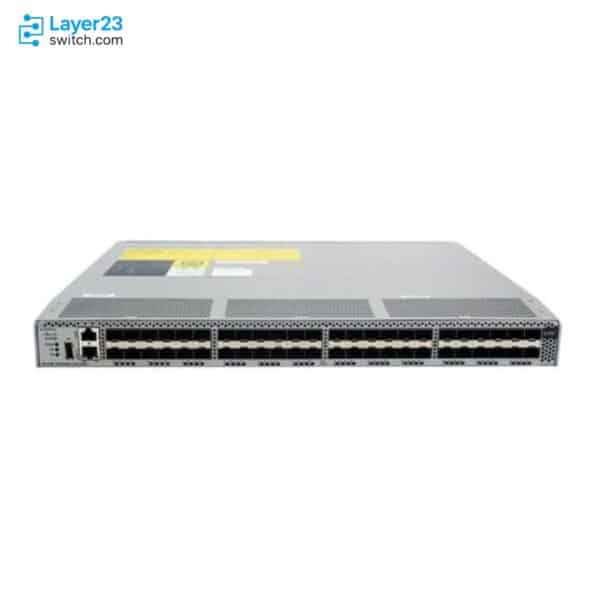

DS-C9148T-24PETK9 Description
The DS-C9148T-24PETK9 is a Cisco MDS 9148T 32G Fibre Channel switch bundle for server-rack SAN fabrics cooled with port-side exhaust airflow. The 1RU switch carries 48 SFP+ ports at 4, 8, 16 or 32 Gbps, of which 24 are active and matched by 24 bundled 32G shortwave optics, with 1.5 Tbps of aggregate bandwidth. The other 24 ports stay inactive until M9148T-PL8 licenses turn them on in steps of 8 ports.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Fibre Channel ports |
48 SFP+ ports, 24 active at delivery |
|
Port speed |
4/8/16/32 Gbps autosensing, 32 Gbps dedicated per port |
|
Included optics |
24 x DS-SFP-FC32G-SW 32G FC shortwave SFP+ |
|
Port activation |
M9148T-PL8 adds 8 ports, to 32, 40 or 48 |
|
Aggregate bandwidth |
1.5 Tbps full duplex |
|
Buffer credits |
Up to 8,300 per 16-port group, 500 default per port |
|
Airflow |
Port-side exhaust (back to front, toward the ports) |
|
Default power supply model |
2 x DS-CAC-650W-E 650W AC, port-side exhaust |
|
Fan modules |
4 fans, port-side exhaust |
|
Typical power consumption |
251W with 24 32G SW optics |
|
Form factor |
1RU fixed switch |
|
Minimum software |
Cisco MDS NX-OS 8.3(1) or later |
Product Performance
Key Features
Each of the 24 active ports has a matching DS-SFP-FC32G-SW in the box. These 850 nm multimode optics run 32G links up to 70 m on OM3 or 100 m on OM4 and OM5, and the same optic reaches 100 m on OM3 at 16G.
All 48 SFP+ cages are installed, and licenses decide how many work. M9148T-PL8 turns on 8 more ports at a time for 32, 40 and then 48, while M9148T-PL8T delivers the same license together with 8 more 32G shortwave optics.
The ports sit in three groups of 16, and each group shares up to 8,300 buffer credits. Every port starts with 500, and a single port can draw up to 8,270 from its group when an inter-switch link needs the depth.
Air moves from the back of the chassis and leaves at the port side, 50 CFM at 25°C and up to 100 CFM. Replacement fans and supplies come in separate exhaust and intake versions, so the spares stock has to follow this direction.
Two 650W AC supplies feed a switch that draws 251W typical with 24 optics and 290W at most. Supplies, the fan module and the SFP+ optics are hot-swappable, and NX-OS upgrades can run as In-Service Software Upgrades.
The switch can run as a full fabric switch with its own zoning and name server, or in NPV mode under a SAN core director. FC-NVMe and SCSI traffic share the same 32G links with no hardware change.
Application Scenarios
Below a pair of MDS directors, the switch sits at the top of a server rack in NPV mode and carries 32G host HBA links up to the core fabric.
A midsize site with one all-flash array and a cluster of virtualized hosts can run its whole Fibre Channel SAN on this switch, with initiators and targets on the same 24 active ports.
In rows where the cabled port side of the rack faces the hot aisle, the switch pulls cool air in at the rear and discharges it across the optics and patch cords.
Product Comparison
|
Parameter |
DS-C9148T-24PETK9 | |||
|---|---|---|---|---|
|
Fibre Channel ports |
48 SFP+ |
48 SFP+ |
48 SFP+ |
48 SFP+ |
|
Port speed |
4/8/16/32 Gbps |
4/8/16/32 Gbps |
4/8/16/32 Gbps |
8/16/32/64 Gbps |
|
Active ports at order |
24 |
24 |
24 |
24 |
|
Included optics |
24 x 32G SW |
24 x 32G SW |
Not included |
24 x 32G SW |
|
Aggregate bandwidth |
1.5 Tbps full duplex |
1.5 Tbps full duplex |
1.5 Tbps full duplex |
3 Tbps full duplex |
|
Buffer credits |
Up to 8,300 per 16-port group |
Up to 8,300 per 16-port group |
Up to 8,300 per 16-port group |
Up to 24,000 per 24-port group |
|
Airflow |
Port-side exhaust |
Port-side intake |
Port-side exhaust |
Port-side exhaust |
|
Port upgrade license |
M9148T-PL8 |
M9148T-PL8 |
M9148T-PL8 |
M9148V-PL8 |
DS-C9148T-24PETK9 and DS-C9148T-24PITK9 ship the same 24 active ports and 24 32G SW optics and differ only in airflow, port-side exhaust against port-side intake, so the rack’s cooling direction decides between them. DS-C9148T-24EK9 is the same exhaust switch with 24 active ports and no optics, which suits sites that already hold 32G or 16G FC optics. Where all 48 ports must be live at delivery, DS-C9148T-48PETK9 ships 48 active ports and 48 optics in place of three M9148T-PL8 licenses. DS-C9148V-24PETK9 keeps exhaust airflow and 24 32G SW optics on the 64G MDS 9148V with 3 Tbps of aggregate bandwidth, and its ports reach 64G only once DS-SFP-FC64G-SW optics replace the bundled ones.
Ordering Checklist
- Exhaust spares: Order replacement supplies as DS-CAC-650W-E= and fan modules as DS-C32S-FAN-E=. DS-CAC-650W-I= and DS-C32S-FAN-I= are the port-side intake parts for the other airflow direction.
- Port activation: Add one M9148T-PL8 for each 8 ports beyond the first 24, or M9148T-PL8T when those ports also need 32G SW optics. The bundle activates only 24 of the 48 ports.
- Power cords: Select cords for the two 650W AC supplies from the CAB-9K10A regional series, CAB-9K12A-NA, CAB-250V-10A-BR or the CAB-C15-CBN cabinet jumpers. The supplies take a C15 cord connector.
- Optional software: Add Enterprise Package M9100ENT1K9= or L-M9100ENT1K9= when the fabric needs IVR, FC-SP, port security or traffic encryption. The package is a separate per-switch license and is not part of the bundle.
- Accessory kit: DS-9148T-KIT-CSCO ships as standard; change it to DS-9148T-KIT-EM or DS-9148T-KIT-HDS for Dell/EMC or HDS racks.
Optional Add-ons
|
Model |
Description |
|---|---|
|
M9148T-PL8 |
MDS 9148T 8-port on-demand activation license |
|
M9148T-PL8= |
MDS 9148T 8-port activation license, spare |
|
M9148T-PL8-SL= |
MDS 9148T 8-port activation Smart License, spare |
|
M9148T-PL8T |
8-port activation license plus 8 x 32G SW optics |
|
DS-CAC-650W-E= |
650W AC power supply, port-side exhaust, spare |
|
DS-C32S-FAN-E= |
MDS 9148T fan module, port-side exhaust, spare |
|
32G Fibre Channel shortwave SFP+, LC, multimode | |
|
32G Fibre Channel longwave SFP+, LC, single-mode, spare | |
|
M9100ENT1K9= |
MDS 9000 Family Enterprise Package, per switch |
|
DCNM-SAN-M91-K9= |
Cisco DCNM for SAN Advanced Edition for MDS 9100 |

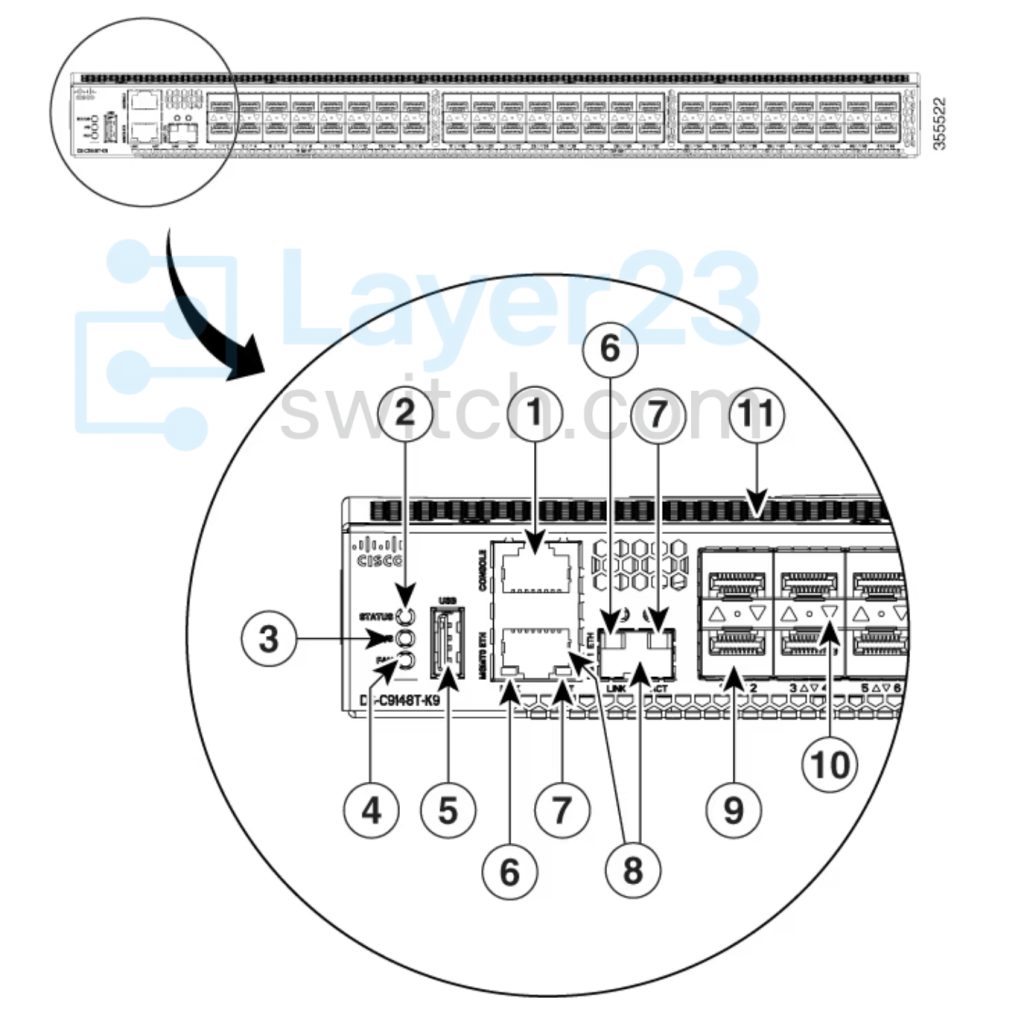

Front View
|
1 |
Serial console port |
7 |
Activity status LED |
|
2 |
System status LED |
8 |
Ethernet management ports (2) |
|
3 |
Power status LED |
9 |
Fixed FC ports |
|
4 |
Fan status LED |
10 |
FC port status LEDs (48) |
|
5 |
USB port |
11 |
Airflow grill |
|
6 |
Link status LED |

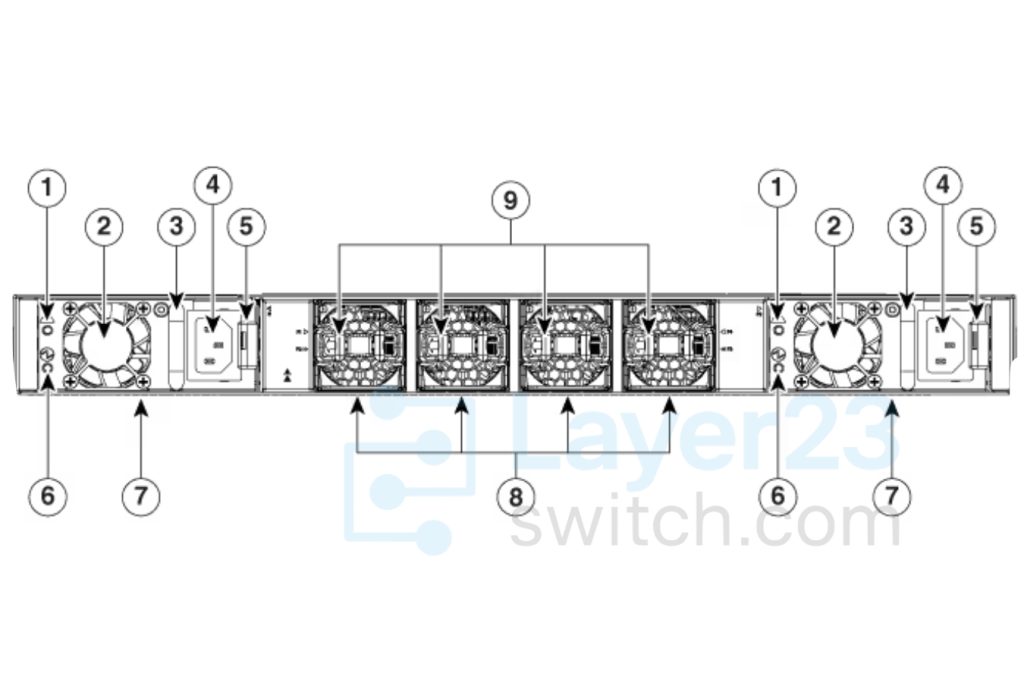

Rear View
|
1 |
Power supply failure status LED |
6 |
Power supply status LED |
|
2 |
Power supply unit fan |
7 |
Power supply units (2 units) |
|
3 |
Power supply unit handle |
8 |
Chassis fan modules (4 units) |
|
4 |
Unswitched power receptacle |
9 |
Chassis fan module release latches (8) |
|
5 |
Power supply unit latch release |
|

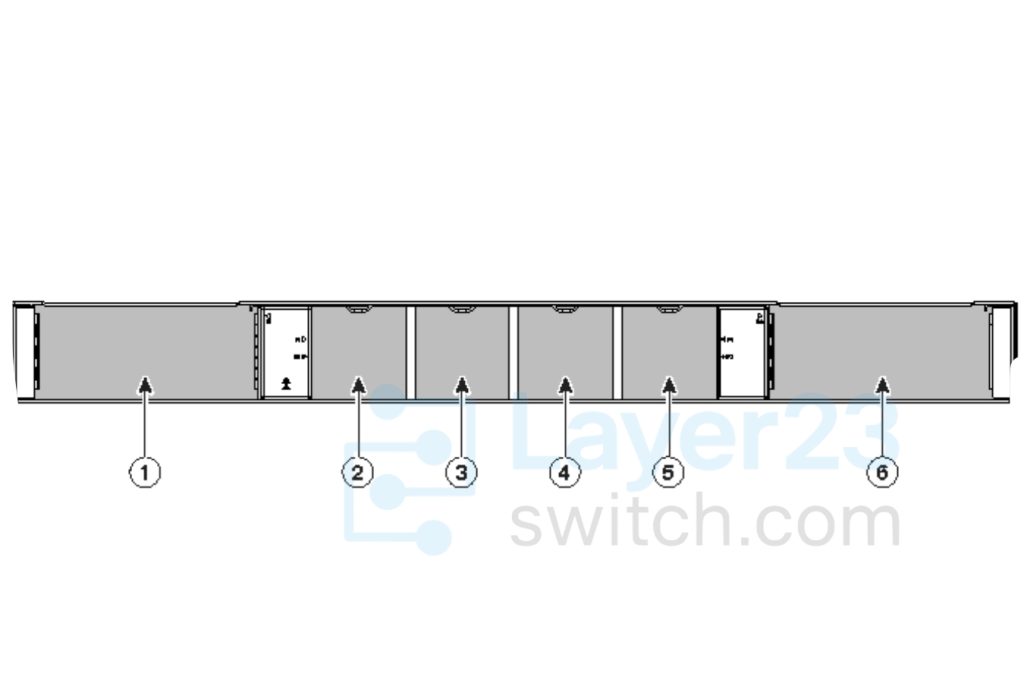

1 |
Power supply unit slot 1 |
4 |
Chassis fan module slot 3 |
|
2 |
Chassis fan module slot 1 |
5 |
Chassis fan module slot 4 |
|
3 |
Chassis fan module slot 2 |
6 |
Power supply unit slot 2 |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | DS-C9148T-24PETK9 | Bundle scope | MDS 9148T switch, 24 active ports, 24 x 32G SW optics, 4 fans, 2 PSUs, port-side exhaust |
| Rack units | 1RU fixed switch | Fibre Channel ports | 48 SFP+ ports base |
| Active ports at order | 24 | Maximum active ports | 48 with M9148T-PL8 licenses (32, 40, 48) |
| Port speed | 4, 8, 16 and 32 Gbps autosensing | Dedicated bandwidth per port | 32 Gbps |
| Switching capacity | 1.5 Tbps end-to-end full duplex | Port groups | 3 port groups of 16 ports |
| Buffer credits | Up to 8,300 per 16-port group; 500 default per port; up to 8,270 for a single port | Port channel | Up to 16 load-balanced physical links per port channel |
| Fibre Channel port types | E, F and B standard; SD, ST, NP and TE enhanced | Classes of service | Class 2, Class 3 and Class F |
| Protocols | FC-NVMe; IP over Fibre Channel (RFC 2625); IPv6, IPv4 and ARP over Fibre Channel (RFC 4338) | Fabric services | Name server, RSCN, login services, Fabric Configuration Server, broadcast, in-order delivery |
| Advanced functions | VSAN, NPV, IVR, port channel with multipath load balancing, flow- and zone-based QoS | Intelligent services | Auto-zone, Smart Zoning, slow-drain detection and isolation |
| Security | VSAN isolation, hardware zoning by ACLs, FC-SP switch and host authentication, RBAC with RADIUS, TACACS+ or LDAP, SFTP, SSHv2, SNMPv3 with AES, control-plane security, Cisco TrustSec payload encryption, secure boot, anti-counterfeit technology | Diagnostics | POST, OHMS, internal loopbacks, SPAN, FC traceroute, FC ping, FC debug, Cisco Fabric Analyzer, syslog, port-level statistics, E-port and F-port link diagnostics, Read Diagnostic Parameter |
| High availability | ISSU, hot-swappable dual redundant power supplies, hot-swappable fan module, hot-swappable SFP+ optics, stateful process restart, VRRP for the management IP, FEC and BB state change notification with HBA ports | Programming interfaces | Scriptable CLI, Cisco DCNM web services API, NX-API RESTful interfaces, onboard Python interpreter, EEM, NX-OS scheduler |
| Management port | mgmt0 10/100/1000BASE-T; mgmt1 1/10G SFP+ listed for a future software release | Console port | RS-232 serial console port |
| USB port | USB power-on auto-provision port | Default power supply model | DS-CAC-650W-E 650W AC, port-side exhaust (spare PID DS-CAC-650W-E=) |
| Included optic | DS-SFP-FC32G-SW, 850 nm multimode, dual LC, 8/16/32G | 32G SW reach | 20 m OM2, 70 m OM3, 100 m OM4/OM5 at 32G; 2 m minimum |
| 16G reach on 32G SW optic | 35 m OM2, 100 m OM3, 125 m OM4/OM5 | Optic operating temperature | 0 to 70°C |
| Supported FC optics | DS-SFP-FC32G-SW, DS-SFP-FC32G-LW=, DS-SFP-FC16G-SW, DS-SFP-FC16G-LW=, DS-SFP-FC8G-SW=, DS-SFP-FC8G-LW= | Minimum software | Cisco MDS NX-OS 8.3(1) or later; Cisco DCNM 11(0) or later |
| Power supply options | 2 x 650W AC per switch, 80 Plus Platinum, hot-swappable | AC input | 100 to 240 VAC (10% range), 50 to 60 Hz nominal |
| Power cord connection | C14 plug on the supply into a notched C15 cord connector | Output holdup time | 20 ms |
| Typical power consumption | 217W idle without optics; 251W with 24 32G SW optics; 297W with 48 32G SW optics | Maximum power with 24 SW optics | 267W at 110V, 260W at 220V (100% traffic, 25°C) |
| Power required | 290W maximum | Heat dissipation | 989 BTU/hr |
| Input current | 3.41 A at 85 VAC, 2.63 A at 110 VAC, 1.31 A at 220 VAC | Fan modules | 4 fans, hot-swappable fan module, port-side exhaust |
| Airflow | Back to front (toward ports), port-side exhaust; 50 CFM at 25°C, 100 CFM maximum | Clearance | 2.5 in. (6.4 cm) from walls to air vents; 6 in. (15.2 cm) between chassis |
| Operating temperature | 0 to 40°C | Storage temperature | -40 to 70°C |
| Operating humidity | 10 to 90% noncondensing | Nonoperating humidity | 10 to 95% noncondensing |
| Operating altitude | -60 to 2000 m | Dimensions (H x W x D) | 1.72 x 17.3 x 22.3 in., excluding PSU and fan module handles |
| Weight | 8.5 kg | Accessory kit | DS-9148T-KIT-CSCO shipped as standard |
| Safety certifications | CE Marking, UL 60950, CAN/CSA-C22.2 No. 60950, EN 60950, IEC 60950, TS 001, AS/NZS 3260, IEC60825, EN60825, 21 CFR 1040 | EMC certifications | FCC Part 15 Class A, ICES-003 Class A, EN 55022 Class A, CISPR 22 Class A, AS/NZS 3548 Class A, VCCI Class A, EN 55024, EN 50082-1, EN 61000-6-1, EN 61000-3-2, EN 61000-3-3 |
