DS-C9132T-24PISK9 Description

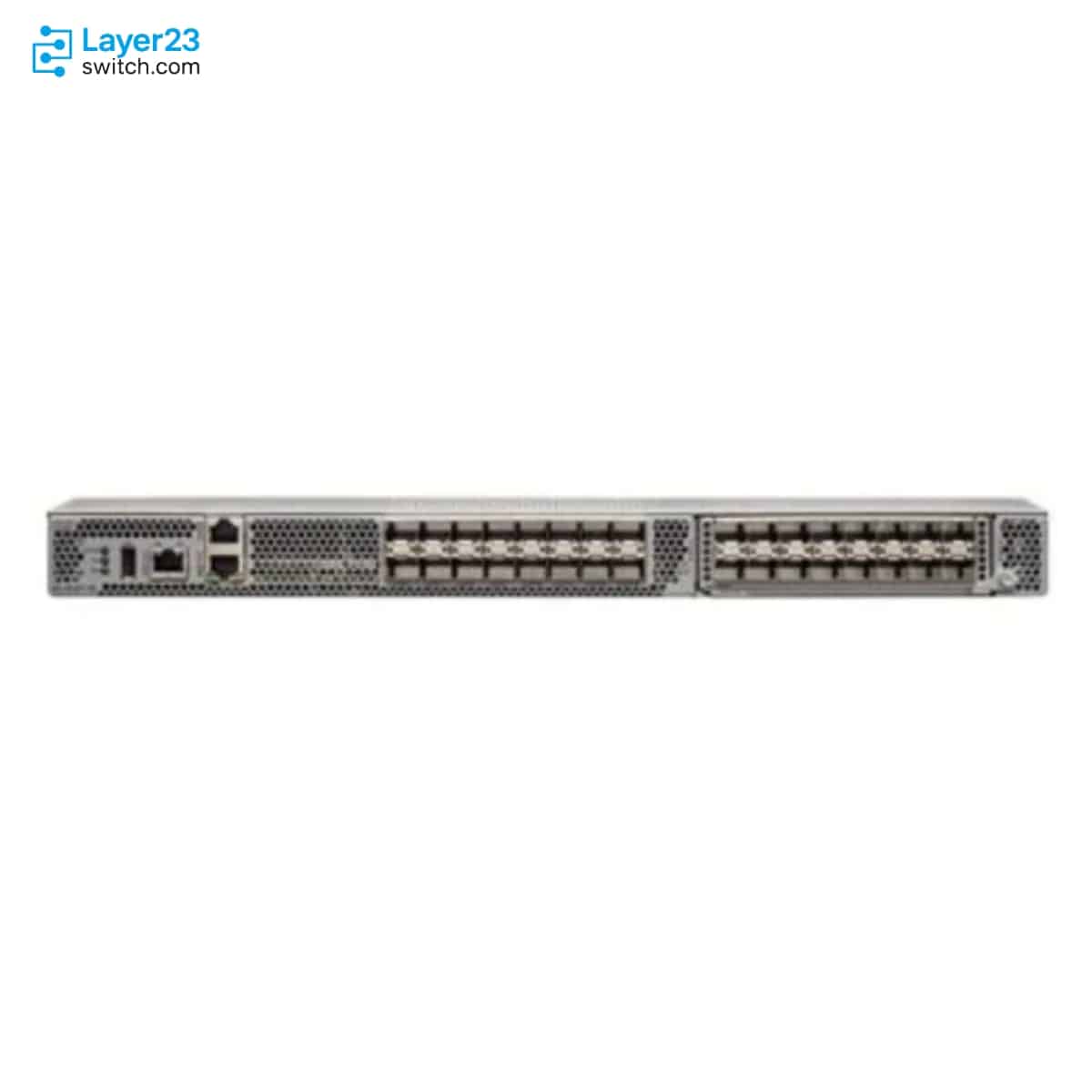

The DS-C9132T-24PISK9 is a Cisco MDS 9132T 32-Gbps Fibre Channel switch for SAN access racks that take cooling air in at the port side. The switch has 24 active Fibre Channel ports with 24 DS-SFP-FC16G-SW 16G shortwave optics, 1024 Gbps of aggregate bandwidth, four fans and two 650W power supplies. The Enterprise Package is included, and the last eight of the 32 platform ports stay inactive until the 8-port On-Demand Activation license is added.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
DS-C9132T-24PISK9 |
|
Product compatibility |
Cisco MDS 9000 Series |
|
Product type |
Fibre Channel SAN switch |
|
Order configuration |
Enterprise switch with 24 active FC ports and 24 x 16G SW optics |
|
Active ports at order |
24 active ports |
|
Maximum Fibre Channel ports |
Up to 32 Fibre Channel ports |
|
Fibre Channel speed support |
4, 8, 16, and 32 Gbps autosensing on the MDS 9132T platform |
|
Network license |
Cisco MDS 9000 Family Enterprise Package |
|
Fan modules |
4 fan modules |
|
Airflow |
Port-side intake |
|
Aggregate bandwidth |
1,024 Gbps full duplex |
|
Minimum NX-OS release |
Cisco MDS NX-OS Release 8.2(1) or later |
|
Minimum Cisco DCNM release |
Cisco DCNM Release 10.4(1) or later |
Product Performance
Key Features
Air enters at the port side and flows front to back, which puts the rack’s cold aisle on the cabling side. The power supplies and fan modules for this chassis follow the same intake direction.
Each active port has a DS-SFP-FC16G-SW optic. At 16G the optics reach 100 m on OM3 and 125 m on OM4 or OM5 multimode fiber.
The ports autosense 4, 8, 16 and 32 Gbps. Replacing an optic with DS-SFP-FC32G-SW lifts that link to 32G without changing the switch.
IVR, QoS, FC-SP, traffic encryption, VSAN-based access control and fabric binding are licensed across all switch ports, so none of them needs a separate license.
Each 16-port group shares up to 8300 buffer credits, with 500 per port by default and up to 8270 on a single port. The larger allocation helps inter-switch links that span longer distances.
Two hot-swappable 650W supplies are installed, while the maximum system power is 180W. Either supply is rated well above that figure.
Application Scenarios
In a server rack whose cold aisle faces the cabling side, the switch connects hosts and storage arrays at 16G over multimode fiber while its fans draw air in across the ports.
A SAN that routes traffic between VSANs or authenticates devices with FC-SP relies on the Enterprise Package already present on the switch, which also covers QoS, traffic encryption and fabric binding.
An edge that connects 24 host and array links today can enable the last eight ports later, which brings the same switch to its 32-port maximum.
Product Comparison
|
Parameter |
DS-C9132T-24PISK9 | |||
|---|---|---|---|---|
|
Maximum Fibre Channel ports |
32 |
32 |
32 |
32 |
|
Fibre Channel speed |
4, 8, 16 and 32 Gbps autosensing |
4, 8, 16 and 32 Gbps autosensing |
4, 8, 16 and 32 Gbps autosensing |
4, 8, 16 and 32 Gbps autosensing |
|
Aggregate bandwidth |
1,024 Gbps full duplex |
1,024 Gbps full duplex |
1,024 Gbps full duplex |
1,024 Gbps full duplex |
|
Buffer credits |
Up to 8300 per 16-port group |
Up to 8300 per 16-port group |
Up to 8300 per 16-port group |
Up to 8300 per 16-port group |
|
Airflow |
Port-side intake |
Port-side exhaust |
Port-side intake |
Port-side intake |
|
Included FC optics |
24 x 16G SW |
24 x 16G SW |
8 x 16G SW |
Not bundled |
|
Enterprise license |
Included |
Included |
Not published |
Not published |
|
Fans, power supplies and matching spares |
4 fans, 2 PSUs; DS-C32S-FAN-I=, DS-CAC-650W-I= |
4 fans, 2 PSUs; DS-C32S-FAN-E=, DS-CAC-650W-E= |
2 fans, 1 PSU; DS-C32S-FAN-I=, DS-CAC-650W-I= |
2 fans, 1 PSU; DS-C32S-FAN-I=, DS-CAC-650W-I= |
DS-C9132T-24PISK9 and DS-C9132T-24PESK9 are the same 24-port Enterprise bundle with 24 16G shortwave optics, four fans and two power supplies, separated only by airflow: this SKU is port-side intake and DS-C9132T-24PESK9 is port-side exhaust, each with its own -I or -E power supply and fan spares. Links that must run at 32G from day one move to DS-C9132T-24PITK9, which carries 32G optics and no Enterprise license. A first phase of 8 active ports can start from DS-C9132T-8PMISK9, and projects that buy optics and licenses separately can start from the intake base module DS-C9132T-MIK9. Beyond 24 ports, M9132T-PL8= adds the last eight.
Ordering Checklist
- Airflow and spares: This is a port-side intake chassis; order DS-CAC-650W-I= and DS-C32S-FAN-I= as power supply and fan spares. The -E spares are for port-side exhaust chassis and would reverse the airflow of this switch.
- Enterprise package: The order description already includes it, so leave M9100-ENT1K9= off the order. A second Enterprise line duplicates a license the bundle already carries.
- Port activation: 24 ports are active at order; add M9132T-PL8= (or the Smart license M9132T-PL8-SL=) to reach 32. Without the 8-port activation the last eight ports stay inactive.
- Optics: 24 x DS-SFP-FC16G-SW are included; links that must run at 32G need DS-SFP-FC32G-SW instead. The included 16G optics hold those links at 16G.
Optional Add-ons
|
Model |
Description |
|---|---|
|
M9132T-PL8= |
Licensed 8-port activation item for expanding an MDS 9132T 24-port configuration |
|
DS-CAC-650W-I= |
650W AC PSU spare for intake-airflow MDS 9132T chassis planning |
|
DS-C32S-FAN-I= |
Intake-airflow fan module spare for the cooling direction used by this SKU |
|
Cisco 16G SW SFP+ optic for matching replacement or spare link inventory |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | DS-C9132T-24PISK9 | Product type | 24-port Enterprise Fibre Channel switch bundle |
| Order configuration | 24 active FC ports, 24 x 16G SW optics, 4 fans, 2 power supplies, Enterprise license, and port-side intake airflow | Form factor | 1RU fixed-switch chassis |
| Fibre Channel ports | 16 SFP+ base ports with one 16-port SFP+ expansion slot | Active ports at order | 24 active Fibre Channel ports |
| Maximum Fibre Channel ports | 32 active Fibre Channel ports | Port activation license | 8-port On-Demand Activation license for 24-port configurations |
| Fibre Channel speed support | 4, 8, 16, and 32 Gbps autosensing on MDS 9132T ports | Aggregate bandwidth | 1,024 Gbps aggregate bandwidth |
| Buffer credits | Up to 8300 buffer credits | Default buffer credits per port | 500 buffer credits per port |
| Maximum buffer credits for a single port | 8270 buffer credits within the port group | Port channel support | Up to 16 load-balanced physical links in one port channel |
| Management port | Two 10/100/1000 out-of-band Ethernet management ports | Console port | RS-232 serial console port |
| USB port | USB power-on auto-provision port | Minimum NX-OS release | Cisco MDS NX-OS Release 8.2(1) or later |
| Minimum Cisco DCNM release | Cisco DCNM Release 10.4(1) or later | Network license | Cisco MDS 9000 Family Enterprise Package |
| Enterprise license features | IVR, QoS controls, FC-SP, traffic encryption support, VSAN-based access control, and fabric binding | Fan modules | 4 fan modules in the Cisco bundle description |
| Power supplies | 2 power supplies in the Cisco bundle description | Matching power supply spare | DS-CAC-650W-I= for port-side intake airflow |
| Matching fan spare | DS-C32S-FAN-I= for port-side intake airflow | AC input voltage | 100 to 240 VAC, 50 to 60 Hz nominal |
| Power supply output | 650W, 12V +/- 5 percent, up to 54A | Output hold-up time | 20 ms |
| Maximum power consumption | 180W | Heat dissipation | 614 BTU/hr |
| Airflow | Front to back inward from ports with port-side intake fans | Airflow rate | 50 CFM at 77F (25C) through the system fan assembly; 100 CFM maximum |
| Dimensions | 1.72 x 17.3 x 20.11 in. (4.36 x 43.94 x 51.07 cm) | Weight | 9.82 kg (21.65 lb) |
| 16G SW transceiver product ID | DS-SFP-FC16G-SW | 16G SW optic type | 16G Fibre Channel shortwave SFP+ |
| 16G SW connector | Dual LC connector | 16G SW wavelength | 850 nm |
| 16G SW fiber type | Multimode fiber | 16G SW cable distance | 49 ft (15 m) on OM1, 115 ft (35 m) on OM2, 328 ft (100 m) on OM3, and 410 ft (125 m) on OM4 or OM5 |
| 16G SW temperature range | 0C to 70C operating and -40C to 85C storage | Supported FC optics | 32G SW, 32G LW, 16G SW, 16G LW, 16G ELW, 8G SW, 8G LW, 8G ER, and 8G CWDM SFP+ optics listed by Cisco |
