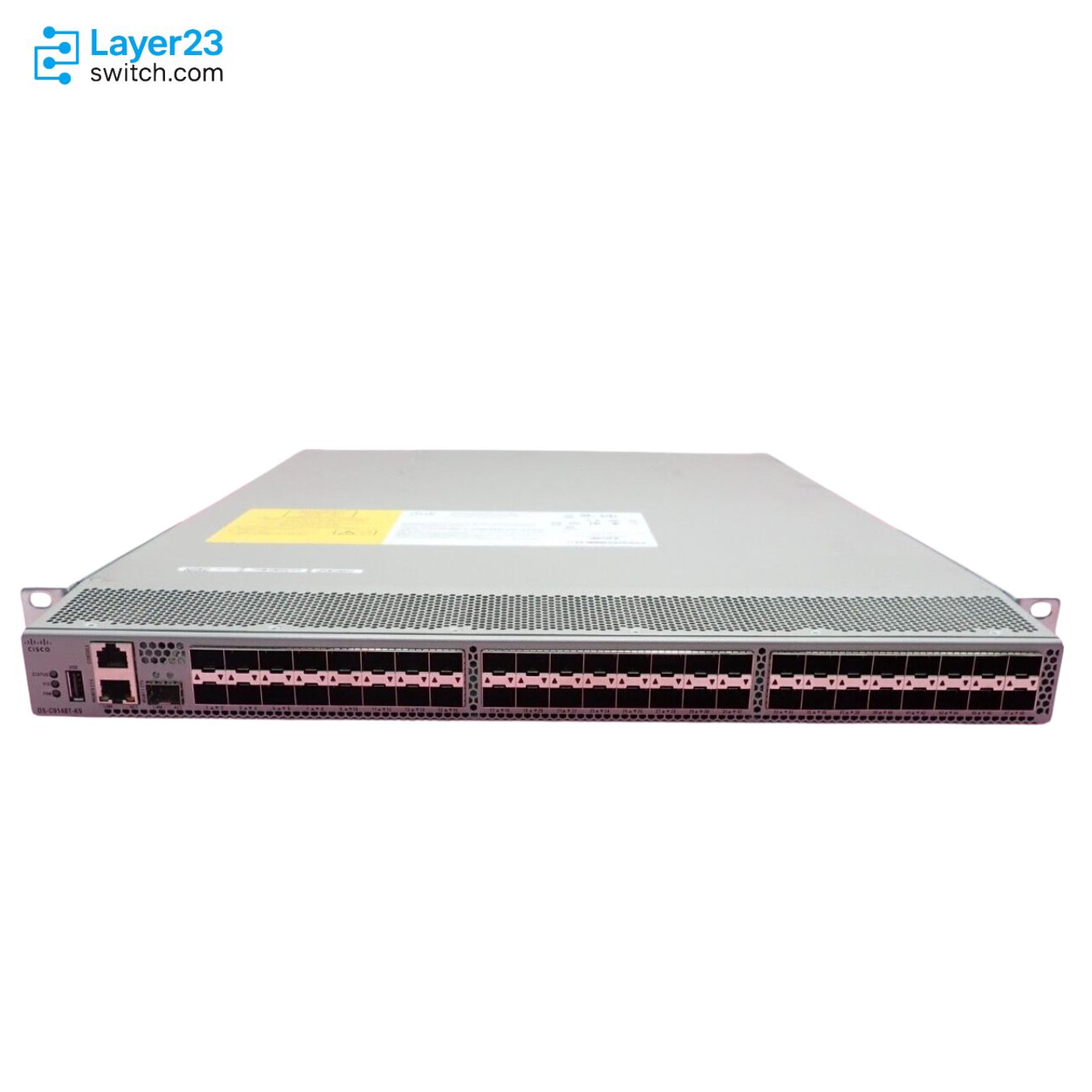

DS-C9148T-24EK9 Description
The DS-C9148T-24EK9 is a Cisco MDS 9148T 32G Fibre Channel SAN switch for storage fabrics that need a 1RU fixed switch with room to grow. The switch has 24 active ports on a 48-port SFP+ chassis, 4/8/16/32 Gbps autosensing, 1.5 Tbps of aggregate bandwidth and port-side exhaust airflow. Ports beyond 24 come from M9148T-PL8 8-port activation licenses, and the base switch has no factory optic bundle.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
DS-C9148T-24EK9 |
|
Product type |
32G Fibre Channel SAN switch |
|
Form factor |
1RU fixed-switch form factor |
|
Fibre Channel ports |
48 SFP+ ports base |
|
Active ports at order |
24 active FC ports |
|
Fibre Channel speed support |
4, 8, 16, and 32 Gbps autosensing |
|
Dedicated bandwidth per port |
32 Gbps |
|
Aggregate bandwidth |
1.5 Tbps end-to-end full duplex |
|
Port groups |
3 port groups of 16 ports each |
|
Base order hardware |
4 fans and 2 PSUs |
|
Airflow |
Port-side exhaust |
Product Performance
Key Features
Air leaves toward the port side, with DS-CAC-650W-E supplies and DS-C32S-FAN-E fan modules. The intake variant reverses the direction, so a rack row needs one airflow type throughout.
The chassis has 48 SFP+ ports and 24 are active at the start. Any 24 ports can be enabled, so cabling is not tied to the first half of the faceplate.
M9148T-PL8 licenses add 8 ports each, taking the switch to 32, 40 and then 48 active ports. Each step is a license file rather than a hardware change.
Ports sit in three groups of 16, each with up to 8300 buffer credits, 500 per port by default and 8270 on one port. Each port has 32 Gbps of dedicated bandwidth, and the chassis aggregates 1.5 Tbps full duplex.
The two 650W AC supplies are 80 Plus Platinum rated at 100 to 240 VAC. Typical draw is 251W with 24 32G SW optics, and 217W for an idle chassis with no optics.
Cisco MDS NX-OS 8.3(1) or later and Cisco DCNM 11(0) or later are the minimum releases, which matters for fabrics still on older MDS code.
Application Scenarios
A storage row with a few dozen hosts and array controllers can terminate its 32G links on the 24 active ports and leave the rest of the chassis for later.
An edge switch that adds hosts every few months can step from 24 to 32, 40 and 48 active ports with 8-port licenses on the same chassis.
In rows where cabinet fronts face a hot aisle, the port-side exhaust version pushes air out toward the ports to match that airflow plan.
Product Comparison
|
Parameter |
DS-C9148T-24EK9 | |||
|---|---|---|---|---|
|
Fibre Channel ports |
48 SFP+ |
48 SFP+ |
48 SFP+ |
48 SFP+ |
|
Active Fibre Channel ports |
24 |
24 |
24 |
48 |
|
Port speed |
4/8/16/32 Gbps autosensing |
4/8/16/32 Gbps autosensing |
4/8/16/32 Gbps autosensing |
4/8/16/32 Gbps autosensing |
|
Aggregate bandwidth |
1.5 Tbps |
1.5 Tbps |
1.5 Tbps |
1.5 Tbps |
|
Buffer credits |
8300 per 16-port group |
8300 per 16-port group |
8300 per 16-port group |
8300 per 16-port group |
|
Airflow |
Port-side exhaust |
Port-side intake |
Port-side exhaust |
Port-side exhaust |
|
Included optics |
Not included |
Not included |
24 x 32G SW |
48 x 32G SW |
|
Fan modules |
4 |
4 |
4 |
4 |
|
Power supplies |
2 x 650W AC |
2 x 650W AC |
2 x 650W AC |
2 x 650W AC |
DS-C9148T-24EK9 and DS-C9148T-24IK9 are the same base switch with 24 active 32G FC ports, 4 fans, 2 PSUs and no optics; the difference is airflow, port-side exhaust on DS-C9148T-24EK9 against port-side intake on DS-C9148T-24IK9, so racks that need intake take DS-C9148T-24IK9. Optics shipped with the switch change the model to DS-C9148T-24PETK9, which adds 24 x 32G SW optics, or DS-C9148T-48PETK9, which has 48 active ports and 48 x 32G SW optics. DS-C9148T-24EK9 grows to 48 ports in 8-port steps with M9148T-PL8 licenses.
Ordering Checklist
- Airflow spares: Order DS-CAC-650W-E= and DS-C32S-FAN-E= for port-side exhaust. The intake versions, DS-CAC-650W-I= and DS-C32S-FAN-I=, would reverse airflow in the same chassis.
- Port growth: M9148T-PL8 adds 8 ports; M9148T-PL8T adds 8 ports with 8 x 32G SW optics. The switch ships with 24 active ports, and each license block raises that to 32, 40 or 48.
- Optics: Add DS-SFP-FC32G-SW or DS-SFP-FC16G-SW as separate lines. The base switch is ordered without optics, so no transceivers arrive unless they are on the order.
- Power cords: Select a CAB-9K10A-* or CAB-9K12A-NA regional cord, or a CAB-C15-CBN cabinet jumper. The 650W AC supplies take a C15 cord, so the cord must match the destination country or cabinet.
Optional Add-ons
|
Model |
Description |
|---|---|
|
M9148T-PL8 |
Cisco MDS 9148T 8-port On-Demand Activation license |
|
M9148T-PL8= |
Cisco MDS 9148T 8-port On-Demand Activation spare license |
|
M9148T-PL8T |
Cisco MDS 9148T 8-port activation license with 8 x 32G SW optics |
|
DS-CAC-650W-E= |
AC PSU port-side exhaust spare for MDS 9148T |
|
DS-C32S-FAN-E= |
MDS 9148T fan module port-side exhaust spare |
|
Cisco 32G FC shortwave optic | |
|
Cisco 32G FC longwave optic | |
|
DS-9148T-KIT-CSCO |
MDS 9148T accessory kit for Cisco |
Front View
|
1 |
Serial console port |
7 |
Activity status LED |
|
2 |
System status LED |
8 |
Ethernet management ports (2) |
|
3 |
Power status LED |
9 |
Fixed FC ports |
|
4 |
Fan status LED |
10 |
FC port status LEDs (48) |
|
5 |
USB port |
11 |
Airflow grill |
|
6 |
Link status LED |
Rear View
|
1 |
Power supply failure status LED |
6 |
Power supply status LED |
|
2 |
Power supply unit fan |
7 |
Power supply units (2 units) |
|
3 |
Power supply unit handle |
8 |
Chassis fan modules (4 units) |
|
4 |
Unswitched power receptacle |
9 |
Chassis fan module release latches (8) |
|
5 |
Power supply unit latch release |
|
1 |
Power supply unit slot 1 |
4 |
Chassis fan module slot 3 |
|
2 |
Chassis fan module slot 1 |
5 |
Chassis fan module slot 4 |
|
3 |
Chassis fan module slot 2 |
6 |
Power supply unit slot 2 |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | DS-C9148T-24EK9 | Product compatibility | Cisco MDS 9000 Family |
| Product type | 32G Fibre Channel SAN switch | Order configuration | 24 active FC ports, 4 fans, 2 PSUs, port-side exhaust airflow |
| Rack units | 1RU fixed-switch form factor | Fibre Channel ports | 48 SFP+ ports base |
| Active ports at order | 24 active FC ports | Port activation license | M9148T-PL8 8-port upgrade license |
| Maximum active ports | 48 active FC ports | Fibre Channel speed support | 4, 8, 16, and 32 Gbps autosensing |
| Dedicated bandwidth per port | 32 Gbps | Switching capacity | 1.5 Tbps end-to-end full duplex |
| Port groups | 3 port groups of 16 ports each | Buffer credits | Up to 8300 for a group of 16 ports, 500 default per port, 8270 maximum for a single port in the group |
| Port channel support | Up to 16 load-balanced physical links in one port channel | Fibre Channel port types | E, F, B, SD, ST, NP, and TE |
| FC-NVMe support | FC-NVMe listed in the protocol support | Fabric services | Name server, RSCN, login services, FCS, broadcast, and in-order delivery |
| Advanced functions | VSAN, NPV, IVR, port channel with multipath load balancing, and flow- and zone-based QoS | Security functions | VSAN isolation, hardware zoning ACLs, FC-SP, RBAC, SFTP, SSHv2, SNMPv3, control-plane security, TrustSec payload encryption, secure boot, and anti-counterfeit technology |
| Diagnostics | POST, OHMS, internal loopbacks, SPAN, Fibre Channel traceroute, Fibre Channel ping, Fibre Channel debug, Cisco Fabric Analyzer, syslog, port-level statistics, link diagnostics, and read diagnostic parameter | High availability components | Hot-swappable dual redundant power supplies, hot-swappable fan module, and hot-swappable SFP+ optics |
| Management port | mgmt0 10/100/1000BASE-T and mgmt1 1/10G SFP+ port | Console port | RS-232 serial console port |
| USB port | USB power-on auto-provision port | Programmability | NX-API RESTful interfaces, onboard Python interpreter, Cisco DCNM web services API, EEM, and NX-OS scheduler |
| Minimum NX-OS release | Cisco MDS NX-OS 8.3(1) or later | Minimum Cisco DCNM release | Cisco DCNM 11(0) or later |
| Default power supply | DS-CAC-650W-E 650W AC port-side exhaust power supply; two supplies in the order configuration | AC input voltage | 100 to 240 VAC, 10 percent range |
| AC input frequency | 50 to 60 Hz nominal | Typical power without optics | 217W for idle 48-port switch without optics modules |
| Typical power with 24 optics | 251W for 48-port switch with 24 32G SW optics under typical conditions | Typical power with 48 optics | 297W for 48-port switch with 48 32G SW optics under typical conditions |
| Airflow | Back to front toward ports using port-side exhaust fans | Airflow rate with system fan assembly | 50 CFM through system fan assembly at 77F (25C) |
| Airflow rate | 100 CFM maximum | Dimensions | 1.72 x 17.3 x 22.3 in. (4.37 x 43.94 x 56.64 cm), excluding PSU and fan module handles |
| Operating temperature | 32 to 104F (0 to 40C) | Operating humidity | 10 to 90 percent noncondensing |
| Operating altitude | -197 to 6500 ft (-60 to 2000 m) | Supported FC optics | 32G SW, 32G LW, 16G SW, 16G LW, 8G SW, and 8G LW optics listed |
| Included accessory kit | Cisco-specific MDS 9148T accessory kit shipped as standard |
