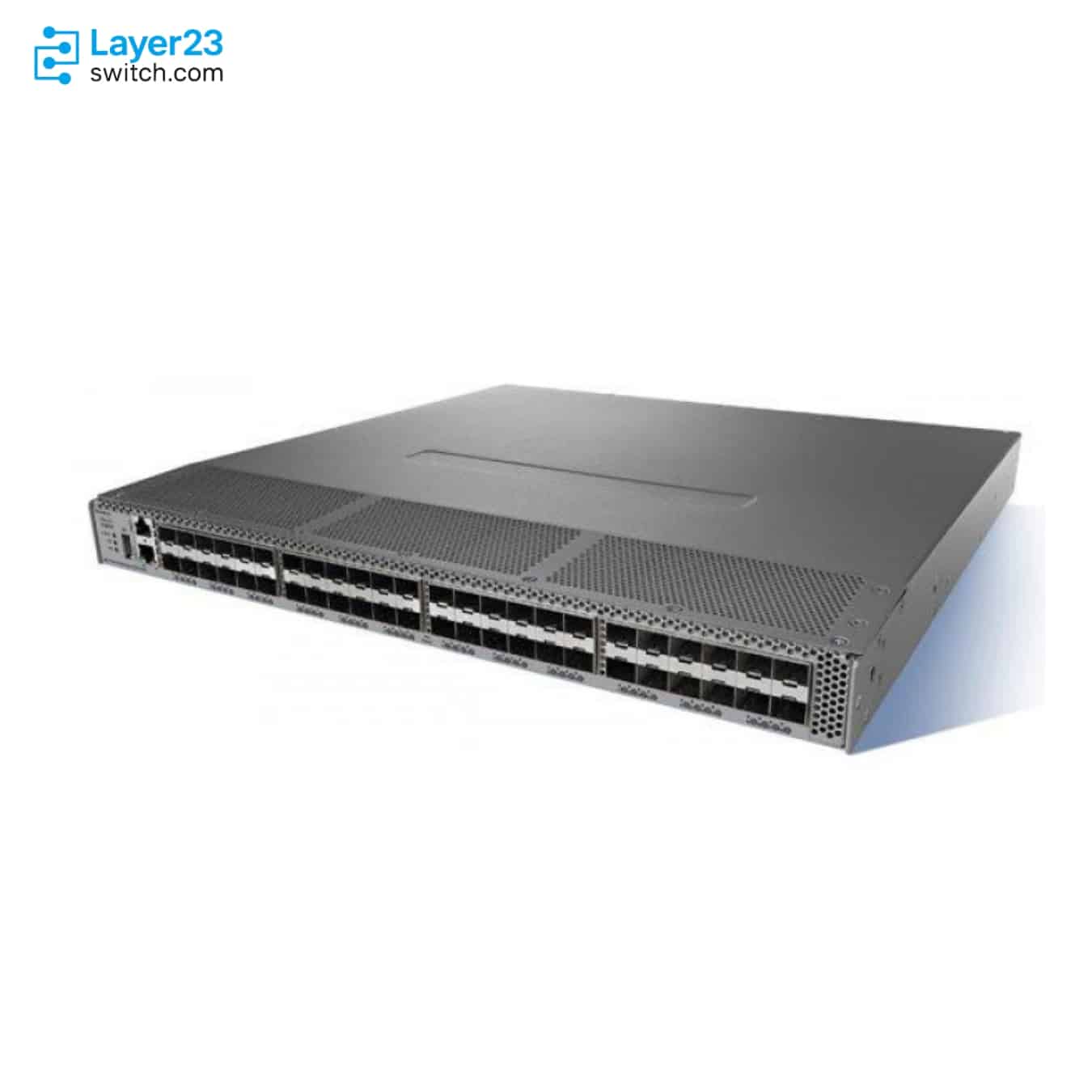

DS-C9148T-48PETK9 – 48x32G FC Ports – 48x32G SW Optics – Exhaust SAN Switch
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
DS-C9148T-48PETK9 Description
DS-C9148T-48PETK9 is a Cisco MDS 9148T 32G Fibre Channel SAN switch bundle for data-center storage fabrics that need fixed 32G FC access with the ports and optics included at order time. The Cisco ordering row identifies this SKU with 48 active FC ports, 48 Cisco 32G shortwave optics, four fans, two power supplies, and port-side exhaust airflow; the platform supports 4/8/16/32 Gbps autosensing Fibre Channel, 1.5 Tbps end-to-end full-duplex aggregate bandwidth, and Cisco MDS NX-OS 8.3(1) or later.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
DS-C9148T-48PETK9 |
|
Product type |
32G Fibre Channel SAN switch |
|
Form factor |
1RU fixed-switch form factor |
|
Fibre Channel ports |
48 SFP+ ports base |
|
Active ports at order |
48 active FC ports |
|
Included FC optics |
48 x Cisco 32G shortwave Fibre Channel optics |
|
Base order hardware |
4 fans and 2 power supplies |
|
Fibre Channel speed support |
4, 8, 16, and 32 Gbps autosensing |
|
Dedicated bandwidth per port |
32 Gbps |
|
Aggregate bandwidth |
1.5 Tbps end-to-end full duplex |
|
Airflow direction |
Port-side exhaust |
Product Performance
Key Features
The SKU brings the MDS 9148T chassis to 48 active FC ports at purchase time, which is the key distinction from 24-port bundles that require later activation planning.
Cisco ties this PID to 48 included 32G SW Fibre Channel optics, so the switch and day-one multimode 32G optic count stay together in the same hardware quote.
The order is the port-side exhaust version of the 48-port optic bundle. Replacement fan and PSU choices should follow the same exhaust airflow direction.
The platform supports Fibre Channel services such as VSANs, NPV, IVR, port channels, FC-NVMe support, diagnostics, and secure management functions under the required Cisco MDS software release.
The base configuration includes two power supplies and four fan modules, and Cisco lists hot-swappable power, fan, and SFP+ optic components for service planning.
Cisco documents dual out-of-band management ports, NX-API interfaces, onboard Python, SNMPv3, Cisco DCNM integration, and telemetry support for MDS 9148T operations.
Application Scenarios
DS-C9148T-48PETK9 fits SAN refresh work where host, storage, and ISL links already justify all 48 active 32G-capable ports during the first installation window.
The included 48 x 32G SW optic bundle is useful when the design is built around 32G Fibre Channel shortwave links instead of separate longwave or lower-speed optic selection.
Choose this PID for cabinets where cooling design expects exhaust toward the port side. The same airflow identity should stay aligned across the installed switch, spare fans, and spare power supplies.
Product Comparison
|
Parameter |
DS-C9148T-48PETK9 | |||
|---|---|---|---|---|
|
Form factor |
1RU fixed switch |
1RU fixed switch |
1RU fixed switch |
1RU fixed switch |
|
Chassis FC ports |
48 SFP+ ports |
48 SFP+ ports |
48 SFP+ ports |
48 SFP+ ports |
|
Active FC ports |
48 |
48 |
24 |
24 |
|
Fibre Channel speed support |
4/8/16/32 Gbps |
4/8/16/32 Gbps |
4/8/16/32 Gbps |
4/8/16/32 Gbps |
|
Included FC optics |
48 x 32G SW optics |
48 x 32G SW optics |
24 x 32G SW optics |
24 x 32G SW optics |
|
Fan modules |
4 |
4 |
4 |
4 |
|
Power supplies |
2 |
2 |
2 |
2 |
|
Airflow direction |
Port-side exhaust |
Port-side intake |
Port-side exhaust |
Port-side intake |
|
Minimum NX-OS release |
Cisco MDS NX-OS 8.3(1) or later |
Cisco MDS NX-OS 8.3(1) or later |
Cisco MDS NX-OS 8.3(1) or later |
Cisco MDS NX-OS 8.3(1) or later |
- In a DS-C9148T-48PETK9 vs DS-C9148T-48PITK9 comparison, both SKUs include 48 active ports and 48 x 32G SW optics, while the difference is exhaust versus intake airflow.
- The DS-C9148T-48PETK9 difference from DS-C9148T-24PETK9 is active-port and optic count: the DS-C9148T-48PETK9 order is fully active with 48 optics and the DS-C9148T-24PETK9 order starts with 24 active ports and 24 optics.
- For DS-C9148T-48PETK9 vs DS-C9148T-24PITK9, the comparison has two checked fields: DS-C9148T-48PETK9 is exhaust with 48 active ports, while DS-C9148T-24PITK9 is intake with 24 active ports.
- Buyers deciding which model to choose should first fix airflow direction, then confirm whether the first order needs the 48-port optic bundle or a 24-port staged start.
Selection Guide
1. Start with the required active-port count
Choose DS-C9148T-48PETK9 when the SAN design needs all 48 FC ports active at delivery. Use a 24-port PET or PIT bundle only when the growth plan is intentionally staged.
2. Match airflow before selecting spares
Select the exhaust SKU when cabinet cooling expects air to leave through the port side. Use the PIT alternative only for racks standardized on port-side intake.
3. Keep the optic bundle tied to the cabling design
This SKU should stay on the BOM when 48 Cisco 32G SW optics match the planned multimode Fibre Channel links. Separate optic lines are still needed for longwave or different-speed links.
4. Separate hardware identity from software entitlements
The switch requires Cisco MDS NX-OS 8.3(1) or later and Cisco DCNM 11(0) or later. Advanced software packages and SAN Insights items should be reviewed as separate entitlement lines.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Full bundle PID |
DS-C9148T-48PETK9 |
Keeps the order on the 48-active-port exhaust bundle with 48 included 32G SW optics |
|
Airflow match |
Port-side exhaust switch plus exhaust spare PSU and fan choices |
Prevents mixing intake and exhaust components in the same rack plan |
|
Optic media plan |
32G SW optics for the 48 included FC links |
Confirms that the bundle matches multimode shortwave Fibre Channel cabling |
|
Software baseline |
Cisco MDS NX-OS 8.3(1) or later and Cisco DCNM 11(0) or later |
Keeps staging and management tooling aligned with the MDS 9148T requirement |
|
Power-cord region |
C15 regional power cords or approved cabinet jumper cords |
Avoids a hardware arrival that cannot be powered in the target cabinet |
|
Separate licenses |
SAN Insights, Enterprise Package, DCNM advanced, or Smart Account items |
Keeps optional software entitlements from being assumed as part of the hardware PID |
Optional Add-ons
|
Model |
Description |
|---|---|
|
DS-CAC-650W-E= |
AC PSU port-side exhaust spare for MDS 9148T |
|
DS-C32S-FAN-E= |
MDS 9148T fan module port-side exhaust spare |
|
Cisco 32G FC shortwave optic | |
|
Cisco 32G FC longwave optic | |
|
Cisco 16G FC shortwave optic | |
|
Cisco 8G FC shortwave optic | |
|
DS-9148T-KIT-CSCO |
MDS 9148T accessory kit for Cisco |

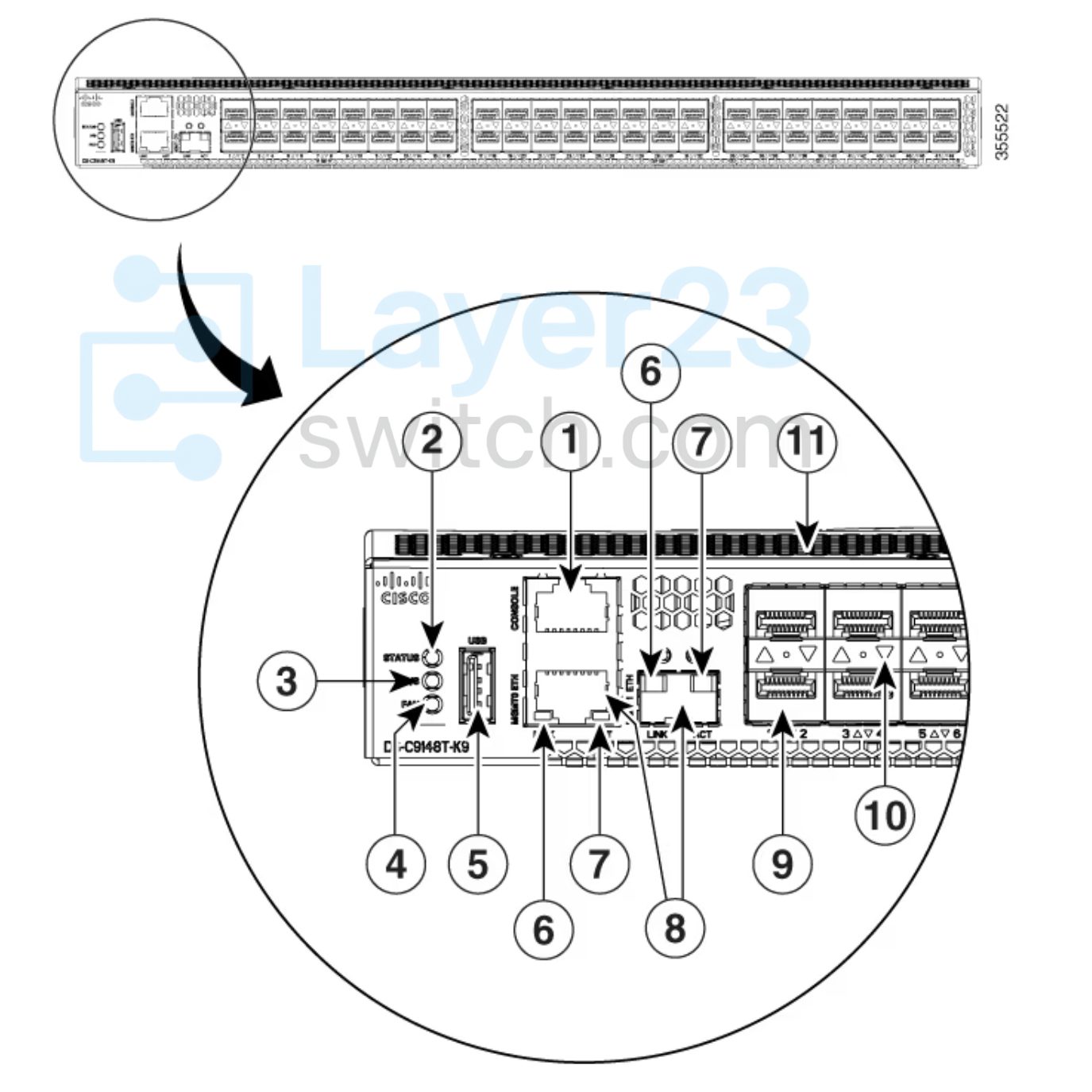

Front View
|
1 |
Serial console port |
7 |
Activity status LED |
|
2 |
System status LED |
8 |
Ethernet management ports (2) |
|
3 |
Power status LED |
9 |
Fixed FC ports |
|
4 |
Fan status LED |
10 |
FC port status LEDs (48) |
|
5 |
USB port |
11 |
Airflow grill |
|
6 |
Link status LED |

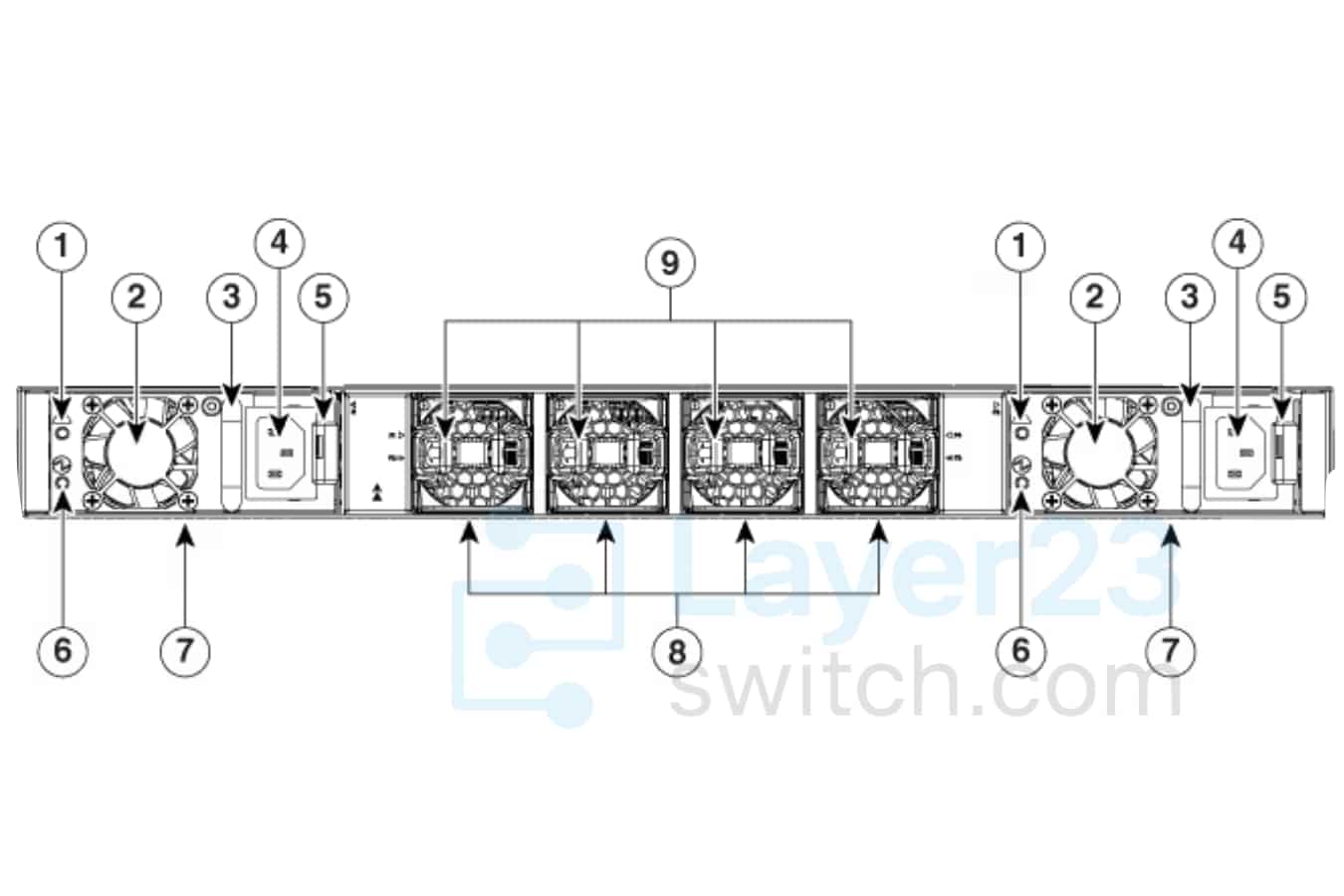

Rear View
|
1 |
Power supply failure status LED |
6 |
Power supply status LED |
|
2 |
Power supply unit fan |
7 |
Power supply units (2 units) |
|
3 |
Power supply unit handle |
8 |
Chassis fan modules (4 units) |
|
4 |
Unswitched power receptacle |
9 |
Chassis fan module release latches (8) |
|
5 |
Power supply unit latch release |
|

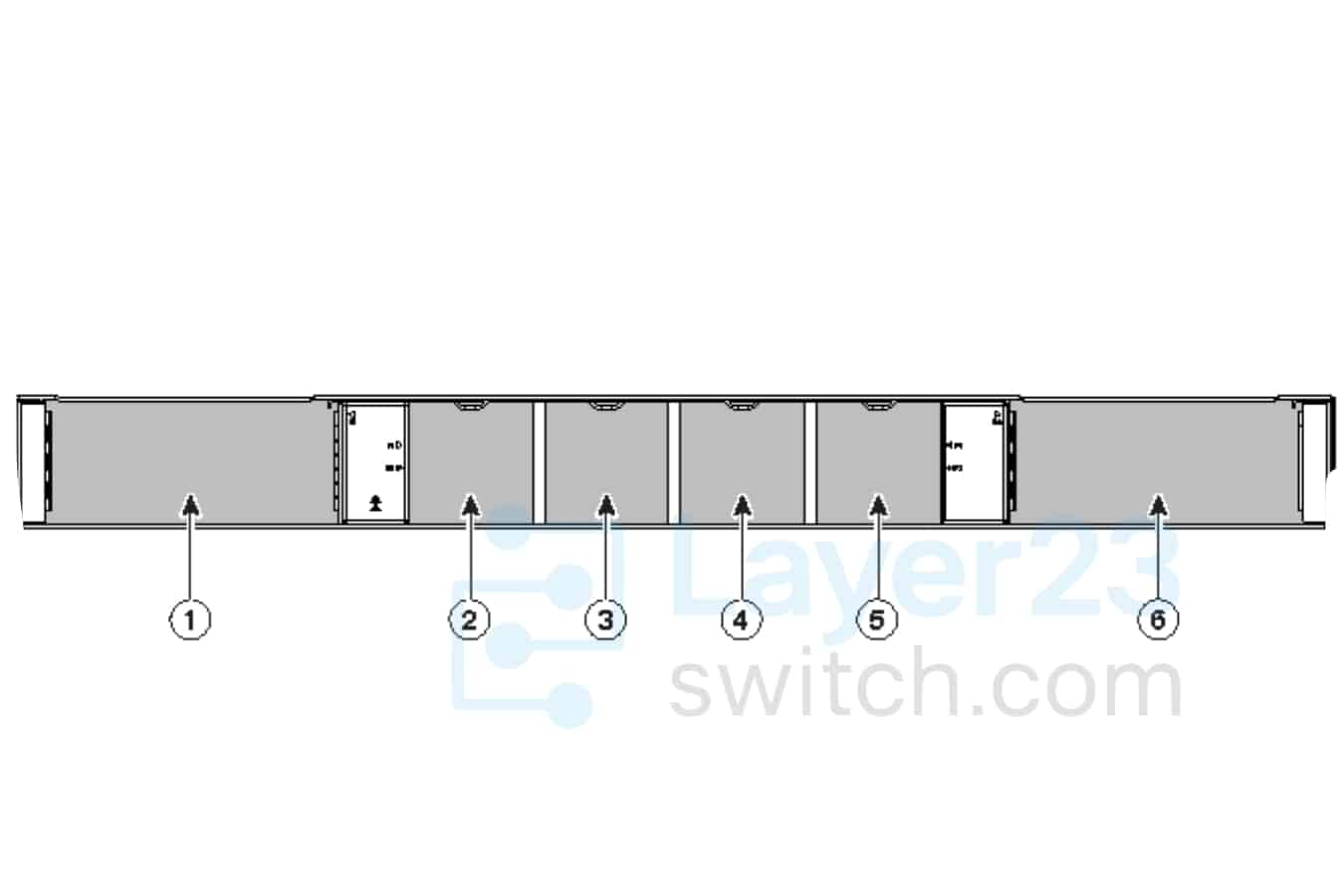

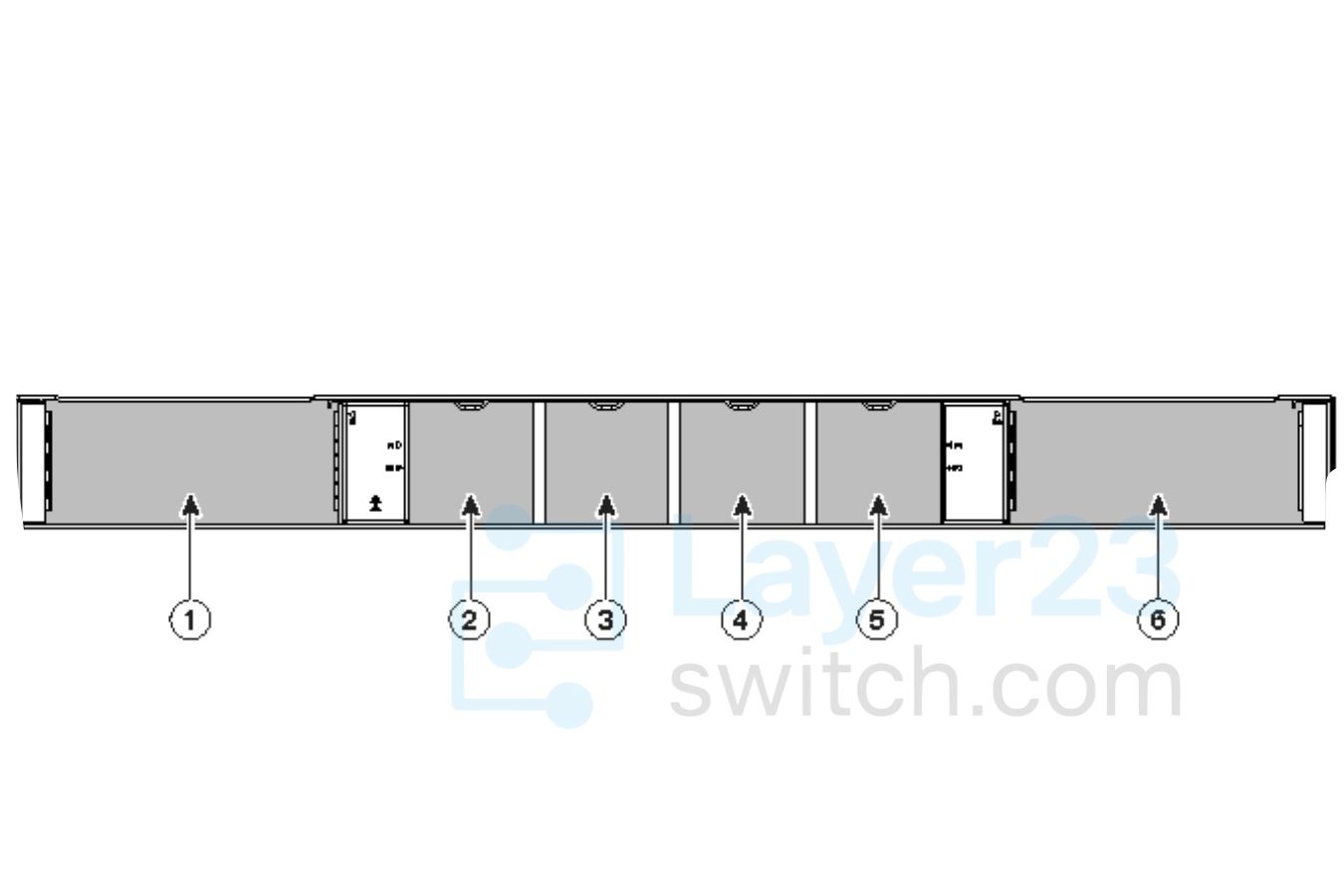

1 |
Power supply unit slot 1 |
4 |
Chassis fan module slot 3 |
|
2 |
Chassis fan module slot 1 |
5 |
Chassis fan module slot 4 |
|
3 |
Chassis fan module slot 2 |
6 |
Power supply unit slot 2 |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | DS-C9148T-48PETK9 | Product compatibility | Cisco MDS 9000 Family |
| Product type | 32G Fibre Channel SAN switch | Order configuration | 48 active FC ports, 48 x 32G SW optics, 4 fans, 2 power supplies, port-side exhaust airflow |
| Form factor | 1RU fixed-switch form factor | Fibre Channel ports | 48 SFP+ ports base |
| Active ports at order | 48 active FC ports | Included FC optics | 48 x Cisco 32G shortwave Fibre Channel optics |
| Fibre Channel speed support | 4, 8, 16, and 32 Gbps autosensing | Dedicated bandwidth per port | 32 Gbps |
| Aggregate bandwidth | 1.5 Tbps end-to-end full duplex | Port groups | 3 port groups of 16 ports each |
| Buffer credits | Up to 8300 for a group of 16 ports, 500 default per port, 8270 maximum for a single port in the group | Port channel support | Up to 16 load-balanced physical links in one port channel |
| Fibre Channel port types | E, F, B, SD, ST, NP, and TE | FC-NVMe support | FC-NVMe listed in protocol support |
| Fabric services | Name server, RSCN, login services, FCS, broadcast, and in-order delivery | Advanced functions | VSAN, NPV, IVR, port channel with multipath load balancing, and flow- and zone-based QoS |
| Security functions | VSAN isolation, hardware zoning ACLs, FC-SP, RBAC, SFTP, SSHv2, SNMPv3, control-plane security, TrustSec payload encryption, secure boot, and anti-counterfeit technology | Diagnostics | POST, OHMS, internal loopbacks, SPAN, Fibre Channel traceroute, Fibre Channel ping, Fibre Channel debug, Cisco Fabric Analyzer, syslog, port-level statistics, link diagnostics, and read diagnostic parameter |
| High availability components | Hot-swappable dual redundant power supplies, hot-swappable fan module, and hot-swappable SFP+ optics | Management Ethernet ports | mgmt0 10/100/1000BASE-T and mgmt1 1/10G SFP+ port |
| Console and USB ports | RS-232 serial console port and USB power-on auto-provision port | Programmability | NX-API RESTful interfaces, onboard Python interpreter, Cisco DCNM web services API, EEM, and NX-OS scheduler |
| Minimum NX-OS release | Cisco MDS NX-OS 8.3(1) or later | Minimum Cisco DCNM release | Cisco DCNM 11(0) or later |
| Default power supply | DS-CAC-650W-E 650W AC port-side exhaust power supply; two supplies in the order configuration | AC input voltage | 100 to 240 VAC, 10 percent range |
| AC input frequency | 50 to 60 Hz nominal | Typical power without optics | 217W for idle 48-port switch without optics modules |
| Typical power with 48 optics | 297W for 48-port switch with 48 32G SW optics under typical conditions | Airflow direction | Back to front toward ports using port-side exhaust fans |
| System airflow rate | 50 CFM through system fan assembly at 77F (25C) | Maximum airflow rate | 100 CFM maximum |
| Dimensions | 1.72 x 17.3 x 22.3 in. (4.37 x 43.94 x 56.64 cm), excluding PSU and fan module handles | Operating temperature | 32 to 104F (0 to 40C) |
| Operating relative humidity | 10 to 90 percent noncondensing | Operating altitude | -197 to 6500 ft (-60 to 2000 m) |
| Supported FC optics | 32G SW, 32G LW, 16G SW, 16G LW, 8G SW, and 8G LW optics listed | Included accessory kit | Cisco-specific MDS 9148T accessory kit shipped as standard |
