DS-C9132T-8PMETK9 – 8x32G FC Ports – 8x32G SW Optics – Exhaust SAN Switch
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
DS-C9132T-8PMETK9 Description

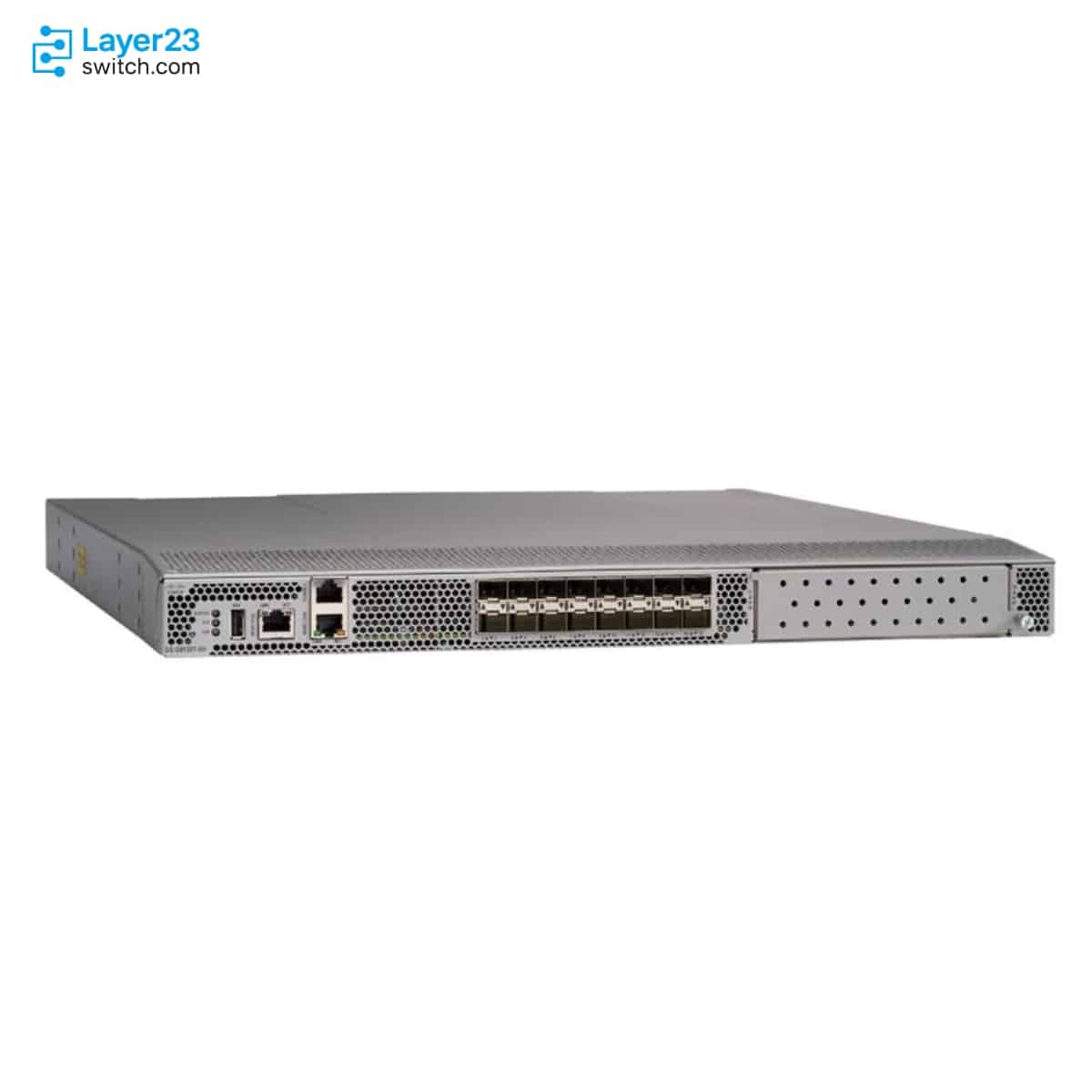

The DS-C9132T-8PMETK9 is a Cisco MDS 9132T 32-Gbps Fibre Channel fixed SAN switch for connecting server racks to a SAN core with port-side exhaust airflow. The switch has 8 active ports, eight 32G shortwave optics, two fan modules and one power supply, and its ports autosense 4, 8, 16 or 32 Gbps within 1024 Gbps of full-duplex bandwidth. Ports past the first 8 stay inactive until an 8-port activation license or the 16-port expansion module is added, up to 32 active ports.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
DS-C9132T-8PMETK9 |
|
Product compatibility |
Cisco MDS 9000 Family |
|
Product type |
32G Fibre Channel SAN switching |
|
Order configuration |
8 active ports, 8 x 32G SW optics, 2 fans, 1 PSU, exhaust airflow |
|
Active ports at order |
8 |
|
Airflow |
Port-side exhaust |
|
Fibre Channel ports |
16 SFP+ ports |
|
Maximum Fibre Channel ports |
32 active Fibre Channel ports |
|
Fibre Channel speed support |
4, 8, 16, and 32 Gbps autosensing |
|
Aggregate bandwidth |
1,024 Gbps full duplex |
|
Fan modules |
2 fan modules |
|
Minimum NX-OS release |
Cisco MDS NX-OS Release 8.2(1) or later |
|
Minimum Cisco DCNM release |
Cisco DCNM Release 10.4(1) or later |
Product Performance
Key Features
The first eight active ports arrive populated with 32G shortwave SFP+ optics on dual LC connectors, so the initial links need no separate optic purchase. Reach is 20 m on OM2, 70 m on OM3 and 100 m on OM4 or OM5.
The 16-port SFP+ base block and one 16-port expansion slot take the switch from 8 to as many as 32 active ports. An 8-port activation license adds ports in steps of eight, and the expansion module adds 16.
Every port has 32 Gbps of dedicated bandwidth, which gives 1024 Gbps of full-duplex capacity across the chassis. Ports autosense down to 16, 8 and 4 Gbps, so older host adapters connect without a speed change elsewhere.
Each 16-port group holds up to 8300 buffer credits, with 500 per port by default and up to 8270 on a single port. That headroom lets one port sustain a longer inter-switch link.
Air leaves toward the port side, the opposite of the intake variant, and the supply and fan spares must follow the same direction. Two fan modules and one 650W AC supply ship with the switch.
A PortChannel can bundle up to 16 physical links into one logical ISL with load balancing. Traffic to the core then keeps flowing if a single link fails.
Application Scenarios
In a server row, the switch connects host Fibre Channel adapters at up to 32 Gbps and carries their traffic to the SAN core over inter-switch links.
A storage cabinet built around port-side exhaust airflow can hold the switch next to the arrays it serves, with the fans pulling air out toward the port side.
Where hosts and arrays sit within 70 m on OM3 or 100 m on OM4 fiber, the eight 32G shortwave optics cover the first links without extra media.
Product Comparison
|
Parameter |
DS-C9132T-8PMETK9 | |||
|---|---|---|---|---|
|
Included FC optics |
8 x 32G SW |
8 x 32G SW |
24 x 32G SW |
24 x 32G SW |
|
Airflow |
Port-side exhaust |
Port-side intake |
Port-side exhaust |
Port-side intake |
|
Fan modules |
2 |
2 |
4 |
4 |
|
Power supplies |
1 |
1 |
2 |
2 |
|
Enterprise license |
Not published |
Not published |
Not included |
Not included |
|
Maximum Fibre Channel ports |
32 |
32 |
32 |
32 |
|
Fibre Channel speed support |
4/8/16/32 Gbps |
4/8/16/32 Gbps |
4/8/16/32 Gbps |
4/8/16/32 Gbps |
|
Aggregate bandwidth |
1,024 Gbps full duplex |
1,024 Gbps full duplex |
1,024 Gbps full duplex |
1,024 Gbps full duplex |
DS-C9132T-8PMETK9 and DS-C9132T-8PMITK9 carry the same eight active ports and eight 32G SW optics and differ only in airflow: this model is port-side exhaust, while DS-C9132T-8PMITK9 is port-side intake, so racks built around intake cooling should order the latter. Sites that need more than eight links on day one should look at DS-C9132T-24PETK9 for exhaust or DS-C9132T-24PITK9 for intake, which each ship 24 active ports, 24 optics, four fans and two power supplies, but without an Enterprise license. Growing the eight-port bundle instead takes an M9132T-PL8 license for up to 16 ports, or an M9XT-FC1632 expansion module for up to 24.
Ordering Checklist
- Airflow spares: Order the port-side exhaust spares DS-CAC-650W-E= power supply and DS-C32S-FAN-E= fan module, matching this switch. The intake spares are different PIDs, and a mismatched fan or supply reverses airflow in the rack.
- Port activation: The bundle starts with 8 active ports; M9132T-PL8 adds 8 ports for a maximum of 16, and the M9XT-FC1632 expansion module adds 16 for a maximum of 24. Ports beyond the factory 8 stay unusable until the license or module is on the order.
- Extra optics: The bundle carries 8 x 32G SW optics (DS-SFP-FC32G-SW); single-mode links need DS-SFP-FC32G-LW=. Only eight optics ship, so additional active ports or long-reach links need separate optic lines.
- Enterprise package: The order description lists no Enterprise license; M9100-ENT1K9= or L-M9100ENT1K9= covers IVR, QoS, FC-SP, port security and traffic encryption. Those features are unavailable unless the package is ordered as its own line.
- Power cord: Pick a country-specific cord from the data sheet list, such as CAB-9K12A-NA or CAB-9K10A-EU, for the C14 plug and C15 socket. The data sheet does not state which cord ships with the 8-port models.
Optional Add-ons
|
Model |
Description |
|---|---|
|
M9132T-PL8= |
8-port On-Demand Activation license spare for Cisco MDS 9132T port growth |
|
M9XT-FC1632= |
16-port SFP+ expansion module spare for Cisco MDS 9132T |
|
M9100-ENT1K9= |
MDS 9100 switch Enterprise package for advanced MDS feature requirements |
|
DS-CAC-650W-E= |
650W AC power supply spare for port-side exhaust MDS 9132T hardware |
|
DS-C32S-FAN-E= |
Fan module spare for port-side exhaust MDS 9132T hardware |
|
Cisco 32G Fibre Channel shortwave SFP+ transceiver for matching 32G SW links |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | DS-C9132T-8PMETK9 | Product compatibility | Cisco MDS 9000 Family |
| Product type | 32G Fibre Channel SAN switching | Order configuration | 8 active ports, 8 x 32G SW optics, 2 fan modules, 1 power supply, and port-side exhaust airflow |
| Form factor | 1RU fixed-switch form factor | Fibre Channel ports | 16 ports |
| Expansion module option | One 16-port SFP+ expansion slot | Maximum Fibre Channel ports | 32 active Fibre Channel ports |
| Fibre Channel speed support | 4, 8, 16, and 32 Gbps autosensing | Dedicated bandwidth per port | 32 Gbps |
| Aggregate bandwidth | 1,024 Gbps full duplex | Port activation license | M9132T-PL8= 8-port On-Demand Activation license |
| Expansion module option | M9XT-FC1632= 16-port SFP+ expansion module | Optional network license | M9100-ENT1K9= MDS 9100 switch Enterprise package |
| Minimum NX-OS release | Cisco MDS NX-OS Release 8.2(1) or later | Minimum Cisco DCNM release | Cisco DCNM Release 10.4(1) or later |
| Fan modules | 2 fan modules | Power supplies | 1 power supply |
| Default power supply | 650W AC port-side exhaust power supply (spare PID DS-CAC-650W-E=); one supply in the order configuration | AC input voltage | 100 to 240 VAC, 50 to 60 Hz nominal |
| Maximum power consumption | 180W | Heat dissipation | 614 BTU/hr |
| Airflow rate | 50 CFM through system fan assembly at 77 F (25 C) | Dimensions | 1.72 x 17.3 x 20.11 in. (4.36 x 43.94 x 51.07 cm) excluding PSU and fan module handles |
| Weight | 9.82 kg (21.65 lb) | Operating temperature | 32 to 104 F (0 to 40 C) |
| 32G SW transceiver product ID | DS-SFP-FC32G-SW | 32G SW media | 850 nm multimode fiber |
| 32G SW connector | Dual LC connectors | 32G SW cable distance | 65 ft (20 m) on OM2, 230 ft (70 m) on OM3, and 328 ft (100 m) on OM4 or OM5 |
| Supported FC optics | 32G SW, 32G LW, 16G SW, 16G LW, 8G SW, and 8G LW optics |
Get More Information
Need pricing, stock, or shipping details for the DS-C9132T-8PMETK9 ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is the maximum power consumption of DS-C9132T-8PMETK9?
-
What AC input does the power supply in DS-C9132T-8PMETK9 accept?
-
What airflow rate and temperature limit apply to DS-C9132T-8PMETK9?
-
How deep and heavy is DS-C9132T-8PMETK9 for rack planning?
