DS-C9148V-24PITK9 Description

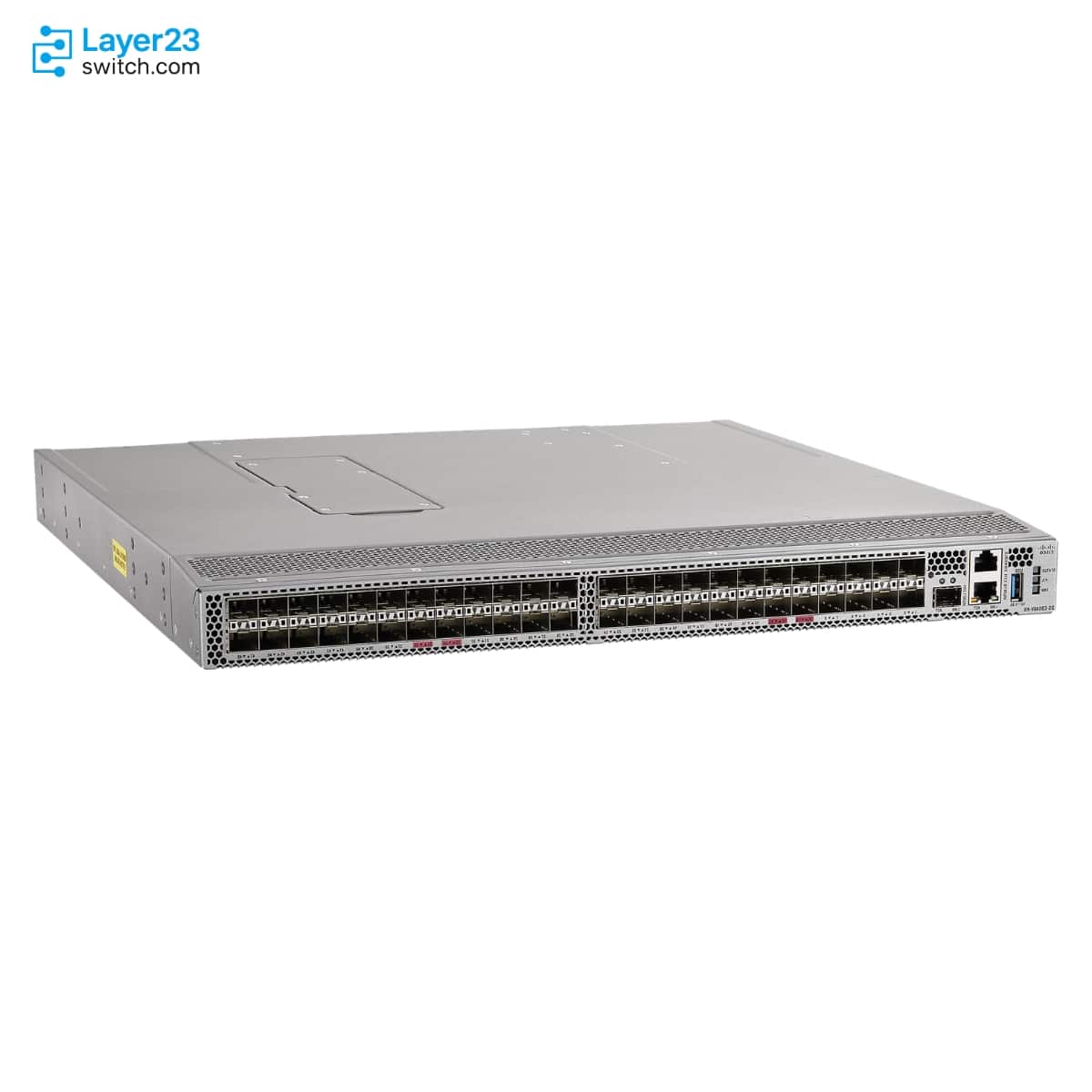

The DS-C9148V-24PITK9 is a Cisco MDS 9148V Series 64G Fibre Channel switch for SAN fabrics in racks cooled from the port side. The 1RU switch has 48 SFP+ ports at 8, 16, 32 and 64 Gbps, 3 Tbps of aggregate bandwidth and port-side intake airflow, with 24 ports active and 24 Cisco 32G shortwave optics included. The other 24 ports stay inactive until M9148V-PL8 licenses are added in 8-port steps.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
DS-C9148V-24PITK9 |
|
Product type |
64G-capable Fibre Channel SAN switch |
|
Order configuration |
24 active ports, 24 x 32G SW optics, 4 fans, and 2 PSUs |
|
Airflow |
Port-side intake |
|
Active ports at order |
24 Fibre Channel ports |
|
Maximum Fibre Channel ports |
48 SFP+ ports |
|
Port activation license |
8-port activation license increments |
|
Fibre Channel speed support |
8, 16, 32, and 64 Gbps autosensing |
|
Dedicated bandwidth per port |
64 Gbps |
|
Aggregate bandwidth |
3 Tbps full duplex |
|
Port group architecture |
2 port groups of 24 ports each |
|
Minimum NX-OS release |
Cisco MDS NX-OS Release 9.3(1) or later |
|
Optional subscription licenses |
Cisco MDS Premier and Cisco MDS Advantage |
Product Performance
Key Features
Air flows front to back, entering at the port side. The power supplies and fan trays must be the intake type, and an intake side left in the hot aisle can overheat the switch and shut it down.
Half of the 48 SFP+ ports are active at shipment. Each M9148V-PL8 license activates 8 more, so three licenses bring the switch to 48 ports.
The 24 included optics use 850 nm light over dual LC multimode fiber and reach 70 m on OM3 or 100 m on OM4 and OM5. Longer single-mode links need different optics.
Every port has 64 Gbps of dedicated bandwidth, and the chassis switches 3 Tbps full duplex. Links on the included optics run at up to 32 Gbps.
The ports form two groups of 24. Each group holds up to 24,000 buffer credits, with 1000 per port by default and up to 16,000 on a single port for longer links.
The 500W AC supplies take 100 to 240 VAC, while the 1200W supply also accepts 192 to 400 VDC. With 24 32G optics at 50 percent traffic the switch draws 211W at 110V.
Application Scenarios
In a data hall with a cold aisle at the cable face, the switch draws cooling air through the port side, so the ports sit in the cool air next to the servers they serve.
A storage team connects the first 24 hosts and array ports over the included 32G shortwave optics, then activates more ports in 8-port blocks as racks fill.
Hosts with 8, 16 and 32 Gbps adapters share one chassis because each port autosenses its speed, and the shortwave optics reach 100 m on OM4 multimode fiber.
Product Comparison
|
Parameter |
DS-C9148V-24PITK9 |
DS-C9148V-24PIVK9 | ||
|---|---|---|---|---|
|
Fibre Channel ports |
48 SFP+ |
48 SFP+ |
48 SFP+ |
48 SFP+ |
|
Fibre Channel speed support |
8, 16, 32 and 64 Gbps |
8, 16, 32 and 64 Gbps |
8, 16, 32 and 64 Gbps |
8, 16, 32 and 64 Gbps |
|
Aggregate bandwidth |
3 Tbps full duplex |
3 Tbps full duplex |
3 Tbps full duplex |
3 Tbps full duplex |
|
Buffer credits per port group |
Up to 24,000 |
Up to 24,000 |
Up to 24,000 |
Up to 24,000 |
|
Airflow |
Port-side intake |
Port-side exhaust |
Port-side intake |
Port-side intake |
|
Active ports |
24 |
24 |
48 |
24 |
|
Included optics |
24 x 32G SW |
24 x 32G SW |
48 x 32G SW |
24 x 64G SW |
|
Port activation license |
M9148V-PL8 adds 8 ports |
M9148V-PL8 adds 8 ports |
Not applicable |
M9148V-PL8 adds 8 ports |
DS-C9148V-24PITK9 starts with 24 active ports and 24 x 32G SW optics, while DS-C9148V-48PITK9 has the same port-side intake airflow with all 48 ports active and 48 x 32G SW optics. A 24-port switch grows in 8-port steps with M9148V-PL8, so sites that expect more than 24 links on day one are better served by DS-C9148V-48PITK9. Where the bundle must include 64G SW optics, DS-C9148V-24PIVK9 keeps 24 ports and intake airflow but swaps the optics; the 64G-capable ports also run the 32G optics included here. Racks that need port-side exhaust airflow use DS-C9148V-24PETK9, with the same 24 ports and 32G optics.
Ordering Checklist
- Airflow-matched spares: Order the port-side intake parts DS-CAC-500W-I= power supply and DS-C32S-FAN-I= fan tray. Spares of the other direction do not match the chassis, and an intake side left in the hot aisle can overheat the switch and shut it down.
- Power supply type: Choose two supplies per switch: 500W AC, or DS-CAC-1200W= for AC, HVAC or HVDC with bidirectional airflow. The ordering line lists only 2 PSUs; the 500W and 1200W supplies take different input voltages, and DC feeds from 192 to 400V need the 1200W supply.
- Power cords: Select CAB-9K12A-NA or the regional CAB-9K10A cord for the 500W supplies, and CAB-HVAC-C14-2M for the 1200W supply. The supply type decides which cord plugs in at the rack PDU.
- Included optics: 24 x DS-SFP-FC32G-SW are in the bundle. Longer single-mode links need DS-SFP-FC32G-LW= or DS-SFP-FC32G-ELW=, and 64G links need DS-SFP-FC64G-SW=, because shortwave multimode optics do not reach single-mode distances.
- Port activation: 24 ports are active at order; add M9148V-PL8 licenses in 8-port steps up to 48. Links beyond port 24 stay disabled until licenses are added.
- Software subscription: Add Premier (M91VXK9-P-1Y/3Y/5Y/7Y) or Advantage (M91VXK9-A-1Y/3Y/5Y); OSM channel orders use the -OSM PIDs. The bundle PIDs include neither subscription, and only Premier adds SAN Analytics.
Optional Add-ons
|
Model |
Description |
|---|---|
|
M9148V-PL8= |
MDS 9148V 64G Fibre Channel switch 8-port upgrade license spare |
|
DS-CAC-500W-I= |
MDS 9100 500W port-side intake power supply spare that works with MDS 9148V |
|
DS-C32S-FAN-I= |
MDS switch fan tray spare for port-side intake airflow that works with MDS 9148V |
|
Cisco 32 Gbps Fibre Channel SW SFP+ spare optic | |
|
DS-9148V-KIT-CSCO(=) |
MDS 9148V accessory kit for Cisco spare |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | DS-C9148V-24PITK9 | Order configuration | 24 active ports, 24 x 32G SW optics, 4 fans, 2 power supplies, and port-side intake airflow |
| Product compatibility | Cisco MDS 9000 Family | Product type | 64G Fibre Channel fixed SAN switch bundle |
| Included FC optics | 24 x Cisco 32G Fibre Channel shortwave optics | Airflow | Front to back inward from ports using port-side intake fans |
| Fan modules | 4 fans in the ordering description | Power supply options | 2 power supplies in the ordering description |
| Rack units | 1RU fixed-switch form factor | Dimensions | 1.72 x 17.3 x 18 in. (4.37 x 43.94 x 45.72 cm) excluding PSU and fan module handles |
| Weight | 9.9 kg (21.8 lb) unpopulated | Fibre Channel ports | 48 SFP+ Fibre Channel ports |
| Active ports at order | 24 active Fibre Channel ports | Port activation model | Expandable in 8-port increments up to 48 active ports |
| Port activation spare PID | M9148V-PL8 8-port upgrade license | Fibre Channel speed support | 8, 16, 32, and 64 Gbps autosensing |
| Dedicated bandwidth per port | 64 Gbps | Switching capacity | 3 Tbps end-to-end full duplex |
| Port group architecture | 2 port groups of 24 ports each | Buffer credits | Up to 24000 buffer credits for a group of 24 ports, default 1000 buffer credits per port, and maximum 16000 buffer credits for a single port in the group |
| Port channel support | Up to 24 load-balanced physical links in one port channel | Fibre Channel port types | E and F standard port types; SD, ST, NP, and TE enhanced port types |
| Minimum NX-OS release | Cisco MDS 9000 NX-OS Release 9.3(1) or later | Optional subscription licenses | Cisco MDS Premier Subscription License and Cisco MDS Advantage Subscription License |
| Advanced functions | VSAN, IVR, NPV, Port Channel with multipath load balancing, and flow- and zone-based QoS | Fabric services | Name server, Registered State Change Notification, login services, Fabric Configuration Server, broadcast, and in-order delivery |
| Supported protocols | Fibre Channel, NVMe/FC, IPv6, IPv4, ARP over Fibre Channel, TCP/IP, SNMPv3, and RMON MIBs | Management port | mgmt0 10/100/1000BASE-T out-of-band management port |
| Console port | RS-232 serial console port | USB port | USB power-on auto-provision port |
| Network management | CLI, SNMPv3, SNIA SMI-S, NX-API, Cisco DCNM/NDFC web services API, onboard Python interpreter, Embedded Event Manager, and Cisco NX-OS scheduler | Default power supply | DS-CAC-500W-I 500W AC port-side intake power supply; two supplies in the order configuration |
| AC input voltage | 100 to 240 VAC with 10 percent range for 500W AC power supplies | AC input frequency | 50 to 60 Hz nominal |
| Typical power consumption | 211W at 110V/60Hz and 205W at 220V/50Hz with 24 x 32G-SW optics, 50 percent traffic, 2 PSUs, and 4 fan trays at 25C | Maximum power consumption | 213W at 110V/60Hz and 207W at 220V/50Hz with 24 x 32G-SW optics, 100 percent traffic, 2 PSUs, and 4 fan trays at 25C |
| Maximum system power | 314W | Heat dissipation | 986 BTU/hr |
| Airflow rate with system fan assembly | 50 CFM through system fan assembly at 25C | Airflow rate | 100 CFM maximum |
| Operating temperature | 32 to 104F (0 to 40C) | Storage temperature | -40 to 158F (-40 to 70C) |
| Operating humidity | 10 to 90 percent noncondensing | Storage humidity | 10 to 95 percent noncondensing |
| Operating altitude | -197 to 6500 ft (-60 to 2000 m) | 32G SW transceiver product ID | DS-SFP-FC32G-SW |
| 32G SW connector | Dual LC connector | 32G SW wavelength | 850 nm |
| 32G SW fiber type | Multimode fiber | 32G SW baud rate at 32G | 28.05 GBd |
| 32G SW cable distance | 65 ft (20 m) on OM2, 230 ft (70 m) on OM3, and 328 ft (100 m) on OM4 or OM5 | 32G SW operating temperature | 0C to 70C |
| Supported FC optics | 32G SW, 32G LW, 16G SW, 16G LW, 16G ELW, 8G SW, 8G LW, 8G ER, and 8G CWDM SFP+ optics |
