DS-C9148V-48PETK9 – 48x64G FC Ports – 48x32G SW Optics – Exhaust SAN Switch
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
DS-C9148V-48PETK9 Description

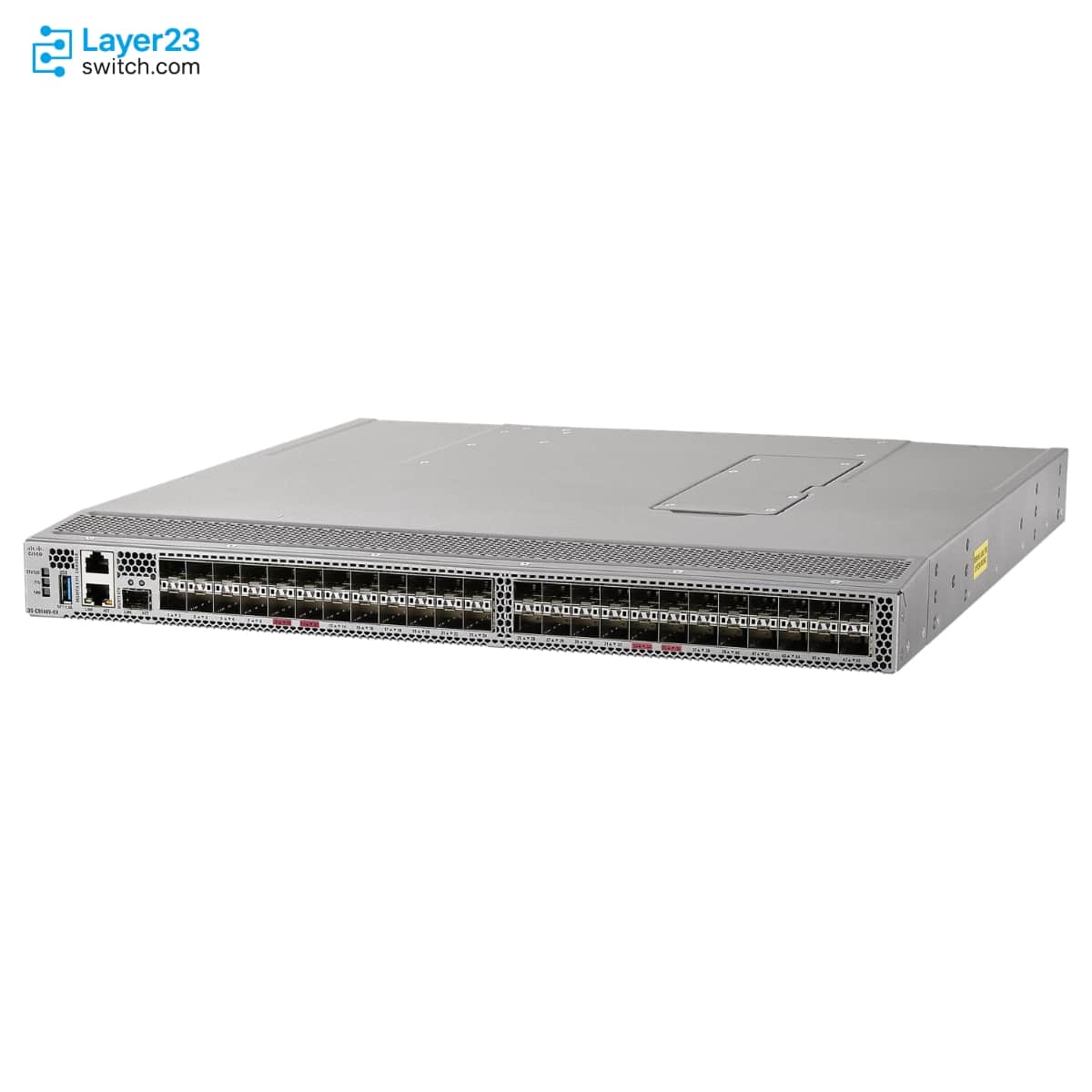

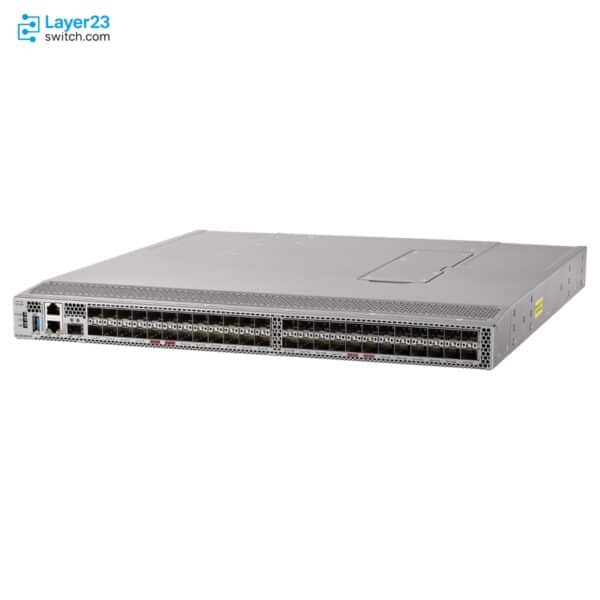

The DS-C9148V-48PETK9 is a Cisco MDS 9148V Series 64G Fibre Channel switch for SAN fabrics in racks where air leaves through the port side. The 1RU switch has 48 active SFP+ ports at 8, 16, 32 and 64 Gbps, 3 Tbps of aggregate bandwidth and 48 Cisco 32G shortwave optics. Links on the included optics run at up to 32 Gbps, and 64 Gbps operation needs 64G shortwave optics on the port.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
DS-C9148V-48PETK9 |
|
Product type |
64G-capable Fibre Channel SAN switch |
|
Order configuration |
48 active ports, 48 x 32G SW optics, 4 fans, and 2 PSUs |
|
Airflow |
Port-side exhaust |
|
Included FC optics |
48 x Cisco 32G SW Fibre Channel SFP+ |
|
Active ports at order |
48 Fibre Channel ports |
|
Maximum Fibre Channel ports |
48 SFP+ ports |
|
Fibre Channel speed support |
8, 16, 32, and 64 Gbps autosensing |
|
Dedicated bandwidth per port |
64 Gbps |
|
Aggregate bandwidth |
3 Tbps full duplex |
|
Port group architecture |
2 port groups of 24 ports each |
|
Minimum NX-OS release |
Cisco MDS NX-OS Release 9.3(1) or later |
|
Optional subscription licenses |
Cisco MDS Premier and Cisco MDS Advantage |
Product Performance
Key Features
Air flows from back to front and leaves through the port side. Power supplies and fan trays of the exhaust type keep the chassis airflow consistent.
No port-activation licenses are needed to use the whole chassis, so every SFP+ port can be cabled on the first day.
Each port ships with a 32G shortwave optic on dual LC connectors at 850 nm, which covers 70 m on OM3 and 100 m on OM4 or OM5 multimode fiber.
One port channel can bundle up to 24 physical links with load balancing, which suits inter-switch trunks that must grow without re-cabling to a new group.
Each port negotiates 8, 16, 32 or 64 Gbps, so hosts and arrays of different generations connect without changing the chassis.
With 48 32G optics at 50 percent traffic the switch draws 247W at 110V and 240W at 220V, measured at 25C with two supplies and four fans.
Application Scenarios
Where the port side of the rack faces the hot aisle, the switch exhausts air through the ports, so its airflow follows the room’s cooling layout.
A server row can attach up to 48 hosts and array controller ports at once, since every port is active and carries a 32G shortwave optic from the start.
Beside older 8 and 16 Gbps equipment, the autosensing ports link both generations, and 16G and 8G optics are supported for the older links.
Product Comparison
|
Parameter |
DS-C9148V-48PETK9 | |||
|---|---|---|---|---|
|
Fibre Channel ports |
48 SFP+ |
48 SFP+ |
48 SFP+ |
48 SFP+ |
|
Fibre Channel speed support |
8, 16, 32 and 64 Gbps |
8, 16, 32 and 64 Gbps |
8, 16, 32 and 64 Gbps |
8, 16, 32 and 64 Gbps |
|
Aggregate bandwidth |
3 Tbps full duplex |
3 Tbps full duplex |
3 Tbps full duplex |
3 Tbps full duplex |
|
Buffer credits per port group |
Up to 24,000 |
Up to 24,000 |
Up to 24,000 |
Up to 24,000 |
|
Airflow |
Port-side exhaust |
Port-side exhaust |
Port-side intake |
Port-side exhaust |
|
Active ports |
48 |
24 |
48 |
48 |
|
Included optics |
48 x 32G SW |
24 x 32G SW |
48 x 32G SW |
48 x 64G SW |
|
Port activation license |
Not applicable |
M9148V-PL8 adds 8 ports |
Not applicable |
Not applicable |
DS-C9148V-48PETK9 ships with all 48 ports active and 48 x 32G SW optics, while DS-C9148V-24PETK9 has the same port-side exhaust airflow but only 24 active ports and 24 x 32G SW optics. A 24-port bundle grows to 48 ports with M9148V-PL8 licenses in 8-port steps, so DS-C9148V-24PETK9 suits a phased rollout and DS-C9148V-48PETK9 suits a full 48-link build. Racks that need port-side intake airflow use DS-C9148V-48PITK9, which keeps 48 ports and 32G optics. When the bundle itself must include 64G SW optics, DS-C9148V-48PEVK9 has the same 48 ports and exhaust airflow; the 64G-capable ports run 32G optics too, so 32G SW is enough while endpoints stay at 32G.
Ordering Checklist
- Airflow-matched spares: Order the port-side exhaust parts DS-CAC-500W-E= power supply and DS-C32S-FAN-E= fan tray. Spares of the other direction do not match the chassis, and the intake side must sit in the cold aisle or the switch can overheat.
- Power supply type: Choose two supplies per switch: 500W AC, or DS-CAC-1200W= for AC, HVAC or HVDC with bidirectional airflow. The ordering line lists only 2 PSUs; the 500W and 1200W supplies take different input voltages, and DC feeds from 192 to 400V need the 1200W supply.
- Power cords: Select CAB-9K12A-NA or the regional CAB-9K10A cord for the 500W supplies, and CAB-HVAC-C14-2M for the 1200W supply. The supply type decides which cord plugs in at the rack PDU.
- Included optics: 48 x DS-SFP-FC32G-SW are in the bundle. Longer single-mode links need DS-SFP-FC32G-LW= or DS-SFP-FC32G-ELW=, and 64G links need DS-SFP-FC64G-SW=, because shortwave multimode optics do not reach single-mode distances.
- Software subscription: Add Premier (M91VXK9-P-1Y/3Y/5Y/7Y) or Advantage (M91VXK9-A-1Y/3Y/5Y); OSM channel orders use the -OSM PIDs. The bundle PIDs include neither subscription, and only Premier adds SAN Analytics.
Optional Add-ons
|
Model |
Description |
|---|---|
|
DS-CAC-500W-E= |
MDS 9100 500W port-side exhaust power supply spare listed for MDS 9148V |
|
DS-C32S-FAN-E= |
MDS switch fan tray spare for port-side exhaust airflow listed for MDS 9148V |
|
Cisco 32 Gbps Fibre Channel SW SFP+ spare optic | |
|
DS-9148V-KIT-CSCO(=) |
MDS 9148V accessory kit for Cisco spare |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | DS-C9148V-48PETK9 | Order configuration | 48 active ports, 48 x 32G SW optics, 4 fans, 2 power supplies, and port-side exhaust airflow |
| Product compatibility | Cisco MDS 9000 Family | Product type | 64G Fibre Channel fixed SAN switch bundle |
| Included FC optics | 48 x Cisco 32G Fibre Channel shortwave optics | Airflow | Back to front toward ports using port-side exhaust fans |
| Fan modules | 4 fans in the ordering description | Power supplies | 2 power supplies in the ordering description |
| Rack units | 1RU fixed-switch form factor | Dimensions | 1.72 x 17.299 x 18 in. (4.37 x 43.94 x 45.72 cm) excluding PSU and fan-tray handles |
| Weight | 9.9 kg (21.8 lb) | Fibre Channel ports | 48 SFP+ Fibre Channel ports |
| Active ports at order | 48 active Fibre Channel ports | Fibre Channel speed support | 8, 16, 32, and 64 Gbps autosensing |
| Dedicated bandwidth per port | 64 Gbps | Switching capacity | 3 Tbps end-to-end full duplex |
| Port group architecture | 2 port groups of 24 ports each | Buffer credits | Up to 24000 buffer credits for a group of 24 ports, default 1000 buffer credits per port, and maximum 16000 buffer credits for a single port in the group |
| Port channel support | Up to 24 load-balanced physical links in one port channel | Fibre Channel port types | E and F standard port types; SD, ST, NP, and TE enhanced port types |
| Minimum NX-OS release | Cisco MDS 9000 NX-OS Release 9.3(1) or later | Optional subscription licenses | Cisco MDS Premier Subscription License and Cisco MDS Advantage Subscription License |
| Licensing model | Cisco Smart Licensing Using Policy through Cisco Smart Account | Advanced functions | VSAN, IVR, NPV, Port Channel with multipath load balancing, and flow- and zone-based QoS |
| Fabric services | Name server, Registered State Change Notification, login services, Fabric Configuration Server, broadcast, and in-order delivery | Supported protocols | Fibre Channel, NVMe/FC, IPv6, IPv4, ARP over Fibre Channel, TCP/IP, SNMPv3, and RMON MIBs |
| Management port | mgmt0 10/100/1000BASE-T out-of-band management port | Console port | RS-232 serial console port |
| USB port | USB power-on auto-provision port | Network management | CLI, SNMPv3, SNIA SMI-S, NX-API, Cisco DCNM/NDFC web services API, onboard Python interpreter, Embedded Event Manager, and Cisco NX-OS scheduler |
| Default power supply | DS-CAC-500W-E 500W AC port-side exhaust power supply; two supplies in the order configuration | AC input voltage | 100 to 240 VAC with 10 percent range for 500W AC power supplies |
| AC input frequency | 50 to 60 Hz nominal | Typical power with 48 x 32G SW optics | 247W at 110V/60Hz and 240W at 220V/50Hz with 50 percent traffic, 2 PSUs, and 4 fan trays at 25C |
| Maximum power with 48 x 32G SW optics | 248W at 110V/60Hz and 241W at 220V/50Hz with 100 percent traffic, 2 PSUs, and 4 fan trays at 25C | Maximum power consumption | 314W |
| Heat dissipation | 986 BTU/hr | System airflow rate | 50 CFM through system fan assembly at 25C |
| Airflow rate | 100 CFM maximum | Operating temperature | 32 to 104F (0 to 40C) |
| Storage temperature | -40 to 158F (-40 to 70C) | Operating humidity | 10 to 90 percent noncondensing |
| Storage humidity | 10 to 95 percent noncondensing | Operating altitude | -197 to 6500 ft (-60 to 2000 m) |
| 32G SW transceiver product ID | DS-SFP-FC32G-SW | 32G SW connector | Dual LC connector |
| 32G SW wavelength | 850 nm | 32G SW fiber type | Multimode fiber |
| 32G SW baud rate at 32G | 28.05 GBd | 32G SW cable distance | 65 ft (20 m) on OM2, 230 ft (70 m) on OM3, and 328 ft (100 m) on OM4 or OM5 |
| 32G SW operating temperature | 0C to 70C | Supported FC optics | 32G SW, 32G LW, 16G SW, 16G LW, 16G ELW, 8G SW, 8G LW, 8G ER, and 8G CWDM SFP+ optics |
Get More Information
Need pricing, stock, or shipping details for the DS-C9148V-48PETK9 ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Which EPLD version should DS-C9148V-48PETK9 run for 64G operation?
-
What is the maximum power draw of DS-C9148V-48PETK9 with 48 x 32G SW optics?
-
What are the dimensions and weight of DS-C9148V-48PETK9?
-
What storage and operating environment limits apply to DS-C9148V-48PETK9?
