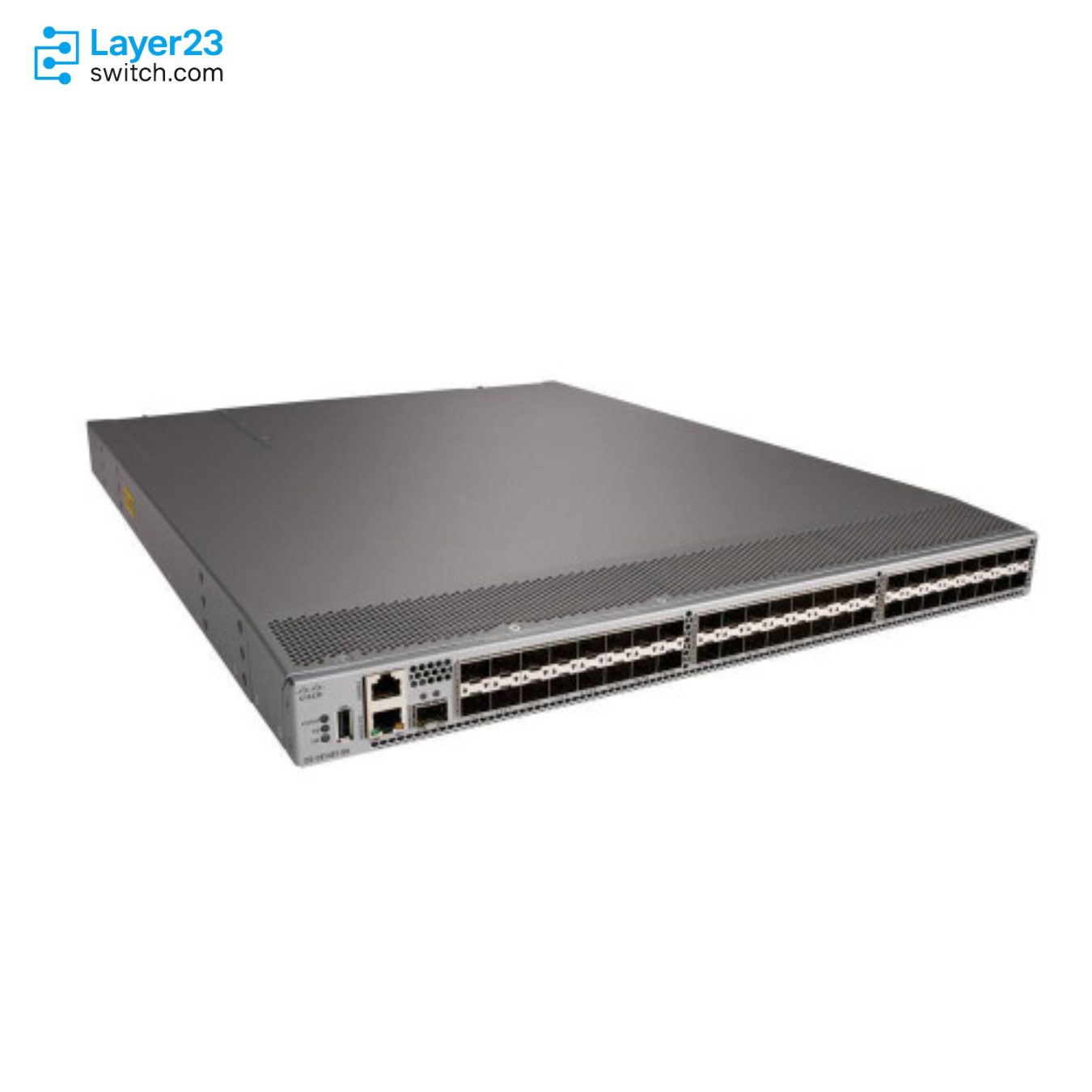

DS-C9148T-48PITK9 – 48x32G FC Ports – 48x32G SW Optics – Intake SAN Switch
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
DS-C9148T-48PITK9 Description
DS-C9148T-48PITK9 is a Cisco MDS 9148T 32G Fibre Channel SAN switch bundle for adding fixed 32G FC switching at the data center storage edge or server-rack SAN layer. This port-side-intake configuration ships as a 1RU MDS 9148T switch with 48 active Fibre Channel ports, 48 Cisco 32G shortwave FC optics, 4 fans, and 2 power supplies, giving buyers a fully populated 48-port intake-airflow bundle for Cisco MDS 9000 Family SAN deployments.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
DS-C9148T-48PITK9 |
|
Product type |
32G Fibre Channel SAN switch bundle |
|
Form factor |
1RU fixed-switch form factor |
|
Chassis Fibre Channel ports |
48 SFP+ ports base |
|
Active ports at order |
48 active FC ports |
|
Included FC optics |
48 x Cisco 32G shortwave Fibre Channel optics |
|
Airflow direction |
Port-side intake |
|
Included hardware |
4 fans and 2 PSUs |
|
Fibre Channel speed support |
4, 8, 16, and 32 Gbps autosensing |
|
Aggregate bandwidth |
1.5 Tbps end-to-end full duplex |
|
Minimum NX-OS release |
Cisco MDS NX-OS 8.3(1) or later |
Product Performance
Key Features
DS-C9148T-48PITK9 combines port-side intake airflow, 48 active FC ports, and 48 Cisco 32G SW optics in one Cisco MDS 9148T order line.
The 48-port bundle arrives with all FC ports active, which separates it from 24-port MDS 9148T orders that rely on M9148T-PL8 growth licenses.
The switch uses the MDS 9148T 48-port SFP+ fixed platform with 4, 8, 16, and 32 Gbps autosensing operation for host, storage, and ISL connectivity.
Cisco documents 3 port groups of 16 ports each, which gives SAN designers a concrete grouping point for distributing hosts, arrays, and port-channel members.
The intake airflow identity should remain aligned across the installed switch, replacement PSUs, and fan modules because Cisco documents separate intake and exhaust spare PIDs.
Cisco lists Cisco MDS NX-OS 8.3(1) or later and Cisco DCNM 11(0) or later as system requirements for the MDS 9148T.
Application Scenarios
DS-C9148T-48PITK9 fits a rack row standardized on port-side intake airflow where the first installation needs every MDS 9148T Fibre Channel port active.
This PID is useful when host and storage cabling is planned around Cisco 32G SW Fibre Channel optics and LC multimode fiber rather than separate media selection.
The SKU suits MDS 9148T refresh work where the approved BOM should land directly on a 48-port active switch instead of a 24-port starter configuration.
Product Comparison
|
Parameter |
DS-C9148T-48PITK9 | |||
|---|---|---|---|---|
|
Form factor |
1RU fixed switch |
1RU fixed switch |
1RU fixed switch |
1RU fixed switch |
|
Chassis FC ports |
48 SFP+ ports |
48 SFP+ ports |
48 SFP+ ports |
48 SFP+ ports |
|
Active FC ports |
48 |
48 |
24 |
24 |
|
Fibre Channel speed support |
4/8/16/32 Gbps |
4/8/16/32 Gbps |
4/8/16/32 Gbps |
4/8/16/32 Gbps |
|
Included FC optics |
48 x 32G SW optics |
48 x 32G SW optics |
24 x 32G SW optics |
No factory optic bundle |
|
Fan modules |
4 |
4 |
4 |
4 |
|
Power supplies |
2 |
2 |
2 |
2 |
|
Airflow direction |
Port-side intake |
Port-side exhaust |
Port-side intake |
Port-side intake |
|
Port activation position |
Fully active 48-port bundle |
Fully active 48-port bundle |
24-port bundle with M9148T-PL8 expansion path |
24-port base with M9148T-PL8 expansion path |
|
Minimum NX-OS release |
Cisco MDS NX-OS 8.3(1) or later |
Cisco MDS NX-OS 8.3(1) or later |
Cisco MDS NX-OS 8.3(1) or later |
Cisco MDS NX-OS 8.3(1) or later |
- In a DS-C9148T-48PITK9 vs DS-C9148T-48PETK9 comparison, the table difference is airflow direction: DS-C9148T-48PITK9 is port-side intake and DS-C9148T-48PETK9 is port-side exhaust.
- The DS-C9148T-48PITK9 difference from DS-C9148T-24PITK9 is order scale. Both are intake optic bundles, but DS-C9148T-48PITK9 ships with 48 active ports and 48 optics while DS-C9148T-24PITK9 starts with 24 active ports and 24 optics.
- For DS-C9148T-48PITK9 vs DS-C9148T-24IK9, the comparison changes both bundle scope and activation state: DS-C9148T-48PITK9 includes 48 optics and is fully active, while DS-C9148T-24IK9 is an intake base switch with no factory optic bundle.
- Buyers deciding which model to choose should align three confirmed fields before purchase: airflow direction, active-port count, and included optic quantity.
Selection Guide
1. Choose the intake 48-port bundle for a full first shipment
Select DS-C9148T-48PITK9 when the approved SAN map already requires 48 active FC ports, 48 Cisco 32G SW optics, and port-side intake airflow.
2. Use the exhaust twin only for the opposite rack airflow
Move to DS-C9148T-48PETK9 only when the same 48-port optic bundle must use port-side exhaust airflow instead of port-side intake.
3. Keep 24-port orders for staged growth
Choose DS-C9148T-24PITK9 or DS-C9148T-24IK9 only when 24 active ports match the first deployment and future port growth can be handled through documented M9148T-PL8 expansion planning.
4. Separate hardware bundle checks from software entitlements
Confirm Cisco MDS NX-OS 8.3(1) or later, Cisco DCNM 11(0) or later, and any SAN Insights, Enterprise Package, or DCNM Advanced licensing as separate review items.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact bundled PID |
DS-C9148T-48PITK9 |
Keeps the order on the 48-active-port intake bundle with 48 included 32G SW optics |
|
Airflow direction |
Port-side intake switch, intake PSUs, and intake fan modules |
Prevents mixing intake and exhaust hardware in the same chassis plan |
|
Optic and fiber match |
48 x Cisco 32G SW optics with LC multimode links |
Confirms the bundle fits the planned 32G shortwave cable plant |
|
Software baseline |
Cisco MDS NX-OS 8.3(1) or later and Cisco DCNM 11(0) or later |
Keeps staging and fabric management aligned with Cisco requirements |
|
Power-cord choice |
C15 regional power cord or cabinet jumper cord |
Prevents installation delay caused by a missing site-specific cord |
|
Separate software items |
SAN Insights, Enterprise Package, DCNM Advanced, or Smart Account scope |
Prevents optional software entitlement from being assumed inside the hardware bundle |
Optional Add-ons
|
Model |
Description |
|---|---|
|
DS-CAC-650W-I= |
AC PSU port-side intake spare for MDS 9148T |
|
DS-C32S-FAN-I= |
MDS 9148T fan module port-side intake spare |
|
Cisco 32G Fibre Channel shortwave SFP+ LC optic | |
|
Cisco 32G Fibre Channel longwave SFP+ LC optic | |
|
Cisco 16G Fibre Channel shortwave SFP+ optic | |
|
Cisco 8G Fibre Channel shortwave SFP+ optic | |
|
DS-9148T-KIT-CSCO |
MDS 9148T accessory kit for Cisco |
Front View
|
1 |
Serial console port |
7 |
Activity status LED |
|
2 |
System status LED |
8 |
Ethernet management ports (2) |
|
3 |
Power status LED |
9 |
Fixed FC ports |
|
4 |
Fan status LED |
10 |
FC port status LEDs (48) |
|
5 |
USB port |
11 |
Airflow grill |
|
6 |
Link status LED |
Rear View
|
1 |
Power supply failure status LED |
6 |
Power supply status LED |
|
2 |
Power supply unit fan |
7 |
Power supply units (2 units) |
|
3 |
Power supply unit handle |
8 |
Chassis fan modules (4 units) |
|
4 |
Unswitched power receptacle |
9 |
Chassis fan module release latches (8) |
|
5 |
Power supply unit latch release |
|
1 |
Power supply unit slot 1 |
4 |
Chassis fan module slot 3 |
|
2 |
Chassis fan module slot 1 |
5 |
Chassis fan module slot 4 |
|
3 |
Chassis fan module slot 2 |
6 |
Power supply unit slot 2 |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | DS-C9148T-48PITK9 | Product compatibility | Cisco MDS 9000 Family |
| Product type | 32G Fibre Channel SAN switch bundle | Order configuration | 48 active FC ports, 48 x 32G SW optics, 4 fans, 2 PSUs, port-side intake airflow |
| Form factor | 1RU fixed-switch form factor | Fibre Channel ports | 48 SFP+ ports base |
| Active ports at order | 48 active FC ports | Included FC optics | 48 x Cisco 32G shortwave Fibre Channel optics |
| Fibre Channel speed support | 4, 8, 16, and 32 Gbps autosensing | Dedicated bandwidth per port | 32 Gbps |
| Aggregate bandwidth | 1.5 Tbps end-to-end full duplex | Port groups | 3 port groups of 16 ports each |
| Buffer credits | Up to 8300 for a group of 16 ports, 500 default per port, and 8270 maximum for a single port in the group | Port channel support | Up to 16 load-balanced physical links in one port channel |
| Fibre Channel port types | E, F, B, SD, ST, NP, and TE | FC-NVMe support | FC-NVMe listed in protocol support |
| Included optic product ID | DS-SFP-FC32G-SW | 32G SW connector | Dual LC connector |
| 32G SW wavelength | 850 nm | 32G SW fiber type | Multimode fiber |
| 32G SW reach at 32G | 20 m on OM2, 70 m on OM3, and 100 m on OM4 or OM5 | 32G SW operating temperature | 0C to 70C |
| Advanced functions | VSAN, NPV, IVR, port channel with multipath load balancing, and flow- and zone-based QoS | Fabric services | Name server, RSCN, login services, FCS, broadcast, and in-order delivery |
| Security functions | VSAN isolation, hardware zoning ACLs, FC-SP, RBAC, SFTP, SSHv2, SNMPv3, control-plane security, TrustSec payload encryption, secure boot, and anti-counterfeit technology | Diagnostics | POST, OHMS, internal loopbacks, SPAN, Fibre Channel traceroute, Fibre Channel ping, Fibre Channel debug, Cisco Fabric Analyzer, syslog, port-level statistics, link diagnostics, and read diagnostic parameter |
| High availability components | Hot-swappable dual redundant power supplies, hot-swappable fan module, and hot-swappable SFP+ optics | Management Ethernet ports | mgmt0 10/100/1000BASE-T and mgmt1 1/10G SFP+ port |
| Console and USB ports | RS-232 serial console port and USB power-on auto-provision port | Programmability | NX-API RESTful interfaces, onboard Python interpreter, Cisco DCNM web services API, EEM, and NX-OS scheduler |
| Minimum NX-OS release | Cisco MDS NX-OS 8.3(1) or later | Minimum Cisco DCNM release | Cisco DCNM 11(0) or later |
| Default power supply | DS-CAC-650W-I 650W AC port-side intake power supply; two supplies in the order configuration | AC input voltage | 100 to 240 VAC, 10 percent range |
| AC input frequency | 50 to 60 Hz nominal | Power supply output capacity | 650W |
| Typical power with 48 optics | 305W at 110V/60Hz and 297W at 220V/50Hz with 48 x 32G SW optics under Cisco typical sample conditions | 100 percent load sample with 48 SW optics | 267W at 110V/60Hz and 260W at 220V/50Hz at 25C |
| Airflow direction | Front to back into ports using port-side intake fans | System airflow rate | 50 CFM through system fan assembly at 25C |
| Maximum airflow rate | 100 CFM maximum | Dimensions | 1.72 x 17.3 x 22.3 in. (4.37 x 43.94 x 56.64 cm), excluding PSU and fan module handles |
| Weight | 18.73 lb (8.5 kg) | Rack space | 1RU |
| Operating temperature | 32 to 104F (0 to 40C) | Operating relative humidity | 10 to 90 percent noncondensing |
| Operating altitude | -197 to 6500 ft (-60 to 2000 m) | Included accessory kit | Cisco-specific MDS 9148T accessory kit shipped as standard |
| Supported FC optics listed by Cisco | 32G SW, 32G LW, 16G SW, 16G LW, 8G SW, and 8G LW optics | Airflow spare direction | Intake fan modules and intake PSUs must match the installed airflow direction |
Get More Information
Need pricing, stock, or shipping details for the DS-C9148T-48PITK9 ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Why select DS-C9148T-48PITK9 for a full intake-airflow fabric?
-
Does DS-C9148T-48PITK9 need port activation licenses?
-
How does DS-C9148T-48PITK9 reduce intake-rack deployment work?
-
Why order DS-C9148T-48PITK9 instead of DS-C9148T-24PITK9?
-
Which rack airflow problem does DS-C9148T-48PITK9 solve?
-
Can DS-C9148T-48PITK9 be used at top-of-rack SAN edge?
-
What optics are bundled with DS-C9148T-48PITK9?
-
What rack design check matters for DS-C9148T-48PITK9?
