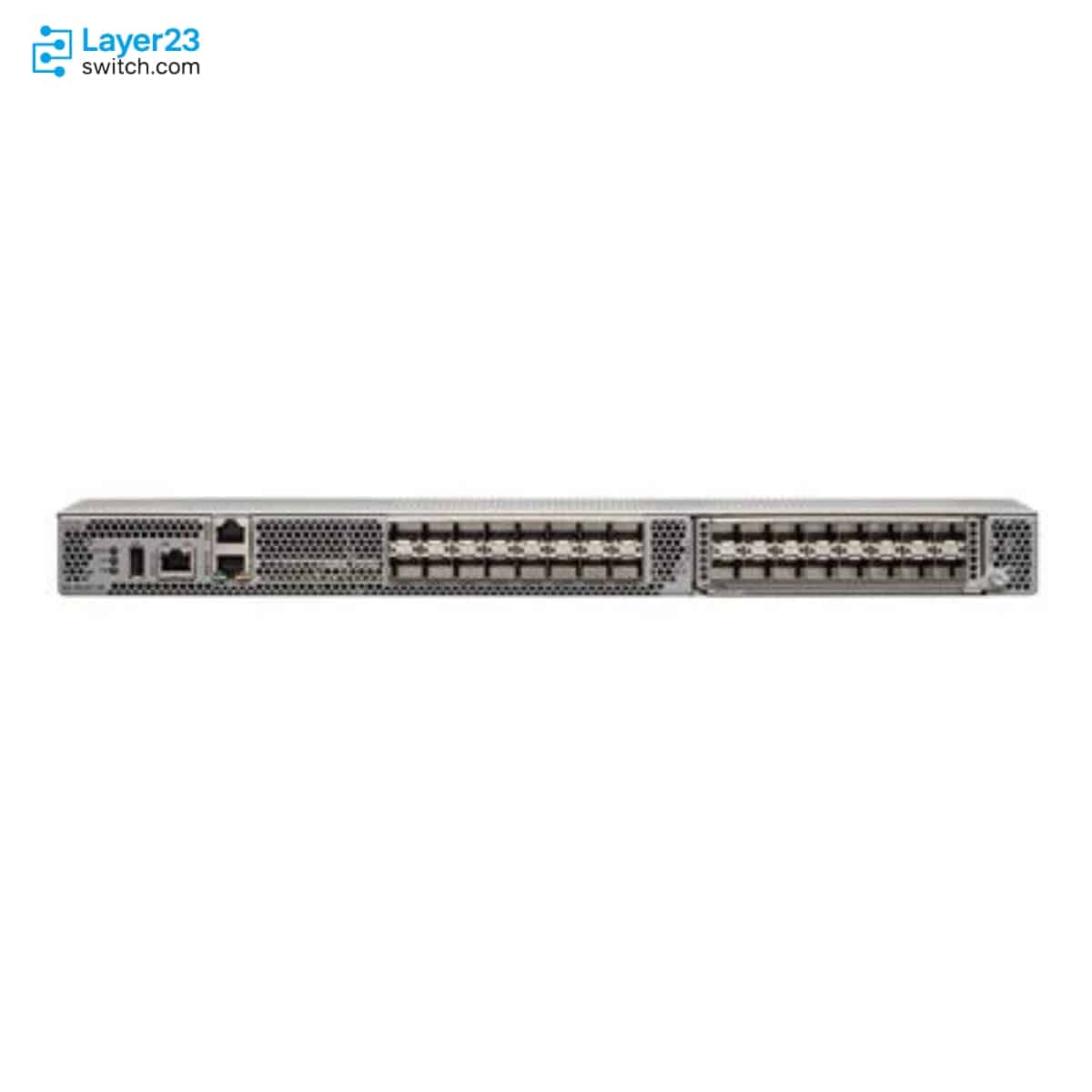

DS-C9132T-8PMESK9 – 8x32G FC Ports – 8x16G SW Optics – Exhaust SAN Switch
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
DS-C9132T-8PMESK9 Description
DS-C9132T-8PMESK9 is a Cisco MDS 9132T 32G Fibre Channel SAN switch bundle for compact storage-network access and rack-level SAN fabric growth. This order line provides 8 active Fibre Channel ports, includes eight Cisco 16G shortwave optics, uses the MDS 9132T 32-port switch platform, and ships with 2 fan modules, 1 power supply, and port-side exhaust airflow for cabinets built around back-to-front cooling.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
DS-C9132T-8PMESK9 |
|
Product compatibility |
Cisco MDS 9000 Family |
|
Product type |
32G Fibre Channel SAN switch |
|
Order configuration |
8 active ports with 8 x 16G SW optics |
|
Active ports at order |
8 active ports |
|
Fibre Channel ports |
16 SFP+ base ports |
|
Maximum Fibre Channel ports |
Up to 32 Fibre Channel ports with expansion module and activation licenses |
|
Fibre Channel speed support |
4, 8, 16, and 32 Gbps autosensing |
|
Aggregate bandwidth |
1024 Gbps full duplex |
|
Fan modules |
2 fan modules |
|
Airflow direction |
Port-side exhaust |
|
Minimum NX-OS release |
Cisco MDS NX-OS Release 8.2(1) or later |
|
Minimum Cisco DCNM release |
Cisco DCNM Release 10.4(1) or later |
Product Performance
Key Features
Cisco lists this order line with 8 active ports and eight 16G SW Fibre Channel optics. It supports SAN designs that remain on 16G multimode links while standardizing the switch platform on MDS 9132T.
The SKU is tied to port-side exhaust airflow. The switch, fan spare, and power-supply spare should be checked against the same cooling direction before receiving or rack installation.
The base switch starts from 8 active FC ports and can use Cisco’s 8-port activation license and 16-port expansion module for higher port counts. Confirm the port-growth plan before assuming the chassis is ready for every host and array link.
Although this bundle ships with 16G SW optics, the MDS 9132T platform supports 32G Fibre Channel ports. This matters when a site wants a 16G starting BOM but expects selected links to move to 32G optics later.
Cisco lists hot-swappable power supplies, fan modules, and SFP+ optics for the MDS 9132T platform. Procurement should keep airflow direction and spare optics visible in the bill of materials.
Cisco lists Cisco MDS NX-OS Release 8.2(1) or later and Cisco DCNM Release 10.4(1) or later for the platform. The deployment team should match those requirements to the planned SAN management stack.
Application Scenarios
DS-C9132T-8PMESK9 targets a first fabric pair or rack-level SAN build where 8 active FC ports cover the initial host, storage, and ISL layout.
This SKU aligns with cabling plans built around Cisco 16G SW optics and multimode fiber, while the switch hardware remains ready for MDS 9132T port and optic growth.
This model belongs in cabinets where air exits toward the port side. Keep the quote aligned with port-side exhaust fan and power-supply spares so the rack plan is not mixed later.
Product Comparison
|
Parameter |
DS-C9132T-8PMESK9 | |||
|---|---|---|---|---|
|
Active ports at order |
8 |
8 |
8 |
8 |
|
Included FC optics |
8 x 16G SW |
8 x 16G SW |
8 x 32G SW |
4 x 32G SW; 4 x 16G SW |
|
Airflow direction |
Port-side exhaust |
Port-side intake |
Port-side exhaust |
Port-side exhaust |
|
Fan modules and power supplies |
2 fans, 1 PSU |
2 fans, 1 PSU |
2 fans, 1 PSU |
2 fans, 1 PSU |
|
Maximum Fibre Channel ports |
Up to 32 ports |
Up to 32 ports |
Up to 32 ports |
Up to 32 ports |
|
Fibre Channel speed support |
32 Gbps |
32 Gbps |
32 Gbps |
32 Gbps |
|
Minimum NX-OS release |
8.2(1) or later |
8.2(1) or later |
8.2(1) or later |
8.2(1) or later |
|
Included software subscriptions |
Not listed in bundle name |
Not listed in bundle name |
Not listed in bundle name |
DCNM 1-year; SAN Insights 1-year |
- DS-C9132T-8PMESK9 is the port-side exhaust 8-port MDS 9132T bundle with eight Cisco 16G SW optics.
- DS-C9132T-8PMISK9 keeps the same 8-port and 16G SW optic profile but changes the airflow direction to port-side intake.
- DS-C9132T-8PMETK9 stays with 8 active ports and exhaust airflow, but Cisco lists it with eight 32G SW optics.
- DS-C9132T-8MESTK9 is another exhaust 8-port bundle, but Cisco lists a mixed 4 x 32G SW and 4 x 16G SW optic set plus 1-year DCNM and SAN Insights terms.
Selection Guide
1. Start with the optic speed
DS-C9132T-8PMESK9 is the 8-port order line for Cisco 16G SW optics on shortwave multimode FC links. If the project needs 32G optics on day one, compare the DS-C9132T-8PMETK9 or mixed-optic DS-C9132T-8MESTK9 order lines.
2. Check the airflow code
This SKU uses port-side exhaust airflow. If the cabinet standard is port-side intake, use the intake counterpart instead of mixing the switch, fan spare, and power-supply spare directions.
3. Validate the 8-port starting point
The order activates 8 Fibre Channel ports. Review the host, array, and ISL count before quote approval so port activation and expansion items are not discovered during installation.
4. Decide whether software features need a separate line
The bundle name does not list the Enterprise package, DCNM term, or SAN Insights term. If those functions are required, keep the license decision visible as a separate quote and compatibility check.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Cisco order line |
DS-C9132T-8PMESK9 with 8 active ports, 8 x 16G SW optics, 2 fans, 1 PSU, and exhaust airflow |
Keeps the purchase from drifting into the intake, 32G optic, or mixed-optic bundle |
|
Port map fit |
Day-one host, storage, and ISL links that must be active |
Verifies that the 8-port starting point will not block installation |
|
Fiber media plan |
Cisco 16G SW optics, multimode fiber type, and link-distance budget |
Prevents optic-speed or fiber-distance mismatch during turn-up |
|
Cooling match |
Port-side exhaust chassis plus matching fan and power-supply spares |
Keeps replacement and receiving parts aligned with the cabinet airflow standard |
|
Software floor |
Cisco MDS NX-OS Release 8.2(1) or later and Cisco DCNM Release 10.4(1) or later |
Confirms that operations can manage the switch on the intended release train |
Optional Add-ons
|
Model |
Description |
|---|---|
|
M9132T-PL8= |
8-port On-Demand Activation license spare for adding active MDS 9132T Fibre Channel ports |
|
M9XT-FC1632= |
16-port expansion module spare for MDS 9132T port expansion planning |
|
M9100-ENT1K9= |
MDS 9100 switch Enterprise package for customers adding advanced MDS functions separately |
|
DS-CAC-650W-E= |
650W AC power supply spare for port-side exhaust MDS 9132T hardware |
|
DS-C32S-FAN-E= |
Fan module spare for port-side exhaust MDS 9132T hardware |
|
Cisco 16G Fibre Channel shortwave SFP+ optic for matching 16G SW links |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | DS-C9132T-8PMESK9 | Product compatibility | Cisco MDS 9000 Family |
| Product type | 32G Fibre Channel SAN switch | Order configuration | Switch with 8 active ports, 8 x 16G SW optics, 2 fan modules, 1 power supply, and port-side exhaust airflow |
| Form factor | 1RU fixed-switch form factor | Fibre Channel ports | 16 SFP+ ports plus one 16-port SFP+ expansion slot |
| Active ports at order | 8 active Fibre Channel ports | Maximum Fibre Channel ports | Up to 32 active Fibre Channel ports with expansion module and activation licenses |
| Fibre Channel speed support | 4, 8, 16, and 32 Gbps autosensing | Dedicated bandwidth per port | 32 Gbps |
| Aggregate bandwidth | 1024 Gbps full duplex | Port activation license | 8-port On-Demand Activation license for additional active ports |
| Expansion module option | 16-port expansion module for MDS 9132T port expansion planning | Optional network license | MDS 9100 Enterprise package can be added separately when advanced MDS functions are required |
| Buffer credits | Up to 8300 buffer credits for a group of 16 ports | Default buffer credits per port | 500 buffer credits per port |
| Maximum buffer credits for a single port | 8270 buffer credits in the port group | Port channel support | Up to 16 load-balanced physical links in one port channel |
| Fibre Channel port types | E, F, and B standard port types; SD, ST, NP, and TE enhanced port types | NVMe/FC support | NVMe/FC listed by Cisco for the platform |
| Management Ethernet ports | Two out-of-band 10/100/1000 Ethernet management ports | Console port | RS-232 serial console port |
| USB port | USB power-on auto-provision port | Network management | Cisco Data Center Network Manager and standards-based SNMP management listed |
| Minimum NX-OS release | Cisco MDS NX-OS Release 8.2(1) or later | Minimum Cisco DCNM release | Cisco DCNM Release 10.4(1) or later |
| Fan modules | 2 fan modules in the ordering description | Power supplies | 1 power supply in the ordering description |
| Default power supply | DS-CAC-650W-E 650W AC port-side exhaust power supply; two supplies in the order configuration | AC input voltage | 100 to 240 VAC |
| AC input frequency | 50 to 60 Hz nominal | Power supply output capacity | 650W |
| Power supply output voltage | 12V +/- 5 percent, up to 54A | Output hold-up time | 20 ms |
| Maximum system power | 180W | Heat dissipation | 614 BTU/hr |
| Typical power consumption | 100W at 110V/60Hz and 98W at 220V/50Hz with 16 x 32G optics, 50 percent traffic, 1 PSU, and 2 fan modules | Airflow direction | Back to front toward ports using port-side exhaust fans |
| System airflow rate | 50 CFM through system fan assembly at 77F (25C) | Maximum airflow rate | 100 CFM maximum |
| Dimensions | 1.72 x 17.3 x 20.11 in. (4.36 x 43.94 x 51.07 cm) excluding PSU and fan module handles | Form factor | 1 RU |
| Weight | 21.65 lb (9.82 kg) | Operating temperature | 32 to 104F (0 to 40C) |
| Nonoperating temperature | -40 to 158F (-40 to 70C) | Operating relative humidity | 10 to 90 percent noncondensing |
| Nonoperating relative humidity | 10 to 95 percent noncondensing | Operating altitude | -197 to 6500 ft (-60 to 2000 m) |
| Included FC optics | 8 x Cisco 16G Fibre Channel shortwave optics | 16G SW transceiver product ID | DS-SFP-FC16G-SW |
| 16G SW connector | Dual LC connectors | 16G SW wavelength | 850 nm |
| 16G SW fiber type | Multimode fiber | 16G SW cable distance | 49 ft (15 m) on OM1, 115 ft (35 m) on OM2, 328 ft (100 m) on OM3, and 410 ft (125 m) on OM4 or OM5 |
| Supported FC optics | 32G SW, 32G LW, 16G SW, 16G LW, 8G SW, and 8G LW optics |
