PWR-C6-1KWAC/2 – 1000W AC power supply for Catalyst 9200

Brand: Category: Availability: In Stock Model:

PWR-C6-1KWAC/2

(12 customer reviews)
Questions

0/mo Solds

List Price: $1532 $420.60
  • 100% Genuine
    Original, factory-authenticated
  • S/N Verifiable
    Verified by official serial-check
Condition New Factory Sealed Related Quantity
Trusted & Secure Payments
Shipping Express Shipping 2-6 Days, via DHL, FedEx, UPS, etc. Packaging weight and dimensions included:
layer23-switch
Certified Expertise for Project Delivery

CCIE · JNCIE · NSE7 · ACDX · HPE · Dell Server/AI Expert

Stable Global Supply Chain for Thriving Businesses.

  • $3,000,000 Inventory
  • Certified Cisco Partner ships
  • Collaborating with FedEx, UPS, DHL

Free Expert Support from Planning to Deployment

  • Assistance with product selection and network solution design
  • Configuration guidance and best-practice recommendations
  • Troubleshooting support provided by CCIE-level technical experts

Established Global IT Distributor

With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.

PWR-C6-1KWAC/2 Description

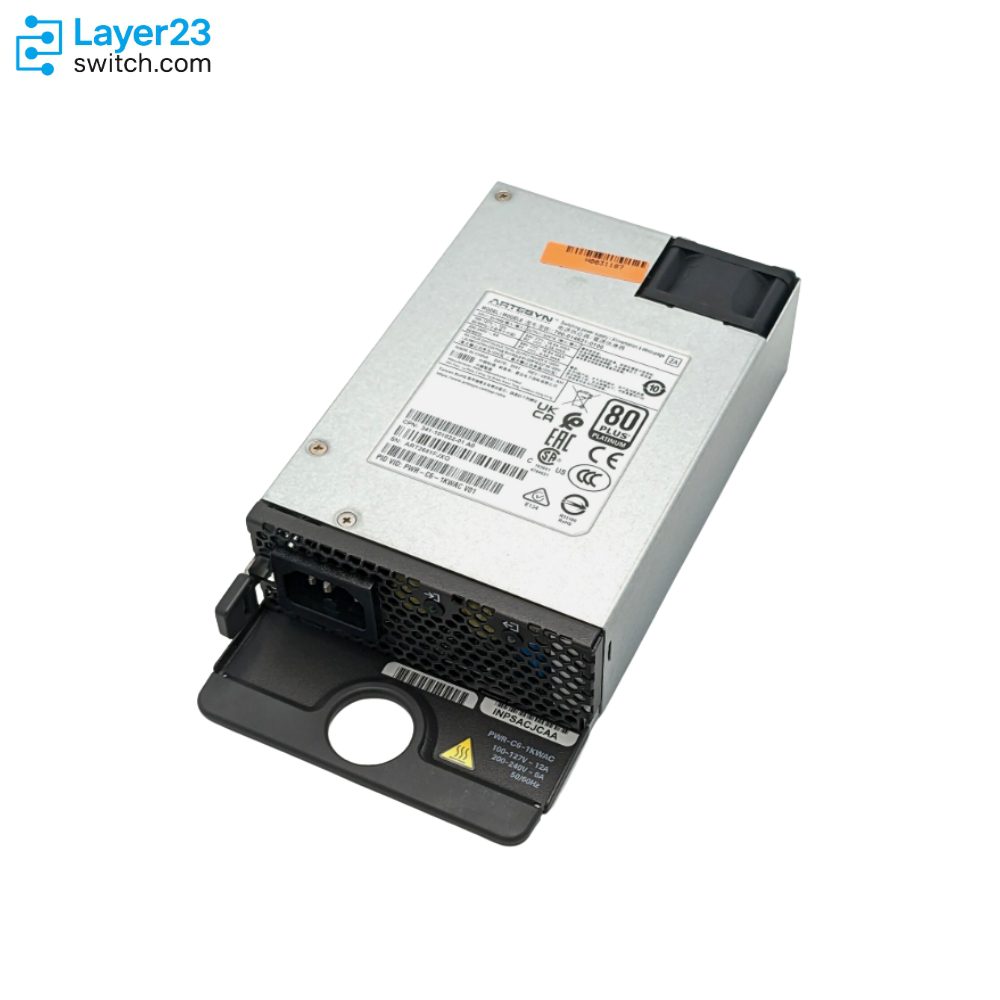

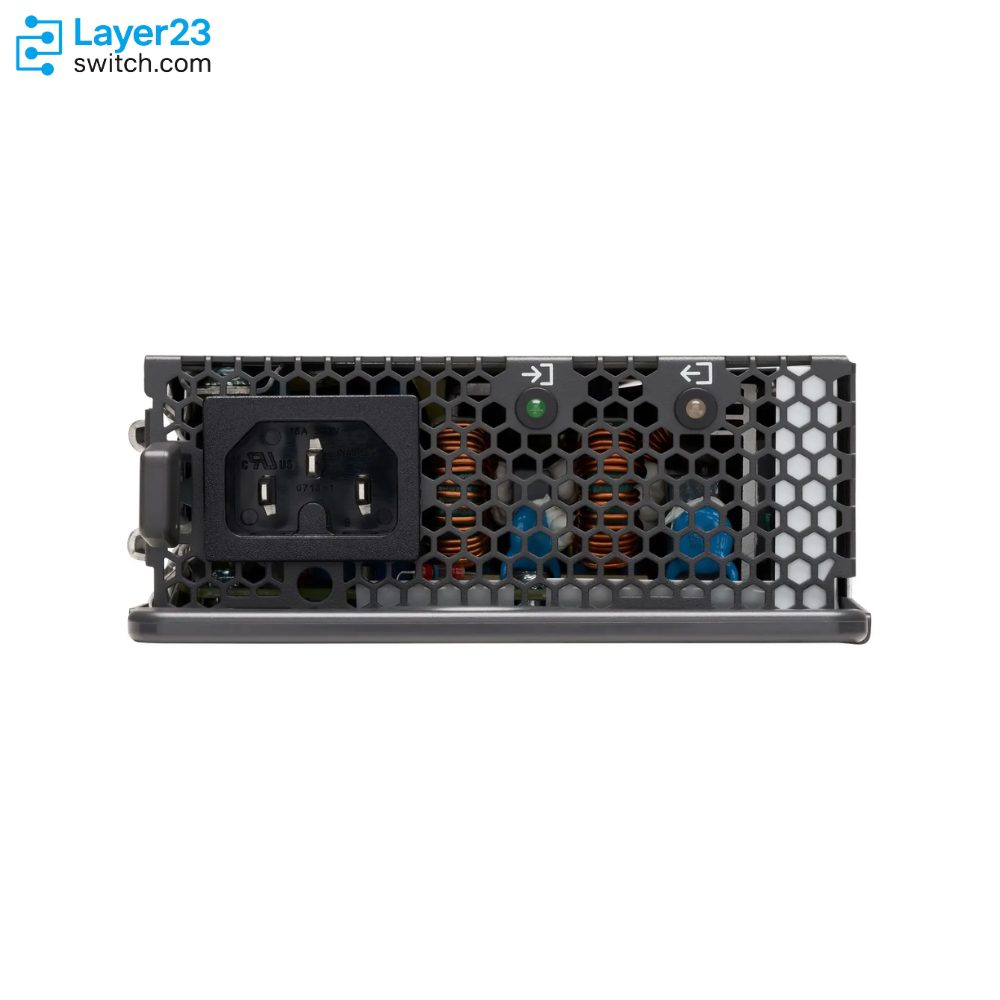

The PWR-C6-1KWAC/2 is a hot-swappable, secondary 1 kW AC power supply for Cisco Catalyst 9200 Series switches. Often called the Config 6 1 kW AC secondary PSU or 1 kW AC redundant module, it delivers stable 54 VDC/16.5 A output under heavy PoE+ loads, supports universal 100–240 VAC input with a rapid 20 ms holdup time, and features an IEC 320-C16 connector for seamless drop-in redundancy alongside the primary power unit—ensuring uninterrupted network operations in mission-critical deployments.

Model Meaning

Field

Meaning

PWR

Power Supply

C6

Config 6 for Cisco Catalyst 9200 Series

1KW

1 000 W maximum output power

AC

Alternating-current input

/2

Secondary (redundant) power supply

Supported Platforms

    Model comparison

    Parameter

    PWR-C6-600WAC/2

    PWR-C6-715WDC/2

    PWR-C6-1KWAC/2

    Rated Power

    600 W

    715 W

    1 000 W

    Input Voltage Range

    100–240 VAC, 50–60 Hz

    100–240 VAC, 50–60 Hz

    100–240 VAC, 50–60 Hz

    Input Current

    7–2.8 A

    3.95–1.5 A

    12–6 A

    Output Voltage

    54 VDC

    55 VDC

    54 VDC

    Output Current

    11.1 A

    13.25 A

    16.5 A

    Holdup Time

    ≥ 20 ms at 100 VAC

    2 ms at –48 VDC

    ≥ 20 ms at 100 VAC

    Total Output BTU/hr

    2 047.3 BTU/hr

    2 440 BTU/hr

    3 412 BTU/hr

    Dimensions (H × W × D)

    1.58″ × 4.0″ × 7.6″

    1.58″ × 4.0″ × 7.6″

    1.58″ × 4.0″ × 7.6″

    Weight

    1.7 lb (0.77 kg)

    1.7 lb (0.77 kg)

    2 lb (0.9 kg)

    Connector

    IEC 320-C16

    IEC 320-C16

    IEC 320-C16

    Power Cord Rating

    15 A

    15 A

    15 A

    Compliance

    UL/CSA/CE/CCC certified

    UL/CSA/CE/CCC certified

    UL/CSA/CE/CCC certified

    Specifications

    Parameter Specification Parameter Specification
    Model PWR-C6-1KWAC/2 Rated Power 1 000 W
    Input Voltage 100–240 VAC, 50–60 Hz Input Current 12–6 A
    Output Voltage 54 VDC Output Current 16.5 A
    Holdup Time ≥ 20 ms at 100 VAC Total BTU/hr 3 412 BTU/hr
    Dimensions 1.58″ × 4.0″ × 7.6″ Weight 2 lb (0.9 kg)
    Connector IEC 320-C16 Power Cord Rating 15 A
    Compliance UL/CSA/CE/CCC certified

    Get More Information

    Discover unbeatable prices and fast shipping for the PWR-C6-1KWAC/2 Access the detailed PWR-C6-1KWAC/2 datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via Live chat or email us at [email protected]

    Quality Certifications

    Customer Reviews

    Write A Review
    5.0
    (12 reviews)
    5 Stars
    12
    4 Stars
    0
    3 Stars
    0
    2 Stars
    0
    1 Stars
    0
      Sean Cassidy
      Posted on 15/09/2025
      Verified Buyer
      5.0

      Grand service! Arrived fast to Ireland.

      Wade Wilson
      Posted on 08/07/2025
      Verified Buyer
      5.0

      Maximum effort on the shipping! Got here super fast. Chimichangas!

      Site Mgr
      Posted on 05/03/2025
      Verified Buyer
      5.0

      Needed a spare quickly. You delivered next day. Thanks.

      Bryson Perry
      Posted on 25/05/2024
      Verified Buyer
      5.0

      All features as described, and the support was very helpful.

      Bodie Howard
      Posted on 03/04/2024
      Verified Buyer
      5.0

      Great for large PoE deployments, works with our C9200CX stack.

    Questions & Answers

    • What steps should I take if a dual 1kW power system won’t power up?

      Check that both power cords are connected and the outlets are working. Inspect both modules for secure seating and check the switch's event logs for power-related errors.

    • What accessories are shipped with the two-module 1kW set?

      The package includes two 1KW AC power supplies, cables, mounting hardware, and a quick install sheet.

    • Can the twin 1kW AC assembly be swapped with a single 1kW supply?

      While some switches allow operation with either setup, dual modules provide redundancy not found in single-module systems. Always check your switch’s requirements.

    • Are alternative power options available for this slot?

      Cisco lists other compatible AC power modules; always refer to the hardware compatibility matrix before installing a substitute.

    • What network scenarios require dual 1kW AC redundancy?

      Environments with high PoE requirements, critical infrastructure, or where downtime must be minimized, such as core enterprise switches.

    • Which safety steps are recommended during installation?

      Unplug AC power, use an anti-static wrist strap, and avoid touching connectors directly.

    • Which models in the network lineup accept the dual kilowatt system?

      Most advanced Catalyst 9000 Series and similar high-capacity chassis support dual 1KW modules. Reference the official datasheet for specifics.

    • How do I confirm both modules are functioning?

      CLI commands like `show environment power` will list the operational state and health of each supply.

    • Is any firmware specific to this power combination?

      Firmware updates apply to the switch itself, not the modules, but always run the latest recommended IOS-XE image for full hardware support.

    • What action to take if fault LEDs are lit on either module?

      Review the event log, reseat or replace the faulty module, and confirm that adequate airflow and input voltage are present.

    • How often is preventive maintenance needed?

      Quarterly checks and cleaning are usually sufficient for dust-free environments; increase frequency for harsher sites.

    • Does the system support hot-swap of individual 1kW supplies?

      Yes, compatible switches allow one module to be replaced while the other continues powering the device.

    • What’s the difference in PoE capacity between single and twin units?

      The redundant configuration provides higher available power for PoE devices, as total available output can increase or maintain in the event of a failure.

    • Where to locate official Cisco installation guides?

      Cisco’s website offers detailed hardware installation guides and quick start leaflets.

    • How to check authenticity of the 1kW dual AC package?

      Check serial numbers and labels, order from authorized Cisco partners, and use the Cisco authenticity portal online.

    • What are the optimal climate conditions for operation?

      Keep within 0–40°C (32–104°F), low humidity, and ensure proper airflow around the modules.

    • If one 1kW unit fails, can the other continue to power the device?

      Yes, if the device’s power consumption is within the capacity of a single module, operation continues with a fault alert.

    • Is there a way to monitor module health remotely?

      Yes, use network management tools or CLI to check module status, voltage, and temperature remotely.

    • How to identify and fix input power anomalies?

      Use a power meter to check the AC source, ensure input voltage is stable, and check for logs that reference power issues.

    • Which troubleshooting resources does Cisco offer for this set?

      Cisco’s support portal has knowledge bases, troubleshooting wizards, and community forums.
