PWR-C6-125WAC/2 – 125W AC power supply for Catalyst 9200

Brand: Category: Availability: In Stock Model:

PWR-C6-125WAC/2

(12 customer reviews)
Questions

0/mo Solds

List Price: $1322 $182.30
  • 100% Genuine
    Original, factory-authenticated
  • S/N Verifiable
    Verified by official serial-check
Condition New Factory Sealed Related Quantity
Trusted & Secure Payments
Shipping Express Shipping 2-6 Days, via DHL, FedEx, UPS, etc. Packaging weight and dimensions included:
layer23-switch
Certified Expertise for Project Delivery

CCIE · JNCIE · NSE7 · ACDX · HPE · Dell Server/AI Expert

Stable Global Supply Chain for Thriving Businesses.

  • $3,000,000 Inventory
  • Certified Cisco Partner ships
  • Collaborating with FedEx, UPS, DHL

Free Expert Support from Planning to Deployment

  • Assistance with product selection and network solution design
  • Configuration guidance and best-practice recommendations
  • Troubleshooting support provided by CCIE-level technical experts

Established Global IT Distributor

With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.

PWR-C6-125WAC/2 Description

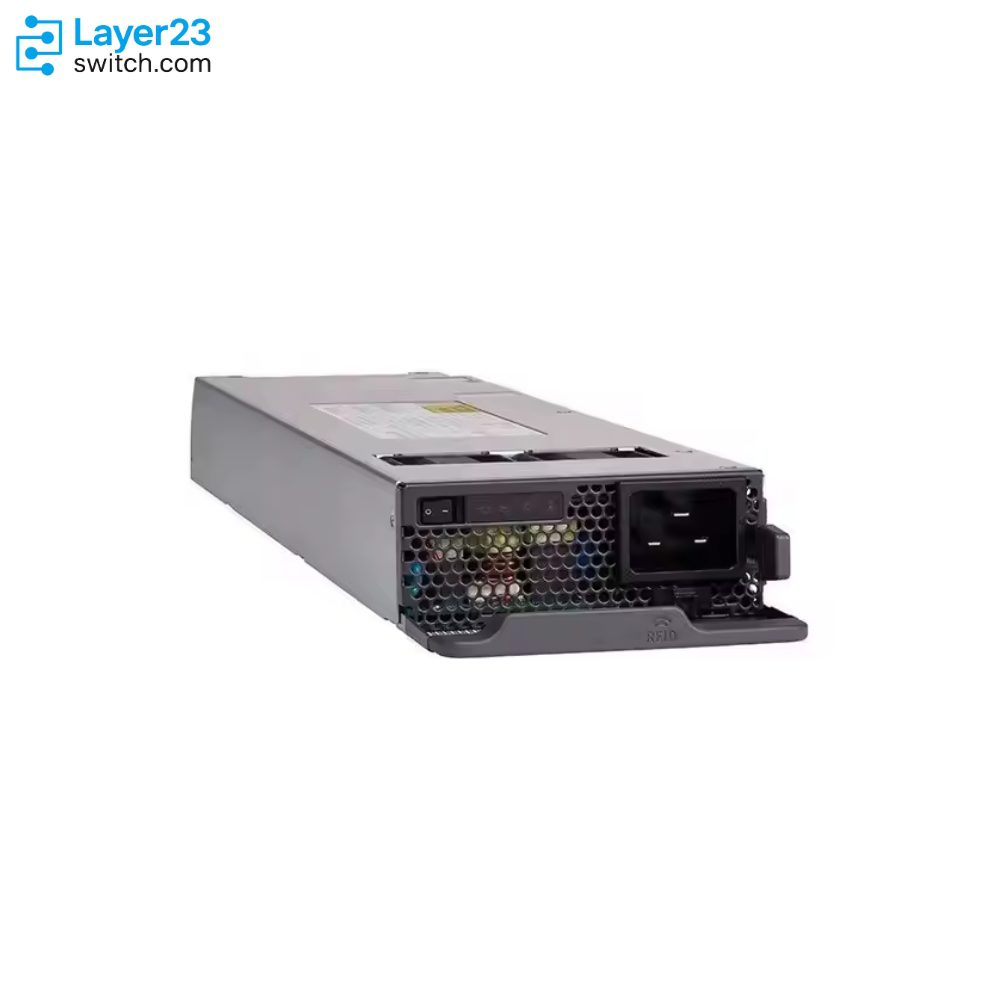

PWR-C6-125WAC/2 is a hot-swappable 125W AC redundant secondary power supply module for Cisco Catalyst 9200 Series switches. Also referred to as the 125W Config 6 AC PSU or 125W AC FRU power supply, this secondary power unit delivers a stable 12 V @ 10.5 A output from a universal 100–240 VAC input. Engineered for modular uplink Catalyst 9200-24T and 9200-48T models, the PWR-C6-125WAC/2 supports seamless failover, ensuring uninterrupted operation and simplified maintenance in enterprise campus and branch deployments.

Model Meaning

Model Component

Meaning

PWR

Power supply

C6

Config 6 field-replaceable modular power module slot

125W

125 watts output power

AC

Alternating-current input (100–240 VAC, 50–60 Hz)

/2

Secondary (redundant) power supply unit

Compatible Models Table

Switch Model

Short Description

C9200-24T-E

Catalyst 9200 24-port Data Switch, Network Essentials

C9200-24T-A

Catalyst 9200 24-port Data Switch, Network Advantage

C9200-48T-E

Catalyst 9200 48-port Data Switch, Network Essentials

C9200-48T-A

Catalyst 9200 48-port Data Switch, Network Advantage

Model comparison

Parameter

PWR-C6-125WAC/2

PWR-C6-600WAC/2

PWR-C6-1KWAC/2

Rated Power

125 W

600 W

1000 W

Total Output BTU/hr

426.5 BTU/hr

2047.3 BTU/hr

3412 BTU/hr

Input Voltage/Frequency

100–240 VAC, 50–60 Hz

100–240 VAC, 50–60 Hz

100–240 VAC, 50–60 Hz

Input Current

1.6–0.7 A

7–2.8 A

12–6 A

Output Rating

12 V @ 10.5 A

54 V @ 11.1 A

54 V @ 16.5 A

Hold-up Time

≥20 ms @ 100 VAC

≥20 ms @ 100 VAC

≥20 ms @ 100 VAC

Input Receptacle

IEC 320-C14

IEC 320-C16

IEC 320-C16

Cord Rating

10 A

15 A

15 A

Dimensions (HxWxD)

1.58″ × 4.0″ × 7.6″

1.58″ × 4.0″ × 7.6″

1.58″ × 4.0″ × 7.6″

Weight

1.5 lb (0.68 kg)

1.7 lb (0.77 kg)

2 lb (0.9 kg)

Specifications

Parameter Specification
Model PWR-C6-125WAC/2
Type 125W AC Config 6 Secondary Power Supply
Rated Maximum Power 125 W
Total Output BTU/hr 426.5 BTU/hr
Input Voltage & Frequency 100–240 VAC, 50–60 Hz
Input Current 1.6–0.7 A
Output Rating 12 V @ 10.5 A
Hold-up Time ≥20 ms @ 100 VAC
Input Receptacle IEC 320-C14
Power Cord Rating 10 A
Dimensions 1.58″ × 4.0″ × 7.6″
Weight 1.5 lb (0.68 kg)

Get More Information

Discover unbeatable prices and fast shipping for the PWR-C6-125WAC/2 Access the detailed PWR-C6-125WAC/2 datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via Live chat or email us at [email protected]

Quality Certifications

Customer Reviews

Write A Review
5.0
(12 reviews)
5 Stars
12
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0
    IT Ops
    Posted on 18/09/2025
    Verified Buyer
    5.0

    Shipping to Canada was fast. No issues.

    Luke Cage
    Posted on 15/07/2025
    Verified Buyer
    5.0

    Solid service. Unbreakable reliability.

    Danny Rand
    Posted on 10/05/2025
    Verified Buyer
    5.0

    Excellent flow of goods. The transaction was centered and efficient.

    Telecom Tech
    Posted on 20/03/2025
    Verified Buyer
    5.0

    Arrived quickly. Packaging was secure.

    Jaylen Garcia
    Posted on 09/05/2024
    Verified Buyer
    5.0

    Reliable power supply, would buy again.

Questions & Answers

  • What are the first troubleshooting actions if my dual 125W AC modules fail?

    Check both AC inputs, reseat both supplies, and look for any error indicators on the modules or in the system log.

  • Does the package contain all necessary installation hardware?

    Yes, you'll find two power modules, mounting brackets, screws, and two power cords in the box.

  • Is there a functional difference between this twin 125W setup and a single module?

    Dual modules provide power redundancy, allowing continuous operation if one module fails.

  • Are alternative modules allowed in this dual configuration slot?

    Always use Cisco-approved modules for best results, but other wattages may fit if supported—consult your switch documentation.

  • For what use cases is the double 125W configuration ideal?

    Best for small or remote sites needing backup power, or in any setup where uninterrupted operation is desired.

  • What key safety steps apply during module replacement?

    Shut off power, unplug both modules, and avoid touching connector pins during removal or installation.

  • Which Catalyst chassis are compatible with this power pair?

    Check the chassis datasheet; most low to mid-range Catalyst switches with dual slots are supported.

  • How to verify that both supplies are operational?

    Check status LEDs on each module or use CLI commands to see both supplies listed as ‘OK’.

  • Are any software updates needed for these modules?

    No, but ensure the switch is running a supported firmware release.

  • What are typical LED indicators for faults?

    Red or flashing amber LEDs indicate problems; steady green means normal operation.

  • How frequently should the modules be checked for dust or wear?

    Quarterly checks are recommended; increase frequency in harsh environments.

  • Does this set support hot-swap functionality?

    Yes, most modern Catalyst switches allow one module to be swapped while the other remains active.

  • Can the system run if one supply in the pair fails?

    Yes, redundancy is lost but the switch will stay online if within the power limits of the remaining module.

  • Where can I find installation and troubleshooting guides?

    All official documentation is available on Cisco’s product support portal.

  • How to check the authenticity of a dual supply set?

    Verify part numbers, serial numbers, and ensure they’re purchased from an authorized distributor.

  • What is the best storage environment for these power modules?

    Store in a cool, dry place, preferably in anti-static packaging.

  • How to monitor supply health remotely?

    Use network management tools or CLI to check power supply status from anywhere.

  • Are there special tips for cable management with this pair?

    Secure cables to avoid strain, ensure ventilation is not blocked.

  • How do I identify a faulty module in a dual system?

    Check the status LEDs and review CLI output for any reported faults.

  • What is Cisco’s standard support for this unit?

    Warranty covers parts and labor for a set period, with options for replacement via your Cisco partner.
