C9200-24T-A Description

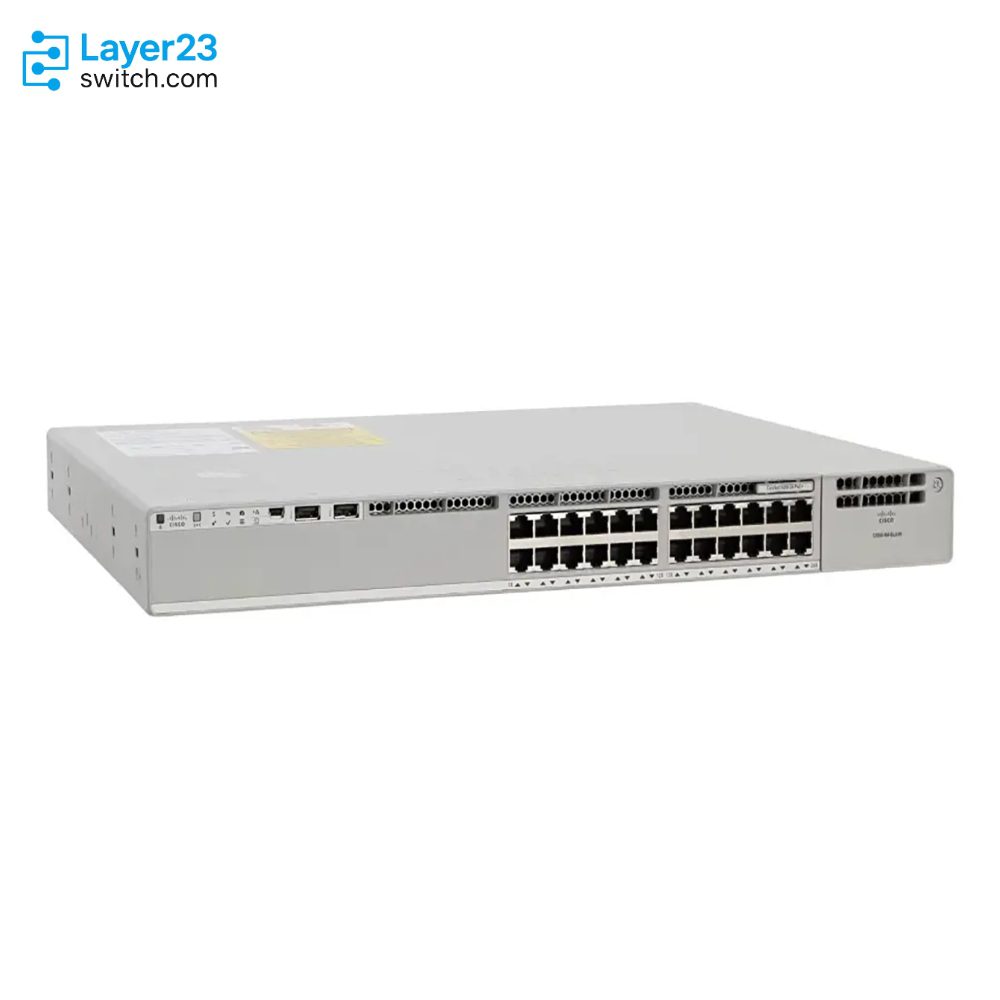

The C9200-24T-A is a Cisco Catalyst 9200 modular-uplink stackable access switch built around 24 non-PoE 1G copper data ports and the Network Advantage license tier, aimed at wiring closets that terminate switches, routers, and other unpowered equipment while still needing local routing and segmentation. Uplink speed is set by the network module dropped into the single field-replaceable uplink bay rather than by the chassis itself: the C9200-NM-4G brings 1G aggregation and the C9200-NM-4X brings 10G, so the same hardware line item covers either uplink plan, or the C9200-NM-BLANK if no module is needed yet. A single default PWR-C6-125WAC supply runs the switch with no PoE output at all, reflecting the lower power class Cisco assigns to the data-only variant, and a second PWR-C6-125WAC can be added strictly for power redundancy. Switching capacity lands at 128 Gbps standalone, rising to 288 Gbps when the switch joins a StackWise-160 stack of up to eight modular Catalyst 9200 members, and both the power supply and fan modules are field-replaceable so a closet visit does not turn into a chassis swap. Network Advantage on this hardware layers EIGRP, HSRP, IS-IS, and VRF-lite, VXLAN, and LISP segmentation over the Layer 2 and Routed Access base that Network Essentials already covers.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9200-24T-A |
|
Product type |
Modular-uplink stackable data access switch |
|
Access ports |
24 x 1G data copper ports |
|
Uplink bay |
1 modular network-module slot |
|
Supported uplink modules |
C9200-NM-4G, C9200-NM-4X, C9200-NM-BLANK |
|
Network license |
Network Advantage |
|
Stacking architecture |
StackWise-160 |
|
Switching capacity |
128 Gbps standalone; 288 Gbps with stacking |
|
Forwarding rate |
95.23 Mpps standalone; 214 Mpps with stacking |
|
Default power supply |
PWR-C6-125WAC |
|
PoE support |
None; data-only ports draw no PoE budget |
|
Minimum Cisco IOS XE release |
Gibraltar 16.10.1 |
Product Performance
Key Features
The Network Advantage license adds EIGRP, HSRP, IS-IS, and VRF-lite, VXLAN, and LISP segmentation on top of Network Essentials, so a 24-port data closet can enforce department or tenant boundaries locally instead of forwarding everything upstream at Layer 2.
Cisco pairs this data-only model with the PWR-C6-125WAC supply instead of the 600W or 1KW classes used on the PoE+ variants, which lowers the power footprint for a closet where none of the 24 ports need to energize an endpoint.
The single network-module bay takes either the C9200-NM-4G for 1G aggregation or the C9200-NM-4X for 10G, so the uplink decision rides on the module line item and does not lock in the switch hardware itself.
Up to eight modular Catalyst 9200 switches join one 160 Gbps StackWise-160 ring that behaves as a single virtual switch with up to 384 access ports, keeping a growing closet under one management plane with sub-50ms stateful failover.
The power supply and fan modules on this modular Catalyst 9200 line are FRU parts, so a failed unit is swapped at the rack instead of forcing a full chassis replacement.
Port-based 802.1X authentication, MACsec-128 link encryption, model-driven telemetry, and SPAN/RSPAN mirroring are all part of the Network Essentials layer under this switch’s Network Advantage license, so access control and traffic visibility do not require the routing add-ons to be in use.
Application Scenarios
Deployed where the 24 downlinks connect switches, routers, printers, or desktop equipment that draws no PoE, keeping the power budget out of scope for the switch order entirely.
Installed where VRF-lite, VXLAN, or LISP segmentation needs to start at the closet switch to keep tenant or department traffic separated before it reaches the rest of the campus fabric.
Used as a member in a StackWise-160 stack that standardizes on Network Advantage across the ring, extending routed access capacity without adding a second management plane.
Product Comparison
|
Parameter |
C9200-24T-A | |||
|---|---|---|---|---|
|
Access ports |
24 x 1G data copper ports |
24 x 1G PoE+ copper ports |
48 x 1G data copper ports |
24 x 1G data copper ports |
|
Uplink architecture |
Modular network-module bay |
Modular network-module bay |
Modular network-module bay |
4 x 1/10G SFP+ fixed uplink ports |
|
Network license |
Network Advantage |
Network Advantage |
Network Advantage |
Network Advantage |
|
Default power supply |
PWR-C6-125WAC |
PWR-C6-600WAC |
PWR-C6-125WAC |
PWR-C5-125WAC |
|
PoE support |
No PoE output |
370W with one supply; 740W with a second |
No PoE output |
No PoE output |
|
Stacking architecture |
StackWise-160 |
StackWise-160 |
StackWise-160 |
StackWise-80 |
|
Switching capacity |
128 Gbps standalone; 288 Gbps with stacking |
128 Gbps standalone; 288 Gbps with stacking |
176 Gbps standalone; 336 Gbps with stacking |
128 Gbps standalone; 208 Gbps with stacking |
|
Forwarding rate |
95.23 Mpps standalone; 214 Mpps with stacking |
95.23 Mpps standalone; 214 Mpps with stacking |
130.95 Mpps standalone; 250 Mpps with stacking |
95.23 Mpps standalone; 155 Mpps with stacking |
|
Minimum Cisco IOS XE release |
Gibraltar 16.10.1 |
Gibraltar 16.10.1 |
Gibraltar 16.10.1 |
16.9.2 or later |
- Adding PoE+ capability, C9200-24P-A keeps the identical 128 Gbps switching capacity and modular uplink bay but steps up to the PWR-C6-600WAC power class for a 370W/740W PoE budget, a move that only pays off once some of the 24 ports need to power phones, cameras, or access points; C9200-24T-A stays the right fit while every downlink terminates non-powered gear.
- C9200-48T-A doubles the data port count to 48 and raises switching capacity to 176 Gbps standalone while keeping the same Network Advantage tier and modular uplink bay, a step that only makes sense once the closet’s non-powered port demand is confirmed to run past 24 and toward the 48-port range.
- C9200L-24T-4X-A matches the same 24 data ports, the same StackWise architecture family goal, and a comparable 125W power class, but it locks uplinks at a fixed 4x 1/10G SFP+ bank, halves stack bandwidth to StackWise-80, and drops stacked switching capacity to 208 Gbps, a trade that only makes sense once the uplink speed choice is already settled and the network-module bay’s flexibility to change uplink media later is not needed.
- For deciding which SKU to order, settle the PoE requirement first, since only C9200-24P-A in this group adds a PoE budget; then size the non-powered port count against C9200-48T-A; and last decide whether the uplink media needs to stay open-ended, which is the line separating C9200-24T-A from the fixed-uplink C9200L-24T-4X-A at the same port count and power class.
Selection Guide
1. Powered Endpoint Requirement Routes To C9200-24P-A
When even a portion of the 24 downlink ports is confirmed to power phones, cameras, or access points, C9200-24P-A carries the identical modular-uplink hardware and Network Advantage tier on the larger PWR-C6-600WAC power class with a 370W PoE budget; staying on C9200-24T-A only holds while every port is confirmed to terminate non-powered equipment.
2. Data Port Count Growing Toward The 48-Port Tier
When a closet’s non-powered port count is expected to grow past 24 and toward the 48-port range, C9200-48T-A carries the same modular-uplink Advantage role and the identical 125W power class instead of forcing a second C9200-24T-A chassis into the same rack; staying on C9200-24T-A only holds while the closet’s data footprint is expected to stay near or under 24 ports.
3. Fixed Uplink Trade Against C9200L-24T-4X-A
C9200L-24T-4X-A delivers the same 24 data ports at a comparable power class with 4x 1/10G SFP+ uplinks fixed at the factory and StackWise-80 in place of StackWise-160; taking that configuration gives up the network-module bay’s ability to change uplink media later, so it only fits designs where the uplink speed is already locked in.
4. Subscription Term Choice Does Not Touch The Feature Set
An order for C9200-24T-A pairs with the Advantage 24-port subscription group, C9200-DNA-A-24 or C9200-DNX-A-24-3Y/5Y, while Cisco publishes no in-place PID to move the same hardware from Network Essentials to Network Advantage after the fact; the perpetual license baked into the -A suffix at order time is what unlocks EIGRP, HSRP, IS-IS, and VRF-lite/VXLAN segmentation at this closet, and picking a longer or shorter subscription term changes nothing about that feature boundary.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact license suffix |
C9200-24T-A carries Network Advantage; the -E suffix on identical hardware carries Network Essentials |
The perpetual Network Stack tier is set by the hardware PID and cannot be license-upgraded in place |
|
Matching subscription tier |
An Advantage-tier term subscription from the 24-port group, such as C9200-DNA-A-24 or C9200-DNX-A-24-3Y/5Y |
Every Catalyst 9200 order requires a matching-tier Cisco DNA or Cisco Catalyst subscription under a mandatory Smart Account |
|
Uplink module line item |
One of C9200-NM-4G, C9200-NM-4X, or C9200-NM-BLANK is on the order |
The switch must run with a module or blank installed in the uplink bay, and the mGig-only C9200-NM-2Y/C9200-NM-2Q modules do not apply to this model |
|
No PoE assumption |
Confirm the design does not expect any PoE budget from this model |
The data-only C9200-24T-A ships with the 125W PWR-C6-125WAC supply and provides no PoE output at all |
|
Stack kit inclusion |
C9200-STACK-KIT plus stack members at the same license level |
The kit is not included by default, and StackWise-160 members must share the license tier |
|
Power cord selection |
A country-specific CAB-TA cord rated for the 125W supply class (10A) |
An under-rated or wrong-plug cord blocks power-up at installation |
|
Software baseline |
Cisco IOS XE Gibraltar 16.10.1 or later |
16.10.1 is the introductory release for this model, and earlier releases cannot run it |
Optional Add-ons
|
Add-on |
Description |
|---|---|
|
4 x 1G SFP uplink network module for modular Catalyst 9200 switches | |
|
4 x 1G/10G SFP+ uplink network module | |
|
Blank module that preserves airflow when no uplink module is installed | |
|
Second 125W AC power supply for redundancy (no PoE budget on this model) | |
|
StackWise-160 stack kit with two data stack adapters and one data stack cable (ordered separately) | |
|
Longer stacking cable options beyond the default 0.5m STACK-T4-50CM | |
|
ACC-KIT-T1= / RACK-KIT-T1= |
Alternative 19-in or 19/23/24-in and ETSI rack mount kits beyond the standard bracket that ships by default |
Catalyst 9200L Access Layer Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Catalyst 9200L Access Layer Switch Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9200-24T-A | Order description | Catalyst 9200 24-port Data switch, modular uplinks, Network Advantage |
| Network license | Network Advantage | Access ports | 24 x 10/100/1000 Mbps data copper ports |
| Uplink bay | 1 modular network-module slot | Supported uplink modules | C9200-NM-4G, C9200-NM-4X, C9200-NM-BLANK |
| Management port | 1 x Ethernet management RJ-45 port | Console port | RJ-45 or mini-USB console |
| Switching capacity | 128 Gbps standalone; 288 Gbps with StackWise-160 | Forwarding rate | 95.23 Mpps standalone; 214 Mpps with StackWise-160 |
| Default power supply | PWR-C6-125WAC | Default power supply wattage | 125W AC |
| Power supply slots | 2 slots; second PWR-C6-125WAC optional for redundancy only | PoE support | None; data-only ports provide no PoE budget |
| Power supply input | 100-240 VAC, 50-60 Hz, IEC 320-C14 inlet | Power supply heat dissipation | 426.5 BTU/hr at 125W output |
| Fan modules | 2 field-replaceable fan modules | Stacking architecture | StackWise-160, 160 Gbps, up to 8 members |
| Stacking accessory | C9200-STACK-KIT (ordered separately) | Stack cable options | STACK-T4-50CM (default), STACK-T4-1M, STACK-T4-3M |
| Operating temperature | -5 to 45 deg C (up to 1500 m); -5 to 40 deg C (up to 3000 m) | Storage temperature | -40 to 70 deg C |
| Operating humidity | 5% to 90% noncondensing | Operating altitude | Up to 10,000 ft (3000 m) |
| Acoustic noise | 42 dB LpA typical / 45 dB LpA max (24-port group, AC power, loaded) | MTBF | 587,800 hours |
| Dimensions (chassis only) | 1.73 x 17.5 x 13.8 in (4.4 x 44.5 x 35.0 cm) | Dimensions (with fan FRUs and power supply) | 1.73 x 17.5 x 15.4 in (4.4 x 44.5 x 39.1 cm) |
| Weight | 11.02 lb (5.0 kg) | Minimum Cisco IOS XE release | Gibraltar 16.10.1 |
| Safety compliance | IEC/UL/CSA/EN 60950-1 and 62368-1, Class I Equipment | EMC compliance | FCC 47 CFR Part 15, CISPR 32 Class A, EN 55032 Class A, ICES-003 Class A (and related regional standards) |
| Environmental compliance | RoHS 5 | Warranty | Cisco Enhanced Limited Lifetime Warranty |
Get More Information
Need pricing, stock, or shipping details for the C9200-24T-A ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What access role fits C9200-24T-A?
-
Why choose C9200-24T-A instead of C9200-24T-E?
-
Does C9200-24T-A power endpoints?
-
What uplink modules pair with C9200-24T-A?
-
Where does C9200-24T-A fit in a campus network?
-
How is C9200-24T-A different from C9300-24T-A?
-
What ordering mistake affects C9200-24T-A?
-
What stack migration issue matters for C9200-24T-A?
