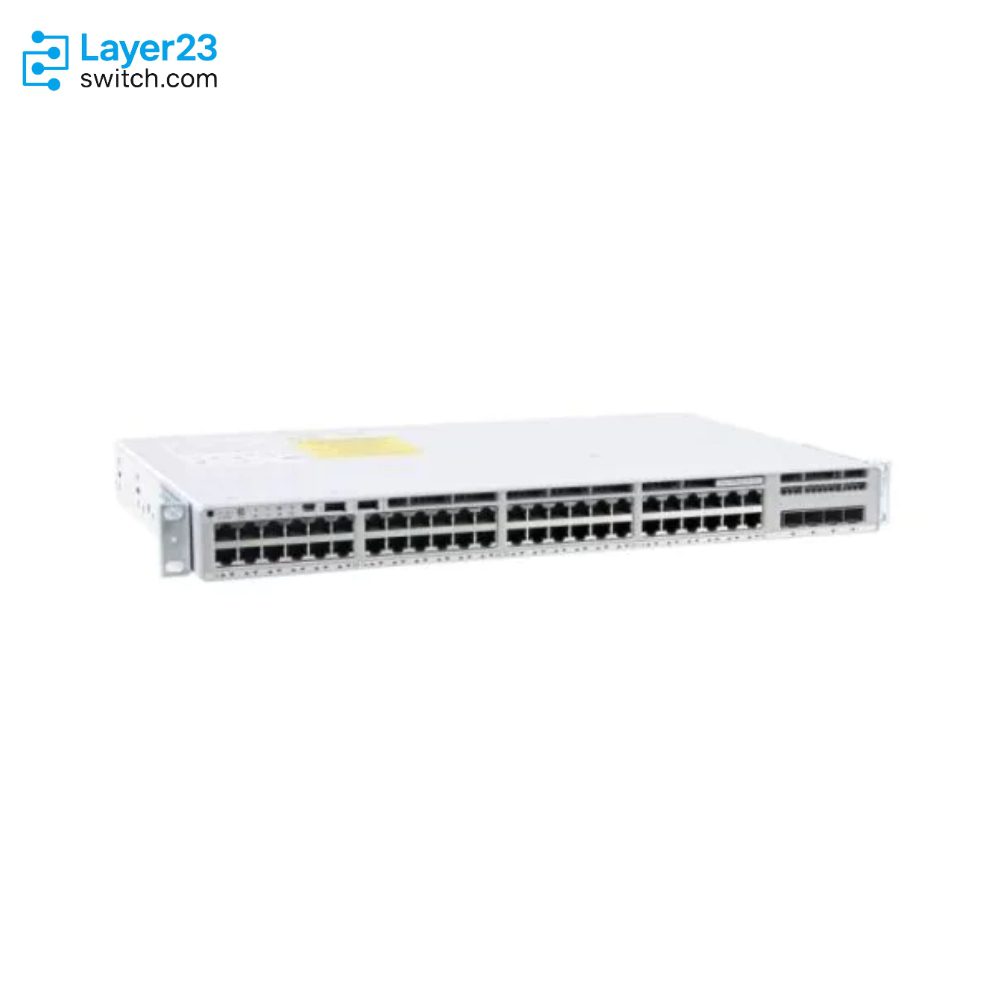

C9200L-48PXG-4X-E – 12xmGig plus 36x1G PoE+ Ports – 4x10G SFP+ Uplinks – 740W PoE Budget
11/mo Solds
Cisco C9200L-48PXG-4X-E Compatible Accessories, Modules & Spare Parts
Find compatible network modules, power supplies, fans, optics, cables and spare parts for the Cisco C9200L-48PXG-4X-E. These accessories support fiber connectivity, hardware replacement, spare inventory and network maintenance projects.
Optics & Cables Compatible with Cisco C9200L-48PXG-4X-E
-
SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMFOriginal price was: $1,870.01.$50.00Current price is: $50.00. Condition: New Factory Sealed -
SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4Original price was: $2,658.11.$71.68Current price is: $71.68. Condition: New Factory Sealed -
SFP-10G-SR-X
10GBASE-SR SFP+ - Extended Temp - 400m OM4 MMFOriginal price was: $3,785.89.$1,020.00Current price is: $1,020.00. Condition: New Factory Sealed -
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMFOriginal price was: $5,342.92.$128.00Current price is: $128.00. Condition: New Factory Sealed -
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km ReachOriginal price was: $10,672.47.$170.00Current price is: $170.00. Condition: New Factory Sealed -
SFP-10G-LR-X
10GBASE-LR SFP+ - Extended Temp - 10km SMFOriginal price was: $11,206.77.$306.00Current price is: $306.00. Condition: New Factory Sealed -
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $2,658.11.$95.80Current price is: $95.80. Condition: New Factory Sealed -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $1,202.16.$62.50Current price is: $62.50. Condition: New Factory Sealed -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $1,335.73.$57.00Current price is: $57.00. Condition: New Factory Sealed -
GLC-EX-SMD
1000BASE-EX SFP - 40km SMF - DOMOriginal price was: $5,329.57.$205.00Current price is: $205.00. Condition: New Factory Sealed
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9200L-48PXG-4X-E Description
The C9200L-48PXG-4X-E is a Cisco Catalyst 9200L fixed-uplink stackable access switch built for closets that mix standard 1G copper endpoints with a smaller set of multigigabit drops. Cisco's ordering description covers 12 multigigabit PoE+ ports rated up to 10G, 36 additional 1G PoE+ ports, four fixed 10G SFP+ uplinks, and StackWise-80 stacking, with the switch running Network Essentials rather than the Network Advantage license carried by the equivalent -A hardware. The default PWR-C5-1KWAC supply provides a 740W PoE budget that Cisco documents rising to 1440W with a second matching supply, so the mGig access density and PoE headroom are unchanged from the Advantage-licensed hardware; only the software entitlement level moves down to the Essentials tier.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9200L-48PXG-4X-E |
|
Product type |
Fixed-uplink stackable access switch |
|
Access port layout |
12 x multigigabit PoE+ ports and 36 x 1G PoE+ ports |
|
Multigigabit port rating |
12 ports up to 10G |
|
Fixed uplinks |
4 x 10G SFP+ fixed uplink ports |
|
Network license |
Network Essentials |
|
Stacking architecture |
StackWise-80 |
|
Switching capacity |
392 Gbps standalone; 472 Gbps with stacking |
|
Forwarding rate |
291.66 Mpps standalone; 351 Mpps with stacking |
|
Default PoE budget |
740W with one PWR-C5-1KWAC |
|
Expanded PoE budget |
1440W with a second PWR-C5-1KWAC |
|
Default power supply |
PWR-C5-1KWAC |
|
Fan design |
2 fixed fans |
Product Performance
Key Features
The switch keeps the full 12-port multigigabit PoE+ access profile plus 36 1G PoE+ ports of the PXG hardware, so buyers standardizing on Network Essentials still get the same mGig density as the Advantage-licensed unit.
The 4X hardware code fixes four 10G SFP+ uplink ports on the chassis; this is not a modular Catalyst 9200 slot and should not be quoted with modular network-module accessories.
Cisco’s platform tables assign the 24- and 48-port multigigabit models a 12 MB packet buffer and 32,000 Flexible NetFlow entries, roughly double the 6 MB buffer and 16,000 flows on the 1G-only C9200L models, which matters for flow-heavy or bursty mGig edge traffic.
The default PWR-C5-1KWAC supply provides a 740W PoE budget on C9200L-48PXG-4X, rising to 1440W with a second matching supply; this power planning is identical to the Advantage-licensed hardware because PoE budget is a power-supply fact, not a license fact.
Cisco introduced the PXG multigigabit models in IOS XE Gibraltar 16.11.1, a later release than the 16.9.2 Fuji baseline documented for the original 1G-only C9200L switches, so software-baseline planning for a mixed C9200L stack should treat 16.11.1 as the floor for any PXG member.
Cisco documents StackWise-80 for fixed C9200L models, with 80 Gbps stack bandwidth and support for up to eight members, but Cisco requires stack members to share the same Network Stack license tier, so this Essentials-licensed unit can only join stacks built on other Essentials C9200L members.
Application Scenarios
Fits a wiring closet where a minority of drops need multigigabit PoE+ for Wi-Fi 6/6E access points or high-draw cameras while the majority of drops stay at 1G PoE+, and the routing plan does not go beyond Layer 2 switching, static routing, or Routed Access with OSPF under 1000 routes.
Added to a StackWise-80 Catalyst 9200L stack where every member already runs Network Essentials, since Cisco requires matching license tiers across stack members.
Used when a closet refresh needs the PXG hardware’s multigigabit access density and 10G SFP+ uplinks but the deployment does not need EIGRP, HSRP, IS-IS, VRF-Lite, VXLAN, or SGT segmentation that Network Advantage would add.
Product Comparison
|
Parameter |
C9200L-48PXG-4X-E |
C9200L-48PXG-2Y-E | ||
|---|---|---|---|---|
|
Product type |
Fixed-uplink access switch |
Fixed-uplink access switch |
Fixed-uplink access switch |
Fixed-uplink access switch |
|
Access ports |
12 x mGig PoE+ and 36 x 1G PoE+ |
12 x mGig PoE+ and 36 x 1G PoE+ |
48 x 1G PoE+ |
8 x mGig PoE+ and 40 x 1G PoE+ |
|
Multigigabit access ports |
12 ports up to 10G |
12 ports up to 10G |
No multigigabit access ports |
8 ports up to 10G |
|
Fixed uplinks |
4 x 10G SFP+ |
4 x 10G SFP+ |
4 x 10G SFP+ |
2 x 25G SFP28 |
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
Network Essentials |
|
Stacking architecture |
StackWise-80 |
StackWise-80 |
StackWise-80 |
StackWise-80 |
|
Default power supply |
PWR-C5-1KWAC |
PWR-C5-1KWAC |
PWR-C5-1KWAC |
PWR-C5-1KWAC |
|
Default PoE budget |
740W |
740W |
740W |
740W |
|
Expanded PoE budget |
1440W |
1440W |
1440W |
1440W |
|
Switching capacity |
392 Gbps; 472 Gbps with stacking |
392 Gbps; 472 Gbps with stacking |
176 Gbps; 256 Gbps with stacking |
292 Gbps; 372 Gbps with stacking |
|
Forwarding rate |
291.66 Mpps; 351 Mpps with stacking |
291.66 Mpps; 351 Mpps with stacking |
130.95 Mpps; 190 Mpps with stacking |
229.16 Mpps; 277 Mpps with stacking |
|
Fan design |
2 fixed fans |
2 fixed fans |
2 fixed fans |
2 fixed fans |
- In a C9200L-48PXG-4X-E vs C9200L-48PXG-4X-A comparison, the hardware and PoE budget are identical; the only confirmed difference is the license tier, and Cisco’s ordering guide shows no in-place upgrade PID, so a design that later needs EIGRP, HSRP, IS-IS, or VRF-Lite/VXLAN segmentation requires ordering the C9200L-48PXG-4X-A hardware rather than relicensing this unit.
- Against C9200L-48P-4X-E, the deciding factor is multigigabit port count rather than license: this SKU keeps twelve mGig PoE+ ports for endpoints that need more than 1G on selected copper runs, while C9200L-48P-4X-E holds a lower standalone switching capacity of 176 Gbps because it drops the multigigabit ASIC profile entirely in favor of 48 uniform 1G PoE+ ports.
- Against C9200L-48PXG-2Y-E, the uplink class is the deciding factor: this 4X model keeps twelve mGig access ports paired with four 10G SFP+ uplinks, while the 2Y model trades four of those mGig ports away (eight remain) in exchange for two 25G SFP28 uplinks, so a design already committed to a 25G aggregation layer fits the 2Y model better even though both share the same Essentials tier and PoE budget.
- For deciding which SKU to order, settle the multigigabit port count and uplink class first, since PoE budget and stacking architecture do not separate any of the three alternatives in this group; only revisit the license tier if the routing or segmentation requirement grows beyond what Network Essentials covers.
Selection Guide
1. Match the mGig hardware to a Layer 2 or Routed Access plan
Order C9200L-48PXG-4X-E when the access role needs the PXG hardware’s twelve multigigabit PoE+ ports and four 10G SFP+ uplinks, and the routing plan stays within Network Essentials scope such as Layer 2 switching, static routing, or Routed Access with OSPF under 1000 routes.
2. Upgrade to C9200L-48PXG-4X-A when segmentation enters the design
Move to C9200L-48PXG-4X-A when the deployment adds EIGRP, HSRP, IS-IS, or network segmentation with VRF-Lite, VXLAN, or SGT, because Cisco’s ordering guide shows no in-place license upgrade path and the Advantage entitlement must be ordered as new hardware from the start.
3. Move to C9200L-48P-4X-E when no port needs multigigabit speed
Specify C9200L-48P-4X-E when every access port can stay at 1G PoE+, since that model keeps the same 4x10G SFP+ uplinks and PoE budget while dropping the multigigabit ASIC cost that this SKU carries for its twelve mGig ports.
4. Move to C9200L-48PXG-2Y-E when the uplink plan is already 25G
Specify C9200L-48PXG-2Y-E when the aggregation layer is built on 25G SFP28 rather than 10G SFP+, accepting eight mGig access ports instead of twelve in exchange for the 2x25G uplink pair.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
PoE standard |
IEEE 802.3at PoE+ up to 30W per port on Catalyst 9200 Series switches |
|
Default PoE budget |
PWR-C5-1KWAC provides 740W available PoE power on C9200L-48PXG-4X |
|
Expanded PoE budget |
A second PWR-C5-1KWAC raises available PoE power to 1440W |
|
DC spare option |
PWR-C5-715WDC= is a spare-only option delivering 485W single / 970W dual, and requires IOS XE 17.8.1 or later |
|
Device count check |
Confirm total endpoint draw across all 48 PoE+ ports against the 740W default budget before assuming every port can run at full 30W simultaneously |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
PID and suffix |
Confirm C9200L-48PXG-4X-E carries Network Essentials, not Network Advantage. |
A one-character suffix change swaps the entire software entitlement on otherwise identical hardware. |
|
Copper access split |
Confirm the order needs 12 multigigabit PoE+ ports plus 36 1G PoE+ ports. |
Prevents confusing this SKU with the all-1G C9200L-48P-4X-E or the 8-port mGig C9200L-48PXG-2Y-E. |
|
Uplink form factor |
Confirm the design uses four fixed 10G SFP+ uplink ports. |
Keeps the order from being mismatched with the 25G SFP28 uplinks on the 2Y variant. |
|
Software baseline |
Confirm any existing StackWise-80 stack already runs IOS XE Gibraltar 16.11.1 or later before adding this member. |
The PXG hardware was introduced in 16.11.1, later than the 16.9.2 baseline for 1G-only C9200L models. |
|
Stack license match |
Confirm every existing stack member also runs Network Essentials. |
Cisco requires matching Network Stack license tiers across StackWise-80 members. |
|
Subscription line |
Confirm a C9200L Cisco DNA Essentials or Catalyst Essentials 48-port term subscription is added at checkout. |
Cisco requires the software subscription tier to match the hardware suffix on every new order. |
Optional Add-ons
|
Model |
Description |
|---|---|
|
C9200L Stack Kit Spare | |
|
50CM Type 3 Stacking Cable | |
|
1M Type 3 Stacking Cable | |
|
3M Type 3 Stacking Cable | |
|
1KW AC Config 5 Power Supply | |
|
715W DC Config 5 Power Supply | |
|
C9200L-DNA-E-48-3Y |
C9200L Cisco DNA Essentials, 48-port, 3 Year Term license |
|
C9200L-DNA-E-48-5Y |
C9200L Cisco DNA Essentials, 48-port, 5 Year Term license |
|
C9200L-DNA-E-48-7Y |
C9200L Cisco DNA Essentials, 48-port, 7 Year Term license |

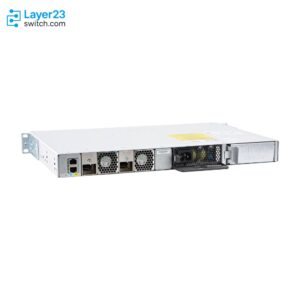

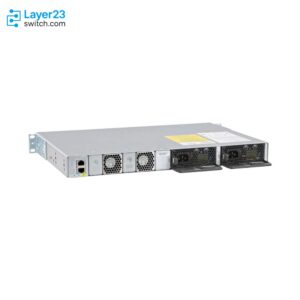

Catalyst 9200L Access Layer Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Catalyst 9200L Access Layer Switch Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9200L-48PXG-4X-E | Product type | Fixed-uplink stackable access switch |
| Network license | Network Essentials | Access port layout | 12 x mGig PoE+ ports and 36 x 1G PoE+ ports |
| Multigigabit ports | 12 ports up to 10G, IEEE 802.3bz, full duplex only | 1G access ports | 36 x 1G PoE+ ports |
| Fixed uplinks | 4 x 10G SFP+ fixed uplink ports | Modular uplinks | No modular uplink network modules on C9200L fixed-uplink models |
| Power supply slots | 2 slots | Default power supply | PWR-C5-1KWAC |
| PoE standard | IEEE 802.3at PoE+ up to 30W per port | Default PoE budget | 740W with PWR-C5-1KWAC |
| Expanded PoE budget | 1440W with second PWR-C5-1KWAC | Optional DC power supply | PWR-C5-715WDC= spare, 485W single / 970W dual, requires IOS XE 17.8.1 or later |
| Fan design | 2 fixed fans | Stacking architecture | StackWise-80 |
| Stack bandwidth | 80 Gbps | Maximum stack members | Up to 8 C9200L members at the same license level |
| Switching capacity | 392 Gbps standalone; 472 Gbps with stacking | Forwarding rate | 291.66 Mpps standalone; 351 Mpps with stacking |
| Packet buffer | 12 MB on 24- and 48-port multigigabit models | Flexible NetFlow entries | 32,000 flows on 24- and 48-port multigigabit models |
| Introductory software release | Cisco IOS XE Gibraltar 16.11.1 | Smart Licensing | Requires a Cisco Smart Account for license use |
| VLAN IDs | 4094 | Jumbo frames | 9198 bytes |
| Operating temperature | -5 to 45 degC (up to 1500 m); -5 to 40 degC (up to 3000 m) | Storage temperature | -40 to 70 degC |
| Humidity | 5%-90% noncondensing | Operating altitude | Up to 3000 m (10,000 ft) |
| Acoustic noise | LpA 42 dB typical / 45 dB max | Connectors and optics | RJ-45 1000BASE-T; SFP/SFP+ up to 10GBASE-ER/ZR/DWDM (LC) |
| Compliance | IEC/UL/CSA/EN 60950-1 and 62368-1 safety; CISPR 32/EN 55032 Class A EMC; RoHS 5 | Warranty | Cisco Enhanced Limited Lifetime Warranty (E-LLW) |
| Chassis dimensions | 1.73 x 17.5 x 13.8 in (4.4 x 44.5 x 35.0 cm) | Installed dimensions | 1.73 x 17.5 x 15.4 in (4.4 x 44.5 x 39.1 cm) |
| Weight | 12.6 lb (5.71 kg) with one power supply installed | MTBF | 337,360 hours |
Get More Information
Need pricing, stock, or shipping details for the C9200L-48PXG-4X-E ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is C9200L-48PXG-4X-E built for?
-
What does PXG mean on C9200L-48PXG-4X-E?
-
What PoE budget is available on C9200L-48PXG-4X-E?
-
Do C9200L-48PXG-4X-E uplinks support 10G?
-
Can C9200L-48PXG-4X-E stack with non-mGig C9200L-E members?
-
How is C9200L-48PXG-4X-E different from C9200L-48P-4G-E?
-
Which endpoint type creates demand for C9200L-48PXG-4X-E?
-
What does the E suffix mean on C9200L-48PXG-4X-E?
