C9200L-48P-4X-A Description

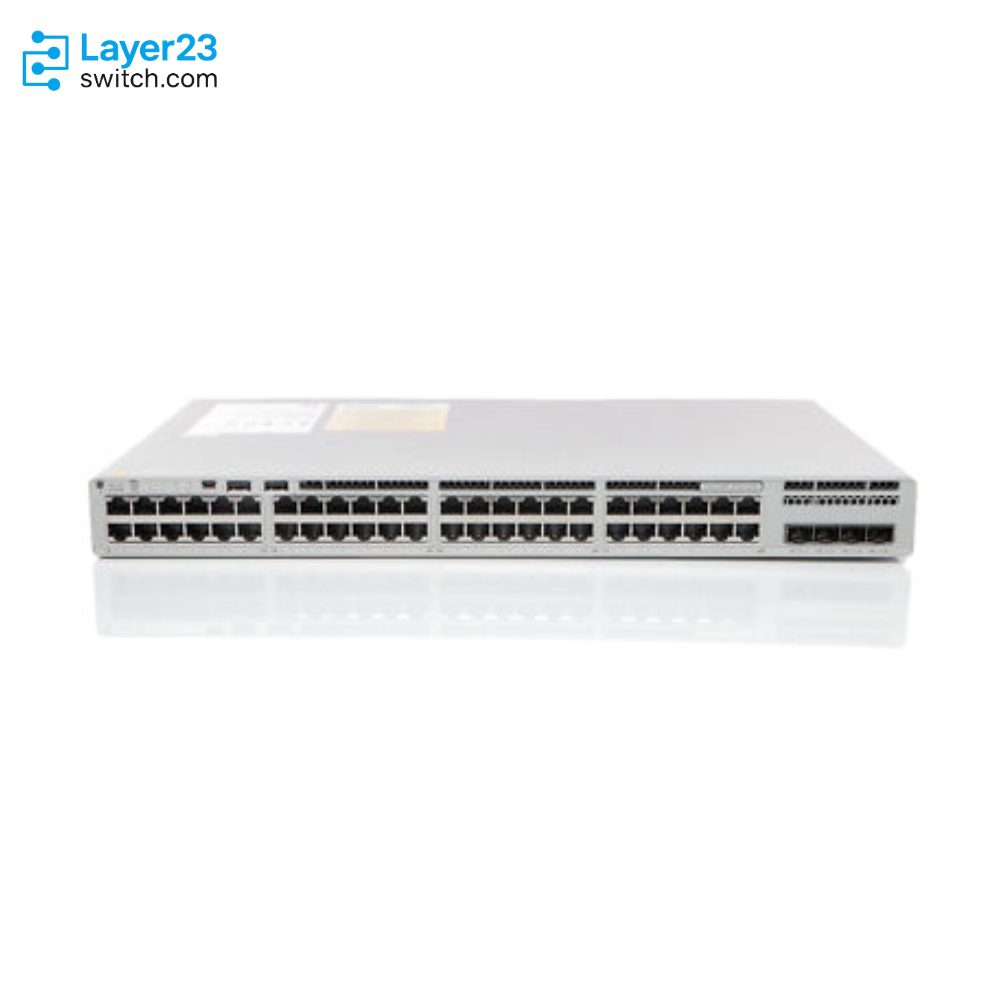

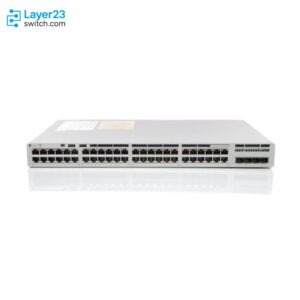

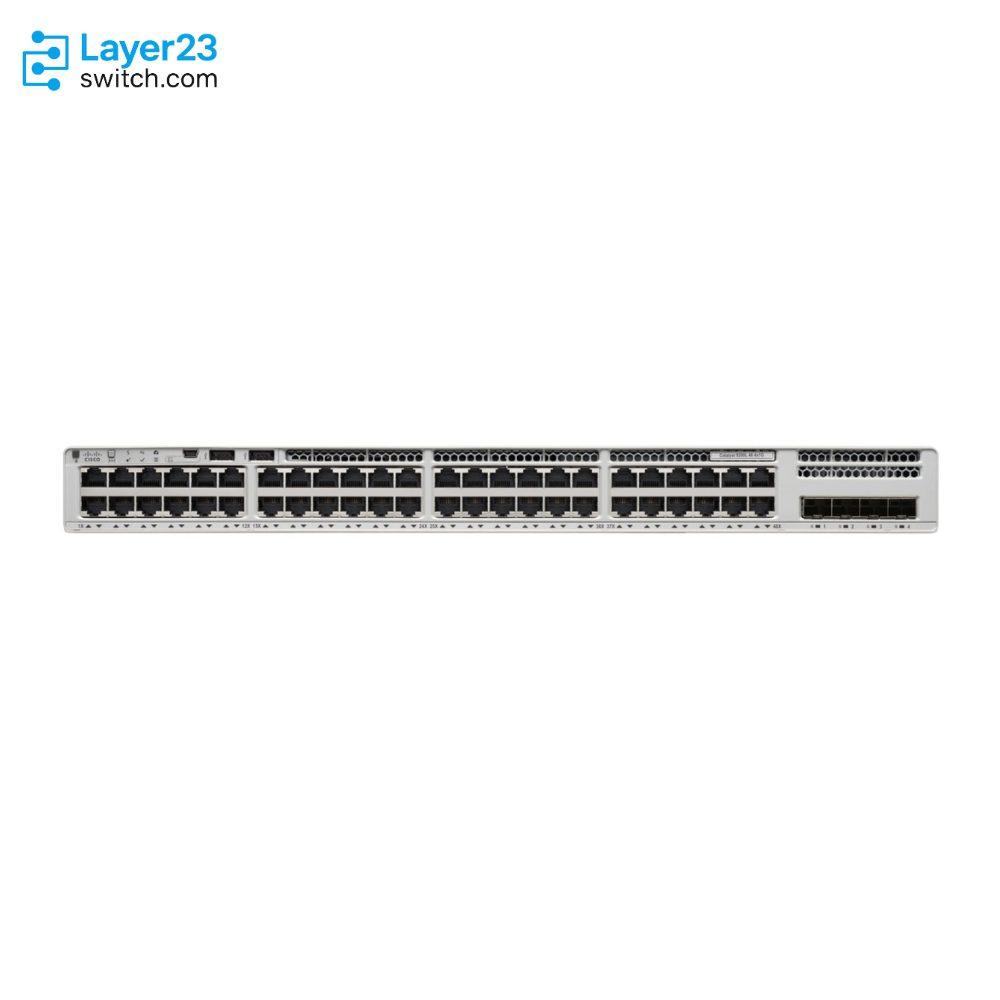

C9200L-48P-4X-A is a Cisco Catalyst 9200L fixed-uplink access switch for campus access layers that need 48 1G PoE+ copper ports and four 10G SFP+ uplinks in a StackWise-80 deployment. This Network Advantage model provides 176 Gbps switching capacity and 130.95 Mpps forwarding on the fixed C9200L platform, ships with a PWR-C5-1KWAC power supply for 740W of available PoE, and scales to 1440W with a second identical supply for dense IP phone, access point, and other powered edge connections.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9200L-48P-4X-A |
|
Product type |
Fixed-uplink stackable access switch |
|
Access ports |
48 x 1G PoE+ copper ports |
|
Uplink ports |
4 x 10G SFP+ fixed uplink ports |
|
Network license |
Network Advantage |
|
Stacking architecture |
StackWise-80 |
|
Stack bandwidth |
80 Gbps |
|
Switching capacity |
176 Gbps standalone; 256 Gbps with stacking |
|
Forwarding rate |
130.95 Mpps standalone; 190 Mpps with stacking |
|
Default PoE budget |
740W with one PWR-C5-1KWAC |
|
Expanded PoE budget |
1440W with a second PWR-C5-1KWAC |
|
Default power supply |
PWR-C5-1KWAC |
Product Performance
Key Features
The 4X order code identifies four fixed 10G SFP+ uplinks, so the bill of materials should not be built around 4G uplink optics or modular uplink cards.
Cisco lists the base C9200L-48P-4X hardware as a 48-port PoE+ model, which makes it the full powered access option rather than the partial-PoE PL variant.
The -A suffix maps this hardware SKU to Network Advantage, and Cisco ordering guidance requires a same-tier Advantage subscription term with a new hardware purchase.
C9200L fixed switches use StackWise-80 and can stack with other C9200L members at the same license level, not with modular C9200 chassis models.
One PWR-C5-1KWAC provides 740W of available PoE for this model, and adding a second PWR-C5-1KWAC raises the listed PoE budget to 1440W.

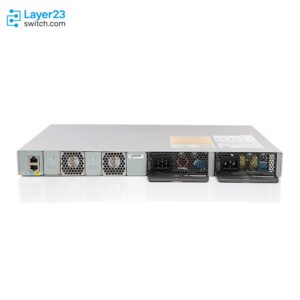

The C9200L design uses fixed fans and two power-supply slots, so spare planning should focus on supplies, stacking parts, optics, cables, and power cords rather than field-replaceable fan modules.
Application Scenarios
Deploy C9200L-48P-4X-A where the rack has forty-eight PoE+ copper drops and the uplink design needs fixed 10G SFP+ ports instead of the 1G SFP uplinks on 4G models.
Specify this -A order when the campus access template requires Network Advantage and a same-tier 48-port Advantage subscription term for Catalyst 9200L hardware.
Add the switch to a stack plan only when the members stay in the fixed C9200L family and the BOM does not mix in modular C9200 StackWise-160 hardware.
Product Comparison
|
Parameter |
C9200L-48P-4X-A |
C9200L-48PL-4X-A | ||
|---|---|---|---|---|
|
Product type |
Fixed-uplink access switch |
Fixed-uplink access switch |
Fixed-uplink access switch |
Fixed-uplink access switch |
|
Access ports |
48 x 1G PoE+ |
48 x 1G PoE+ |
48 x 1G PoE+ |
48 x 1G PoE+ with partial PoE support |
|
Uplink ports |
4 x 10G SFP+ fixed |
4 x 10G SFP+ fixed |
4 x 1G SFP fixed |
4 x 10G fixed |
|
Network license |
Network Advantage |
Network Essentials |
Network Advantage |
Network Advantage |
|
Stacking architecture |
StackWise-80 |
StackWise-80 |
StackWise-80 |
StackWise-80 |
|
Stack bandwidth |
80 Gbps |
80 Gbps |
80 Gbps |
80 Gbps |
|
Default power supply |
PWR-C5-1KWAC |
PWR-C5-1KWAC |
PWR-C5-1KWAC |
PWR-C5-600WAC |
|
Default PoE budget |
740W |
740W |
740W |
370W |
|
Expanded PoE budget |
1440W |
1440W |
1440W |
740W |
|
Switching capacity |
176 Gbps |
176 Gbps |
104 Gbps |
176 Gbps |
|
Forwarding rate |
130.95 Mpps |
130.95 Mpps |
77.38 Mpps |
130.95 Mpps |
|
Power supply slots |
2 slots |
2 slots |
2 slots |
2 slots |
|
Fan design |
2 fixed fans |
2 fixed fans |
2 fixed fans |
2 fixed fans |
- In a C9200L-48P-4X-A vs C9200L-48P-4X-E comparison, the technical hardware profile matches, while the orderable license tier changes from Network Advantage to Network Essentials.
- The C9200L-48P-4X-A vs C9200L-48P-4G-A difference is the uplink class and listed performance table, with the 4X model using 10G fixed uplinks and the 4G model using 1G fixed uplinks.
- For C9200L-48P-4X-A vs C9200L-48PL-4X-A, the key comparison is full PoE+ support with PWR-C5-1KWAC against the partial-PoE PL order with PWR-C5-600WAC.
- The which model to choose decision should be based on license tier, fixed uplink speed, and full-PoE budget because those are the confirmed differences in the comparison table.
Selection Guide
1. Anchor the order on the 4X uplink lane
Select C9200L-48P-4X-A when the access switch must combine 48 full PoE+ ports, four fixed 10G uplinks, and Network Advantage.
2. Treat the E suffix as a license change
Move to C9200L-48P-4X-E only if the same 4X hardware should ship with Network Essentials rather than Network Advantage.
3. Use 4G only for 1G aggregation
Specify C9200L-48P-4G-A when the fiber handoff is intentionally 1G and the lower 4G performance entries are acceptable for the design.
4. Keep PL variants out of full-PoE quotes
Evaluate C9200L-48PL-4X-A only when partial PoE support and the PWR-C5-600WAC power profile are the intended procurement match.
PoE Power Planning
|
Planning Item |
Cisco Confirmed Value |
Order Impact |
|---|---|---|
|
PoE class |
PoE+ access model with IEEE 802.3at support up to 30W per port on Catalyst 9200 Series switches |
Size powered endpoint demand against the confirmed available PoE budget rather than port count alone |
|
PoE budget with default supply |
PWR-C5-1KWAC provides 740W available PoE on C9200L-48P-4X |
Use the single-supply budget only if endpoint draw and redundancy requirements allow it |
|
PoE with secondary supply |
A second PWR-C5-1KWAC supports the 1440W full-PoE budget for the 48-port PoE model |
Add the second supply when the access layer needs more PoE headroom or power redundancy |
|
DC spare option |
PWR-C5-715WDC= is documented as a spare option for C9200L PoE models with IOS XE 17.8.1 and later |
Treat DC power as a software-release and spare-part approval check before quoting |
Ordering Checklist
|
Review Area |
Required Match |
Procurement Control |
|---|---|---|
|
Hardware identity |
C9200L-48P-4X-A as the 48-port full PoE+ 4X Network Advantage switch |
Blocks accidental swaps to the Essentials suffix, 4G uplink model, or PL partial-PoE profile |
|
Uplink optics |
Four fixed 10G SFP+ uplink ports with matching optics |
Keeps the aggregation handoff from being selected as 1G SFP |
|
Subscription line |
Cisco DNA Advantage or Catalyst Advantage 48-port term for C9200L |
Matches Cisco’s same-tier requirement for new hardware orders |
|
Power build |
One PWR-C5-1KWAC for 740W PoE or two PWR-C5-1KWAC supplies for 1440W PoE |
Aligns powered endpoint load and redundancy planning with the supply count |
|
Stack materials |
C9200L-STACK-KIT plus the correct Type 3 cable length |
Keeps StackWise-80 parts inside the fixed C9200L stack family |
|
Site completion |
Regional AC cord, optics list, second PSU decision, support coverage, and destination |
Prevents an approved switch line from missing install or commercial details |
Optional Add-ons
|
Model |
Description |
|---|---|
|
C9200L-STACK-KIT |
Stack kit for C9200L SKUs with two data stack adapters and one data stack cable |
|
STACK-T4-50CM |
50 cm data stack cable supplied as the default cable with the stack kit |
|
STACK-T4-1M |
1 m data stack cable for Catalyst 9200 Series stacking |
|
STACK-T4-3M |
3 m data stack cable for Catalyst 9200 Series stacking |
|
PWR-C5-1KWAC |
1000W AC power supply used as the default and secondary AC supply for C9200L-48P-4X |
|
PWR-C5-715WDC= |
715W DC power supply spare supported on C9200L PoE models with IOS XE 17.8.1 and later |
|
C9200L-DNA-A-48-3Y |
C9200L Cisco DNA Advantage 48-port 3-year term license |
|
C9200L-DNA-A-48-5Y |
C9200L Cisco DNA Advantage 48-port 5-year term license |
|
C9200L-DNA-A-48-7Y |
C9200L Cisco DNA Advantage 48-port 7-year term license |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9200L-48P-4X-A | Product type | Fixed-uplink stackable access switch |
| Network license | Network Advantage | Access ports | 48 x 1G PoE+ copper ports |
| Uplink ports | 4 x 10G SFP+ fixed uplink ports | Modular uplinks | No modular uplink network modules on C9200L fixed-uplink models |
| Power supply slots | 2 slots | Default power supply | PWR-C5-1KWAC |
| Fan design | 2 fixed fans with redundancy support | Stacking architecture | StackWise-80 |
| Stack bandwidth | 80 Gbps | Supported stack members | Other C9200L models with the same license level |
| Switching capacity | 176 Gbps standalone; 256 Gbps with stacking | Forwarding rate | 130.95 Mpps standalone; 190 Mpps with stacking |
| PoE standard | IEEE 802.3at PoE+ up to 30W per port | Default PoE budget | 740W with PWR-C5-1KWAC |
| Expanded PoE budget | 1440W with second PWR-C5-1KWAC | Optional DC power supply | PWR-C5-715WDC= spare supported on C9200L PoE models with IOS XE 17.8.1 and later |
| DRAM | 2 GB | Flash | 4 GB |
| MAC addresses | 16,000 | IPv4 routes | 11,000 total with 8,000 direct and 3,000 indirect routes |
| Packet buffer | 6 MB for 24- or 48-port Gigabit Ethernet C9200L models | Flexible NetFlow entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| Chassis dimensions | 1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm) | Installed dimensions | 1.73 x 17.5 x 12.9 in. (4.4 x 44.5 x 32.9 cm) |
| Weight | 10.6 lb (4.8 kg) | MTBF | 346,270 hours |
Get More Information
Need pricing, stock, or shipping details for the C9200L-48P-4X-A ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is Cisco C9200L-48P-4X-A designed for?
-
How is C9200L-48P-4X-A different from C9200L-48P-4X-E?
-
Does C9200L-48P-4X-A provide PoE+ on 48 ports?
-
Can C9200L-48P-4X-A use modular uplinks?
-
Can C9200L-48P-4X-A be stacked?
-
How is C9200L-48P-4X-A different from C9200-48P-A?
-
When should I choose C9300L-48P-4X-A instead?
-
When is C9200L-48P-4X-A more than the site needs?
