C9200CX-8PT-2G-E Description

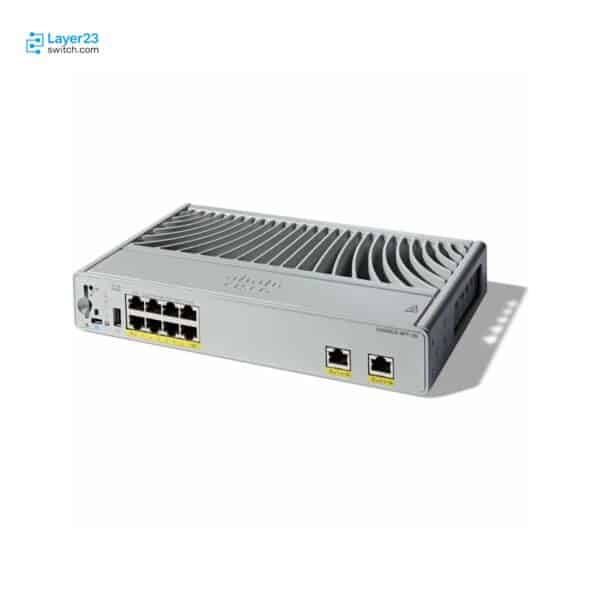

The C9200CX-8PT-2G-E is a Cisco Catalyst 9200CX compact switch for remote campus points that have network cabling but no power outlet. The switch has eight 1G PoE+ ports, two 1G copper uplinks that accept 802.3bt UPOE+ and a PoE budget of 180W with the 80W external adapter or 240W with the 150W adapter, all in a fanless 6.5-inch chassis. The chassis has no internal supply or stacking support, and Network Essentials leaves basic BGP and AES-256 MACsec to Network Advantage.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9200CX-8PT-2G-E |
|
Network license |
Network Essentials |
|
PoE+ data ports |
8x 1G, full PoE+ |
|
Uplink ports |
2x 1G copper with 802.3bt UPOE+ input |
|
Power supply |
External 80W or 150W adapter with LVDC support, plus UPOE+ uplink power; no internal supply |
|
Default PoE budget |
180W with the external 80W adapter and 802.3bt UPOE+ uplinks |
|
Maximum PoE budget with the 150W adapter |
240W |
|
Switching capacity |
20 Gbps |
|
Forwarding rate |
14.88 Mpps |
|
Cooling |
Fanless |
|
Dimensions (H x W x D) |
1.73 x 10.6 x 6.5 in. (4.4 x 26.9 x 16.5 cm) |
|
MTBF |
746,530 hours |
Product Performance
Key Features
Both 1G copper uplinks accept 802.3bt UPOE+ from an upstream switch, and the switch combines that feed with an external 80W or 150W adapter. The uplink run carries data and most of the power, so no circuit needs to reach the install point.
The 80W adapter gives a 180W PoE budget and the 150W adapter raises it to 240W. Eight ports at 30W each add up to exactly 240W, so only the larger adapter covers PoE+ on every port at once.
Every other Catalyst 9200CX model carries a 315W internal supply. This one relies on the adapter, which supports LVDC input, and that keeps the chassis small.
The chassis is 3.1 inches shallower than the 9.6-inch Catalyst 9200CX models and has no fan. It fits furniture cavities and shallow wall boxes where a deeper or noisier switch would not.
Ten 1G ports at full duplex add up to the 20 Gbps switching capacity, and 14.88 Mpps matches ten ports at 1.488 Mpps each. The switch does not oversubscribe its uplinks.
Network Essentials covers static routing, RIP, EIGRP stub, OSPF up to 1,000 routes and MACsec-128, plus Perpetual PoE and Fast PoE for endpoint uptime. AES-256 MACsec and basic BGP need Network Advantage.
Application Scenarios
At a campus location where structured cabling arrives but no power circuit does, the switch takes UPOE+ from an upstream switch over its 1G uplinks and feeds the endpoints plugged into its eight PoE+ ports.
Above ceiling tiles or inside millwork and wall panels, the 6.5-inch fanless chassis fits shallow cavities and stays silent beside occupied space.
A cluster of IP cameras and wireless access points at one edge of a campus draws up to 240W from the switch, and Perpetual PoE keeps them powered while the switch reloads.
Product Comparison
|
Parameter |
C9200CX-8PT-2G-E |
C9200CX-8P-2X2G-E | |
|---|---|---|---|
|
Downlinks total 10/100/1000 or PoE+ copper ports |
8 x 1G full PoE+ |
8 x 1G full PoE+ |
8 x 1G full PoE+ |
|
Uplink configuration |
2 x 1G copper; 802.3bt UPOE+ input |
2 x 10G SFP+ and 2 x 1G copper |
2 x 10G SFP+ and 2 x 1G copper |
|
Network license |
Network Essentials |
Network Essentials |
Network Essentials |
|
Default power supply |
External 80W or 150W adapter; no internal supply |
315W AC internal |
315W HVDC/AC internal |
|
Default available PoE power |
180W with the 80W adapter |
240W |
240W |
|
Maximum PoE power with the 150W adapter |
240W with the 150W adapter |
240W |
240W |
|
Switching capacity |
20 Gbps |
60 Gbps |
60 Gbps |
|
Forwarding rate |
14.88 Mpps |
44.64 Mpps |
44.64 Mpps |
|
Stacking bandwidth support |
Not available |
Not available |
Not available |
C9200CX-8PT-2G-E has no internal supply and takes 802.3bt UPOE+ over its two 1G uplinks plus an external adapter, while C9200CX-8P-2X2G-E and C9200CX-8P-2XGH-E each carry a 315W internal supply, so only C9200CX-8PT-2G-E suits an install point that has cabling but no power circuit. Its PoE budget is 180W with C9K-80W-ADPT and reaches 240W, the figure of the other two, only with C9K-150W-ADPT. Uplinks above 1G or switching beyond 20 Gbps call for C9200CX-8P-2X2G-E, with 2x 10G SFP+ and 60 Gbps, and a high-voltage DC feed calls for C9200CX-8P-2XGH-E. Basic BGP is a Network Advantage feature, so it needs C9200CX-8PT-2G-A or a C9200CX-LIC= upgrade term.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
PoE budget with C9K-80W-ADPT |
180W with 802.3bt UPOE+ uplinks |
|
PoE budget with C9K-150W-ADPT |
240W with 802.3bt UPOE+ uplinks |
|
Power supply expansion |
Not applicable; the chassis has no internal supply and no second supply slot, so the adapter tier is the only lever |
|
Upstream power source check |
Confirm the upstream switch port can deliver 802.3bt UPOE+, since the uplink is the power feed as well as the data path |
|
Device count check |
Confirm total endpoint draw across all 8 PoE+ ports against 180W or 240W depending on which adapter is ordered |
|
Adapter mounting check |
Confirm C9K-ADPT-BRKT-8PT is on the order when the adapter has to be secured next to the switch |
Ordering Checklist
- Subscription: Select a Network Essentials 8-port term: Cisco DNA (C9200CX-DNA-E-8, terms C9200CX-DNAE8-3Y, -5Y or -7Y) or Cisco Catalyst (C9200CX-DNXE-8-3Y, -5Y or -7Y). The subscription must match the -E hardware tier, and the order defaults to a 3-year Cisco DNA term.
- External power adapter: Add C9K-80W-ADPT for the 180W PoE budget or C9K-150W-ADPT for 240W. The chassis has no internal supply, so the order needs an adapter.
- Adapter bracket: Add C9K-ADPT-BRKT-8PT, the adapter bracket made for C9200CX-8PT-2G-E. The bracket is a separate PID and is not included with the adapter.
- Mounting accessory: Choose one of C9K-MGNT-TRAY, C9K-WALL-TRAY, C9K-CMPCT-DIN-MNT or RACKMNT-19-CMPACT. The compact chassis needs a separate accessory for the chosen mounting method.
- Power cord: Order a CAB-TA-* cord for the destination country, such as CAB-TA-NA= or CAB-TA-UK=. The C9K-150W-ADPT adapter takes an IEC 320-C14 AC cord that is ordered separately.
Optional Add-ons
|
Add-on |
Description |
|---|---|
|
C9K-150W-ADPT |
AC-DC slim power adapter for the C9200CX-8PT-2G-E compact switch, 150W. |
|
C9K-ADPT-BRKT-8PT |
Power adaptor bracket for C9200CX-8PT-2G-E. |
|
C9K-CMPCT-PWR-CLP |
Power clip for the C9200CX compact switches, not compatible with HVDC SKUs. |
|
C9K-MGNT-TRAY |
Magnet and mounting tray for compact switches. |
|
C9K-WALL-TRAY |
Wall mount bracket for compact switches. |
|
C9K-CMPCT-CBLE-GRD |
Cable guard for compact switches, for use with C9K-WALL-TRAY. |
|
C9K-CMPCT-DIN-MNT |
DIN rail mount for compact switches. |
|
C9K-CMPCT-DESK-MNT |
Under desk mount for compact switches. |
|
RACKMNT-19-CMPACT |
19-inch rack mounting brackets for compact switches. |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9200CX-8PT-2G-E | Cisco ordering description | Catalyst 9200CX 8-port 1G, 2x1G, Pass-through, Network Essentials |
| Network license | Network Essentials | PoE+ data ports | 8x 1G, full PoE+ |
| Uplink ports | 2x 1G copper | Uplink power input | 802.3bt UPOE+ from an upstream switch |
| Power supply | External 80W or 150W adapter with LVDC support; no internal power supply | Named power adapter | C9K-150W-ADPT, AC-DC slim adapter for the C9200CX-8PT-2G-E compact switch |
| Default PoE budget | 180W with the external 80W adapter and 802.3bt UPOE+ uplinks | Maximum PoE budget with the 150W adapter | 240W |
| Power adapter rated maximum | 150W for C9K-150W-ADPT, 80W for C9K-80W-ADPT | Power adapter output BTU | 511.8 BTU/hr for C9K-150W-ADPT, 273 BTU/hr for C9K-80W-ADPT |
| AC input voltage | 100 to 240 VAC, 50 to 60 Hz | Switching capacity | 20 Gbps |
| Forwarding rate | 14.88 Mpps | Stack bandwidth | Not available on Catalyst 9200CX |
| Virtual networks | 16 | MAC addresses | 32,000 |
| Total number of IPv4 routes | 14,000, made up of 10,000 direct and 4,000 indirect routes | IPv4 routing entries | 4,000 |
| IPv6 routes | 2,000 | Multicast routes | 1,000 |
| QoS entries | 1,000 | ACL entries | 1,600 |
| VLAN IDs | 4094 | PVST instances | 128 |
| Switched virtual interfaces | 512 | Flexible NetFlow entries | 16,000 flows |
| DRAM | 4 GB | Flash | 8 GB |
| Packet buffer | 6 MB | MACsec | MACsec-128 (AES-128) with Network Essentials; AES-256 requires Network Advantage |
| BGP support | Not included with Network Essentials; basic BGP requires Network Advantage and Cisco IOS XE 17.13.1 or later | Layer 3 routing protocols | Static routing and routed access (RIP, EIGRP stub, OSPF up to 1,000 routes); full OSPF, EIGRP and IS-IS require Network Advantage |
| Perpetual PoE | Maintains PoE+ power to endpoints during a switch reload | Fast PoE | Delivers power when supply is restored without waiting for the operating system to load |
| Cooling | Fanless | Dimensions (H x W x D) | 1.73 x 10.6 x 6.5 in. (4.4 x 26.9 x 16.5 cm) |
| Weight | 1.95 kg (4.3 lb) | MTBF | 746,530 hours |
| Operating temperature | -5 to 45°C up to 5,000 feet (1500 m); -5 to 40°C up to 10,000 feet (3000 m) | Cold start minimum ambient | 0°C (32°F) |
| Storage temperature | -40°C to 70°C (-40°F to 158°F) | Relative humidity | 5% to 90% noncondensing, operating and nonoperating |
| Operating altitude | 10,000 ft (3000 m) up to 45°C | Safety certifications | UL 60950-1/62368-1, CAN/CSA-C22.2 No. 60950-1/62368-1, EN 60950-1/62368-1, IEC 60950-1/62368-1, CCC, CE Marking |
| EMC certifications | FCC Part 15 (CFR 47) Class A, ICES-003 Class A, EN 55032 Class A, CISPR 32 Class A, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A |
