C9200CX-12P-2X2G-E – 12x1G PoE+ Ports – 2x10G SFP+ + 2x1G Uplinks – 240W PoE Budget – Network Essentials
Shop Expert-Recommended Accessories for the C9200CX-12P-2X2G-E
Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.-
SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMFOriginal price was: $853.95.$52.00Current price is: $52.00. -
SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4Original price was: $1,213.85.$91.68Current price is: $91.68. -
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMFOriginal price was: $2,439.88.$150.00Current price is: $150.00. -
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km ReachOriginal price was: $4,873.66.$149.00Current price is: $149.00. -
SFP-10G-ER-S
10GBASE-ER SFP+ - S-Class - 40km SMFOriginal price was: $9,637.51.$171.00Current price is: $171.00. -
SFP-10G-ER
10GBASE-ER SFP+ - 1550nm SMF - 40km ReachOriginal price was: $12,199.39.$298.00Current price is: $298.00.
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.

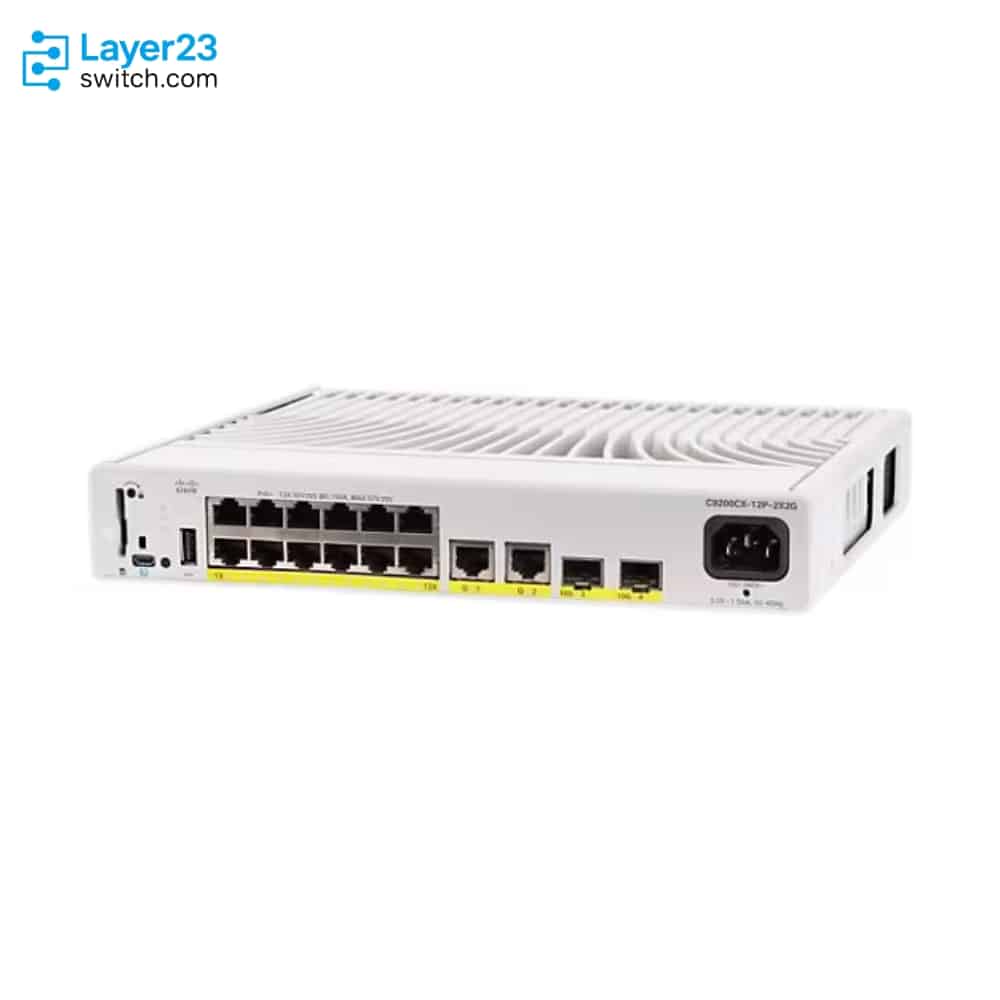

C9200CX-12P-2X2G-E Description
The C9200CX-12P-2X2G-E is a Cisco Catalyst 9200CX fanless compact switch on Network Essentials for powering phones and access points in rooms that have no wiring closet. A fixed 315W AC internal supply gives its 12 Gigabit PoE+ ports a shared 240W budget, and two 10G SFP+ plus two 1G copper uplinks connect upstream through 68 Gbps of switching capacity. Network Essentials covers Layer 2, static routes and OSPF routed access up to 1,000 routes with MACsec-128, while BGP, PTP, VRF segmentation and MACsec-256 require Network Advantage.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9200CX-12P-2X2G-E |
|
Downlink ports |
12x 10/100/1000 PoE+ |
|
Uplink ports |
2x 10G SFP+ and 2x 1G copper, fixed |
|
Default available PoE power |
240W |
|
Default power supply |
315W AC internal, fixed (100-240 VAC) |
|
Network license |
Network Essentials |
|
Switching capacity |
68 Gbps |
|
Forwarding rate |
50.59 Mpps |
|
Stacking |
Not supported |
|
Cooling |
Fanless |
|
Console port |
USB micro-B |
|
Dimensions (H x W x D) |
1.73 x 10.6 x 9.6 in (4.4 x 26.9 x 24.4 cm) |
Product Performance
Key Features
Static routes, RIP, EIGRP Stub and OSPF up to 1,000 routes are all part of Network Essentials, together with PBR, PIM Stub multicast and VRRP for gateway redundancy. A small site can route at the access layer from the first day.
Devices can be held off the network until 802.1X authentication succeeds. Links to the core can then be encrypted with 128-bit MACsec, which the Essentials tier already includes.
Twelve 802.3af devices at 15.4W each draw 184.8W and leave headroom. Devices pulling the full 30W of PoE+ reach the 240W limit at the eighth port, and the fixed internal supply offers no way to raise it.
Perpetual PoE keeps powered devices running while the switch reloads. After a power loss, Fast PoE starts feeding them before the operating system has finished booting.
An SD card slot can hold the configuration and software image, and the switch can boot from it. The USB Type A port accepts Cisco flash drives up to 8 GB and supports automatic upgrade when internal flash holds no bootable image.
No fan runs inside the 9.6-inch-deep chassis. Brackets for DIN rail, wall, under-desk, magnetic and 19-inch rack mounting let it share space with the people it serves.
Application Scenarios
In a classroom or meeting room, the switch mounts under a desk or on the wall and powers the room’s phones and access point without adding fan noise.
A small store can fix the switch to a DIN rail or magnetic tray in the back office, power its access points and phones, and send traffic to the store router over a 1G copper or 10G SFP+ uplink.
Remote floors and outbuildings connect to the campus core over the 10G SFP+ uplink, with OSPF routed access keeping each user subnet local to the switch.
Product Comparison
|
Parameter |
C9200CX-12P-2X2G-E |
C9200CX-12P-2XGH-E | ||
|---|---|---|---|---|
|
Downlink ports |
12x 10/100/1000 PoE+ |
12x 10/100/1000 PoE+ |
12x 10/100/1000 data |
12x 10/100/1000 PoE+ |
|
PoE type |
PoE+ (802.3at) |
PoE+ (802.3at) |
Not applicable |
PoE+ (802.3at) |
|
Default available PoE power |
240W |
240W |
Not applicable |
240W |
|
Primary power supply |
315W AC internal (100-240 VAC) |
315W AC internal (100-240 VAC) |
None; 802.3bt Class 6 PD uplink or optional 80W adapter |
315W HVDC/AC internal (120-418 VDC or 100-277 VAC) |
|
Uplink ports |
2x 10G SFP+, 2x 1G copper |
2x 10G SFP+, 2x 1G copper |
2x 10G SFP+, 2x 1G copper, 1x 1G copper PD |
2x 10G SFP+, 2x 1G copper |
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
Network Essentials |
|
Stacking |
Not supported |
Not supported |
Not supported |
Not supported |
|
Switching capacity |
68 Gbps |
68 Gbps |
70 Gbps |
68 Gbps |
C9200CX-12P-2X2G-E powers its 12 ports with PoE+ from a 240W budget, whereas C9200CX-12T-2X2G-E has 12 data-only ports and runs itself from a Class 6 PD uplink or an optional 80W adapter, a fit only where no endpoint needs power. Network Essentials stops at OSPF routed access up to 1,000 routes and MACsec-128, so a site that needs BGP, IS-IS, VRF segmentation, PTP or MACsec-256 must move to Network Advantage. The path is C9200CX-12P-2X2G-A on a new order, or a C9200CX-LIC= upgrade term (C9200CX-12-E-A-3, -5 or -7) for an installed unit, which raises the network license and the Cisco DNA tier together. Where the room is fed by high-voltage DC, C9200CX-12P-2XGH-E keeps the same ports and 240W PoE on a 315W HVDC/AC supply rated for 120-418 VDC or 100-277 VAC.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
Available PoE power |
240W from the fixed 315W AC internal supply |
|
PoE standards per port |
802.3af up to 15.4W; 802.3at PoE+ up to 30W |
|
Ports at full 30W |
8 ports (8 x 30W = 240W) |
|
All 12 ports powered |
Average draw must stay at 20W per port or less |
|
All 12 ports at 802.3af |
12 x 15.4W = 184.8W, within the 240W budget |
|
Budget expansion |
Not available; the internal supply is fixed and the budget cannot be raised |
|
Reload behavior |
Perpetual PoE holds power during a switch reload; Fast PoE restores it before the OS finishes loading |
|
Check before deployment |
Count powered devices and their class, then confirm the total stays within 240W |
Ordering Checklist
- Subscription tier: Add an Essentials subscription matching the -E suffix, such as C9200CX-DNAE-12-3Y, -5Y or -7Y for Cisco DNA or C9200CX-DNXE-12-3Y, -5Y or -7Y for Cisco Catalyst. Every new order needs a subscription at the same tier as the network license.
- Default term: The configurator adds a 3-year Cisco DNA subscription by default; change the term or switch to a Cisco Catalyst subscription before submitting. A Smart Account is mandatory on the order.
- Power cord: Select the CAB-TA power cord for the destination country, such as CAB-TA-UK= or CAB-TA-EU=. The 315W AC internal supply takes an IEC 320-C14 cord.
- Console cable: Add CAB-CON-USBRJ45 if the site uses an RJ-45 console connection. The console port is USB micro-B, and Cisco does not supply a micro-B console cable.
Optional Add-ons
|
Model |
Description |
|---|---|
|
C9K-MGNT-TRAY |
Magnetic mounting tray for the compact chassis |
|
C9K-CMPCT-DIN-MNT |
DIN rail mounting kit for the compact chassis |
|
RACKMNT-19-CMPACT |
19-inch rack mounting bracket for the compact chassis |
|
C9K-WALL-TRAY |
Wall-mount tray for the compact chassis |
|
C9K-CMPCT-CBLE-GRD |
Cable guard used with the wall-mount tray |
|
C9K-CMPCT-DESK-MNT |
Under-desk mounting bracket |
|
C9K-ACC-RBFT |
Rubber feet for tabletop placement |
|
C9K-CMPCT-PWR-CLP |
Power cord clip for non-HVDC Catalyst 9200CX switches |
|
CAB-CON-USBRJ45 |
USB micro-B to RJ-45 console adapter |
|
C9200CX-12-E-A-3 |
Upgrade from Network and Cisco DNA Essentials to Advantage for 12-port Catalyst 9200CX switches, 3-year term (C9200CX-LIC=; -5 and -7 terms also available) |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9200CX-12P-2X2G-E | Network license | Network Essentials |
| Downlink ports | 12x 10/100/1000 PoE+ (RJ-45) | Uplink ports | 2x 10G SFP+ and 2x 1G copper, fixed |
| PoE standards | IEEE 802.3af (15.4W) and 802.3at PoE+ (30W) | Default available PoE power | 240W |
| Default power supply | 315W AC internal, fixed; single supply only | AC input voltage | 100-240 VAC, 50-60 Hz |
| Power inlet | IEC 320-C14 | Heat dissipation (power supply) | 1057.1 BTU/hr |
| Power consumption (weighted average, 115 VAC) | 39.2W | Power consumption (no link, 115 VAC) | 33.8W |
| Switching capacity | 68 Gbps | Forwarding rate | 50.59 Mpps |
| Stacking | Not supported | SD-Access virtual networks | 16 |
| MAC addresses | 32,000 | IPv4 routes | 14,000 (10,000 direct + 4,000 indirect) |
| IPv4 routing entries | 4,000 | IPv6 routes | 2,000 |
| Multicast routes | 1,000 | QoS entries | 1,000 |
| ACL entries | 1,600 | Packet buffer | 6 MB |
| FNF flows | 16,000 | VLAN IDs | 4094 |
| Jumbo frames | 9198 bytes | SVIs | 512 |
| PVST instances | 128 | DRAM | 4 GB |
| Flash | 8 GB | Micro-SD expansion | Up to 4 GB |
| Console port | USB micro-B (RJ-45 via CAB-CON-USBRJ45) | USB storage port | USB Type A, Cisco USB flash 128 MB to 8 GB |
| Cooling | Fanless | RFID | Built-in passive UHF RFID tag |
| Dimensions (H x W x D) | 1.73 x 10.6 x 9.6 in (4.4 x 26.9 x 24.4 cm) | Weight | 2.99 kg (6.6 lb) |
| Operating temperature | -5°C to 45°C (23°F to 113°F) up to 5000 ft (1500 m); -5°C to 40°C (23°F to 104°F) up to 10,000 ft (3000 m) | Storage temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating humidity | 5% to 90% noncondensing | MTBF | 704,430 hours |
| Mounting | Magnetic tray, DIN rail, 19-inch rack bracket, wall tray, under-desk bracket, rubber feet | Safety certifications | IEC/UL/CAN-CSA/EN 60950-1 and 62368-1, AS/NZS 60950.1 and 62368.1, Class I equipment |
| EMC certifications | 47 CFR Part 15, CISPR 32 Class A, EN 55032 Class A, EN 300 386, ICES-003 Class A, CISPR 35, EN 55035 | Environmental | RoHS 5 |
Quality Certifications
Customer Reviews
Questions & Answers
-
Can C9200CX-12P-2X2G-E be stacked?
-
What does Network Essentials on C9200CX-12P-2X2G-E include?
-
What MACsec key length does C9200CX-12P-2X2G-E support?
-
Does C9200CX-12P-2X2G-E support IS-IS or full EIGRP?
-
Is the 315W internal supply in C9200CX-12P-2X2G-E the PoE budget?
-
Which power cord does C9200CX-12P-2X2G-E need?
-
Does C9200CX-12P-2X2G-E support a Bluetooth management dongle?
