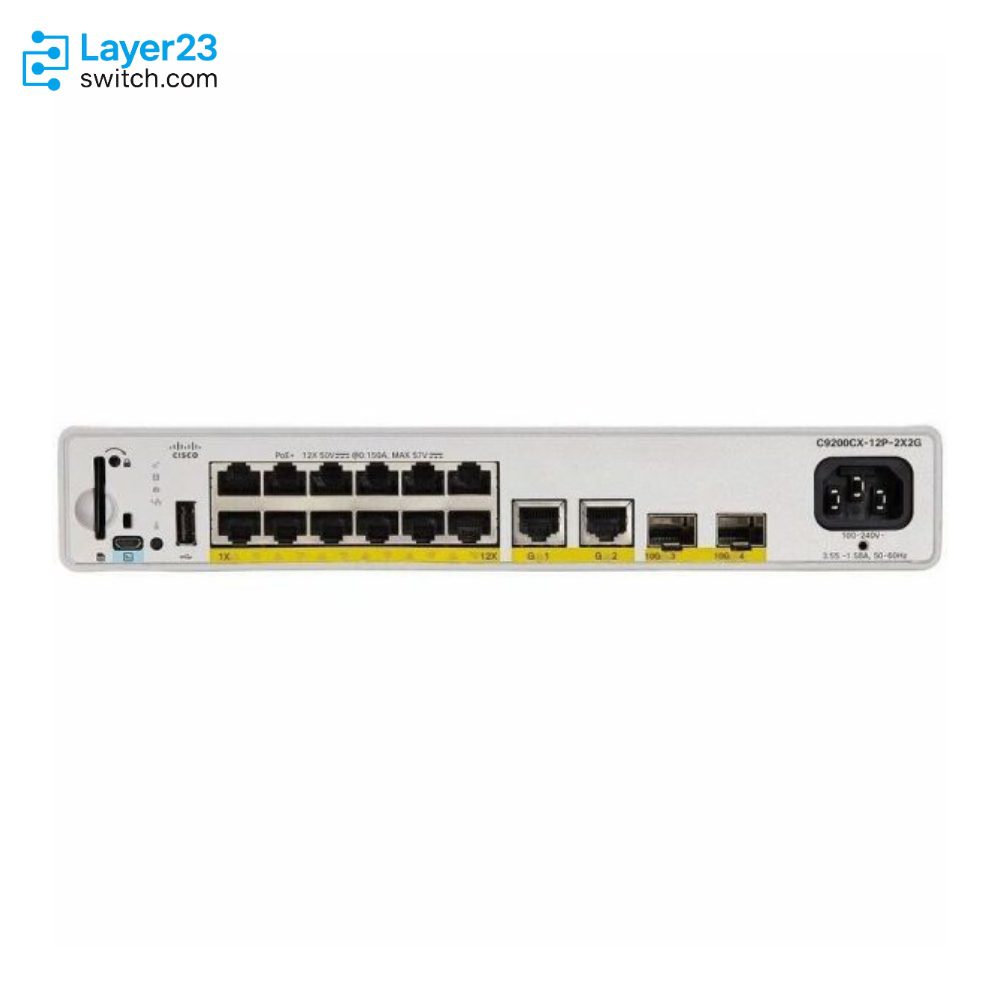

C9200CX-12P-2X2G-A – 12x1G PoE+ Ports – 2x10G SFP+ + 2x1G Uplinks – 240W PoE Budget – Network Advantage
Shop Expert-Recommended Accessories for the C9200CX-12P-2X2G-A
Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.-
SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMFOriginal price was: $853.95.$52.00Current price is: $52.00. -
SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4Original price was: $1,213.85.$91.68Current price is: $91.68. -
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMFOriginal price was: $2,439.88.$150.00Current price is: $150.00. -
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km ReachOriginal price was: $4,873.66.$149.00Current price is: $149.00. -
SFP-10G-ER-S
10GBASE-ER SFP+ - S-Class - 40km SMFOriginal price was: $9,637.51.$155.00Current price is: $155.00. -
SFP-10G-ER
10GBASE-ER SFP+ - 1550nm SMF - 40km ReachOriginal price was: $12,199.39.$298.00Current price is: $298.00.
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
C9200CX-12P-2X2G-A Description
The C9200CX-12P-2X2G-A is a Cisco Catalyst 9200CX compact access switch licensed for Network Advantage, built for small sites that need routing, timing and encryption outside a wiring closet. The switch has 12 Gigabit PoE+ ports sharing a 240W budget, two 10G SFP+ and two 1G copper fixed uplinks, and 68 Gbps of switching capacity, all fed by a fixed 315W AC internal supply. On this platform Network Advantage enables basic BGP, IS-IS, VRF segmentation, PTP and MACsec-256, while the fanless chassis runs standalone without stacking.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9200CX-12P-2X2G-A |
|
Downlink ports |
12x 10/100/1000 PoE+ |
|
Uplink ports |
2x 10G SFP+ and 2x 1G copper, fixed |
|
Default available PoE power |
240W |
|
Default power supply |
315W AC internal, fixed (100-240 VAC) |
|
Network license |
Network Advantage |
|
Switching capacity |
68 Gbps |
|
Forwarding rate |
50.59 Mpps |
|
Stacking |
Not supported |
|
Cooling |
Fanless |
|
Console port |
USB micro-B |
|
Dimensions (H x W x D) |
1.73 x 10.6 x 9.6 in (4.4 x 26.9 x 24.4 cm) |
Product Performance
Key Features
Network Advantage lifts the OSPF ceiling of 1,000 routes and adds EIGRP, IS-IS, HSRP and IP SLA. Basic BGP is available on Catalyst 9200CX switches from Cisco IOS XE 17.13.1, so a branch edge can peer with its upstream router directly.
PTP (IEEE 1588v2) is an Advantage feature on the Catalyst 9200CX platform. It distributes time and frequency with sub-microsecond accuracy to endpoints that depend on a shared clock.
Links can be encrypted with AES-256 MACsec, a strength the Catalyst 9200CX platform reserves for Network Advantage. VRF, VXLAN, LISP and SGT keep separate user groups apart on the same 12 ports.
The 240W budget covers eight ports at the full 30W of 802.3at, or all 12 ports when they average 20W or less. No second supply can be added, so the pool stays at 240W for the life of the switch.
The two 10G SFP+ cages and the two 1G copper uplinks can run at the same time. A site can keep a fiber run to the core and a copper link to a local device without giving up either.
The 1.73 x 10.6 x 9.6 in chassis has no fan and mounts on a magnetic tray, DIN rail, 19-inch rack bracket, wall tray, under-desk bracket or rubber feet. That puts the switch in offices and cabinets where closet space does not exist.
Application Scenarios
A small branch office can run the 10G SFP+ uplink to its provider or SD-WAN router and exchange routes with it over basic BGP, while phones and access points stay on the PoE+ ports.
At a site where connected devices must share one time reference, the switch distributes PTP time and frequency across its ports and powers those devices from the same 240W PoE pool.
In a clinic or shared office suite, VRF segmentation separates tenant, guest and building systems on one switch, and AES-256 MACsec protects the uplink back to the main building.
Product Comparison
|
Parameter |
C9200CX-12P-2X2G-A |
C9200CX-12P-2XGH-A | ||
|---|---|---|---|---|
|
Downlink ports |
12x 10/100/1000 PoE+ |
12x 10/100/1000 PoE+ |
12x 10/100/1000 data |
12x 10/100/1000 PoE+ |
|
PoE type |
PoE+ (802.3at) |
PoE+ (802.3at) |
Not applicable |
PoE+ (802.3at) |
|
Default available PoE power |
240W |
240W |
Not applicable |
240W |
|
Primary power supply |
315W AC internal (100-240 VAC) |
315W AC internal (100-240 VAC) |
None; 802.3bt Class 6 PD uplink or optional 80W adapter |
315W HVDC/AC internal (120-418 VDC or 100-277 VAC) |
|
Uplink interfaces |
2x 10G SFP+, 2x 1G copper |
2x 10G SFP+, 2x 1G copper |
2x 10G SFP+, 2x 1G copper, 1x 1G copper PD |
2x 10G SFP+, 2x 1G copper |
|
Network license |
Network Advantage |
Network Essentials |
Network Advantage |
Network Advantage |
|
Stacking |
Not supported |
Not supported |
Not supported |
Not supported |
|
Switching capacity |
68 Gbps |
68 Gbps |
70 Gbps |
68 Gbps |
C9200CX-12P-2X2G-A has 12 PoE+ ports with a 240W budget, while C9200CX-12T-2X2G-A has 12 data-only ports and draws its own power from a Class 6 PD uplink or an optional 80W adapter, which suits a drop with no endpoints to power. C9200CX-12P-2X2G-E is the same hardware on Network Essentials. A site that routes with OSPF up to 1,000 routes and uses no BGP, VRF, PTP or MACsec-256 can drop to it without losing a feature in service. An installed Essentials unit can move up later with C9200CX-12-E-A-3, -5 or -7 under C9200CX-LIC=. Sites fed from high-voltage DC need C9200CX-12P-2XGH-A, which keeps the same ports and 240W PoE on a 315W HVDC/AC supply that accepts 120-418 VDC or 100-277 VAC.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
Available PoE power |
240W from the fixed 315W AC internal supply |
|
PoE standards per port |
802.3af up to 15.4W; 802.3at PoE+ up to 30W |
|
Ports at full 30W |
8 ports (8 x 30W = 240W) |
|
All 12 ports powered |
Average draw must stay at 20W per port or less |
|
All 12 ports at 802.3af |
12 x 15.4W = 184.8W, within the 240W budget |
|
Budget expansion |
Not available; the internal supply is fixed and the budget cannot be raised |
|
Reload behavior |
Perpetual PoE holds power during a switch reload; Fast PoE restores it before the OS finishes loading |
|
Check before deployment |
Count powered devices and their class, then confirm the total stays within 240W |
Ordering Checklist
- Subscription tier: Add an Advantage subscription matching the -A suffix, such as C9200CX-DNAA-12-3Y, -5Y or -7Y for Cisco DNA or C9200CX-DNXA-12-3Y, -5Y or -7Y for Cisco Catalyst. Every new order needs a subscription at the same tier as the network license.
- Default term: The configurator adds a 3-year Cisco DNA subscription by default; change the term or switch to a Cisco Catalyst subscription before submitting. A Smart Account is mandatory on the order.
- Power cord: Select the CAB-TA power cord for the destination country, such as CAB-TA-UK= or CAB-TA-EU=. The 315W AC internal supply takes an IEC 320-C14 cord.
- Console cable: Add CAB-CON-USBRJ45 if the site uses an RJ-45 console connection. The console port is USB micro-B, and Cisco does not supply a micro-B console cable.
Optional Add-ons
|
Model |
Description |
|---|---|
|
C9K-MGNT-TRAY |
Magnetic mounting tray for the compact chassis |
|
C9K-CMPCT-DIN-MNT |
DIN rail mounting kit for the compact chassis |
|
RACKMNT-19-CMPACT |
19-inch rack mounting bracket for the compact chassis |
|
C9K-WALL-TRAY |
Wall-mount tray for the compact chassis |
|
C9K-CMPCT-CBLE-GRD |
Cable guard used with the wall-mount tray |
|
C9K-CMPCT-DESK-MNT |
Under-desk mounting bracket |
|
C9K-ACC-RBFT |
Rubber feet for tabletop placement |
|
C9K-CMPCT-PWR-CLP |
Power cord clip for non-HVDC Catalyst 9200CX switches |
|
CAB-CON-USBRJ45 |
USB micro-B to RJ-45 console adapter |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9200CX-12P-2X2G-A | Network license | Network Advantage |
| Downlink ports | 12x 10/100/1000 PoE+ (RJ-45) | Uplink ports | 2x 10G SFP+ and 2x 1G copper, fixed |
| PoE standards | IEEE 802.3af (15.4W) and 802.3at PoE+ (30W) | Default available PoE power | 240W |
| Default power supply | 315W AC internal, fixed; single supply only | Input voltage | 100-240 VAC, 50-60 Hz |
| Power inlet | IEC 320-C14 | Heat dissipation (power supply) | 1057.1 BTU/hr |
| Power consumption (weighted average, 115 VAC) | 39.2W | Power consumption (no link, 115 VAC) | 33.8W |
| Switching capacity | 68 Gbps | Forwarding rate | 50.59 Mpps |
| Stacking | Not supported | SD-Access virtual networks | 16 |
| MAC addresses | 32,000 | IPv4 routes | 14,000 (10,000 direct + 4,000 indirect) |
| IPv4 routing entries | 4,000 | IPv6 routing entries | 2,000 |
| Multicast routes | 1,000 | QoS scale entries | 1,000 |
| ACL scale entries | 1,600 | Packet buffer | 6 MB |
| FNF flows | 16,000 | VLAN IDs | 4094 |
| Jumbo frame | 9198 bytes | SVIs | 512 |
| PVST instances | 128 | DRAM | 4 GB |
| Flash | 8 GB | Micro-SD expansion | Up to 4 GB |
| Console port | USB micro-B (RJ-45 via CAB-CON-USBRJ45) | USB storage port | USB Type A, Cisco USB flash 128 MB to 8 GB |
| Cooling | Fanless | RFID | Built-in passive UHF RFID tag |
| Dimensions (H x W x D) | 1.73 x 10.6 x 9.6 in (4.4 x 26.9 x 24.4 cm) | Weight | 6.6 lb (2.99 kg) |
| Operating temperature | -5 to 45°C (23 to 113°F) | Storage temperature | -40 to 70°C (-40 to 158°F) |
| Relative humidity | 5% to 90% noncondensing | Operating altitude | Up to 10,000 ft (3000 m) |
| MTBF | 704,430 hours | Mounting options | Magnetic tray, DIN rail, 19-inch rack bracket, wall tray, under-desk bracket, rubber feet |
| Safety | IEC/UL/CAN-CSA/EN 60950-1 and 62368-1, AS/NZS 60950.1 and 62368.1, Class I equipment | EMC | 47 CFR Part 15, CISPR 32 Class A, EN 55032 Class A, EN 300 386, ICES-003 Class A, CISPR 35, EN 55035 |
| Environmental | RoHS 5 |
