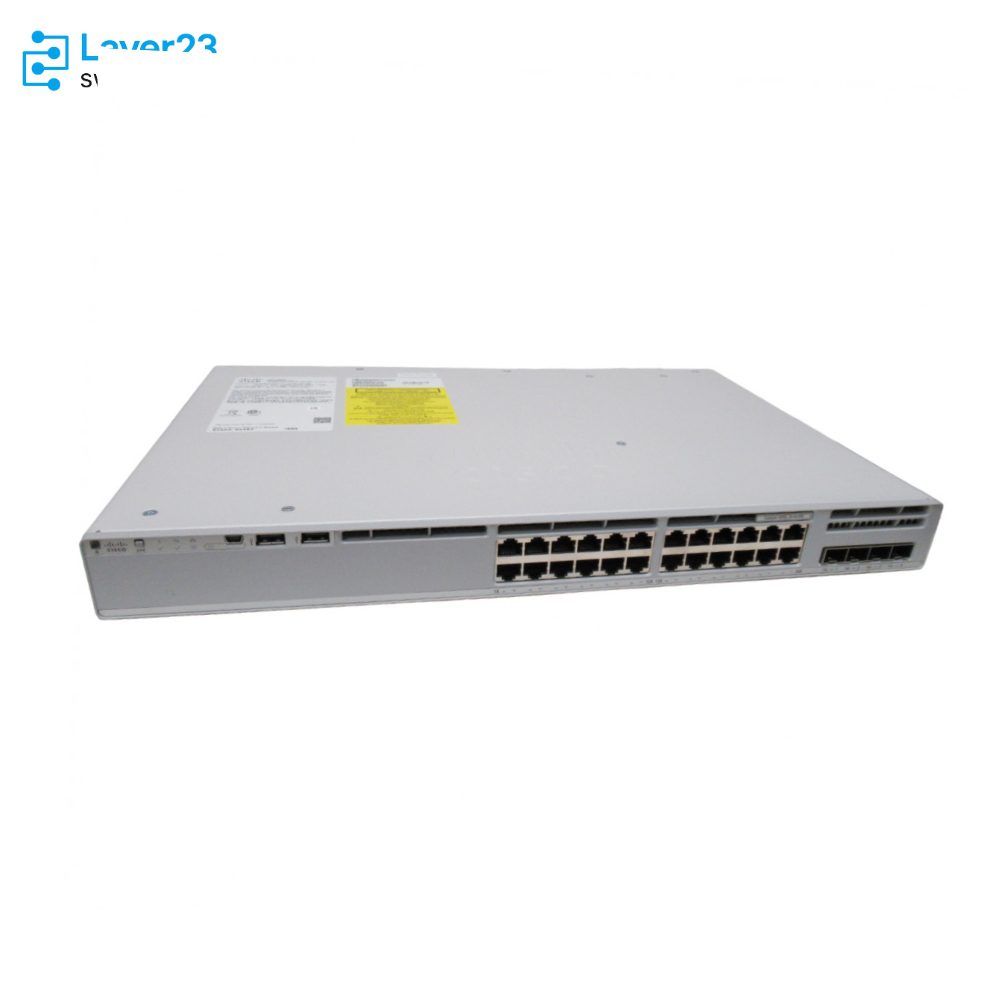

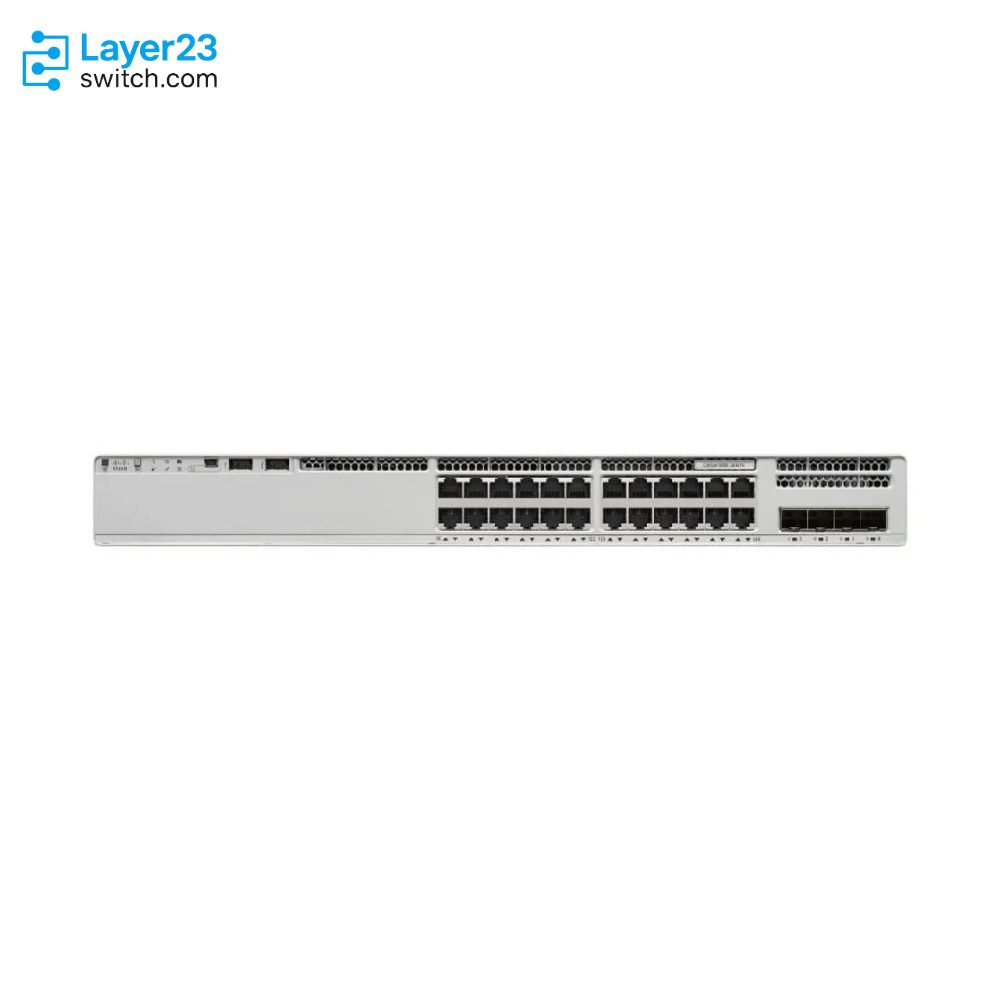

C9200L-24T-4X-A Description
The C9200L-24T-4X-A is a Cisco Catalyst 9200L Series fixed-uplink access switch for data-only wiring closets that need Layer 3 segmentation and a 10G handoff. The switch has 24 10/100/1000 data ports with no PoE, four fixed 1G SFP or 10G SFP+ uplinks, 128 Gbps of switching capacity and a 125W PWR-C5-125WAC supply, with Network Advantage as its license tier. The uplinks are fixed on the chassis, so 10G speed comes from the optics rather than from a network module.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9200L-24T-4X-A |
|
Data ports |
24x 10/100/1000 RJ-45 |
|
Uplink ports |
4x fixed 1G SFP / 10G SFP+ |
|
Network license |
Network Advantage |
|
Switching capacity |
128 Gbps (208 Gbps stacked) |
|
Forwarding rate |
95.23 Mpps (155 Mpps stacked) |
|
Stacking |
StackWise-80, 80 Gbps, up to 8 members |
|
Default power supply |
PWR-C5-125WAC (125W AC) |
|
PoE support |
No PoE output (data-only ports) |
|
Fan modules |
Fixed redundant fans |
|
Minimum software release |
Cisco IOS XE 16.9.x |
Product Performance
Key Features
The four uplinks accept 1G SFP or 10G SFP+ optics, so a link can start at 1G and move to 10G by changing optics rather than the switch. The chassis has no network module slot.
Up to eight Catalyst 9200L switches on the same license level join one StackWise-80 ring at 80 Gbps under a single management plane. Stacked switching capacity reaches 208 Gbps.
The -A license adds EIGRP, HSRP, IS-IS and VRF, VXLAN, LISP and SGT segmentation to the Layer 2 and static-routing base of Network Essentials, with no license change after deployment.
A second PWR-C5-125WAC can fill the empty power bay. Because the chassis has no PoE output, it adds redundancy only and no power budget.
Two redundant fans are built into the chassis and cannot be swapped in the field, unlike the field-replaceable fans of the modular C9200 line.
Port-based 802.1X authentication and MACsec-128 link encryption are part of the Network Essentials base that Network Advantage includes.
Application Scenarios
In a floor wiring closet, the switch aggregates 24 desktop and workstation drops and sends them to the distribution layer over a 10G SFP+ uplink.
A branch site that routes at the access layer can run EIGRP or HSRP on the switch itself and separate departments with VRF segmentation.
A closet of desktops, laptops and print devices that draw no PoE can use the switch on 1G copper downlinks and keep the 10G uplink capacity for traffic toward the distribution layer.
Product Comparison
|
Parameter |
C9200L-24T-4X-A | |||
|---|---|---|---|---|
|
Downlinks |
24 x 10/100/1000 |
24 x 10/100/1000 |
48 x 10/100/1000 |
24 x 10/100/1000 |
|
Uplink configuration |
4 x 1G SFP or 10G SFP+ (fixed) |
4 x 1G SFP or 10G SFP+ (fixed) |
4 x 1G SFP or 10G SFP+ (fixed) |
Modular uplinks (C9200-NM-4G or C9200-NM-4X) |
|
Network license |
Network Advantage |
Network Essentials |
Network Advantage |
Network Advantage |
|
Default power supply |
PWR-C5-125WAC |
PWR-C5-125WAC |
PWR-C5-125WAC |
PWR-C6-125WAC |
|
Switching capacity |
128 Gbps |
128 Gbps |
176 Gbps |
128 Gbps |
|
Switch capacity with stacking |
208 Gbps |
208 Gbps |
256 Gbps |
288 Gbps |
|
Forwarding rate |
95.23 Mpps |
95.23 Mpps |
130.95 Mpps |
95.23 Mpps |
|
Stack bandwidth |
80 Gbps |
80 Gbps |
80 Gbps |
160 Gbps |
C9200L-24T-4X-A is the data-only 24-port model with four fixed 1G SFP or 10G SFP+ uplinks and 128 Gbps of switching on Network Advantage, so any powered endpoint calls for C9200L-24P-4X-A instead. A closet that needs only Layer 2, static routing and Routed Access can order C9200L-24T-4X-E, the same chassis without EIGRP, HSRP, IS-IS and VRF, VXLAN, LISP or SGT segmentation. C9200L-48T-4X-A doubles the data ports to 48 and reaches 176 Gbps standalone. The modular C9200-24T-A takes a C9200-NM-4G or C9200-NM-4X in place of fixed uplinks and stacks over StackWise-160, for sites that expect to change uplink media.
Ordering Checklist
- Subscription tier: Select C9200L-DNA-A-24 or C9200L-DNX-A-24 with a -3Y, -5Y or -7Y term. Network Advantage hardware needs a 3-, 5- or 7-year subscription on the Advantage tier.
- Second power supply: Add PWR-C5-125WAC/2 when the switch should ship with two supplies. With one supply there is no standby if it fails, and the second supply adds no PoE on this data-only model.
- Stack kit: Add C9200L-STACK-KIT (two stack adapters and one cable), plus STACK-T4-1M or STACK-T4-3M where the STACK-T4-50CM cable is too short. Switches that will stack in StackWise-80 need the kit and a cable that reaches the next member.
- Power cords: Order one country-specific CAB-TA cord per AC supply, for example CAB-TA-NA=, CAB-TA-EU= or CAB-TA-UK=. Each AC supply needs its own cord for the destination country.
Optional Add-ons
|
Add-on |
Cisco PID |
Purpose |
|---|---|---|
|
Second power supply |
Adds power redundancy to the empty PSU slot. | |
|
Stack kit |
Provides the stack adapters and cable needed to join this switch into a StackWise-80 stack. | |
|
Stack cable, 1m |
Extends stacking cable reach beyond the default 0.5m for non-adjacent rack positions. | |
|
Stack cable, 3m |
Extends stacking cable reach for larger rack spans. |

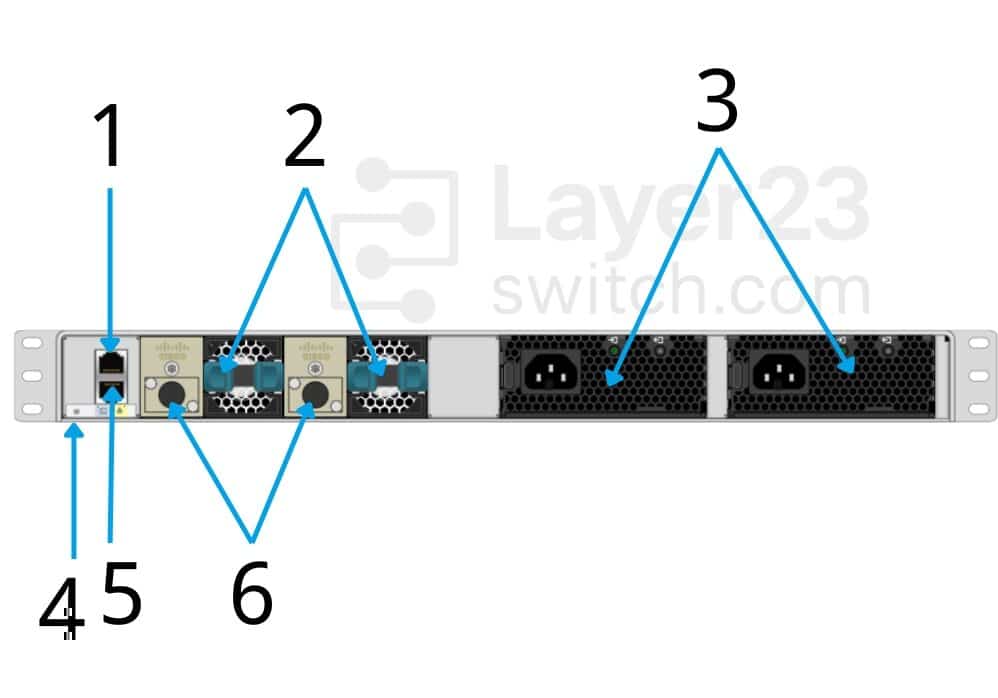

Catalyst 9200L Access Layer Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Catalyst 9200L Access Layer Switch Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9200L-24T-4X-A | PID description | Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Advantage |
| Network license | Network Advantage | Minimum software release | Cisco IOS XE 16.9.x |
| Data ports | 24x 10/100/1000 RJ-45 (4-pair Cat 5E UTP) | Uplink ports | 4x fixed, 1000BASE-SX/-LX/LH/-ZX/-BX10/DWDM/CWDM SFP or 10GBASE-SR/LR/ER/ZR/DWDM SFP+ |
| Management port | Ethernet management port, RJ-45 (Cat 5) | Console port | RJ-45 or mini-USB (RJ-45-to-DB9 cable, USB-C/USB adapter) |
| Switching capacity | 128 Gbps (208 Gbps stacked) | Forwarding rate | 95.23 Mpps (155 Mpps stacked) |
| Packet buffer | 6 MB | DRAM / flash | 2 GB / 4 GB |
| MAC addresses | 16,000 entries | IPv4 routes | 3,000 (11,000 ARP + learned) |
| IPv6 routes | 1,500 entries | Multicast routes | 1,000 entries |
| ACL entries | 1,500 entries | QoS entries | 1,000 entries |
| VLAN IDs | 4094 | SVIs / PVST instances | 512 / 128 |
| Flexible NetFlow flows | 16,000 | Jumbo frame size | 9198 bytes |
| Default power supply | PWR-C5-125WAC (125W AC) | Power supply slots | 2 (dual FRU, second supply optional for redundancy) |
| Power supply input | 100-240 VAC autoranging, 50-60Hz | Power supply output heat | 426.5 BTU/hr |
| PoE support | No PoE output (data-only ports) | Fan modules | Fixed redundant fans |
| Stacking | StackWise-80, 80 Gbps, up to 8 members | Stack cable | C9200L-STACK-KIT; 0.5m default, 1m/3m optional |
| Operating temperature | -5 to 45°C (up to 1500m); -5 to 40°C (up to 3000m) | Storage temperature | -40 to 70°C |
| Operating humidity | 5%-90% non-condensing | Operating altitude | Up to 10,000 ft (3000m) |
| Acoustic noise | LpA 42 dB typical / 45 dB max | Dimensions (H x W x D) | 1.73 x 17.5 x 11.3 in chassis-only; 12.9 in with fan endplate |
| Weight | 4.35 kg (9.59 lb) | MTBF | 525,990 hours |
| Safety certifications | IEC/UL/CSA/EN 60950-1 and 62368-1, AS/NZS 60950.1/62368.1, Class I Equipment | EMC certifications | CISPR 32 Class A, EN 55032 Class A, FCC Part 15, and related regional EMC standards |
| Environmental compliance | RoHS 5 |
Get More Information
Need pricing, stock, or shipping details for the C9200L-24T-4X-A ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
How is the 80 Gbps stack bandwidth of C9200L-24T-4X-A divided across its rings?
-
What happens to C9200L-24T-4X-A if one of its two fans fails?
-
Which second power supply can C9200L-24T-4X-A use?
-
Does C9200L-24T-4X-A support MACsec-256 with Network Advantage?
-
Which routing protocols does the Network Advantage license on C9200L-24T-4X-A unlock?
-
How much power does C9200L-24T-4X-A draw at full load?
