C9200L-48T-4X-E – 48x1G Data Ports – Fixed 4x10G Uplinks – Network Essentials
Cisco C9200L-48T-4X-E Compatible Accessories, Modules & Spare Parts
Find compatible network modules, power supplies, fans, optics, cables and spare parts for the Cisco C9200L-48T-4X-E. These accessories support fiber connectivity, hardware replacement, spare inventory and network maintenance projects.-
SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMFOriginal price was: $1,870.01.$52.00Current price is: $52.00. Condition: New Factory Sealed -
SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4Original price was: $2,658.11.$71.68Current price is: $71.68. Condition: New Factory Sealed -
SFP-10G-SR-X
10GBASE-SR SFP+ - Extended Temp - 400m OM4 MMFOriginal price was: $3,785.89.$1,020.00Current price is: $1,020.00. Condition: New Factory Sealed -
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMFOriginal price was: $5,342.92.$150.00Current price is: $150.00. Condition: New Factory Sealed -
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km ReachOriginal price was: $10,672.47.$170.00Current price is: $170.00. Condition: New Factory Sealed -
SFP-10G-LR-X
10GBASE-LR SFP+ - Extended Temp - 10km SMFOriginal price was: $11,206.77.$306.00Current price is: $306.00. Condition: New Factory Sealed -
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $2,658.11.$95.80Current price is: $95.80. Condition: New Factory Sealed -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $1,202.16.$70.00Current price is: $70.00. Condition: New Factory Sealed -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $1,335.73.$57.00Current price is: $57.00. Condition: New Factory Sealed -
GLC-EX-SMD
1000BASE-EX SFP - 40km SMF - DOMOriginal price was: $5,329.57.$205.00Current price is: $205.00. Condition: New Factory Sealed
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.

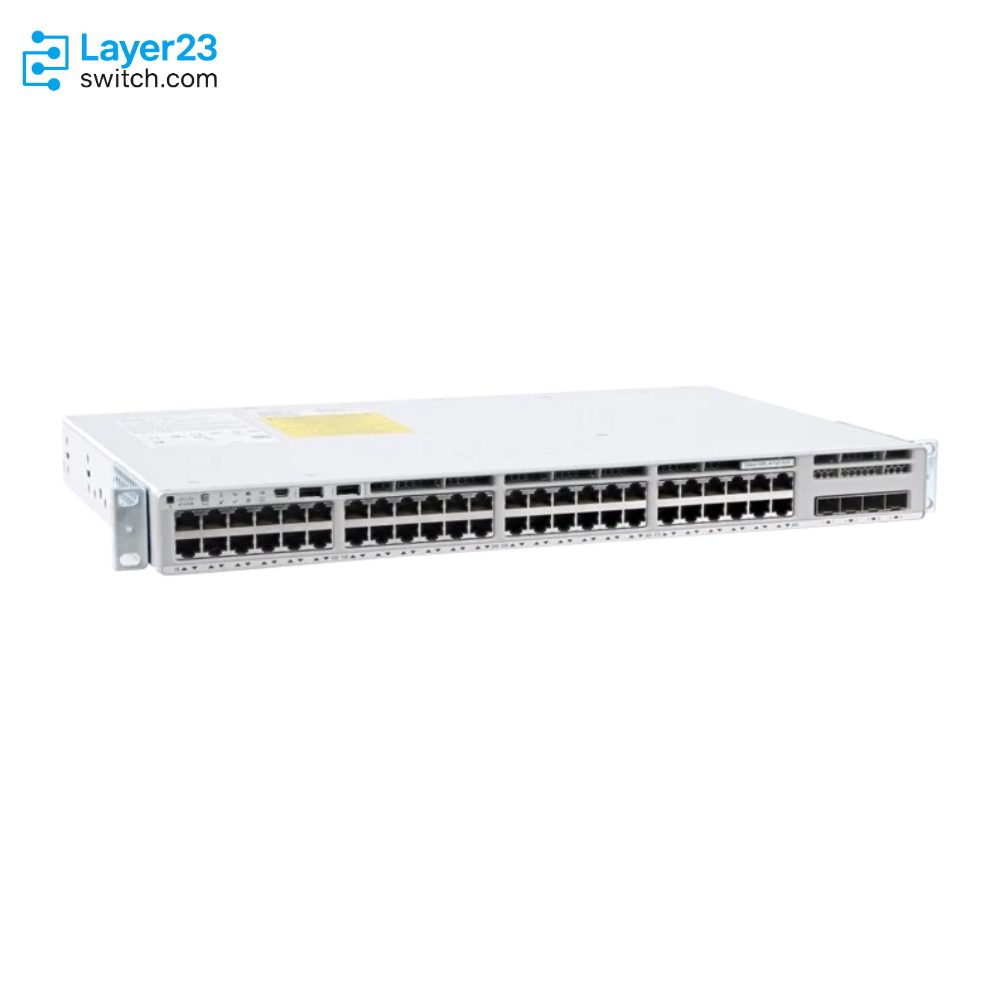

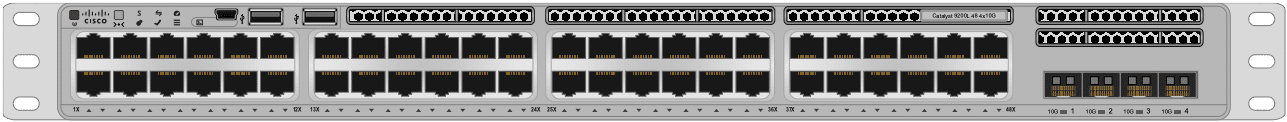

C9200L-48T-4X-E Description
Fixed at 4x 1/10G SFP/SFP+ uplinks and 48 non-PoE copper data ports, the C9200L-48T-4X-E is the Network Essentials build of this Catalyst 9200L hardware, reaching 176 Gbps standalone switching capacity and 256 Gbps once stacked into a StackWise-80 ring of up to eight members. The Essentials tier on this hardware already covers Layer 2 switching, static routing, Routed Access with RIP, EIGRP Stub, and OSPF up to 1000 routes, PBR, PVLAN, VRRP, QoS, 802.1X, and MACsec-128, which matches most closets terminating non-powered switches, printers, and desktops without a local routing or segmentation requirement. A single default PWR-C5-125WAC power supply covers normal operation, and because the model carries no PoE budget at either license tier, a second supply only buys redundancy against a unit failure rather than any added power headroom. Cisco ties this Essentials entitlement permanently to the C9200L-48T-4X-E hardware PID, distinct from the identical C9200L-48T-4X-A hardware that ships with Network Advantage instead.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9200L-48T-4X-E |
|
Product type |
Fixed-uplink stackable data access switch |
|
Access ports |
48 x 10/100/1000 Mbps data copper ports |
|
Uplink ports |
4 x 1/10G fixed SFP/SFP+ uplink ports |
|
Network license |
Network Essentials |
|
Default power supply |
PWR-C5-125WAC |
|
Default power supply wattage |
125W AC |
|
Power supply slots |
2 slots |
|
Fan design |
2 fixed fans |
|
Stacking architecture |
StackWise-80 |
|
Switching capacity |
176 Gbps standalone; 256 Gbps with stacking |
|
Forwarding rate |
130.95 Mpps standalone; 190 Mpps with stacking |
|
Minimum software release |
Cisco IOS XE Fuji 16.9.2 |
Product Performance
Key Features
Network Essentials on this hardware already covers Layer 2 switching, static routing, and Routed Access with RIP, EIGRP Stub, and OSPF up to 1000 routes, so a 48-port closet that only needs basic routed connectivity is not paying for VRF-lite, VXLAN, or LISP segmentation it will not use.
The 4X model places four 1/10G SFP/SFP+ uplinks directly on the chassis, so the uplink decision is settled at order time rather than through a separate network-module line item, keeping the bill of materials to a single hardware PID.
Up to eight C9200L-48T-4X switches join an 80 Gbps StackWise-80 ring behaving as a single virtual switch with sub-50ms stateful failover, letting an Essentials-tier closet scale port count without adding a second management plane.
Because this model ships with no PoE budget at either license tier, a second PWR-C5-125WAC only adds power-supply redundancy, which simplifies procurement for closets that are confirmed to terminate non-powered gear only.
The base Network Stack tier runs CLI/Web UI, and attaching a Cisco Catalyst or Cisco DNA subscription unlocks Catalyst Center or Meraki dashboard management on this same Essentials-tier hardware without changing the switch PID.
A beacon LED viewable from either end of the chassis pinpoints one stack member during a moves-and-changes visit, and a built-in passive RFID tag lets facilities scan the unit into an asset system without reading a printed serial number off the case.
Application Scenarios
Deployed where 48 copper ports terminate desktops, printers, or other non-powered equipment inside a single VLAN or basic routed segment, with no local requirement for VRF-lite, VXLAN, or LISP-based traffic separation.
Installed in a branch office wiring room where routing needs stop at static routes or RIP/EIGRP Stub-level Routed Access rather than a full dynamic routing or segmentation deployment.
Added as a member in an existing StackWise-80 ring of Essentials-tier C9200L-48T-4X switches to grow non-powered port count under one management plane without introducing an Advantage-tier license line.
Product Comparison
|
Parameter |
C9200L-48T-4X-E | |||
|---|---|---|---|---|
|
Access ports |
48 x 1G data copper ports |
24 x 1G data copper ports |
48 x 1G PoE+ copper ports |
48 x 1G data copper ports |
|
Uplink architecture |
4 x 1/10G fixed uplink ports |
4 x 1/10G fixed uplink ports |
4 x 1/10G fixed uplink ports |
Modular network-module bay |
|
Network license |
Network Essentials |
Network Essentials |
Network Essentials |
Network Essentials |
|
Default power supply |
PWR-C5-125WAC |
PWR-C5-125WAC |
PWR-C5-1KWAC |
PWR-C6-125WAC |
|
Default PoE budget |
No PoE |
No PoE |
740W with one supply |
No PoE |
|
Expanded PoE budget |
No PoE |
No PoE |
1440W with a second supply |
No PoE |
|
Stacking architecture |
StackWise-80 |
StackWise-80 |
StackWise-80 |
StackWise-160 |
|
Switching capacity |
176 Gbps standalone; 256 Gbps with stacking |
128 Gbps standalone; 208 Gbps with stacking |
176 Gbps standalone; 256 Gbps with stacking |
176 Gbps standalone; 336 Gbps with stacking |
|
Forwarding rate |
130.95 Mpps standalone; 190 Mpps with stacking |
95.23 Mpps standalone; 155 Mpps with stacking |
130.95 Mpps standalone; 190 Mpps with stacking |
130.95 Mpps standalone; 250 Mpps with stacking |
|
Minimum software release |
Cisco IOS XE Fuji 16.9.2 |
Cisco IOS XE Fuji 16.9.2 |
Cisco IOS XE Fuji 16.9.2 |
Cisco IOS XE Gibraltar 16.10.1 |
- C9200L-24T-4X-E carries the identical fixed 4x10G uplink layout and Network Essentials tier at half the access port count and a lower 128 Gbps standalone switching capacity, so a design that only needs 24 non-powered ports can settle for the smaller model instead of provisioning 48 ports it will not fill.
- Where C9200L-48P-4X-E keeps the same 48 ports, uplink layout, switching capacity, and forwarding rate but swaps in a PWR-C5-1KWAC supply for a 740W PoE budget, C9200L-48T-4X-E has no power budget to draw on at all; a design that later needs to power even a handful of phones or access points has to move to the PoE+ model rather than add a second supply here.
- C9200-48T-E matches the same 176 Gbps standalone capacity and Network Essentials tier but trades the fixed 4x10G uplinks for a modular network-module bay and StackWise-160 stacking that lifts stacked capacity to 336 Gbps; that upgrade path only matters once the uplink media might change after the order or the stack needs to grow past the 80 Gbps ring, since C9200L-48T-4X-E has no modular bay to swap the uplink later.
- Since Cisco has no in-place PID to move this hardware from Network Essentials to Network Advantage, a routing or segmentation requirement that grows past the Essentials Routed Access ceiling forces a new-hardware order of C9200L-48T-4X-A rather than a license-only change; for deciding which SKU to order, settle the routing and segmentation requirement first, since that is the one dimension this Essentials-tier group cannot absorb without a hardware change.
Selection Guide
1. When Essentials-Tier Routing Already Covers The Closet
C9200L-48T-4X-E includes Layer 2 switching, static routing, and Routed Access with RIP, EIGRP Stub, and OSPF up to 1000 routes, which is enough for a closet that does not need EIGRP, HSRP, IS-IS, or VRF-lite/VXLAN/LISP segmentation; once any of those Advantage-only features become a requirement, the identical hardware ordered as C9200L-48T-4X-A is the only way to get them, since Cisco publishes no in-place upgrade PID between the tiers.
2. Escalation Path Once Segmentation Becomes A Requirement
If VRF-lite, VXLAN, or LISP-based tenant separation becomes a requirement after this switch is already deployed, the fix is a new C9200L-48T-4X-A hardware order rather than a license upgrade on the existing unit; planning for that possibility in advance avoids a forced hardware swap once the segmentation need surfaces.
3. Powered Endpoint Requirement Forces A Model Change
Because C9200L-48T-4X-E carries no PoE budget at either license tier, a requirement to power IP phones, cameras, or access points on any of the 48 ports means moving to C9200L-48P-4X-E, which keeps the same port count, uplink layout, and switching capacity on a PWR-C5-1KWAC supply that adds a 740W PoE budget.
4. Uplink Media Lock-In Versus The Modular C9200-48T-E
Choosing the fixed-uplink C9200L-48T-4X-E over the modular-bay C9200-48T-E settles the 10G uplink media at order time and gives up the ability to change uplink type or grow past StackWise-80 later; that trade only holds once the uplink speed and stack size ceiling are both already confirmed for the deployment.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact license suffix |
C9200L-48T-4X-E carries Network Essentials; the -A suffix on identical hardware carries Network Advantage |
The perpetual Network Stack tier is fixed by the hardware PID and cannot be license-upgraded in place |
|
Matching subscription tier |
An Essentials-tier term subscription from the 48-port group, such as C9200L-DNA-E-48 or C9200L-DNX-E-48-3Y/5Y/7Y |
Every Catalyst 9200L order requires a matching-tier Cisco DNA or Cisco Catalyst subscription under a mandatory Smart Account |
|
Stack kit inclusion |
C9200L-STACK-KIT plus stack members at the same license level |
The kit is not included by default, and StackWise-80 members must share the license tier and cannot mix with C9200 modular-uplink switches |
|
Second power supply |
Whether a second PWR-C5-125WAC is needed for redundancy |
This model has no PoE budget, so a second supply only protects against a single-unit failure and does not raise any power ceiling |
|
Uplink optics compatibility |
The SFP or SFP+ optics selected for the fixed 1/10G uplinks are on the Cisco TMG Compatibility Matrix for this platform |
An unlisted optic may be rejected by the fixed uplink port even if the form factor fits |
|
Power cord selection |
A country-specific CAB-TA cord rated for the 125W supply class (10A) |
An under-rated or wrong-plug cord blocks power-up at installation |
|
Software baseline |
Cisco IOS XE Fuji 16.9.2 or later |
16.9.2 is the platform introductory release for C9200L hardware, and earlier releases cannot run it |
Optional Add-ons
|
Add-on |
Description |
|---|---|
|
Second 125W AC power supply for redundancy (this model carries no PoE budget to expand) | |
|
StackWise-80 stack kit with two data stack adapters and one data stack cable (ordered separately) | |
|
Longer StackWise data stack cables in place of the default 50 cm cable | |
|
RACK-KIT-T1= |
19/23/24-inch or ETSI Type 1 rack mount kit |
|
4PT-KIT-T2= |
Four-point wall or rack mount kit |

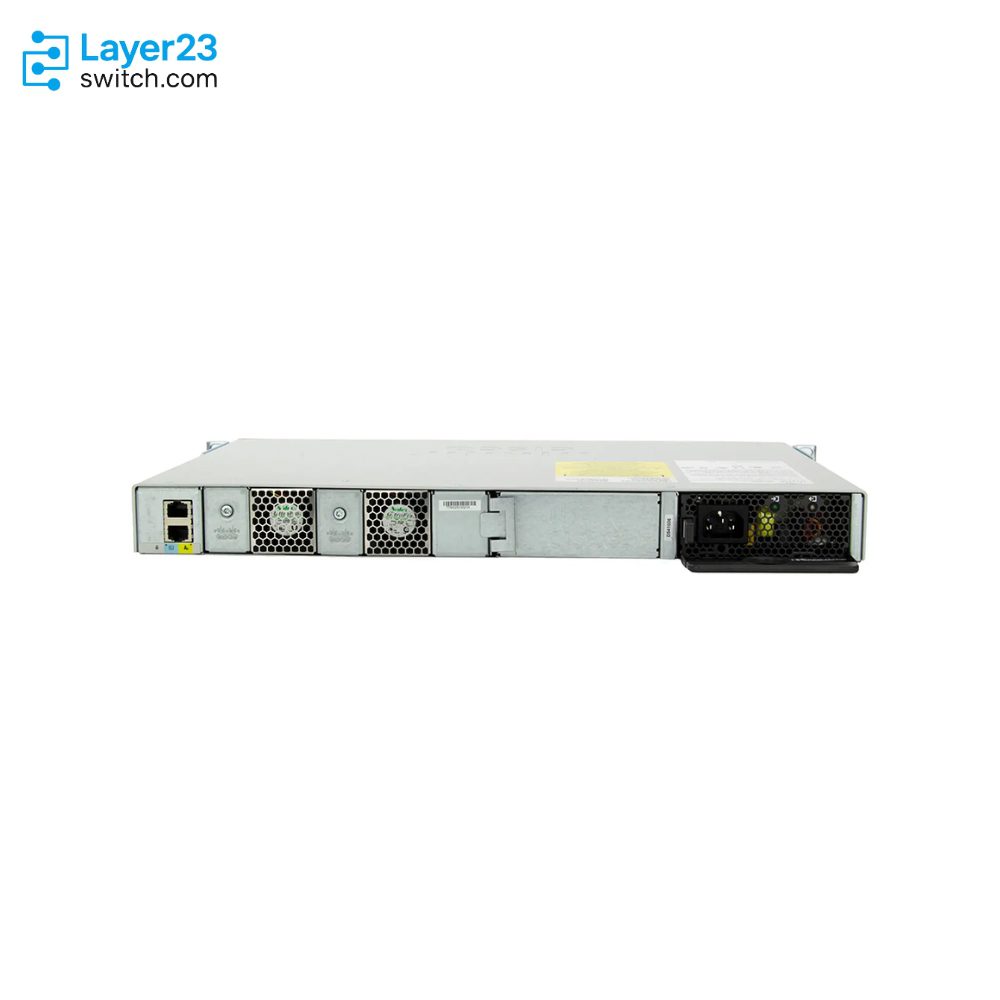

Catalyst 9200L Access Layer Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Catalyst 9200L Access Layer Switch Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9200L-48T-4X-E | Network license | Network Essentials |
| Access ports | 48 x 10/100/1000 Mbps data copper ports (RJ-45, 4-pair Cat 5E UTP) | Uplink ports | 4 x fixed SFP/SFP+ ports, 1G or 10G optics |
| Management port | RJ-45 Ethernet management port (Cat 5) | Console port | RJ-45 or mini-USB (USB-C/USB adapter) |
| Switching capacity | 176 Gbps standalone; 256 Gbps with StackWise-80 stacking | Forwarding rate | 130.95 Mpps standalone; 190 Mpps with stacking |
| MAC address table | 16,000 entries | IPv4 routing entries | 3,000 entries (11,000 IPv4 routes with ARP/learned) |
| IPv6 routing entries | 1,500 entries | Multicast routes | 1,000 entries |
| ACL / QoS scale | 1,500 ACL entries; 1,000 QoS entries | VLAN IDs | 4094 |
| Packet buffer | 6 MB | FNF flows | 16,000 |
| DRAM / Flash | 2 GB DRAM; 4 GB flash | Jumbo frame | 9198 bytes |
| Default power supply | PWR-C5-125WAC (125W AC) | Power supply slots | 2 slots, FRU |
| Power input | 100-240 VAC, 50-60 Hz, IEC 320-C14 inlet | Power output / BTU | 12V @ 10.5A; 426.5 BTU/hr |
| PoE support | None | Fan design | 2 fixed fans (non-field-replaceable) |
| Stacking architecture | StackWise-80, up to 8 members, single virtual switch | Stacking accessory | C9200L-STACK-KIT (two data stack adapters, one cable) |
| Operating temperature | -5C to 45C (up to 1500 m); -5C to 40C (up to 3000 m) | Storage temperature | -40C to 70C |
| Humidity / Altitude | 5%-90% noncondensing; up to 3000 m operating | Acoustic noise | LpA 42 dB typical / 45 dB max; LwA 5.3 B typical / 5.6 B max |
| Physical dimensions | 1.73 x 17.5 x 11.3 in chassis (12.9 in with fan/power extension) | Weight | 9.97 lb (4.53 kg), single power supply |
| Safety certifications | IEC/UL/CSA/EN 60950-1 and 62368-1, AS/NZS 60950.1/62368.1, Class I Equipment | EMC certifications | FCC Part 15, CISPR 32 Class A, EN 55032 Class A, EN 300 386, ICES-003 Class A, CISPR 35, EN 55035 |
| Environmental compliance | RoHS 5 | Warranty | Cisco Enhanced Limited Lifetime Hardware Warranty (E-LLW) |
| MTBF | 503,400 hours | Minimum software release | Cisco IOS XE Fuji 16.9.2 |
