Does C9200-24P-E support MACsec, and at what key length?

C9200-24P-E supports MACsec-128, which Network Essentials includes. MACsec-256 requires Network Advantage, and on Catalyst 9200 only the C9200CX models implement it, so C9200-24P-E stays at 128-bit even after a license change. Catalyst 9300 and larger platforms support 256-bit MACsec with Network Advantage.

Can C9200-24P-E share a stack with a Network Advantage switch?

No. Every member of a StackWise-160 stack must run the same IOS XE version and the same license tier. A Network Essentials member cannot stack with a Network Advantage member. Order every member in one license tier and keep the software release identical, so the stack forms and elects an active switch cleanly.

Can C9200-24P-E and C9200L-24P-4X-E run in one stack?

No. Cisco does not support C9200 and C9200L switches in one stack, because StackWise-160 and StackWise-80 differ in bandwidth. The data sheet also lists 2 GB DRAM for C9200L. Other C9200 variants, such as C9200-24T-E, can join a stack with C9200-24P-E when the license level matches.

Can C9200-24P-E keep running with one fan module failed?

Yes, for a limited time. Per the Catalyst 9200 hardware installation guide, C9200-24P-E tolerates -5 to +45 C at up to 3000 m with one failed fan, for at most 96 consecutive hours. The limit is 360 hours or 15 occurrences per year. Replace the failed fan module before those limits are reached.

What output does the PWR-C6-600WAC give C9200-24P-E?

The PWR-C6-600WAC outputs 54V at 11.1A, and the AC hold-up time is 20 ms minimum at 100 VAC. A second supply must be an identical PWR-C6-600WAC. The only documented exception is the PWR-C6-715WDC=, which can sit beside an AC supply as primary and secondary.

How does StackWise-160 reach 160 Gbps on C9200-24P-E?

C9200-24P-E uses 4 internal StackWise-160 rings at 40 Gbps each. A full ring carries 80 Gbps, and spatial reuse (SRP) lifts stack throughput to 160 Gbps, per the Cisco StackWise white paper. The six-ring 240G and 480G figures in some training material belong to the Catalyst 3850 and do not apply to this switch.

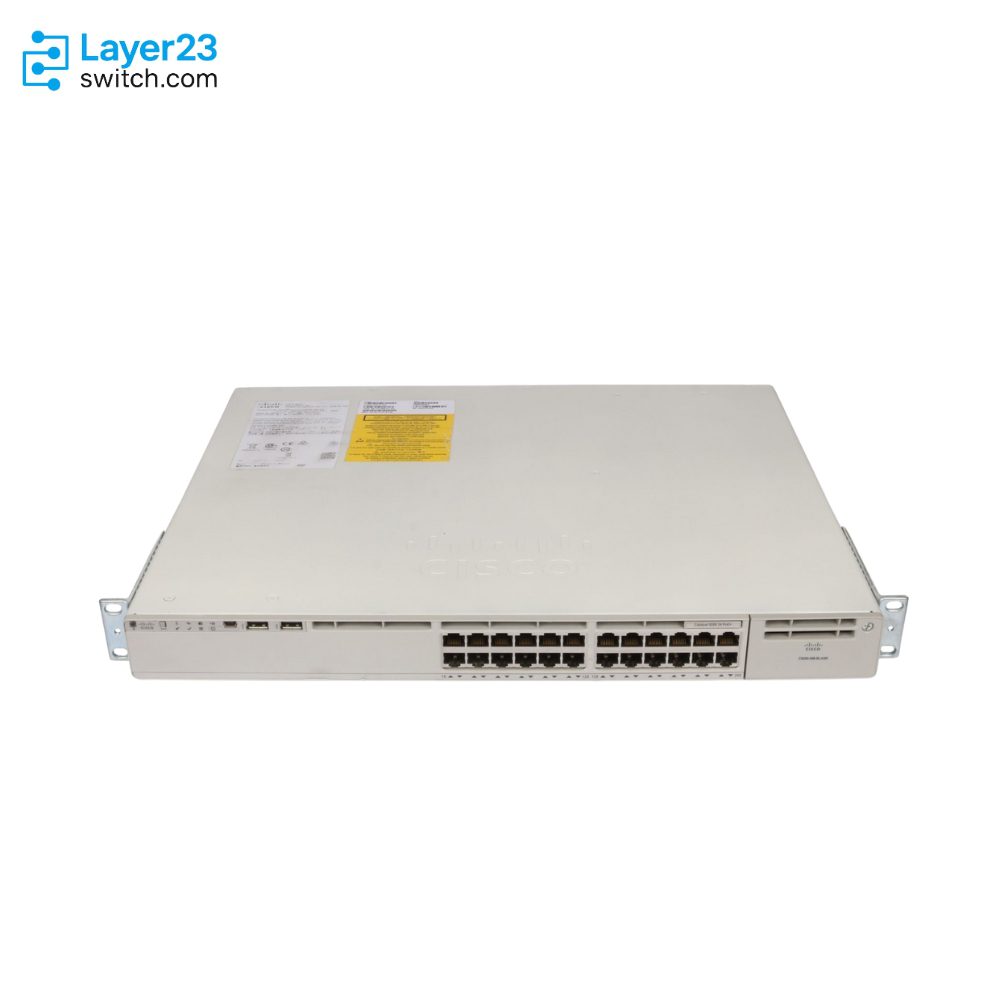

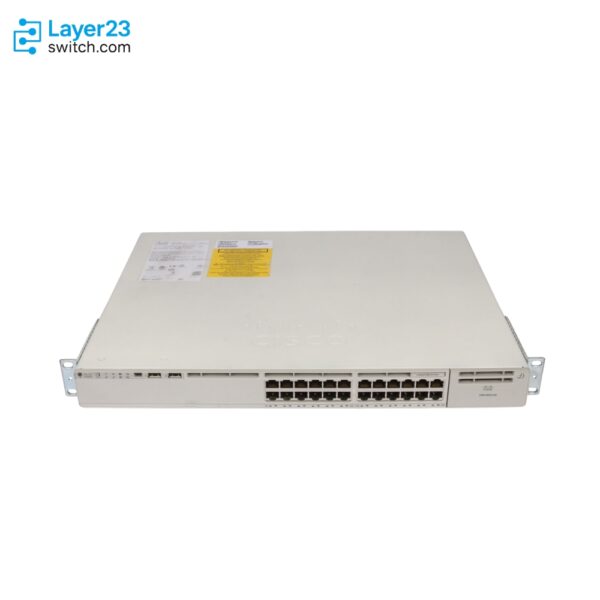

C9200-24P-E – 24x1G PoE+ Ports – Modular Uplink – 370W PoE Budget

Name: C9200-24P-E - Cisco 24-Port PoE+ Catalyst 9200 Switch
Brand: Cisco
SKU: C9200-24P-E
Price: 1268.00 USD
Availability: InStock
Rating: 4.92 (13 reviews)

Brand: Cisco Category: Catalyst 9200 Switches Availability:

In Stock

Model: C9200-24P-E

Cisco SN CheckSN verification before shipment.Verify authenticity3-Year WarrantyExtended, enterprise-gradeWarranty terms14-Day ReturnsStraightforward RMA processReturn policy

Rated 4.92 out of 5 based on 13 customer ratings

4.913 reviews6 Questions5 sold this month

List Price: ~~$5,027.18~~ 75% OFF

$1,268.00

Price Alert

Condition

Related

Subscription C9200-DNA-E + $300.30 Subtotal Price $1,568.30

Quantity

Shipping Express Shipping 2-6 Business Days, via UPS, FedEx, DHL and more

Trusted & Secure Payments

Shop Expert-Recommended Accessories for the C9200-24P-E

Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.

SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMF
Original price was: $853.95.Current price is: $52.00.
SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4
Original price was: $1,213.85.Current price is: $91.68.
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMF
Original price was: $2,439.88.Current price is: $150.00.
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km Reach
Original price was: $4,873.66.Current price is: $149.00.
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOM
Original price was: $1,260.58.Current price is: $95.80.
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m Reach
Original price was: $570.10.Current price is: $70.00.
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOM
Original price was: $633.46.Current price is: $59.00.
GLC-EX-SMD
1000BASE-EX SFP - 40km SMF - DOM
Original price was: $2,527.49.Current price is: $205.00.
GLC-ZX-SMD
1000BASE-ZX SFP - 70km SMF - EXT DOM
Original price was: $5,061.30.Current price is: $215.70.
C9200-STACK-KIT
StackWise-160 Bandwidth - 2 Adapters and Cable - Catalyst 9200 Stack Kit
Original price was: $1,628.51.Current price is: $445.00.
STACK-T4-50CM
50 cm Data Stack Cable - Catalyst 9200 and 9200L Stack Kit Default - StackWise-160/80
Original price was: $143.20.Current price is: $66.00.
STACK-T4-1M
1 m Data Stack Cable - Catalyst 9200 and 9200L - StackWise-160/80
Original price was: $277.26.Current price is: $146.00.
STACK-T4-3M
3 m Type 3 Stacking Cable - Catalyst 9200 and 9200L - StackWise-160/80
Original price was: $415.89.Current price is: $194.00.
C9200-NM-4G
4x1G SFP Uplinks - Network Module - Catalyst 9200 Modular Switches
Original price was: $657.40.Current price is: $256.00.
C9200-NM-4X
4x10GE SFP+ Ports - Catalyst 9200 Module
Original price was: $2,578.21.Current price is: $658.00.
PWR-C6-600WAC
600W AC PSU - Catalyst 9200 PoE Models
Original price was: $1,693.00.Current price is: $587.00.

Why Layer23-Switch

Stocked, Shipped and Supported by One Team

Founded

Customers

Units shipped

Countries

Inventory You Can See

Cisco stock on hand

Models ready to ship

Warehouse space

Ships in 1 Business Day

In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.

DHL FedEx UPS Duties included: US · CA · UK

LSCare Warranty

3years on enterprise equipment

Advance replacement for in-stock models
New unit for dead-on-arrival
14-day returns on sealed items

Free CCIE Support

Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.

Part number check Configuration Troubleshooting

Verify Before You Pay

100%factory-sealed

Get label and serial photos before shipment, and check every serial number with Cisco.

C9200-24P-E Description

The C9200-24P-E is a Cisco Catalyst 9200 Series modular-uplink stackable access switch for wiring closets that power phones, cameras and access points. The switch has 24 1G PoE+ ports, a modular uplink slot, a 370W PoE budget on the default PWR-C6-600WAC and 128 Gbps of switching capacity. The -E suffix carries Network Essentials, which covers Layer 2, static routing and OSPF routed access up to 1,000 routes but not VRF, VXLAN or LISP segmentation.

Quick Specs

Parameter	Specification
Product ID	C9200-24P-E
Product type	Stackable access switch with modular uplinks
Downlink ports	24 x 1G PoE+ copper ports
Uplink architecture	Modular uplink options
Confirmed uplink modules	C9200-NM-4G, C9200-NM-4X, C9200-NM-BLANK
Network license	Network Essentials
Default power supply	PWR-C6-600WAC
Default PoE budget	370W with one PWR-C6-600WAC
Expanded PoE budget	740W with a second PWR-C6-600WAC
Stacking architecture	StackWise-160
Switching capacity	128 Gbps standalone; 288 Gbps with stacking
Forwarding rate	95.23 Mpps standalone; 214 Mpps with stacking

Product Performance

PoE+ Access Port Count

Standalone Switching Capacity

Standalone Forwarding Rate

Key Features

Essentials Routed Access Scope

Network Essentials covers Layer 2, static routing, RIP, EIGRP Stub and OSPF routed access up to 1,000 routes. VRF, VXLAN, LISP and full EIGRP need the Network Advantage tier.

PoE Budget And The Second Supply

The default 600W supply leaves 370W for PoE, about 15W per port across 24 ports. A second PWR-C6-600WAC raises the budget to 740W, above the 720W that 24 PoE+ ports can draw, so every port can run at 30W.

Uplink Module Choice

The single uplink slot takes the C9200-NM-4G for four 1G ports or the C9200-NM-4X for four 1G/10G ports, and a C9200-NM-BLANK keeps airflow intact when no uplink is fitted. Uplink speed is a module choice, so a closet can start on 1G and move to 10G without replacing the switch.

Same-License StackWise-160 Stacking

Up to eight C9200 switches join one 160 Gbps StackWise-160 stack, and every member must run the same license level. The stack acts as a single switch with up to 384 access ports.

Field-Replaceable Power And Fans

Both power supplies and the fan modules are field-replaceable, so a failed unit is swapped at the rack without removing the switch from service in the closet.

DC Supply Option

The PWR-C6-715WDC= supply gives 485W of PoE alone and 740W as a pair, and it can sit beside an AC supply as primary and backup. It is a spare-part supply that needs Cisco IOS XE 17.8.1 or later.

Application Scenarios

Wiring Closet Powering Phones And APs

In a floor wiring closet, the switch supplies PoE+ to IP phones and access points on 24 ports and hands traffic to the distribution layer through its uplink module.

Layer 2 Access With Simple Routing

A school or office building that runs routing at the core can use the switch as a Layer 2 access device, with static routes and OSPF routed access available where a closet needs them.

Stack Growth In An Essentials Closet

A closet that adds powered ports over time can join further Network Essentials C9200 switches to the same StackWise-160 stack.

Product Comparison

Parameter	C9200-24P-E	C9200-24P-A	C9200-24T-E	C9200-48P-E
Downlinks total 10/100/1000 or PoE+ copper ports	24 ports full PoE+	24 ports full PoE+	24 ports data	48 ports full PoE+
Uplink configuration	Modular uplink options	Modular uplink options	Modular uplink options	Modular uplink options
Default power supply	PWR-C6-600WAC	PWR-C6-600WAC	PWR-C6-125WAC	PWR-C6-1KWAC
Default available PoE power with single primary power supply	370W	370W	No PoE	740W
Maximum PoE power with additional secondary power supply	740W	740W	No PoE	1440W
Network license	Network Essentials	Network Advantage	Network Essentials	Network Essentials
Stacking bandwidth support	StackWise-160, 160 Gbps	StackWise-160, 160 Gbps	StackWise-160, 160 Gbps	StackWise-160, 160 Gbps
Switching capacity	128 Gbps	128 Gbps	128 Gbps	176 Gbps
Switch capacity with stacking	288 Gbps	288 Gbps	288 Gbps	336 Gbps

C9200-24P-E and C9200-24P-A share the same 24 PoE+ ports, 370W default budget, 740W with a second PWR-C6-600WAC and modular uplink bay, and differ only in license: Network Essentials covers Layer 2, static routing and OSPF routed access up to 1,000 routes, while C9200-24P-A adds EIGRP, HSRP, IS-IS and VRF, VXLAN and LISP segmentation. A closet that needs those features on day one should order C9200-24P-A, and an Essentials switch can be raised later with a C9200-LIC= term (C9200-24-E-A-3, -5 or -7), which cannot go on the switch order. Closets with no powered devices can use C9200-24T-E on a 125W supply with no PoE. Closets with more than 24 powered drops need C9200-48P-E, with 740W on one PWR-C6-1KWAC and 1440W on two.

PoE Power Planning

Planning Item	Cisco Confirmed Value	Order Impact
PoE standard	IEEE 802.3at PoE+ up to 30W per port on Cisco Catalyst 9200 Series switches	Match endpoint count and endpoint draw to the available power budget
PoE budget with default supply	PWR-C6-600WAC provides 370W available PoE power on C9200-24P-E	Keep the powered endpoint plan inside the single-supply budget if no second supply is ordered
PoE with secondary supply	A second PWR-C6-600WAC raises available PoE power to 740W	Add the second supply when the design needs full 24-port PoE+ headroom or power redundancy
DC spare option	PWR-C6-715WDC= is spare-only and supported on C9200 PoE models with IOS XE 17.8.1 and later	Treat DC power as both a spare-part and software compatibility check

Ordering Checklist

Subscription: Select a matching Essentials 24-port term, such as C9200-DNA-E-24 or C9200-DNX-E-24-3Y. The hardware suffix sets the tier, CCW defaults to a 3-year Cisco DNA term that must match it, and a Smart Account is mandatory on every Catalyst 9200 order.
Uplink module: Select one of C9200-NM-4G (4 x 1G), C9200-NM-4X (4 x 1G/10G) or C9200-NM-BLANK; C9200-NM-2Y and C9200-NM-2Q do not apply. The modular bay ships without a chosen uplink speed, so a module or blank must fill it.
Second power supply: A second PWR-C6-600WAC is optional; PWR-C6-715WDC= is spare-only. One supply gives 370W of PoE; two give 740W.
Stack kit: Add C9200-STACK-KIT (two stack adapters and one cable) plus STACK-T4-50CM, STACK-T4-1M or STACK-T4-3M for longer runs. Stacking is an optional line in CCW, and C9200L-STACK-KIT is the kit for fixed-uplink models only.
Power cord: Select a CAB-TA cord for the destination country, such as CAB-TA-NA=, CAB-TA-EU= or CAB-TA-UK=. AC power supplies need a cord selected in CCW.

Optional Add-ons

Model	Description
C9200-NM-4G	Catalyst 9200 4 x 1GE network module
C9200-NM-4X	Catalyst 9200 4 x 1G/10G network module
C9200-NM-BLANK	Catalyst 9200 blank network module
C9200-STACK-KIT	Stack kit for C9200 SKUs with two data stack adapters and one data stack cable
STACK-T4-50CM	50 cm data stack cable supplied as the default cable with the stack kit
STACK-T4-1M	1 m data stack cable for Catalyst 9200 Series stacking
PWR-C6-600WAC	600W AC power supply used as the default and secondary AC supply for C9200-24P-E
PWR-C6-715WDC=	715W DC power supply spare for supported C9200 PoE models
C9200-DNA-E-24-3Y	C9200 Cisco DNA Essentials 24-port 3-year term license
C9200-DNA-E-24-5Y	C9200 Cisco DNA Essentials 24-port 5-year term license
C9200-DNA-E-24-7Y	C9200 Cisco DNA Essentials 24-port 7-year term license

Catalyst 9200L Access Layer Switch Rear Panel

The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.

1	RJ-45 console port	4	Blue Beacon LED
2	Fixed fan modules on C9200L switches	5	MGMT (RJ-45 10/100/1000 management port)
3	Power supply module slots	6	StackWise-80 port connectors

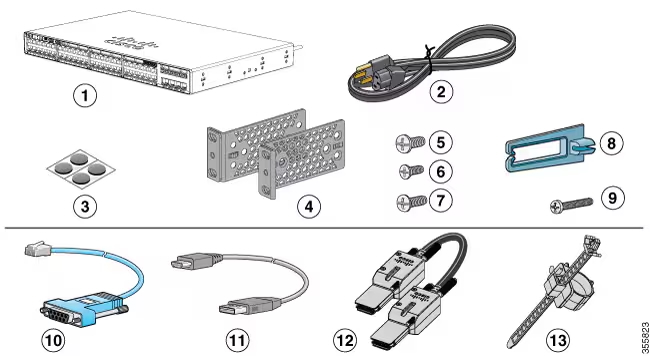

Catalyst 9200L Access Layer Switch Components Delivered in the Shipping Box

The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.

1	Cisco Catalyst 9200 Series switch¹ (power supply modules are not displayed)	8	Cable guide
2	AC power cord	9	M4.0 x 20mm Phillips pan-head screw
3	Four rubber mounting feet	10	RJ-45 USB console cable¹
4	Two 19-inch mounting brackets	11	(Optional) USB console cable ¹
5	4 number-12 pan-head screw	12	(Optional) StackWise cable¹ (0.5-meter, 1-meter, or 3-meter)
6	4 number-10 pan-head screws	13	Power cord retainer
7	8 number-8 Phillips flat-head screws	–	–

Specifications

Parameter	Specification	Parameter	Specification
Product ID	C9200-24P-E	Product type	Stackable access switch with modular uplinks
Network license	Network Essentials	Downlink ports	24 x 1G PoE+ copper ports
PoE standards	IEEE 802.3at PoE+ up to 30W per port	Uplink architecture	Modular uplink options
Confirmed uplink modules	C9200-NM-4G, C9200-NM-4X, C9200-NM-BLANK	Power supply slots	2 power supply slots
Default primary power supply	PWR-C6-600WAC	AC input range	100 to 240 VAC, 50 to 60 Hz
Default PoE budget	370W with PWR-C6-600WAC	PoE budget with second supply	740W with a second PWR-C6-600WAC
Optional DC power supply	PWR-C6-715WDC= spare supported on C9200 PoE models with IOS XE 17.8.1 and later	Power supply slot rule	Second slot ships with a blank module and must be populated for cooling
Fan modules	Field-replaceable fan modules for C9200 models	Fan spare	FAN-T2= fan module
Stacking architecture	StackWise-160	Stack bandwidth	160 Gbps
Stack kit	C9200-STACK-KIT	Stack members	Up to 8 C9200 models with the same license level
Switching capacity	128 Gbps standalone; 288 Gbps with stacking	Forwarding rate	95.23 Mpps standalone; 214 Mpps with stacking
Virtual networks	4 for C9200-24P-E	MAC addresses	32,000
IPv4 routes	14,000 total with 10,000 direct and 4,000 indirect routes	IPv4 routing entries	4,000
IPv6 routes	2,000	Packet buffer	6 MB for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow entries	16,000 flows on 24- and 48-port Gigabit Ethernet models	DRAM	4 GB
Flash	4 GB	VLAN IDs	4094
Total SVIs	512	Jumbo frames	9198 bytes
Dimensions	1.73 x 17.5 x 13.8 in. (4.4 x 44.4 x 35 cm)	Installed dimensions	1.73 x 17.5 x 15.4 in. (4.4 x 44.4 x 39.1 cm) with fan FRUs and power supplies installed
Weight	5 kg (11 lb) with one power supply installed	Operating temperature	-5°C to 45°C (23°F to 113°F)
Operating altitude	Up to 10,000 ft (3000 m)	Minimum software release	Cisco IOS XE Gibraltar 16.10.1

Get More Information

Need pricing, stock, or shipping details for the C9200-24P-E ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.

Quality Certifications

Customer Reviews

Write A Review

4.9

Rated 4.92 out of 5

(13 reviews)

5 Stars

4 Stars

3 Stars

2 Stars

1 Stars

Vincent Peterson

Posted on 27/02/2026

Verified Buyer

Rated 5 out of 5

5.0

Their shipping operation feels professional and well-organized.

Eugene Davis

Posted on 15/02/2026

Verified Buyer

Rated 5 out of 5

5.0

What we saved on hardware, we reinvested in supporting infrastructure.

Connor Richardson

Posted on 23/12/2025

Verified Buyer

Rated 4 out of 5

4.0

Recommend Layer23 to others looking for reliable equipment.

Winston

Posted on 15/06/2025

Verified Buyer

Rated 5 out of 5

5.0

Impeccable service. A pleasure doing business.

Infrastructure Mgr

Posted on 28/02/2025

Verified Buyer

Rated 5 out of 5

5.0

Pallet was shrink-wrapped perfectly. No transit damage.

Questions & Answers

Does C9200-24P-E support MACsec, and at what key length?
C9200-24P-E supports MACsec-128, which Network Essentials includes. MACsec-256 requires Network Advantage, and on Catalyst 9200 only the C9200CX models implement it, so C9200-24P-E stays at 128-bit even after a license change. Catalyst 9300 and larger platforms support 256-bit MACsec with Network Advantage.
Can C9200-24P-E share a stack with a Network Advantage switch?
No. Every member of a StackWise-160 stack must run the same IOS XE version and the same license tier. A Network Essentials member cannot stack with a Network Advantage member. Order every member in one license tier and keep the software release identical, so the stack forms and elects an active switch cleanly.
Can C9200-24P-E and C9200L-24P-4X-E run in one stack?
No. Cisco does not support C9200 and C9200L switches in one stack, because StackWise-160 and StackWise-80 differ in bandwidth. The data sheet also lists 2 GB DRAM for C9200L. Other C9200 variants, such as C9200-24T-E, can join a stack with C9200-24P-E when the license level matches.
Can C9200-24P-E keep running with one fan module failed?
Yes, for a limited time. Per the Catalyst 9200 hardware installation guide, C9200-24P-E tolerates -5 to +45 C at up to 3000 m with one failed fan, for at most 96 consecutive hours. The limit is 360 hours or 15 occurrences per year. Replace the failed fan module before those limits are reached.
What output does the PWR-C6-600WAC give C9200-24P-E?
The PWR-C6-600WAC outputs 54V at 11.1A, and the AC hold-up time is 20 ms minimum at 100 VAC. A second supply must be an identical PWR-C6-600WAC. The only documented exception is the PWR-C6-715WDC=, which can sit beside an AC supply as primary and secondary.
How does StackWise-160 reach 160 Gbps on C9200-24P-E?
C9200-24P-E uses 4 internal StackWise-160 rings at 40 Gbps each. A full ring carries 80 Gbps, and spatial reuse (SRP) lifts stack throughput to 160 Gbps, per the Cisco StackWise white paper. The six-ring 240G and 480G figures in some training material belong to the Catalyst 3850 and do not apply to this switch.

Warranty

100% Low Price Guarantee:

Layer23-Switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.

100% Quality Assurance:

All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.

Free CCIE Technical Support:

Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.

100% Money Back Guarantee:

If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly. Visit Return Policy page for more information.

Flexible & Secure Payment and Shipping:

We support multiple secure payment and logistics options, backed by industry-leading verification:

Visit How to Pay page for more information

Warranty Coverage & RMA Instructions

Extended, Worry-Free Warranty Coverage Factory New Sealed Enterprise Hardware:
· 3 Years Factory New Sealed
Visit Warranty Policy page for more information

FREE NETWORK TOOLS

Verify, plan, and comparewith confidence

Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.

Check lifecycle dates

Cisco Switch Selector Tool

Filter Cisco switches by ports, uplinks, PoE, performance, features, license, and budget.

Find matching switches >

Cisco Serial Number Lookup

Verify authenticity and identify exactmodel, coverage, and lifecycle detailsusing a Cisco serial number.

Verify a serial number >

Product Comparison

Compare specifications, capabilitiesand form factors side-by-side tochoose the right hardware.

Cisco Compare products >

Standard Services

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F3 Team Support

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Shipping

DataSheet Downloads

C9200-24P-E Datasheet

C9200-24P-E – 24x1G PoE+ Ports – Modular Uplink – 370W PoE Budget

Shop Expert-Recommended Accessories for the C9200-24P-E

Stocked, Shipped and Supported by One Team

Inventory You Can See

Ships in 1 Business Day

LSCare Warranty

Free CCIE Support

Verify Before You Pay

C9200-24P-E Description

Quick Specs

Product Performance

Key Features

Application Scenarios

Product Comparison

PoE Power Planning

Ordering Checklist

Optional Add-ons

Catalyst 9200L Access Layer Switch Rear Panel

Catalyst 9200L Access Layer Switch Components Delivered in the Shipping Box

Specifications

Get More Information

Quality Certifications

Customer Reviews

Questions & Answers

Does C9200-24P-E support MACsec, and at what key length?

Can C9200-24P-E share a stack with a Network Advantage switch?

Can C9200-24P-E and C9200L-24P-4X-E run in one stack?

Can C9200-24P-E keep running with one fan module failed?

What output does the PWR-C6-600WAC give C9200-24P-E?

How does StackWise-160 reach 160 Gbps on C9200-24P-E?

Warranty

Verify, plan, and comparewith confidence

Cisco Switch Selector Tool

Cisco Serial Number Lookup

Product Comparison

Standard Services

DataSheet Downloads

Related Searches of Catalyst 9200 Switches
