C9200L-24P-4G-E – 24x1G PoE+ Ports – 4x1G SFP Uplinks – 370W PoE Budget
Shop Expert-Recommended Accessories for the C9200L-24P-4G-E
Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.-
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $1,260.58.$95.80Current price is: $95.80. -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $570.10.$70.00Current price is: $70.00. -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $633.46.$59.00Current price is: $59.00. -
GLC-EX-SMD
1000BASE-EX SFP - 40km SMF - DOMOriginal price was: $2,527.49.$205.00Current price is: $205.00. -
GLC-ZX-SMD
1000BASE-ZX SFP - 70km SMF - EXT DOMOriginal price was: $5,061.30.$215.70Current price is: $215.70. -
C9200L-STACK-KIT
StackWise-80 Bandwidth - 2 Adapters and Cable - Catalyst 9200L Stack KitOriginal price was: $1,628.51.$495.00Current price is: $495.00. -
STACK-T4-50CM
50 cm Data Stack Cable - Catalyst 9200 and 9200L Stack Kit Default - StackWise-160/80Original price was: $143.20.$66.00Current price is: $66.00. -
STACK-T4-1M
1 m Data Stack Cable - Catalyst 9200 and 9200L - StackWise-160/80Original price was: $277.26.$146.00Current price is: $146.00. -
STACK-T4-3M
3 m Type 3 Stacking Cable - Catalyst 9200 and 9200L - StackWise-160/80Original price was: $415.89.$194.00Current price is: $194.00. -
PWR-C5-600WAC
600W AC PSU - Catalyst 9200L PoE ModelsOriginal price was: $2,772.59.$425.00Current price is: $425.00.
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
C9200L-24P-4G-E Description

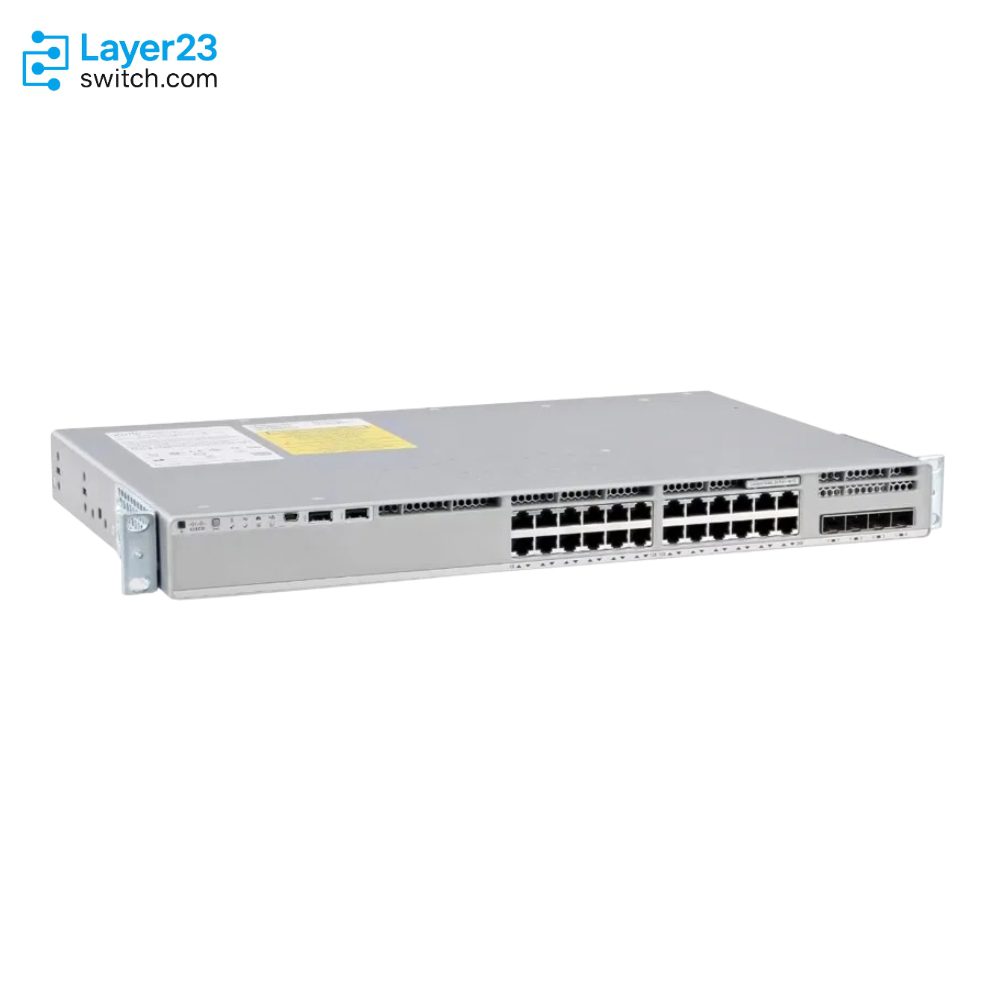

The C9200L-24P-4G-E is a Cisco Catalyst 9200L fixed-uplink stackable access switch for branch-office wiring closets that power phones and access points. The switch has 24 1G PoE+ ports and four fixed 1G SFP uplinks, with a 370W PoE budget from its default PWR-C5-600WAC supply, 740W with a second one, and 56 Gbps of switching capacity. The -E suffix carries Network Essentials, which leaves HSRP, IS-IS and VRF segmentation to Network Advantage, subject to platform and software release support.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9200L-24P-4G-E |
|
Downlink ports |
24 x 10/100/1000 Mbps PoE+ RJ-45 |
|
Uplink ports |
4 x 1G SFP fixed uplinks |
|
Network license |
Network Essentials |
|
Default power supply |
PWR-C5-600WAC 600W AC |
|
Default PoE budget |
370W |
|
PoE budget with second supply |
740W with a second PWR-C5-600WAC |
|
PoE standards |
IEEE 802.3at PoE+, up to 30W per port |
|
Switching capacity |
56 Gbps (136 Gbps with stacking) |
|
Forwarding rate |
41.67 Mpps (101 Mpps with stacking) |
|
Stacking |
StackWise-80 at 80 Gbps, up to 8 members |
|
Fan modules |
2 fixed, redundant |
|
Minimum Cisco IOS XE release |
16.9.2 |
Product Performance
Key Features

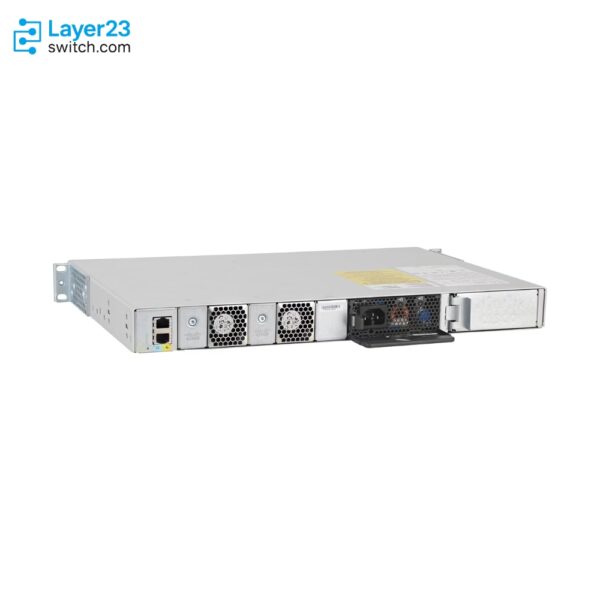

The chassis has two power supply bays and ships with one PWR-C5-600WAC. A second one can stand by as a redundant supply or lift the PoE budget from 370W to 740W, within the 720W that 24 PoE+ ports can draw.
At 56 Gbps, the switching capacity covers all 24 access ports and four uplinks at 1G in both directions. The constraint sits at the uplinks: 24 Gbps of access traffic is 6:1 across four 1G SFP uplinks and 24:1 over a single one.
Network Essentials goes beyond Layer 2. The switch routes with static routes, RIP, EIGRP stub and OSPF up to 1,000 routes, handles PIM stub multicast and PBR, and backs up the gateway with VRRP. 802.1X and MACsec-128 belong to the same tier.
Perpetual PoE keeps power on the PoE+ ports while the switch reloads, so phones and cameras stay up through a software upgrade. After a power cut, Fast PoE restores port power before Cisco IOS XE finishes booting.
Up to eight Catalyst 9200L switches stack over StackWise-80 at 80 Gbps with one management and control plane. If the active member fails, stateful switchover hands control to the standby in under 50 ms.
The forwarding tables hold 16,000 MAC addresses, 3,000 IPv4 and 1,500 IPv6 routing entries, and 1,500 ACL entries. In a routed-access design, the routes each closet learns must fit within those 3,000 IPv4 entries.
Application Scenarios
In a branch office, the switch powers IP phones and wireless access points from its PoE+ ports and connects to the branch router through a 1G SFP uplink.
A retail store can run its PoE+ IP cameras from the switch on a dedicated VLAN, with a 1G uplink carrying the video to the store router.
On a campus floor where routing starts at the access layer, a stack of these switches exchanges OSPF routes with the distribution layer and keeps the floor in its own routed subnet.
Product Comparison
|
Parameter |
C9200L-24P-4G-E | |||
|---|---|---|---|---|
|
Downlinks total 10/100/1000 or PoE+ copper ports |
24 x 1G PoE+ |
24 x 1G PoE+ |
24 x 1G PoE+ |
24 x 1G data, no PoE |
|
Uplink configuration |
4 x 1G SFP fixed |
4 x 1G SFP fixed |
4 x 10G SFP+ (1G SFP or 10G SFP+) |
4 x 1G SFP fixed |
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
Network Essentials |
|
Default power supply |
PWR-C5-600WAC |
PWR-C5-600WAC |
PWR-C5-600WAC |
PWR-C5-125WAC |
|
Default available PoE power |
370W |
370W |
370W |
No PoE |
|
Maximum PoE power with additional secondary power supply |
740W |
740W |
740W |
No PoE |
|
Switching capacity |
56 Gbps |
56 Gbps |
128 Gbps |
56 Gbps |
|
Forwarding rate |
41.67 Mpps |
41.67 Mpps |
95.23 Mpps |
41.67 Mpps |
|
Stacking bandwidth support |
80 Gbps (StackWise-80) |
80 Gbps (StackWise-80) |
80 Gbps (StackWise-80) |
80 Gbps (StackWise-80) |
C9200L-24P-4G-E carries 24 PoE+ ports with a 370W budget, while C9200L-24T-4G-E has the same four 1G SFP uplinks and Network Essentials on a 125W PWR-C5-125WAC supply with no PoE, which suits closets with no powered endpoints. Where the distribution link may move to 10G, C9200L-24P-4X-E keeps the 24 PoE+ ports and Essentials tier but offers four 10G SFP+ uplinks and 128 Gbps of switching against 56 Gbps. HSRP, IS-IS, full EIGRP or VRF, VXLAN, LISP and SGT segmentation on the switch itself sit in the Network Advantage tier of C9200L-24P-4G-A, and each feature still depends on the platform and software release; the license does not enable them all by itself. An installed switch can move up with the C9200L-24-E-A-3, -5 or -7 upgrade license, which cannot be placed on the original order.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
Default supply and budget |
PWR-C5-600WAC (600W AC) with 370W of PoE |
|
Full-class ports on the default supply |
12 ports at 30W, or all 24 ports at an average of 15.4W or less |
|
Budget with a second PWR-C5-600WAC |
740W; 24 ports at 30W draw at most 720W, so every port can run at full PoE+ class |
|
DC supply option |
PWR-C5-715WDC= gives 485W with one supply and 740W with two; spare only, Cisco IOS XE 17.8.1 or later, and it can pair with an AC supply as primary and secondary |
|
PoE standard |
IEEE 802.3at PoE+, up to 30W per port |
|
Endpoint check |
Add up the PoE class of every planned endpoint and compare the total with the budget of the supplies installed |
Ordering Checklist
- Subscription: Select a 24-port Essentials term: C9200L-DNA-E-24-3Y/5Y/7Y for Cisco DNA or C9200L-DNX-E-24-3Y/5Y/7Y for Cisco Catalyst. A subscription is mandatory on new orders and its tier must match the Essentials license built into the switch.
- Second power supply: Decide whether the order carries a second PWR-C5-600WAC. With one supply the PoE budget is 370W; with two it is 740W, of which 24 ports at 30W use at most 720W.
- Stack kit: Add C9200L-STACK-KIT for stacked switches, with STACK-T4-1M or STACK-T4-3M where the default STACK-T4-50CM is too short. C9200-STACK-KIT is for Catalyst 9200 modular-uplink models only and does not fit this switch.
- Power cords: Order a country-specific CAB-TA cord such as CAB-TA-NA= or CAB-TA-EU= for each AC supply. An AC supply needs a cord that matches the destination outlet.
Optional Add-ons
|
Model |
Description |
|---|---|
|
PWR-C5-600WAC/2 |
Second 600W AC supply ordered with the switch; raises the PoE budget to 740W |
|
Spare 600W AC Config 5 power supply | |
|
715W DC Config 5 power supply, spare only; 485W PoE alone, 740W with two; Cisco IOS XE 17.8.1 or later | |
|
PWR-C5-BLANK= |
Power supply blank module |
|
StackWise-80 kit with two data stack adapters and one 50 cm data stack cable | |
|
1 m Type 3 stacking cable | |
|
3 m Type 3 stacking cable | |
|
ACC-KIT-T1= |
19-inch Type 1 rack-mount kit |
|
RACK-KIT-T1= |
19-, 23- and 24-inch and ETSI Type 1 rack-mount kit |
|
4PT-KIT-T2= |
Four-point rack-mount kit |
|
REC-KIT-T1= |
Recessed 1RU rack-mount kit for Catalyst 9200 and 9200L |
|
CAB-GUIDE-1RU |
1RU cable management guide |
Cisco Catalyst 9200L Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9200L-24P-4G-E | Network license | Network Essentials |
| Downlink ports | 24 x 10/100/1000 Mbps PoE+ RJ-45 ports | Uplink ports | 4 x 1G SFP fixed uplink ports |
| Uplink transceivers | 1G SFP modules; supported optics per the Cisco TMG Compatibility Matrix | Network module slot | None; uplinks are fixed |
| Management port | 1 x 10/100/1000 RJ-45 | Console port | RJ-45 (EIA/TIA-232) and USB mini-Type B |
| USB storage port | USB Type A for Cisco USB flash drives from 128 MB to 8 GB | RFID | Built-in RFID tag |
| Switching capacity | 56 Gbps; 136 Gbps with stacking | Forwarding rate | 41.67 Mpps; 101 Mpps with stacking |
| Stacking | StackWise-80, up to 8 Catalyst 9200L switches on the same license level | Stack bandwidth | 80 Gbps |
| Virtual networks | 1 | MAC addresses | 16,000 |
| Total number of IPv4 routes | 11,000 ARP and learned routes (8,000 direct, 3,000 indirect) | IPv4 routing entries | 3,000 |
| IPv6 routes | 1,500 | Multicast routes | 1,000 |
| QoS entries | 1,000 | ACL entries | 1,500 |
| Packet buffer | 6 MB | Flexible NetFlow (FNF) entries | 16,000 flows |
| DRAM | 2 GB | Flash | 4 GB |
| VLAN IDs | 4094 | PVST instances | 128 |
| Total switched virtual interfaces (SVIs) | 512 | Jumbo frames | 9198 bytes |
| Power supply slots | 2 | Default power supply | PWR-C5-600WAC, 600W AC |
| Power supply input | 100-240 VAC, 50-60 Hz, IEC 320-C16 inlet | Power supply heat dissipation | 2047.3 BTU/hr at 600W output |
| Power consumption | 47.571W weighted average at 115VAC (ATIS, IMIX traffic, no PoE load) | PoE standards | IEEE 802.3at PoE+, up to 30W per port |
| Default PoE budget | 370W with one PWR-C5-600WAC | PoE budget with second supply | 740W with two PWR-C5-600WAC |
| DC power supply option | PWR-C5-715WDC= (spare only, Cisco IOS XE 17.8.1 or later): 485W PoE with one, 740W with two | Fan modules | 2 fixed fans, redundant |
| Operating temperature | -5°C to 45°C up to 1500 m (5000 ft); -5°C to 40°C up to 3000 m (10,000 ft); 0°C minimum at cold start | Short-term operating temperature | -5°C to 50°C up to 1500 m; -5°C to 45°C up to 3000 m or at sea level with a single fan failure (up to 96 consecutive hours, 360 hours a year, or 15 occurrences a year) |
| Storage temperature | -40°C to 70°C | Operating humidity | 5% to 90% noncondensing |
| Operating altitude | Up to 10,000 ft (3000 m) | Acoustic noise | LpA 42 dB typical, 45 dB max; LwA 5.3 B typical, 5.6 B max (AC supply, 24 PoE+ ports loaded) |
| Dimensions (H x W x D) | 1.73 x 17.5 x 11.3 in (4.4 x 44.5 x 28.8 cm) | Dimensions with power supplies | 1.73 x 17.5 x 12.9 in (4.4 x 44.5 x 32.9 cm) |
| Weight | 4.71 kg (10.38 lb) | MTBF | 392,210 hours |
| Minimum Cisco IOS XE release | 16.9.2 | Safety certifications | IEC/UL/CAN/CSA C22.2/EN 60950-1 and 62368-1, AS/NZS 60950.1 and 62368.1, Class I equipment |
| EMC certifications | 47 CFR Part 15, CISPR 32 Class A, EN 55032 Class A, CISPR 35, EN 55035, EN 300 386, EN 61000-3-2, EN 61000-3-3, ICES-003 Class A, KN 32, KN 35, CNS 13438, V-3 Class A | Environmental compliance | RoHS 5 |
| Stack kit | C9200L-STACK-KIT, ordered separately |
Quality Certifications
Customer Reviews
Questions & Answers
-
Can C9200L-24P-4G-E be stacked?
-
What does Network Essentials on C9200L-24P-4G-E include?
-
What power does C9200L-24P-4G-E draw with no PoE load?
-
Which IOS XE release added MACsec-128 on C9200L-24P-4G-E?
-
Does C9200L-24P-4G-E support IS-IS, and which license PID adds it?
-
What output does the PWR-C5-600WAC supply in C9200L-24P-4G-E provide?
