C9200L-24T-4G-E – 24x1G Data Ports – 4x1G SFP Uplinks – Network Essentials
Shop Expert-Recommended Accessories for the C9200L-24T-4G-E
Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.-
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $1,260.58.$95.80Current price is: $95.80. -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $570.10.$70.00Current price is: $70.00. -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $633.46.$59.00Current price is: $59.00. -
GLC-EX-SMD
1000BASE-EX SFP - 40km SMF - DOMOriginal price was: $2,527.49.$205.00Current price is: $205.00. -
GLC-ZX-SMD
1000BASE-ZX SFP - 70km SMF - EXT DOMOriginal price was: $5,061.30.$215.70Current price is: $215.70. -
C9200L-STACK-KIT
StackWise-80 Bandwidth - 2 Adapters and Cable - Catalyst 9200L Stack KitOriginal price was: $1,628.51.$495.00Current price is: $495.00. -
STACK-T4-50CM
50 cm Data Stack Cable - Catalyst 9200 and 9200L Stack Kit Default - StackWise-160/80Original price was: $143.20.$66.00Current price is: $66.00. -
STACK-T4-1M
1 m Data Stack Cable - Catalyst 9200 and 9200L - StackWise-160/80Original price was: $277.26.$146.00Current price is: $146.00. -
STACK-T4-3M
3 m Type 3 Stacking Cable - Catalyst 9200 and 9200L - StackWise-160/80Original price was: $415.89.$194.00Current price is: $194.00. -
PWR-C5-125WAC
125W AC PSU - Catalyst 9200L Data SwitchesOriginal price was: $1,940.82.$549.00Current price is: $549.00.
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.

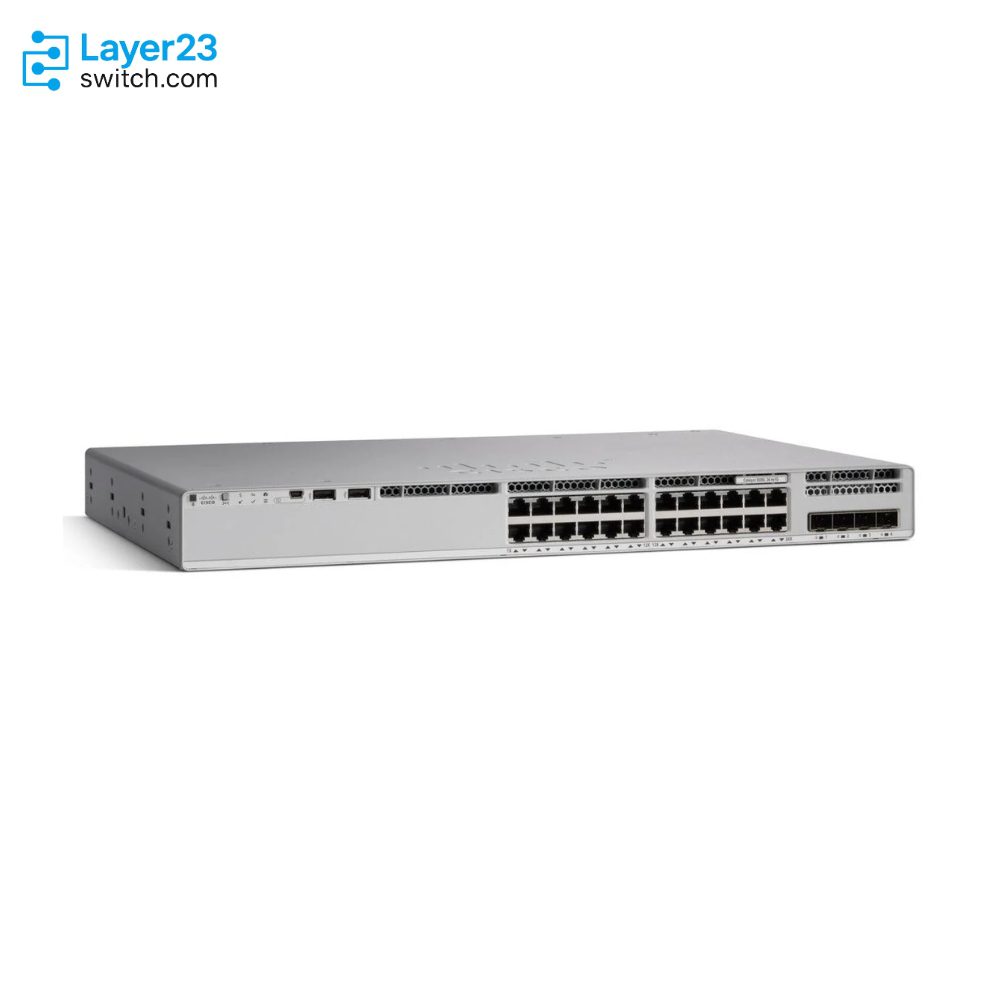

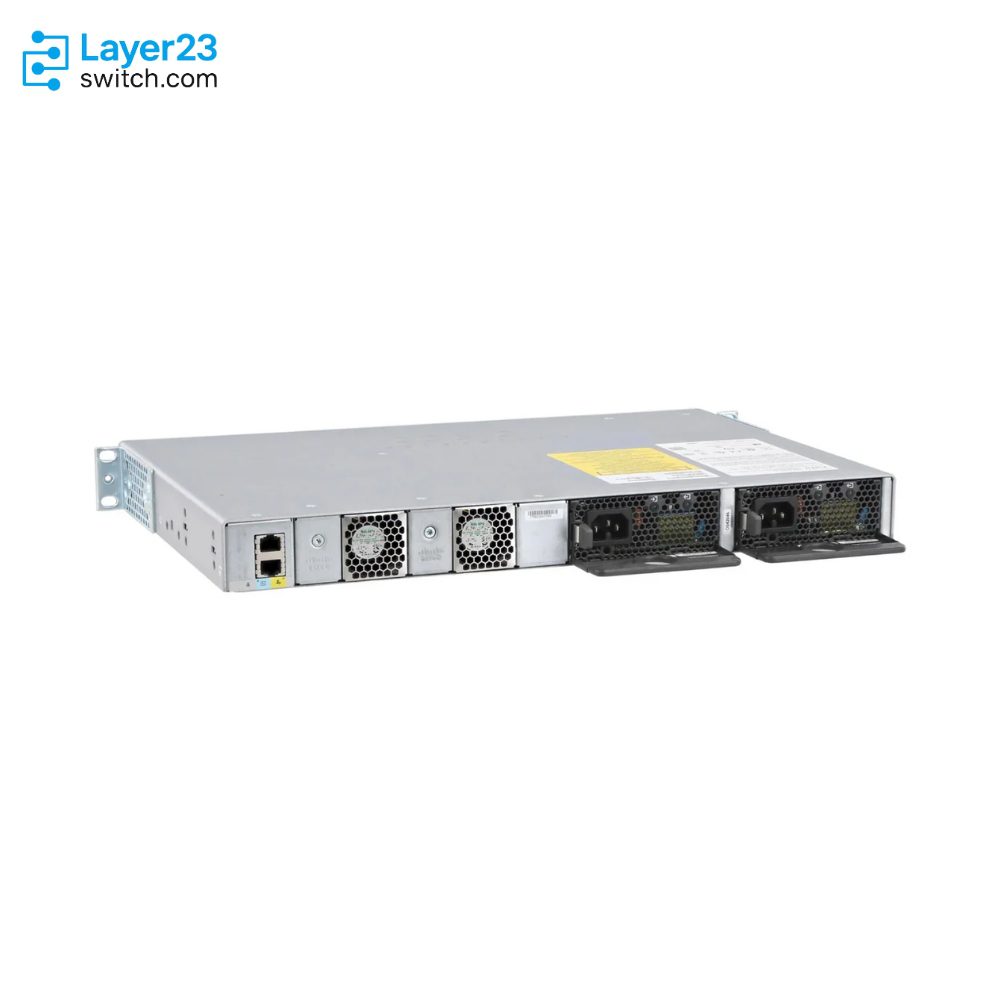

C9200L-24T-4G-E Description
The C9200L-24T-4G-E is a Cisco Catalyst 9200L Series fixed-uplink access switch for branch-office closets whose endpoints need Gigabit data links but no PoE. The switch has 24 10/100/1000 data ports, four fixed 1G SFP uplinks, 56 Gbps of switching capacity and a 125W PWR-C5-125WAC supply, with Network Essentials as its license tier. No power supply combination adds PoE to the ports, and the uplinks take 1G SFP optics only.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9200L-24T-4G-E |
|
Downlink ports |
24 x 10/100/1000 Mbps RJ-45 data ports |
|
Default PoE budget |
None; data-only ports |
|
Uplink ports |
4 x 1G SFP fixed uplinks |
|
Network license |
Network Essentials |
|
Default power supply |
PWR-C5-125WAC 125W AC |
|
Second power supply |
Optional second PWR-C5-125WAC for redundancy |
|
Switching capacity |
56 Gbps (136 Gbps with stacking) |
|
Forwarding rate |
41.67 Mpps (101 Mpps with stacking) |
|
Stacking |
StackWise-80 at 80 Gbps, up to 8 members |
|
Fan modules |
2 fixed, redundant |
|
MTBF |
531,030 hours |
|
Minimum Cisco IOS XE release |
16.9.2 |
Product Performance
Key Features
A data closet on this tier can still route at the access layer. The switch runs static routes, RIP, EIGRP Stub and OSPF with up to 1,000 routes, uses VRRP for gateway redundancy, and secures its access ports with 802.1X and MACsec-128.
The four fixed uplinks take 1G SFP modules only: 1000BASE-SX, -LX/LH, -ZX and -BX10 fiber optics, CWDM and DWDM wavelengths, or a 1000BASE-T SFP when the handoff to the next device is copper.
Under ATIS testing with IMIX traffic on every port, the switch draws 36.23W on 115VAC, and 27.39W with no links up. One PWR-C5-125WAC carries that load alone, so a second PWR-C5-125WAC in the other bay serves as a standby supply rather than added capacity.
Two redundant fans are built into the chassis and are not field-replaceable. With one fan failed, the switch is rated to keep running at up to 45°C at sea level for short periods: 96 consecutive hours, 360 hours a year, or 15 occurrences a year.
A StackWise-80 ring can mix data-only and PoE+ Catalyst 9200L switches, so this model can fill the non-powered positions in a stack whose other members feed phones and access points. The stack runs as one switch with a single control plane.
Forwarding tables hold 16,000 MAC addresses, 3,000 IPv4 and 1,500 IPv6 routing entries, and 1,500 ACL entries, on 2 GB of DRAM with a 6 MB packet buffer. In a routed-access design, every route the closet learns from the distribution layer counts against those 3,000 IPv4 entries.
Application Scenarios
In a branch office, the switch connects desktop PCs, printers and other wired endpoints that draw no power from the network, and hands their traffic to the branch router over a 1G SFP uplink.
A school computer lab can wire each bench of workstations to the switch and keep the lab on its own VLAN, with a 1G uplink back to the building network.
Servers, network storage and the site firewall in a small back-office equipment room plug into the Gigabit data ports, none of them needing PoE from the switch.
Product Comparison
|
Parameter |
C9200L-24T-4G-E | |||
|---|---|---|---|---|
|
Downlinks |
24 x 10/100/1000 |
24 x 10/100/1000 |
24 x 10/100/1000 PoE+ |
24 x 10/100/1000 |
|
Uplink configuration |
4 x 1G SFP (fixed) |
4 x 1G SFP (fixed) |
4 x 1G SFP (fixed) |
4 x 1G SFP or 10G SFP+ (fixed) |
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
Network Essentials |
|
Default power supply |
PWR-C5-125WAC |
PWR-C5-125WAC |
PWR-C5-600WAC |
PWR-C5-125WAC |
|
Available PoE power (default PoE budget) |
No PoE output |
No PoE output |
370W |
No PoE output |
|
Available PoE power with secondary supply (expanded PoE budget) |
No PoE output |
No PoE output |
740W |
No PoE output |
|
DC power supply (PWR-C5-715WDC=) |
Not supported |
Not supported |
Supported |
Not supported |
|
Switching capacity |
56 Gbps |
56 Gbps |
56 Gbps |
128 Gbps |
|
Switch capacity with stacking |
136 Gbps |
136 Gbps |
136 Gbps |
208 Gbps |
C9200L-24T-4G-E is the data-only model with no PoE on a 125W PWR-C5-125WAC, while C9200L-24P-4G-E has PoE+ ports and a 370W budget from a 600W supply on the same 4 x 1G SFP uplinks. C9200L-24T-4X-E keeps the data ports and Network Essentials but takes 1G SFP or 10G SFP+ uplinks at 128 Gbps against 56 Gbps, which matters once the distribution link passes 1G. Sites that run HSRP, IS-IS, full EIGRP or VRF, VXLAN, LISP and SGT segmentation on the switch order C9200L-24T-4G-A, or upgrade an installed unit with C9200L-24-E-A-3, -5 or -7. A DC-fed closet needs C9200L-24P-4G-E, the only model here that accepts PWR-C5-715WDC=.
Ordering Checklist
- Subscription tier: Select C9200L-DNA-E-24-3Y, -5Y or -7Y for Cisco DNA, or C9200L-DNX-E-24-3Y, -5Y or -7Y for Cisco Catalyst. A Network Essentials switch needs a 3-, 5- or 7-year subscription on the Essentials tier.
- Second power supply: Add PWR-C5-125WAC/2 when the switch should ship with two supplies. With one supply there is no standby if it fails, and the second supply adds no PoE on this data-only model.
- Stack kit: Add C9200L-STACK-KIT (two stack adapters and one cable), plus STACK-T4-1M or STACK-T4-3M where the STACK-T4-50CM cable is too short. Switches that will stack in StackWise-80 need the kit and a cable that reaches the next member.
- Power cords: Order one country-specific CAB-TA cord per AC supply, for example CAB-TA-NA=, CAB-TA-EU= or CAB-TA-UK=. Each AC supply needs its own cord for the destination country.
Optional Add-ons
|
Model |
Description |
|---|---|
|
PWR-C5-125WAC/2 |
Second 125W AC supply ordered with the switch for redundancy |
|
Spare 125W AC Config 5 power supply | |
|
PWR-C5-BLANK= |
Power supply blank module |
|
StackWise-80 kit with two data stack adapters and one 50 cm data stack cable | |
|
1 m Type 3 stacking cable | |
|
3 m Type 3 stacking cable | |
|
ACC-KIT-T1= |
19-inch Type 1 rack-mount kit |
|
RACK-KIT-T1= |
19-, 23- and 24-inch and ETSI Type 1 rack-mount kit |
|
4PT-KIT-T2= |
Four-point rack-mount kit |
|
REC-KIT-T1= |
Recessed 1RU rack-mount kit for Catalyst 9200 and 9200L |
|
CAB-GUIDE-1RU |
1RU cable management guide |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9200L-24T-4G-E | Network license | Network Essentials |
| Minimum software release | Cisco IOS XE 16.9.2 | Downlink ports | 24 x 10/100/1000 Mbps RJ-45 data ports (Cat 5E UTP) |
| Uplink ports | 4 x 1G SFP fixed uplink ports | Supported transceivers | 1G SFP modules |
| Console port | RJ-45 (EIA/TIA-232) and USB mini-Type B | Management port | 1 x 10/100/1000 RJ-45 |
| USB port | USB Type A for Cisco USB flash drives from 128 MB to 8 GB | Switching capacity | 56 Gbps |
| Forwarding rate | 41.67 Mpps | Switching capacity with stacking | 136 Gbps |
| Forwarding rate with stacking | 101 Mpps | Packet buffer | 6 MB |
| DRAM | 2 GB | Flash | 4 GB |
| MAC addresses | 16,000 | VLAN IDs | 4,094 |
| Switched virtual interfaces | 512 | PVST instances | 128 |
| IPv4 routes | 11,000 ARP and learned routes (8,000 direct + 3,000 indirect) | IPv6 routes | 1,500 |
| Multicast routes | 1,000 | ACL entries | 1,500 |
| QoS entries | 1,000 | Flexible NetFlow entries | 16,000 flows |
| Virtual networks | 1 | Jumbo frames | 9,198 bytes |
| Stacking | StackWise-80, up to 8 Catalyst 9200L switches on the same license level | Stack bandwidth | 80 Gbps |
| Stacking kit | C9200L-STACK-KIT, ordered separately | Default power supply | PWR-C5-125WAC, 125W AC |
| Power supply slots | 2 | AC input voltage | 100-240 VAC |
| AC input frequency | 50-60 Hz | Power connector | IEC 320-C14 |
| Power consumption | 35.546W weighted average; 27.39W with no link; 36.23W at full-port traffic (115 VAC; ATIS, IMIX traffic) | Fan modules | 2 fixed fans, redundant |
| Dimensions (H x W x D) | 1.73 x 17.5 x 12.9 in. (4.4 x 44.5 x 32.9 cm) with power supplies | Operating temperature | -5°C to 45°C up to 1,500 m (5,000 ft); -5°C to 40°C up to 3,000 m (10,000 ft) |
| Short-term operating temperature | -5°C to 50°C up to 1500 m; -5°C to 45°C up to 3000 m or at sea level with a single fan failure (up to 96 consecutive hours, 360 hours a year, or 15 occurrences a year) | Cold start temperature | 0°C |
| Storage temperature | -40°C to 70°C | Operating humidity | 5% to 90% noncondensing |
| Operating altitude | Up to 3,000 m (10,000 ft) | MTBF | 531,030 hours |
| Safety certifications | IEC/UL/CAN/CSA C22.2/EN 60950-1 and 62368-1, AS/NZS 60950.1 and 62368.1, Class I equipment | EMC certifications | 47 CFR Part 15, CISPR 32 Class A, EN 55032 Class A, CISPR 35, EN 55035, EN 300 386, EN 61000-3-2, EN 61000-3-3, ICES-003 Class A, KN 32, KN 35, CNS 13438, V-3 Class A |
| Environmental compliance | RoHS 5 |
Quality Certifications
Customer Reviews
Questions & Answers
-
Can C9200L-24T-4G-E be stacked?
-
What does the license on C9200L-24T-4G-E include?
-
Can C9200L-24T-4G-E use a 715W DC power supply?
-
How much power does C9200L-24T-4G-E draw with no link?
-
Which IOS XE release added MACsec-128 on C9200L-24T-4G-E?
-
How many user VRFs does C9200L-24T-4G-E support at an SD-Access fabric edge?
-
Which Layer 2 limits apply to C9200L-24T-4G-E?
