C9200L-24T-4G-A Description

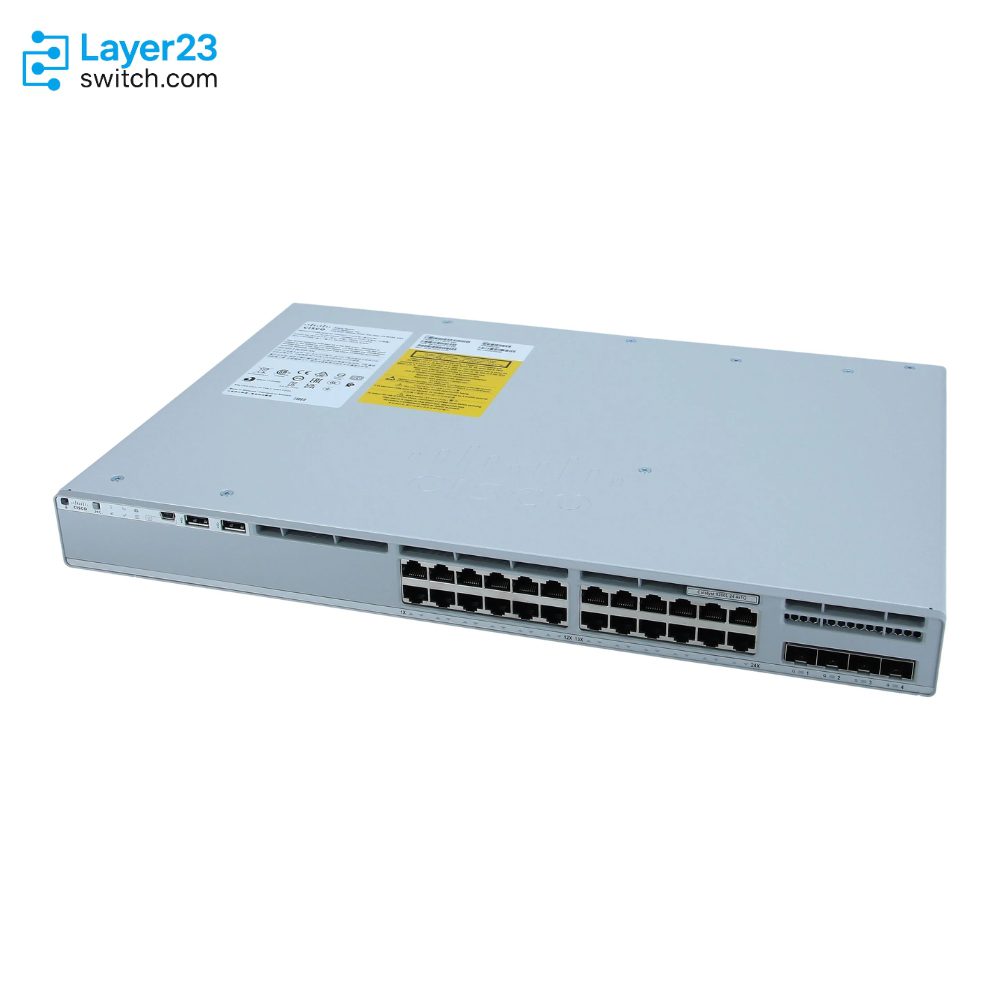

The C9200L-24T-4G-A is a Cisco Catalyst 9200L fixed-uplink access switch carrying Network Advantage across 24 non-PoE 10/100/1000 Mbps copper data ports, sized for wiring closets that terminate switches, routers, and other unpowered gear while still needing Advantage-tier routing and segmentation. The four fixed uplink ports accept 1G SFP optics only, with no 10G SFP+ option and no modular network-module bay to add one later, so the uplink speed ceiling is set permanently at the factory. A single default PWR-C5-125WAC supply runs the switch, and because the hardware carries no PoE budget at all, a second identical supply only adds redundancy rather than power headroom. Standalone switching capacity is 56 Gbps, rising to 136 Gbps once the switch joins a StackWise-80 ring of up to eight C9200L members operating as one virtual switch, and Network Advantage on this hardware layers EIGRP, HSRP, IS-IS, and VRF-lite, VXLAN, and LISP segmentation over the same Network Essentials base that ships on the identical C9200L-24T-4G-E hardware.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9200L-24T-4G-A |
|
Product type |
Fixed-uplink stackable data access switch |
|
Access ports |
24 x 10/100/1000 Mbps data copper ports |
|
Uplink ports |
4 x 1G-only fixed SFP uplink ports |
|
Network license |
Network Advantage |
|
Default power supply |
PWR-C5-125WAC |
|
Default power supply wattage |
125W AC |
|
Power supply slots |
2 slots |
|
Fan design |
2 fixed fans |
|
Stacking architecture |
StackWise-80 |
|
Switching capacity |
56 Gbps standalone; 136 Gbps with stacking |
|
Forwarding rate |
41.67 Mpps standalone; 101 Mpps with stacking |
|
Minimum software release |
Cisco IOS XE Fuji 16.9.2 |
Product Performance
Key Features
The four fixed SFP uplink ports on the C9200L-24T-4G-A accept 1G optics only, with no 10G SFP+ path and no field-added network module, so any BOM built around this SKU commits the uplink media choice at order time rather than leaving room for a later speed upgrade.
Up to eight C9200L-24T-4G-A units can join a single StackWise-80 stack over the dedicated stacking cable, raising switching capacity from 56 Gbps to 136 Gbps and letting a wiring closet grow past 24 ports without adding a second set of uplink cabling.
Ordering the -A suffix keeps this 24-port data switch on Network Advantage, adding EIGRP, HSRP, IS-IS, and VRF-lite, VXLAN, and LISP segmentation on top of the Layer 2 and Routed Access base that Network Essentials already covers on the identical hardware.
The default PWR-C5-125WAC has no PoE output on this data-only variant, so a second supply purchased for this chassis buys redundancy against a power failure rather than added power budget, which simplifies power planning to a pass/fail redundancy decision.
Unlike the FRU-fan C9200 modular line, the C9200L-24T-4G-A ships with fixed, non-swappable fans, so a fan fault on this hardware is a chassis-level RMA event rather than a field fan-module replacement.
Port-based authentication (802.1X) and MACsec-128 link encryption are both part of the Network Essentials feature set carried into this Advantage-tier switch, so authenticated, encrypted wired access does not depend on the EIGRP, HSRP, or segmentation features the Advantage license adds on top.
Application Scenarios
Deployed in a floor wiring closet as the Layer 2/3 access layer, aggregating unpowered desktop switches, routers, and other data-only endpoints that do not draw PoE from the access port.
Used where multiple 24-port access switches need to run as one StackWise-80 virtual switch while carrying Network Advantage features such as VRF-lite or LISP segmentation across the closet.
Installed as the main LAN switch in small branch sites behind a 1G WAN edge, where the 24 data-only copper ports serve desktops and printers and the 1G-only fixed uplinks match the site’s router or distribution handoff.
Product Comparison
|
Parameter |
C9200L-24T-4G-A | |||
|---|---|---|---|---|
|
Access ports |
24 x 10/100/1000 Mbps data copper ports |
48 x 10/100/1000 Mbps data copper ports |
24 x 10/100/1000 Mbps data copper ports |
24 x 10/100/1000 Mbps data copper ports |
|
Uplink architecture |
4 x 1G-only fixed uplink ports |
4 x 1G-only fixed uplink ports |
4 x 1/10G fixed uplink ports |
Modular network-module bay |
|
Network license |
Network Advantage |
Network Advantage |
Network Advantage |
Network Advantage |
|
Default power supply |
PWR-C5-125WAC |
PWR-C5-125WAC |
PWR-C5-125WAC |
PWR-C6-125WAC |
|
PoE support |
No PoE output |
No PoE output |
No PoE output |
No PoE output |
|
Stacking architecture |
StackWise-80 |
StackWise-80 |
StackWise-80 |
StackWise-160 |
|
Switching capacity |
56 Gbps standalone; 136 Gbps with stacking |
104 Gbps standalone; 184 Gbps with stacking |
128 Gbps standalone; 208 Gbps with stacking |
128 Gbps standalone; 288 Gbps with stacking |
|
Forwarding rate |
41.67 Mpps standalone; 101 Mpps with stacking |
77.38 Mpps standalone; 137 Mpps with stacking |
95.23 Mpps standalone; 155 Mpps with stacking |
95.23 Mpps standalone; 214 Mpps with stacking |
|
Minimum software release |
Cisco IOS XE Fuji 16.9.2 |
Cisco IOS XE Fuji 16.9.2 |
Cisco IOS XE Fuji 16.9.1 |
Cisco IOS XE Gibraltar 16.10.1 |
- Moving from the C9200L-24T-4G-A to the C9200L-48T-4G-A keeps the same 1G-only uplink ceiling and StackWise-80 stacking but doubles access-port count to 48 and switching capacity to 104 Gbps standalone; a closet running below half of a 24-port load has no capacity reason to pay for the 48-port chassis.
- Choosing the C9200L-24T-4X-A instead of the C9200L-24T-4G-A trades the same 24-port, Network Advantage, StackWise-80 base for a 4×1/10G uplink lane that can run 10G SFP+ optics, at a jump from 56 Gbps to 128 Gbps standalone switching capacity; a closet whose backbone will stay at 1G for its service life gets no benefit from paying for the 10G-capable uplink hardware.
- Against the C9200-24T-A, the C9200L-24T-4G-A gives up the modular network-module bay and StackWise-160 in exchange for a fixed, factory-set uplink and a lower switching capacity ceiling (56 Gbps versus 128 Gbps standalone); an order that expects to change uplink media more than once over the switch’s service life fits the modular C9200-24T-A better than a fixed-uplink C9200L SKU.
- For deciding which SKU to order in this group, settle the uplink media requirement first, since only the C9200L-24T-4X-A and C9200-24T-A in this comparison can carry 10G uplinks, then size the port count between the 24-port and 48-port C9200L chassis; the Network Advantage license tier is identical across all four models and does not separate them.
Selection Guide
1. 1G-Only Uplink Commits The Backbone Media At Order Time
The C9200L-24T-4G-A’s four uplink ports accept 1G SFP optics only with no field upgrade path to 10G, so an order where the backbone uplink might move to 10G within the switch’s service life should go to the C9200L-24T-4X-A instead, which carries the same 24-port, Network Advantage, StackWise-80 base but adds 10G SFP+ capability on the same uplink lane.
2. Network Essentials Covers The Role When Segmentation Is Not Needed
The C9200L-24T-4G-A ships with Network Advantage; the identical hardware ordered as C9200L-24T-4G-E drops EIGRP, HSRP, IS-IS, and VRF-lite, VXLAN, and LISP segmentation, so a closet that only needs Layer 2 access and Routed Access with basic OSPF can take the C9200L-24T-4G-E at the lower license tier instead of paying for Advantage features it will not configure.
3. No In-Place License Upgrade Once Essentials Is Ordered
Cisco’s ordering guide confirms no in-place upgrade path moves a Network Essentials unit to Network Advantage; a design that expects to need VRF-lite, VXLAN, or LISP segmentation later should order the C9200L-24T-4G-A from the start rather than plan on a license-only upgrade of an Essentials unit.
4. Fixed Uplink Rules Out The Modular C9200-24T-A For Repeat Changes
The C9200-24T-A carries the same 24-port, Network Advantage combination but swaps the fixed uplink for a field-replaceable network-module bay and StackWise-160 stacking; an order that anticipates changing uplink modules more than once, or that wants the higher stacking bandwidth, should route to the modular C9200-24T-A instead of this fixed-uplink C9200L SKU.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Uplink optic type |
Confirm the SFP optic ordered for the 4x1G uplink ports is a 1G-rated module, not a 10G SFP+ part intended for the C9200L-24T-4X-A. |
A 10G SFP+ optic will not operate in this switch’s 1G-only fixed uplink ports. |
|
Stack partner license match |
Confirm every additional unit joining the StackWise-80 ring is also a Network Advantage C9200L SKU. |
C9200L stacking is limited to same-family, same-license-tier members; a mismatched Essentials unit cannot join the same virtual switch. |
|
Subscription tier alignment |
Confirm the Cisco Catalyst or Cisco DNA software subscription term ordered alongside the switch is the Advantage tier, matching the -A hardware suffix. |
Cisco requires the subscription tier to match the perpetual Network Stack license tier; a mismatched Essentials subscription cannot be paired with -A hardware. |
|
Smart Account assignment |
Confirm the target Smart Account and Virtual Account before the order is placed. |
Catalyst 9200 SKUs are Smart Licensing-only; a license activated against the wrong account can stall bring-up. |
|
Stacking cable length |
Confirm the stacking cable length ordered (default 0.5m, or 1m/3m) matches the physical rack spacing between stack members. |
The wrong cable length can leave insufficient reach between rack units or leave excess slack that complicates cable management. |
Optional Add-ons
|
Add-on |
Cisco PID |
Purpose |
|---|---|---|
|
Secondary power supply |
Adds power-supply redundancy; does not add PoE budget on this data-only SKU. | |
|
Stacking cable (1m) |
Longer StackWise-80 cable option for stack members spaced further apart in the rack. | |
|
Stacking cable (3m) |
Extended StackWise-80 cable option for stack members spaced across adjacent racks. | |
|
Stack kit spare |
Spare stacking adapter and cable kit for field replacement. | |
|
19-inch rack mount kit |
RACK-KIT-T1= |
Rack mount kit for 19/23/24-inch and ETSI Type 1 racks. |
|
Recessed 1RU rack mount |
REC-KIT-T1= |
Recessed 1RU rack mount kit for C9200L chassis installation. |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9200L-24T-4G-A | Network license | Network Advantage |
| Access ports | 24 x 10/100/1000 Mbps data copper ports | Uplink ports | 4 x 1G-only fixed SFP uplink ports |
| PoE support | No PoE output | Management port | RJ-45 Ethernet management port |
| Console port | RJ-45 or mini-USB console | Default power supply | PWR-C5-125WAC |
| Default power supply wattage | 125W AC | Power supply slots | 2 slots (dual FRU) |
| Power supply input | 100-240 VAC, 50-60 Hz | Power supply heat output | 426.5 BTU/hr |
| Fan design | 2 fixed fans | Stacking architecture | StackWise-80 |
| Switching capacity | 56 Gbps standalone; 136 Gbps with stacking | Forwarding rate | 41.67 Mpps standalone; 101 Mpps with stacking |
| MAC address table | 16,000 entries | IPv4 routing entries | 3,000 entries |
| IPv6 routing entries | 1,500 entries | Multicast routes | 1,000 entries |
| ACL scale entries | 1,500 entries | QoS scale entries | 1,000 entries |
| Packet buffer | 6 MB | Flexible NetFlow entries | 16,000 flows |
| VLAN IDs | 4094 | SVI | 512 |
| DRAM / Flash | 2 GB DRAM / 4 GB Flash | Jumbo frame support | 9198 bytes |
| Operating temperature | -5C to 45C (up to 1500m); -5C to 40C (up to 3000m) | Storage temperature | -40C to 70C |
| Humidity | 5%-90% non-condensing | Operating altitude | Up to 10,000 ft (3000m) |
| Acoustic noise | LpA 42 dB typical / 45 dB max | Physical dimensions (chassis) | 1.73 x 17.5 x 11.3 in (4.4 x 44.5 x 28.8 cm) |
| Physical dimensions (with fan expansion panel) | 1.73 x 17.5 x 12.9 in (4.4 x 44.5 x 32.9 cm) | Weight | 9.59 lb (4.35 kg) |
| MTBF | 531,030 hours | Minimum software release | Cisco IOS XE Fuji 16.9.2 |
| Safety compliance | IEC/UL/CSA/EN 60950-1 and 62368-1, AS/NZS 60950.1/62368.1 | EMC compliance | CISPR 32/35 Class A, EN 55032/55035, ICES-003 Class A |
| Environmental compliance | RoHS 5 | Warranty | Cisco Enhanced Limited Lifetime Warranty (E-LLW) |
