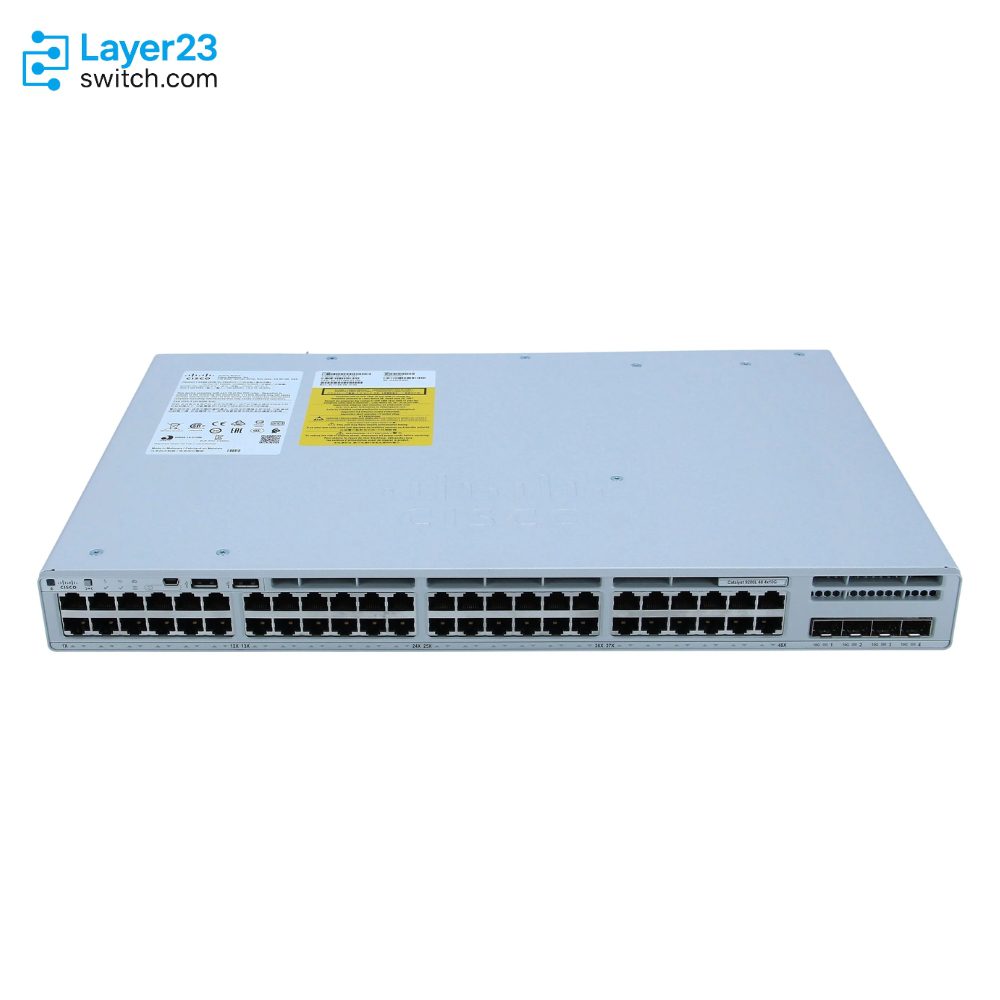

C9200L-48T-4X-A Description

The C9200L-48T-4X-A is a Cisco Catalyst 9200L Series fixed-uplink access switch for closets that terminate data-only endpoints and uplink at 10G. The switch has 48 10/100/1000 ports without PoE, four fixed 1G/10G SFP/SFP+ uplinks, 176 Gbps of switching capacity and a default 125W PWR-C5-125WAC supply. The -A suffix carries Network Advantage, which adds EIGRP, HSRP, IS-IS and VRF, VXLAN and LISP segmentation over the Essentials base.

Quick Specs

Parameter

Specification

Product ID

C9200L-48T-4X-A

Product type

Fixed-uplink stackable data access switch

Downlink ports

48 x 10/100/1000 Mbps data copper ports

Uplink ports

4 x 1/10G fixed SFP/SFP+ uplink ports

Network license

Network Advantage

Default power supply

PWR-C5-125WAC

Default power supply wattage

125W AC

Power supply slots

2 slots

Fan design

2 fixed fans

Stacking architecture

StackWise-80

Switching capacity

176 Gbps standalone; 256 Gbps with stacking

Forwarding rate

130.95 Mpps standalone; 190 Mpps with stacking

Minimum software release

Cisco IOS XE Fuji 16.9.2

Product Performance

Switching Capacity (Standalone)
Switching Capacity With Stacking
Forwarding Rate (Standalone)

Key Features

Fixed 1G/10G Uplinks

Four SFP/SFP+ uplinks are built in and run at 1G or 10G. Switching capacity of 176 Gbps standalone is above the 104 Gbps of the 4G model.

Advantage Segmentation On Data Ports

EIGRP, HSRP, IS-IS and VRF-lite, VXLAN and LISP are available without PoE hardware. A closet can route and segment locally instead of at the distribution switch.

StackWise-80 Ring Of Up To Eight

Members join an 80 Gbps ring that behaves as one virtual switch with sub-50 ms stateful failover. Stack members must share the Advantage license tier.

Application Scenarios

Data-Only Closet With 10G Uplinks

In an office closet with no powered endpoints, the switch terminates 48 copper ports and carries them to the distribution layer over SFP+ uplinks at 10G.

Access-Layer Segmentation

A campus building can keep tenant or department traffic apart at the access switch, since Network Advantage supports VRF-lite and VXLAN on this hardware.

Stacked Wing Expansion

A floor or wing can add the switch to an existing StackWise-80 stack of Network Advantage C9200L members, extending the port count under one management plane.

Product Comparison

Parameter

C9200L-48T-4X-A

C9200L-24T-4X-A

C9200L-48P-4X-A

C9200-48T-A

Downlink ports

48 x 10/100/1000 data

24 x 10/100/1000 data

48 x 10/100/1000 PoE+

48 x 10/100/1000 data

Uplink ports

4 x 1G/10G SFP/SFP+

4 x 1G/10G SFP/SFP+

4 x 1G/10G SFP/SFP+

Modular network-module bay (C9200-NM-4G, C9200-NM-4X)

Network license

Network Advantage

Network Advantage

Network Advantage

Network Advantage

Default AC power supply

PWR-C5-125WAC

PWR-C5-125WAC

PWR-C5-1KWAC

PWR-C6-125WAC

Default PoE budget

No PoE

No PoE

740W

No PoE

Maximum PoE budget

No PoE

No PoE

1440W

No PoE

Stack bandwidth

80 Gbps

80 Gbps

80 Gbps

160 Gbps

Switching capacity

176 Gbps; 256 Gbps with stacking

128 Gbps; 208 Gbps with stacking

176 Gbps; 256 Gbps with stacking

176 Gbps; 336 Gbps with stacking

Forwarding rate

130.95 Mpps; 190 Mpps with stacking

95.23 Mpps; 155 Mpps with stacking

130.95 Mpps; 190 Mpps with stacking

130.95 Mpps; 250 Mpps with stacking

C9200L-48T-4X-A has 48 non-PoE 1G ports and four 1/10G fixed uplinks, and the same hardware as C9200L-48T-4X-E carries Network Essentials, enough where the closet needs only Layer 2, static routing and Routed Access. Powered phones, cameras or access points call for C9200L-48P-4X-A, which swaps in a PWR-C5-1KWAC supply for 740W of PoE. Closets near 24 ports can use C9200L-24T-4X-A at 128 Gbps standalone against 176 Gbps. Where the uplink media may change after the order, or the stack must grow past StackWise-80, C9200-48T-A has a modular network-module bay (C9200-NM-4G or C9200-NM-4X) and StackWise-160, reaching 336 Gbps stacked against 256 Gbps.

Ordering Checklist

  • Subscription tier: Select a 48-port Advantage term: C9200L-DNA-e-48 (Cisco DNA) or C9200L-DNX-e-48 (Cisco Catalyst), for 3, 5 or 7 years. The configurator defaults to a 3-year Cisco DNA term, and the tier must match the Advantage switch suffix.
  • Second power supply: Add a second PWR-C5-125WAC, ordered as PWR-C5-125WAC/2. The switch ships with one supply, and a second adds redundancy only because this model has no PoE.
  • Stack kit: Add C9200L-STACK-KIT, with the default STACK-T4-50CM cable or STACK-T4-1M or STACK-T4-3M. The kit is not shipped with the switch, and it works only with C9200L members of the same license tier.
  • Power cord: Order a country-specific CAB-TA cord rated 10A for the PWR-C5-125WAC supply. The AC supply ships without a cord for the destination country.

Optional Add-ons

Add-on

Description

PWR-C5-125WAC

Second 125W AC power supply for redundancy (this model carries no PoE budget to expand)

C9200L-STACK-KIT

StackWise-80 stack kit with two data stack adapters and one data stack cable (ordered separately)

STACK-T4-1M / STACK-T4-3M

Longer StackWise data stack cables in place of the default 50 cm cable

RACK-KIT-T1=

19/23/24-inch or ETSI Type 1 rack mount kit

4PT-KIT-T2=

Four-point wall or rack mount kit

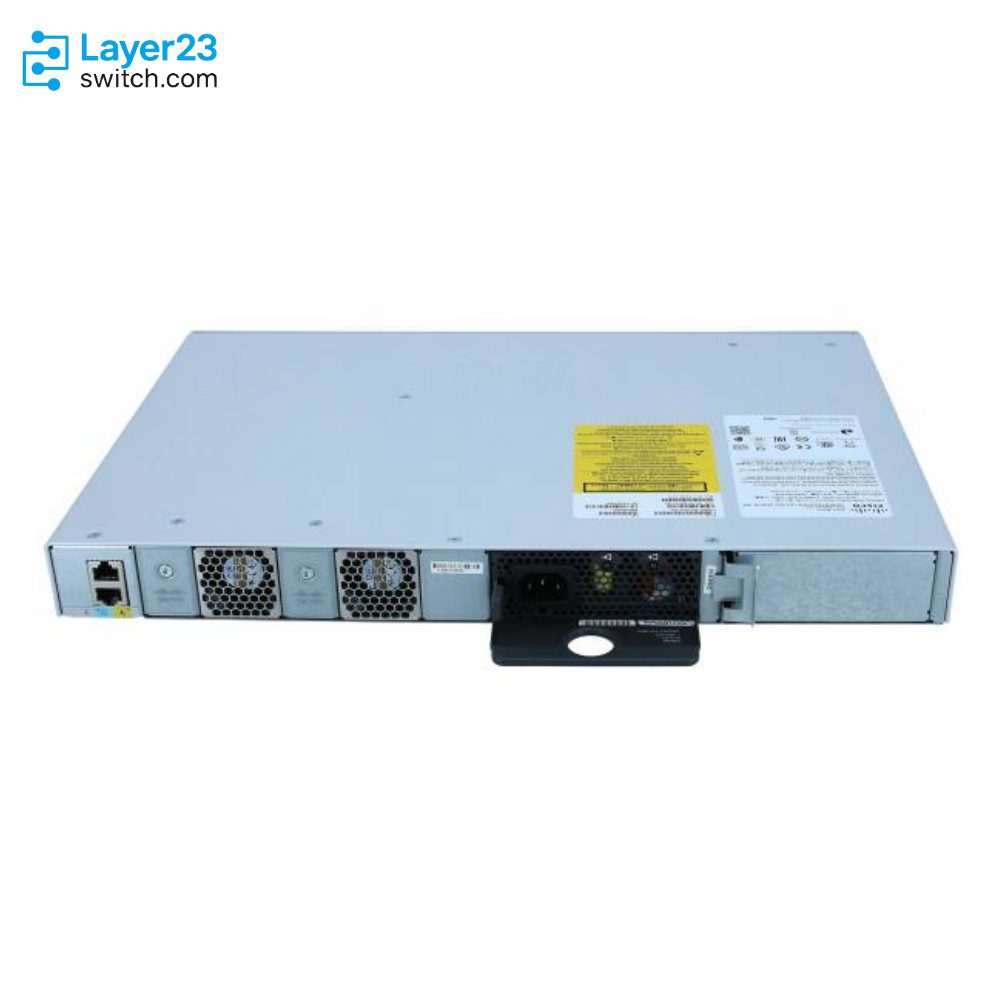

Catalyst 9200L Access Layer Switch Rear Panel

The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.

1

RJ-45 console port

4

Blue Beacon LED

2

Fixed fan modules on C9200L switches

5

MGMT (RJ-45 10/100/1000 management port)

3

Power supply module slots

6

StackWise-80 port connectors

Cisco-Catalyst-9200L Series-Switch-Rear

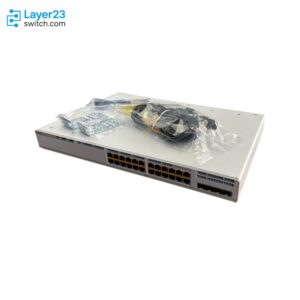

Catalyst 9200L Access Layer Switch Components Delivered in the Shipping Box

The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.

1

Cisco Catalyst 9200 Series switch1 (power supply modules are not displayed)

8

Cable guide

2

AC power cord

9

M4.0 x 20mm Phillips pan-head screw

3

Four rubber mounting feet

10

RJ-45 USB console cable1

4

Two 19-inch mounting brackets

11

(Optional) USB console cable 1

5

4 number-12 pan-head screw

12

(Optional) StackWise cable1 (0.5-meter, 1-meter, or 3-meter)

6

4 number-10 pan-head screws

13

Power cord retainer

7

8 number-8 Phillips flat-head screws

–

–

cisco-catalyst-9200-switch-shipping-box

Specifications

Parameter Specification Parameter Specification
Product ID C9200L-48T-4X-A Network license Network Advantage
Downlink ports 48 x 10/100/1000 Mbps data copper ports (RJ-45, 4-pair Cat 5E UTP) Uplink ports 4 x fixed SFP/SFP+ ports, 1G or 10G optics
Management port RJ-45 Ethernet management port (Cat 5) Console port RJ-45 or mini-USB (USB-C/USB adapter)
Switching capacity 176 Gbps standalone; 256 Gbps with StackWise-80 stacking Forwarding rate 130.95 Mpps standalone; 190 Mpps with stacking
MAC addresses 16,000 entries IPv4 routes 3,000 entries (11,000 IPv4 routes with ARP/learned)
IPv6 routes 1,500 entries Multicast routes 1,000 entries
ACL / QoS scale 1,500 ACL entries; 1,000 QoS entries VLAN IDs 4094
Packet buffer 6 MB FNF flows 16,000
DRAM / flash 2 GB DRAM; 4 GB flash Jumbo frames 9198 bytes
Default power supply PWR-C5-125WAC (125W AC) Power supply slots 2 slots, FRU
Power input 100-240 VAC, 50-60 Hz, IEC 320-C14 inlet Power output / BTU 12V @ 10.5A; 426.5 BTU/hr
PoE support None Fan design 2 fixed fans (non-field-replaceable)
Stacking architecture StackWise-80, up to 8 members, single virtual switch Stacking accessory C9200L-STACK-KIT (two data stack adapters, one cable)
Operating temperature -5C to 45C (up to 1500 m); -5C to 40C (up to 3000 m) Storage temperature -40C to 70C
Humidity / altitude 5%-90% noncondensing; up to 3000 m operating Acoustic noise LpA 42 dB typical / 45 dB max; LwA 5.3 B typical / 5.6 B max
Dimensions 1.73 x 17.5 x 11.3 in chassis (12.9 in with fan/power extension) Weight 4.53 kg (9.97 lb), single power supply
Safety certifications IEC/UL/CSA/EN 60950-1 and 62368-1, AS/NZS 60950.1/62368.1, Class I Equipment EMC certifications FCC Part 15, CISPR 32 Class A, EN 55032 Class A, EN 300 386, ICES-003 Class A, CISPR 35, EN 55035
Environmental compliance RoHS 5 MTBF 503,400 hours
Minimum software release Cisco IOS XE Fuji 16.9.2

Quality Certifications

Customer Reviews

Write A Review
5.0
(15 reviews)
5 Stars
15
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0
    Lori Miller
    Posted on 13/04/2026
    Verified Buyer
    5.0

    Solid product, solid service. Will definitely order again.

    Vincent Jenkins
    Posted on 13/02/2026
    Verified Buyer
    5.0

    We did our homework before ordering. Layer23 checked out on every front.

    David Fischer
    Posted on 05/01/2026
    Verified Buyer
    5.0

    Solid construction throughout. Inspires confidence in long-term use.

    IT Ops
    Posted on 18/09/2025
    Verified Buyer
    5.0

    Shipping to Canada was fast. No issues.

    Luke Cage
    Posted on 15/07/2025
    Verified Buyer
    5.0

    Solid service. Unbreakable reliability.

Questions & Answers

  • Can C9200L-48T-4X-A be stacked?

    Yes. C9200L-48T-4X-A joins a StackWise-80 ring of up to 8 members with 80 Gbps of stack bandwidth that behaves as one virtual switch. Stack members must share the same license tier, and C9200L-STACK-KIT is ordered separately.

  • What does Network Advantage on C9200L-48T-4X-A include?

    Network Advantage on C9200L-48T-4X-A adds EIGRP, HSRP, IS-IS, VRF-lite, VXLAN and LISP over the Essentials base of Layer 2, static routing and Routed Access. The subscription tier must match the Advantage switch suffix, with terms C9200L-DNA-e-48 or C9200L-DNX-e-48.

  • How many access ports can a StackWise-80 stack of C9200L-48T-4X-A reach, and can it mix with C9200 switches?

    A stack of eight C9200L-48T-4X-A switches reaches 384 access ports. Mixed stacks with C9200 modular switches are not supported, because StackWise-160 and StackWise-80 differ in bandwidth. Mixing with Catalyst 9300 or 2960-X/XR switches is also not supported. Every member must run the same license tier, Network Advantage.

  • How does the StackWise-80 ring in a C9200L-48T-4X-A stack reach 80 Gbps?

    Per the Catalyst 9200 StackWise white paper, StackWise-80 uses 4 internal rings at 20 Gbps each. A full ring carries 40 Gbps, and spatial reuse brings the stack to 80 Gbps. The six-ring, 240G and 480G figures sometimes quoted for stacking belong to the Catalyst 3850 and do not apply to C9200L-48T-4X-A.

  • Which power supply models can serve as the second supply in C9200L-48T-4X-A?

    No. The second supply must be identical to the default PWR-C5-125WAC. The only documented exception is the 715W DC supply, which is spare-only, needs IOS XE 17.8.1 and is limited to PoE models, so it does not apply to C9200L-48T-4X-A. Both supply slots are field replaceable.

  • Does C9200L-48T-4X-A support MACsec-256 or only MACsec-128?

    C9200L-48T-4X-A supports MACsec-128 only. On Catalyst 9200, only C9200CX supports MACsec-256, which also needs Network Advantage. MACsec across an intermediate switch was added in IOS XE 16.10.1 for both Network Essentials and Network Advantage on C9200L models, so Advantage does not raise the key length here.

  • What happens to C9200L-48T-4X-A if one of its fixed fans fails?

    The switch has two fixed fans and no fan FRU. Per the Catalyst 9200 datasheet, with a single fan failed it may run at -5 to +45 C, at sea level or up to 3000 m, for at most 96 consecutive hours. The limit is 360 hours or 15 occurrences per year. Replace the switch after that.

  • What MAC address and ACL table sizes does C9200L-48T-4X-A support?

    C9200L-48T-4X-A holds 16,000 MAC addresses, 1,500 ACL entries and 1,000 QoS entries. Its 2 GB of DRAM and 4 GB of flash suit an access closet. The 32,000 MAC table and 4 GB of DRAM belong to C9200 modular switches, so plan aggregation roles elsewhere.

  • How many SD-Access virtual networks can C9200L-48T-4X-A run as a fabric edge?

    C9200L-48T-4X-A supports 1 user VRF when it runs as an SD-Access fabric edge. The 4-VRF scale applies to C9200 modular switches, and 32 VRFs apply only to PB models. Segment more tenants with VRF-lite under Network Advantage, or place the fabric edge role on other hardware.

  • Does installing an SMU on C9200L-48T-4X-A interrupt traffic?

    A cold-patch SMU needs a reload, so traffic stops while the switch restarts. A hot patch needs no reload. Cisco documents cold reload for SMUs in the Catalyst 9200 supplementary notes, so schedule the patch window for a closet switch carrying 48 active ports and four uplinks.

  • What is the chassis depth of C9200L-48T-4X-A, and which rack kits fit it?

    The fixed C9200L chassis is 11.3 in deep. Per the Catalyst 9200 ordering guide, the ACC-KIT-T1= 19-inch kit and the REC-KIT-T1= recessed 1RU kit fit C9200L chassis, in addition to the RACK-KIT-T1= and 4PT-KIT-T2= kits listed on this page. Check cabinet depth before ordering.

Warranty

100% Low Price Guarantee:

Layer23-Switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.

100% Quality Assurance:

All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.

Free CCIE Technical Support:

Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.

100% Money Back Guarantee:

If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly. Visit Return Policy page for more information.

Flexible & Secure Payment and Shipping:

We support multiple secure payment and logistics options, backed by industry-leading verification:

Visit How to Pay page for more information

Warranty Coverage & RMA Instructions

Extended, Worry-Free Warranty Coverage Factory New Sealed Enterprise Hardware:
· 3 Years Factory New Sealed
Visit Warranty Policy page for more information

FREE NETWORK TOOLS

Verify, plan, and comparewith confidence

Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.

EOL EOSL checker
Check lifecycle dates
cisco switch selector tool

Cisco Switch Selector Tool

Filter Cisco switches by ports, uplinks, PoE, performance, features, license, and budget.

Find matching switches >
cisco sn check tool

Cisco Serial Number Lookup

Verify authenticity and identify exactmodel, coverage, and lifecycle detailsusing a Cisco serial number.

Verify a serial number >

Product Comparison

Compare specifications, capabilitiesand form factors side-by-side tochoose the right hardware.

Cisco Compare products >

DataSheet Downloads

  • C9200L-48T-4X-A Datasheet

Related Searches of Catalyst 9200 Switches
