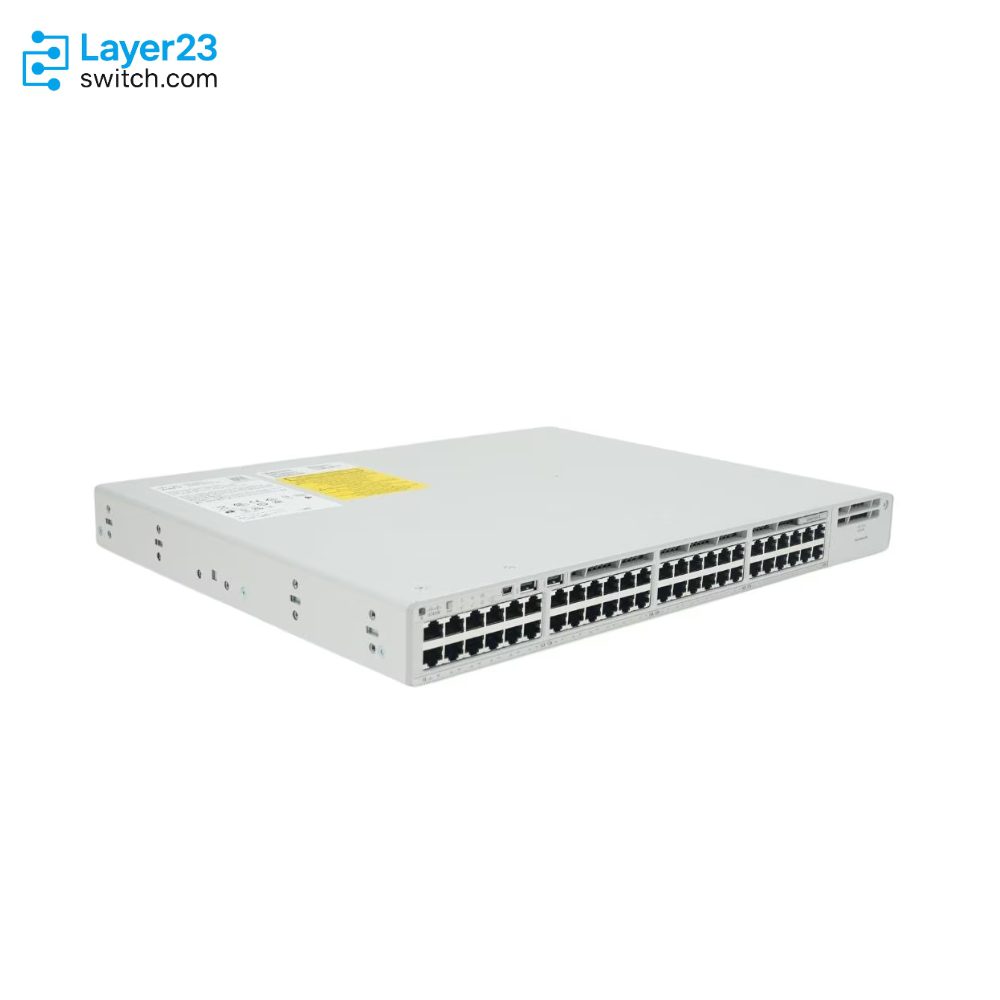

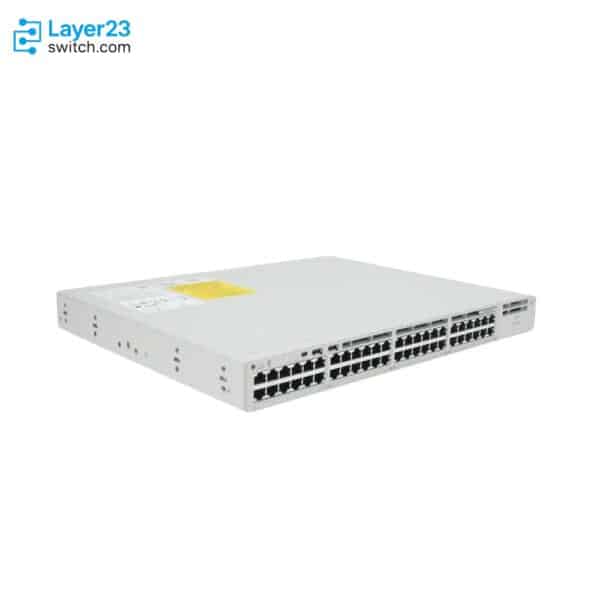

C9200-48T-E Description
The C9200-48T-E is a Cisco Catalyst 9200 Series modular-uplink stackable access switch for branch and campus wiring closets that connect data-only devices. The switch has 48 10/100/1000 copper ports without PoE, a modular uplink slot for C9200-NM-4G or C9200-NM-4X, 176 Gbps of switching capacity and a default PWR-C6-125WAC supply. The -E suffix carries Network Essentials, which covers Layer 2, static routing and OSPF Routed Access up to 1,000 routes but not EIGRP, HSRP or IS-IS.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9200-48T-E |
|
Product type |
Stackable access switch with modular uplinks |
|
Downlink ports |
48 x 1G copper data ports |
|
Uplink architecture |
Modular uplink options |
|
Confirmed uplink modules |
C9200-NM-4G, C9200-NM-4X, C9200-NM-BLANK |
|
Network license |
Network Essentials |
|
Default power supply |
PWR-C6-125WAC |
|
Power supply slots |
2 power supply slots |
|
Stacking architecture |
StackWise-160 |
|
Switching capacity |
176 Gbps standalone; 336 Gbps with stacking |
|
Forwarding rate |
130.95 Mpps standalone; 250 Mpps with stacking |
Product Performance
Key Features
All 48 ports are 10/100/1000 copper ports with no PoE output, and the PWR-C6-125WAC supply is sized for the switch alone.
The single bay takes C9200-NM-4G for four 1G SFP ports or C9200-NM-4X for four 1G/10G SFP+ ports. Uplink speed follows the module that is installed rather than the chassis.
The license covers static routing, PBR, VRRP and Routed Access with RIP, EIGRP Stub and OSPF up to 1,000 routes. EIGRP, HSRP, IS-IS and VRF, VXLAN and LISP segmentation need Network Advantage.
An installed switch can move to Network Advantage with an electronic upgrade license, so the hardware stays in place. The upgrade cannot be added to the switch order.
Up to eight C9200 switches at the same license tier form one 160 Gbps stack with a single management plane and up to 384 access ports.
The power supplies and fan modules are field replaceable, and the second supply slot can hold another PWR-C6-125WAC for redundancy.
Application Scenarios
In a branch or campus wiring closet, the switch gives desktops and printers 48 gigabit data ports while phones and access points are powered by another switch or by injectors.
A site that routes at the distribution layer can run the switch as a pure Layer 2 access device with 802.1X authentication and static uplink routing.
An existing StackWise-160 stack of Network Essentials C9200 members can add 48 data ports by joining the switch as another member.
Product Comparison
|
Parameter |
C9200-48T-E | |||
|---|---|---|---|---|
|
Downlink ports |
48 x 10/100/1000 |
48 x 10/100/1000 |
24 x 10/100/1000 |
48 x 10/100/1000 |
|
PoE type |
None (data only) |
None (data only) |
None (data only) |
PoE+ (30W per port) |
|
Default primary power supply |
PWR-C6-125WAC |
PWR-C6-125WAC |
PWR-C6-125WAC |
PWR-C6-1KWAC |
|
Default PoE budget |
0W (no PoE) |
0W (no PoE) |
0W (no PoE) |
740W (1440W with second supply) |
|
Uplink ports |
Modular network module |
Modular network module |
Modular network module |
Modular network module |
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
Network Essentials |
|
Stack bandwidth |
160 Gbps (StackWise-160) |
160 Gbps (StackWise-160) |
160 Gbps (StackWise-160) |
160 Gbps (StackWise-160) |
|
Switching capacity |
176 Gbps standalone; 336 Gbps with stacking |
176 Gbps standalone; 336 Gbps with stacking |
128 Gbps standalone; 288 Gbps with stacking |
176 Gbps standalone; 336 Gbps with stacking |
C9200-48T-E and C9200-48T-A are identical 48-port data hardware on PWR-C6-125WAC, so the difference is the license: Network Essentials here against Network Advantage, which adds EIGRP, HSRP, IS-IS and VRF, VXLAN and LISP segmentation. A closet that needs those on day one orders C9200-48T-A; an installed C9200-48T-E can be raised later with the C9200-48-E-A upgrade license (C9200-LIC=, 3, 5 or 7 years), which cannot be ordered with the switch. C9200-48P-E adds PoE+ on PWR-C6-1KWAC for powered endpoints, and C9200-24T-E halves the data ports to 24 with 128 Gbps switching instead of 176 Gbps.
Ordering Checklist
- Subscription tier: Select an Essentials 48-port term: C9200-DNA-E-48 with a -3Y, -5Y or -7Y term, or C9200-DNX-E-48-3Y, -5Y or -7Y for Cisco Catalyst. The subscription must match the switch suffix, and the configurator defaults to a 3-year Cisco DNA term.
- Uplink module: Keep C9200-NM-4G or C9200-NM-4X, or select C9200-NM-BLANK. The switch runs only with a network module or a blank module installed.
- Second power supply: A second PWR-C6-125WAC can be added, ordered as PWR-C6-125WAC/2. The switch ships with one 125W supply, and the second adds redundancy only because this model has no PoE.
- Stack kit: Add C9200-STACK-KIT for StackWise-160, which holds two stack adapters and one STACK-T4-50CM cable; STACK-T4-1M and STACK-T4-3M are longer options. The kit does not ship with the switch, and C9200 members stack only with other C9200 members at the same license tier.
- Power cord: Select a cord for the destination country, such as CAB-TA-NA= for North America or CAB-TA-UK= for the UK. An AC power supply needs a cord selected in the configurator.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Catalyst 9200 network module with four 1G SFP slots | |
|
Catalyst 9200 network module with four 10G SFP+ slots | |
|
Blank network module for C9200 when uplink ports are not required | |
|
Stack kit for C9200 SKUs with data stack adapters and a data stack cable | |
|
50 cm data stack cable supplied as the default cable with the stack kit | |
|
1 m data stack cable for Catalyst 9200 Series stacking | |
|
125W AC power supply for C9200 data models | |
|
C9200-DNA-E-48-3Y |
C9200 Cisco DNA Essentials 48-port 3-year term license |
|
C9200-DNA-E-48-5Y |
C9200 Cisco DNA Essentials 48-port 5-year term license |
|
C9200-DNA-E-48-7Y |
C9200 Cisco DNA Essentials 48-port 7-year term license |
Catalyst 9200L Access Layer Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Catalyst 9200L Access Layer Switch Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9200-48T-E | Product type | Stackable access switch with modular uplinks |
| Network license | Network Essentials | Downlink ports | 48 x 1G copper data ports |
| PoE support | No PoE on data model | Uplink architecture | Modular uplink options |
| Confirmed uplink modules | C9200-NM-4G, C9200-NM-4X, C9200-NM-BLANK | Power supply slots | 2 power supply slots |
| Default primary power supply | PWR-C6-125WAC | AC input range | 100 to 240 VAC |
| Power supply slot rule | Second slot ships with a blank module and must be populated for cooling | Fan modules | 2 field-replaceable fans |
| Stacking architecture | StackWise-160 | Stack bandwidth | 160 Gbps |
| Stack members | Up to 8 C9200 stack members | Switching capacity | 176 Gbps standalone; 336 Gbps with stacking |
| Forwarding rate | 130.95 Mpps standalone; 250 Mpps with stacking | Packet buffer | 6 MB for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models | DRAM | 4 GB |
| Flash | 4 GB | VLAN IDs | 4094 |
| Total SVIs | 512 | Jumbo frames | 9198 bytes |
| Dimensions | 1.73 x 17.5 x 13.8 in. (4.4 x 44.5 x 35.0 cm) | Installed dimensions | 1.73 x 17.5 x 15.4 in. (4.4 x 44.5 x 39.1 cm) with fan FRUs and power supplies installed |
| Weight | 5.0 kg (11.02 lb) | Mean time between failures | 571,440 hours |
| Introductory software release | Cisco IOS XE Gibraltar 16.10.1 | Network module operating rule | Operate with a supported network module or blank module installed |
