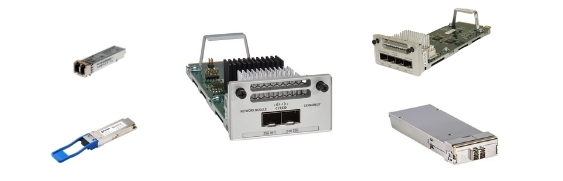

Find compatible network modules, power supplies, fans, optics, cables and spare parts for the Cisco C9200L-48P-4G-E. These accessories support fiber connectivity, hardware replacement, spare inventory and network maintenance projects.-
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $2,658.11.$95.80Current price is: $95.80. Condition: New Factory Sealed -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $1,202.16.$70.00Current price is: $70.00. Condition: New Factory Sealed -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $1,335.73.$57.00Current price is: $57.00. Condition: New Factory Sealed -
GLC-EX-SMD
1000BASE-EX SFP - 40km SMF - DOMOriginal price was: $5,329.57.$205.00Current price is: $205.00. Condition: New Factory Sealed -
GLC-ZX-SMD
1000BASE-ZX SFP - 70km SMF - EXT DOMOriginal price was: $10,672.47.$215.70Current price is: $215.70. Condition: New Factory Sealed
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9200L-48P-4G-E Description

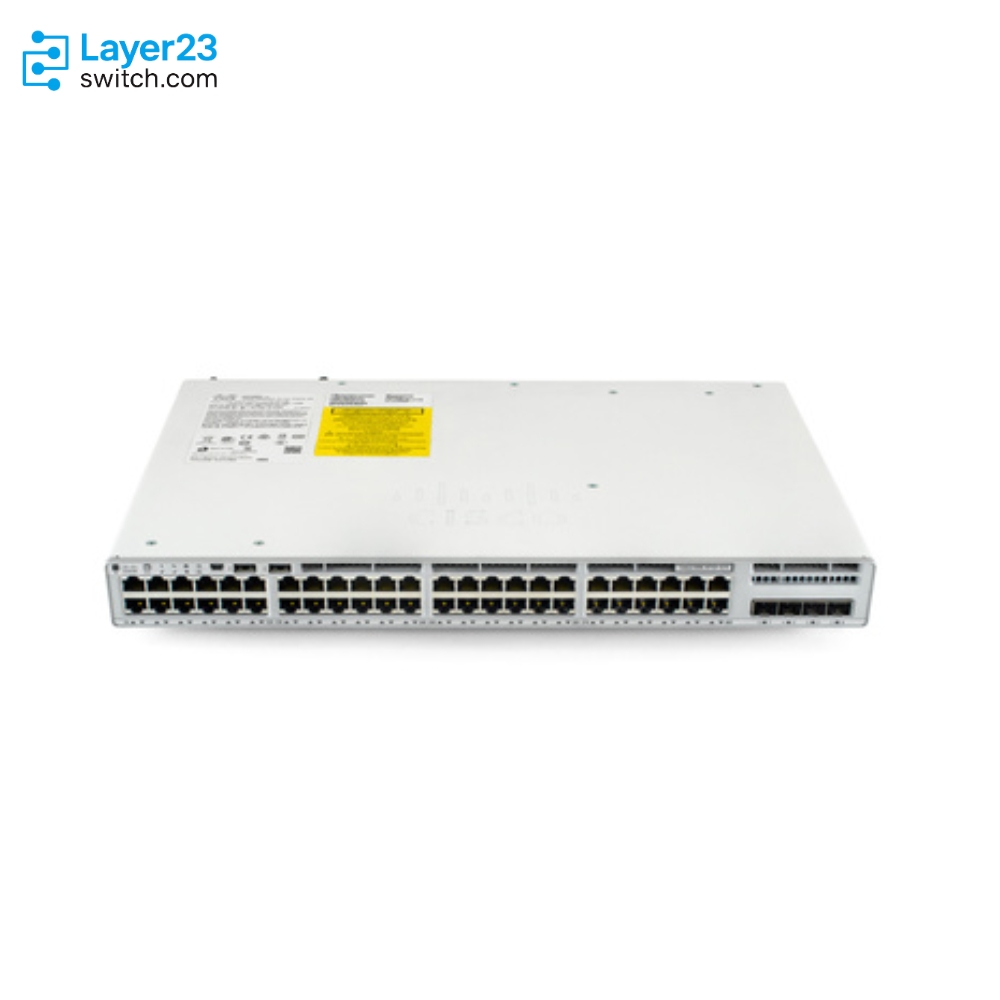

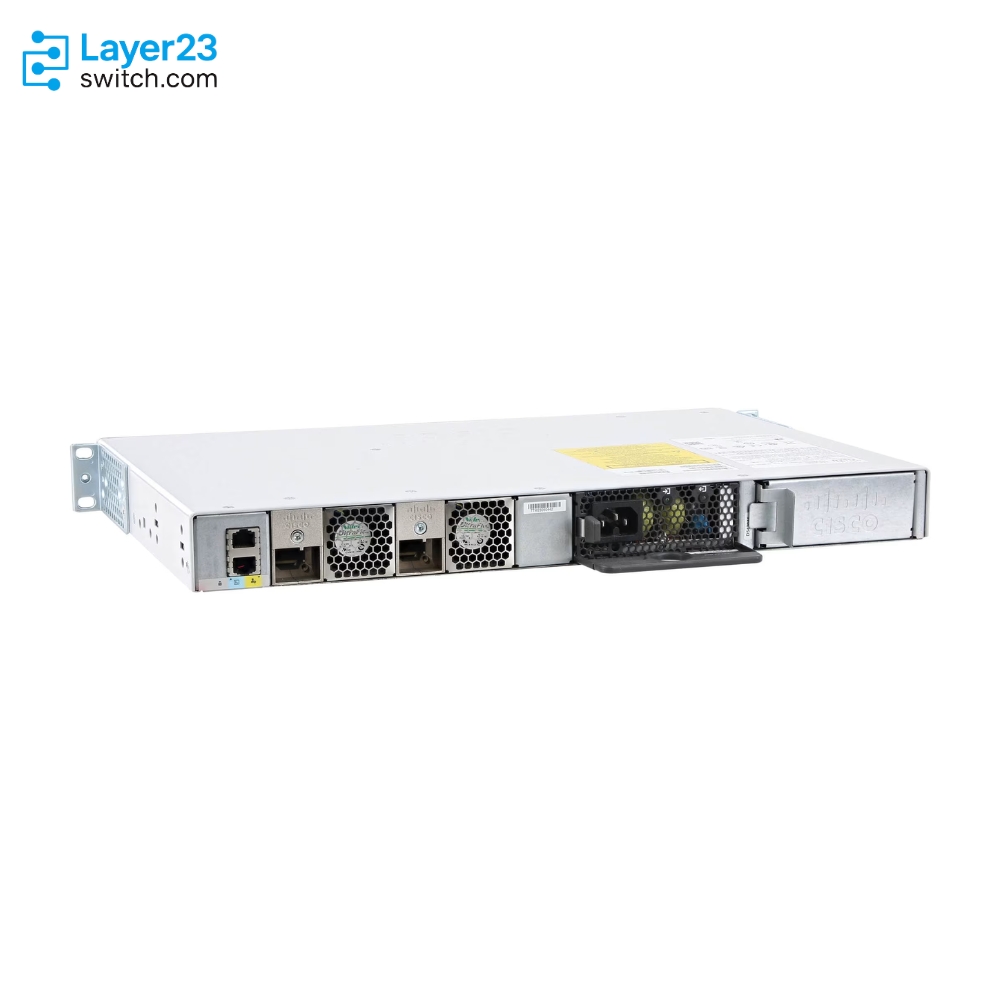

The C9200L-48P-4G-E is a Cisco Catalyst 9200L 48-port PoE+ access switch that ships with Network Essentials and keeps its four SFP uplinks fixed at 1G, matching wiring closets whose backbone handoff stays on 1G fiber. Cisco lists the PID as the Catalyst 9200L 48-port PoE+ 4x1G uplink switch with Network Essentials and rates the hardware at 104 Gbps of standalone switching capacity, rising to 184 Gbps inside a StackWise-80 ring of up to eight same-tier C9200L members. Power for phones, cameras, and wireless access points comes from the default PWR-C5-1KWAC supply, which funds a 740W PoE budget on its own and reaches 1440W when a second 1000W AC unit fills the empty supply slot. The Essentials entitlement on this PID covers Layer 2 access, static routing and Routed Access up to 1000 OSPF routes, QoS, 802.1X, and MACsec-128, which positions the switch for powered access layers that do not call for the VRF-based segmentation reserved for the Network Advantage tier.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9200L-48P-4G-E |
|
Access ports |
48 x 10/100/1000 Mbps PoE+ copper ports |
|
Uplink ports |
4 x 1G fixed SFP uplink ports |
|
Network license |
Network Essentials |
|
Default power supply |
PWR-C5-1KWAC (1000W AC) |
|
Default PoE budget |
740W with one PWR-C5-1KWAC |
|
Maximum PoE budget with second PWR-C5-1KWAC |
1440W |
|
PoE standard |
IEEE 802.3at PoE+, up to 30W per port |
|
Power supply slots |
2 slots, field-replaceable |
|
Stacking architecture |
StackWise-80, up to 8 members |
|
Switching capacity |
104 Gbps standalone; 184 Gbps with stacking |
|
Forwarding rate |
77.38 Mpps standalone; 137 Mpps with stacking |
|
Minimum software release |
Cisco IOS XE Fuji 16.9.2 |
Product Performance
Key Features
The factory PWR-C5-1KWAC alone funds a 740W PoE budget, so a 48-port floor of 802.3at phones, cameras, and access points can go live without committing budget to a second supply on day one.
Adding a second PWR-C5-1KWAC lifts the PoE budget to 1440W, which is exactly 30W across all 48 ports at once, so even a worst-case PoE+ load plan needs one added line item rather than a bigger switch.
The four SFP uplinks accept 1G optics only and there is no module bay to revisit, so a closet whose aggregation handoff is settled at 1G orders one hardware PID with no uplink module decisions attached.
The perpetual Network Essentials entitlement covers Layer 2, static routing, Routed Access with RIP, EIGRP Stub, and OSPF up to 1000 routes, plus 802.1X and MACsec-128, so a powered access closet is not paying for segmentation features it will never enable.
Perpetual PoE maintains PoE+ power to endpoints during a switch reload and Fast PoE restores power after an outage before the operating system fully loads, which shortens recovery for phones and cameras after closet power events.
Up to eight same-tier C9200L members form one virtual switch over the 80 Gbps StackWise-80 ring with stateful failover under 50 ms, so a member failure interrupts far less of the powered floor than a standalone switch outage would.
Application Scenarios
Racked in office floor wiring closets as the access layer, feeding IP phones, wireless access points, and badge or camera endpoints across 48 PoE+ drops while the closet hands traffic to the building core over 1G fiber.
Installed at branch and remote sites where the LAN backbone runs on 1G links and the endpoint mix depends on PoE for power rather than local outlets.
Added as a member of an established same-license-tier C9200L stack when a floor needs more powered access ports under the ring’s single management plane.
Product Comparison
|
Parameter |
C9200L-48P-4G-E | |||
|---|---|---|---|---|
|
Access ports |
48 x 1G PoE+ |
48 x 1G PoE+ |
24 x 1G PoE+ |
48 x 1G data, no PoE |
|
Uplink ports |
4 x 1G fixed |
4 x 1/10G fixed |
4 x 1G fixed |
4 x 1G fixed |
|
Network license |
Network Essentials |
Network Essentials |
Network Essentials |
Network Essentials |
|
Default power supply |
PWR-C5-1KWAC |
PWR-C5-1KWAC |
PWR-C5-600WAC |
PWR-C5-125WAC |
|
Default PoE budget |
740W |
740W |
370W |
No PoE |
|
Maximum PoE budget with second supply |
1440W with second PWR-C5-1KWAC |
1440W with second PWR-C5-1KWAC |
740W with second PWR-C5-600WAC |
No PoE |
|
Stacking architecture |
StackWise-80 |
StackWise-80 |
StackWise-80 |
StackWise-80 |
|
Switching capacity |
104 Gbps standalone; 184 Gbps stacked |
176 Gbps standalone; 256 Gbps stacked |
56 Gbps standalone; 136 Gbps stacked |
104 Gbps standalone; 184 Gbps stacked |
|
Forwarding rate |
77.38 Mpps; 137 Mpps stacked |
130.95 Mpps; 190 Mpps stacked |
41.67 Mpps; 101 Mpps stacked |
77.38 Mpps; 137 Mpps stacked |
- Moving from C9200L-48P-4G-E to C9200L-48P-4X-E keeps the 48 PoE+ ports, the PWR-C5-1KWAC supply, and both PoE budgets unchanged while swapping the 1G-only uplinks for 4×1/10G and lifting standalone capacity from 104 Gbps to 176 Gbps; staying on the 4G build is the right call only when the aggregation handoff is confirmed to remain 1G for the life of the closet.

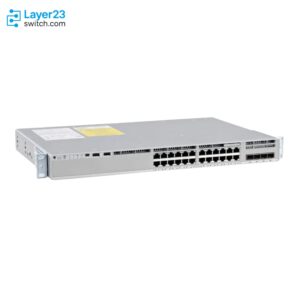

- C9200L-24P-4G-E halves both the port count and the power platform, pairing a PWR-C5-600WAC with a 370W default budget against 740W here, so it fits a floor that stays under 24 powered drops; a site that expects to cross that line outgrows its ports and its PoE budget at the same time.
- C9200L-48T-4G-E strips the PoE budget entirely and drops the default supply from PWR-C5-1KWAC to PWR-C5-125WAC at identical 104 Gbps capacity and 77.38 Mpps forwarding, a saving that only holds when every one of the 48 drops is confirmed non-powered, since a single PoE endpoint anywhere on the floor rules the data-only chassis out.
- For deciding which SKU to order, settle whether endpoints draw PoE first, then size the powered port count, and only then weigh uplink speed, because the Network Essentials tier and StackWise-80 architecture are identical across all four models and do not need to be compared.
Selection Guide

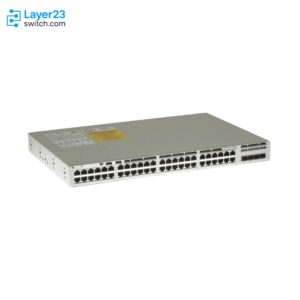

1. Going Advantage Later Means Buying C9200L-48P-4G-A
Network Essentials on this PID is a perpetual entitlement fixed to the hardware suffix, and the Catalyst 9200 ordering guide lists no license-only PID that converts it; when EIGRP, HSRP, or VRF-based segmentation sits anywhere on the roadmap for this closet, ordering C9200L-48P-4G-A up front costs one decision now, while discovering the need after installation costs a full hardware replacement.
2. Uplink Ceiling Splits This From C9200L-48P-4X-E
The four uplinks accept 1G SFP optics only and no module bay exists to change that later; when an aggregation upgrade to 10G is plausible within the switch’s service life, C9200L-48P-4X-E buys that headroom while keeping the same 740W PoE budget and supply, and staying on C9200L-48P-4G-E saves money only if the 1G handoff is permanent.
3. Half The Powered Drops Fit C9200L-24P-4G-E
When the floor terminates 24 or fewer powered endpoints with no growth plan, C9200L-24P-4G-E delivers the same fixed 1G uplinks and Essentials tier on a 600W supply with a 370W default budget; holding the 48-port build instead reserves double the ports and double the default PoE budget on a correspondingly larger power platform.
4. All-Data Closets Point To C9200L-48T-4G-E
If none of the 48 drops powers an endpoint, C9200L-48T-4G-E ships the identical 104 Gbps capacity and 4x1G uplink layout behind a 125W supply, avoiding a PWR-C5-1KWAC and a 740W budget that would sit unused; the PoE+ model stays on the order whenever even a few drops must feed phones or access points, because the data-only chassis has no PoE path at all.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
PoE standard |
IEEE 802.3at PoE+, up to 30W per port on all 48 access ports |
|
Default PoE budget |
740W with the single factory PWR-C5-1KWAC |
|
Maximum PoE budget with second PWR-C5-1KWAC |
1440W, matching 30W on all 48 ports at once |
|
PoE budget with DC supplies |
485W with one PWR-C5-715WDC=; 970W with two; the spare-only PID needs IOS XE 17.8.1 or later |
|
Endpoint draw check |
Total endpoint class draw plus growth against the ordered one- or two-supply configuration |
|
Reload and outage behavior |
Perpetual PoE holds endpoint power through a reload; Fast PoE restores power before the operating system fully loads |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact license suffix |
C9200L-48P-4G-E carries perpetual Network Essentials; the -A suffix on this same hardware carries Network Advantage |
The tier is fixed by the hardware PID, and the ordering guide lists no license-only PID to correct a suffix mix-up later |
|
Subscription attach |
An Essentials-tier 48-port term such as C9200L-DNA-E-48-3Y/5Y/7Y or C9200L-DNX-E-48-3Y/5Y/7Y, under a Smart Account |
Every Catalyst 9200 order requires a matching-tier Cisco DNA or Cisco Catalyst subscription, and Smart Account setup is mandatory at purchase |
|
Stack accessories |
C9200L-STACK-KIT plus the STACK-T4-50CM/1M/3M cable length that suits the rack layout |
The kit is not in the box, and StackWise-80 members must be same-license-tier C9200L units, never C9200 modular switches |
|
Uplink optics |
1G SFP optics validated on the Cisco TMG Compatibility Matrix for this platform |
The fixed uplinks take 1G optic families only, and an unlisted optic can be refused by the port |
|

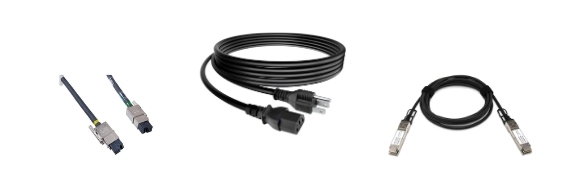

Power cords |
Country-specific CAB-TA cords rated 15A for the 1KW supply class, one per installed supply |
The 1000W AC supply uses a higher-rated cord than the small-supply class, and a missing second cord strands a redundant supply |
|
Software baseline |
Cisco IOS XE Fuji 16.9.2 or later; 17.8.1 or later if the DC supply option is planned |
16.9.2 is the C9200L introductory release, and the PWR-C5-715WDC= spare requires 17.8.1 |
Optional Add-ons
|
Add-on |
Description |
|---|---|
|
Second 1000W AC supply that raises the PoE budget from 740W to 1440W or provides supply redundancy | |
|
715W DC spare supply for C9200L PoE models on IOS XE 17.8.1 or later; 485W PoE alone, 970W as a pair | |
|
StackWise-80 kit with two data stack adapters and one 0.5 m data stack cable (spare PID C9200L-STACK-KIT=) | |
|
1 m and 3 m Type 3 stacking cables in place of the default 0.5 m run | |
|
C9200L-DNA-E-48-3Y/5Y/7Y |
Cisco DNA Essentials 48-port term subscription matching this hardware tier |
|
C9200L-DNX-E-48-3Y/5Y/7Y |
Cisco Catalyst Essentials 48-port term subscription alternative |
|
RACK-KIT-T1= |
19/23/24-inch and ETSI Type 1 rack mount kit beyond the standard 19-inch bracket in the box |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9200L-48P-4G-E | Network license | Network Essentials (perpetual, tied to the hardware PID) |
| Access ports | 48 x 10/100/1000 Mbps PoE+ copper ports (RJ-45, 4-pair Cat 5E UTP) | Uplink ports | 4 x fixed SFP ports, 1G optic families only |
| PoE standard | IEEE 802.3at PoE+, up to 30W per port | PoE resilience | Perpetual PoE and Fast PoE |
| Default PoE budget | 740W with one PWR-C5-1KWAC | Maximum PoE budget with second PWR-C5-1KWAC | 1440W |
| PoE budget with DC supplies | 485W with one PWR-C5-715WDC=; 970W with two | DC supply software requirement | Cisco IOS XE 17.8.1 or later (spare-only PID) |
| Management port | RJ-45 Ethernet management port (Cat 5) | Console port | RJ-45 or mini USB |
| Switching capacity | 104 Gbps standalone; 184 Gbps with stacking | Forwarding rate | 77.38 Mpps standalone; 137 Mpps with stacking |
| MAC address table | 16,000 entries | IPv4 routing entries | 3,000 (11,000 IPv4 routes with ARP and learned routes) |
| IPv6 routing entries | 1,500 | Multicast routes | 1,000 |
| ACL / QoS scale | 1,500 ACL entries; 1,000 QoS entries | VLAN IDs / SVIs | 4094 VLAN IDs; 512 SVIs |
| Packet buffer | 6 MB | FNF flows | 16,000 |
| DRAM / Flash | 2 GB DRAM; 4 GB flash | Jumbo frame | 9198 bytes |
| Stacking architecture | StackWise-80, up to 8 members, single virtual switch | Stacking accessory | C9200L-STACK-KIT (two data stack adapters, one cable) |
| Default power supply | PWR-C5-1KWAC (1000W AC) | Power supply slots | 2 slots, field-replaceable supplies |
| Power input | 100-240 VAC, 50-60 Hz, IEC 320-C16 inlet | Power output / heat dissipation | 54V @ 16.5A; 3412 BTU/hr |
| Fan design | 2 fixed fans (not field-replaceable) | MTBF | 347,760 hours |
| Operating temperature | -5C to +45C up to 1500 m; -5C to +40C up to 3000 m | Storage temperature | -40C to +70C |
| Relative humidity | 5% to 90% noncondensing | Operating altitude | Up to 3000 m |
| Acoustic noise | LpA 42 dB typical, 45 dB max; LwA 5.3 B typical, 5.6 B max | Physical dimensions | 1.73 x 17.5 x 11.3 in (4.4 x 44.5 x 28.8 cm) chassis; 12.9 in (32.9 cm) deep with fan and power unit |
| Weight | 10.58 lb (4.80 kg) with one power supply | Warranty | Cisco Enhanced Limited Lifetime Hardware Warranty (E-LLW) |
| Safety certifications | IEC/UL/CSA/EN 60950-1 and 62368-1, AS/NZS 60950.1/62368.1, Class I equipment | EMC certifications | 47 CFR Part 15, CISPR 32 Class A, EN 55032 Class A, EN 300 386, ICES-003 Class A, CISPR 35, EN 55035 |
| Environmental compliance | RoHS 5 | Minimum software release | Cisco IOS XE Fuji 16.9.2 |
