C9200CX-8P-2XGH-A Description

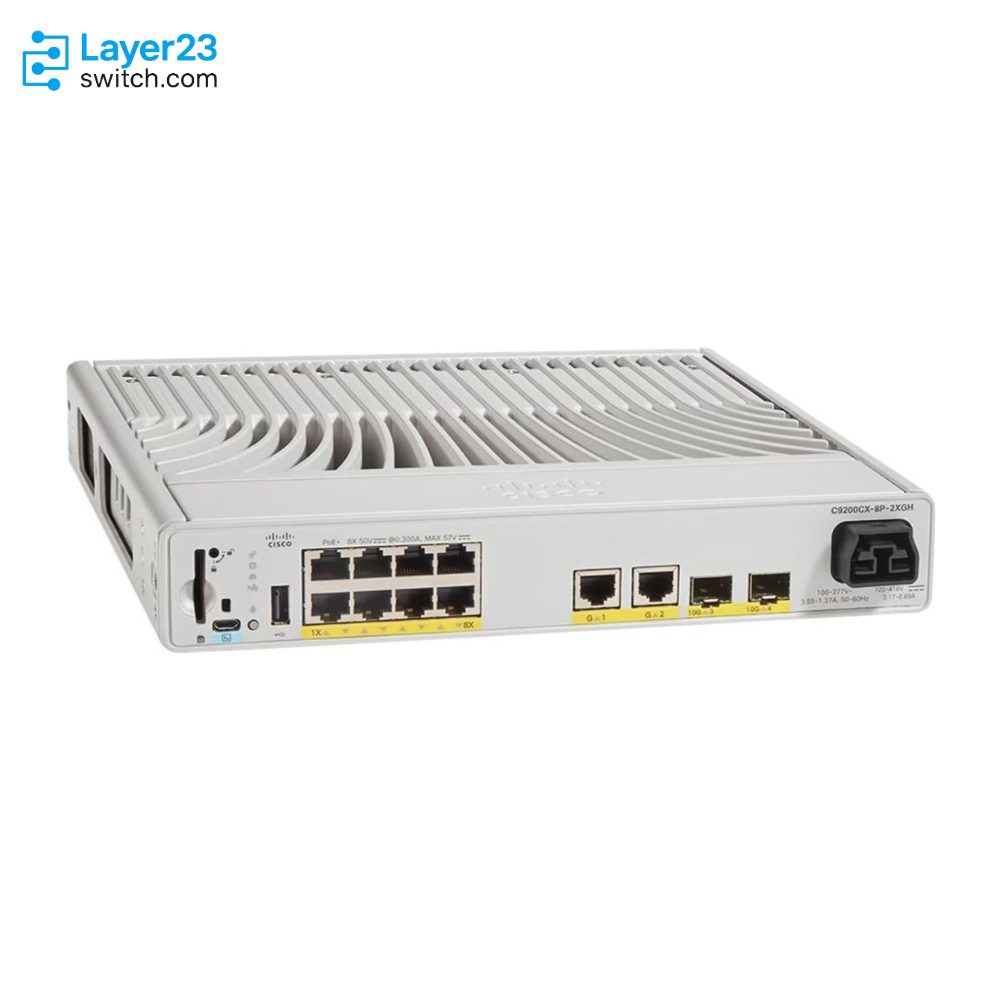

The C9200CX-8P-2XGH-A is a Cisco Catalyst 9200CX Series compact access switch for edge sites that need PoE+ power without a fan. The switch has eight 10/100/1000 PoE+ ports with a 240W PoE budget, two 10G SFP+ and two 1G copper uplinks, and 60 Gbps of switching capacity, all supplied by a fixed 315W HVDC/AC internal power supply. The -A suffix carries Network Advantage, which adds BGP, PTP and MACsec-256, and the switch does not stack.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9200CX-8P-2XGH-A |
|
PoE+ data ports |
8x 10/100/1000 |
|
Fiber uplinks |
2x 10G SFP+ Fixed |
|
Copper uplinks |
2x 1G Fixed |
|
Default power supply |
315W HVDC/AC Internal |
|
Default PoE budget |
240W |
|
Fan modules |
Fanless |
|
Switching capacity |
60 Gbps |
|
Forwarding rate |
44.64 Mpps |
|
Network license |
Network Advantage |
|
Stacking |
Not Supported |
|
Mounting |
Magnetic Tray, DIN Rail, 19-in Rack, Wall, Under-Desk, Tabletop |
|
Weight |
2.99 kg (6.6 lb) |
Product Performance
Key Features
The internal 315W HVDC/AC supply provides 240W of PoE across the eight ports, exactly 30W on each of the eight ports at the 802.3at maximum. The supply is a single fixed unit with no second supply slot.
The supply accepts 100-277 VAC at 50/60 Hz or 120-418 VDC through a Saf-D-Grid inlet, so the same switch fits an AC circuit or a DC microgrid.
On the C9200CX platform, Network Advantage is the tier that enables BGP, PTP and MACsec-256, in addition to EIGRP, HSRP and VRF-based segmentation.
A magnetic tray, DIN-rail bracket, 19-inch rack bracket, wall tray, under-desk mount or rubber feet for tabletop use all fit the 1.73 x 10.6 x 9.6 in chassis.
With no internal fan, the switch makes no fan noise and has no filter to service, which suits occupied or hard-to-reach locations.
A USB Type-A port takes a Cisco flash drive of 128 MB to 8 GB for auto-upgrade, and the Micro-SD slot can boot the switch directly.
Application Scenarios
In a small branch office, the switch powers access points and IP phones from its PoE+ ports and carries their traffic to the site router over the 10G SFP+ uplinks.
Mounted on a DIN rail or wall behind a kiosk or checkout island, the switch powers PoE terminals and cameras and keeps payment traffic in its own VRF.
In a utility room or equipment cabinet with a DC feed, the switch runs from 120-418 VDC and powers PTP-synchronized clocks and monitoring endpoints.
Product Comparison
|
Parameter |
C9200CX-8P-2XGH-A | ||
|---|---|---|---|
|
Downlinks total |
8x 10/100/1000 PoE+ |
12x 10/100/1000 data |
24x 10/100/1000 PoE+ |
|
Default available PoE power |
240W |
Not applicable, PD input only |
370W (740W with a second 600W supply) |
|
Uplink configuration |
2x 1G copper, 2x 10G SFP+ |
2x 1G copper, 1x 1G PD copper, 2x 10G SFP+ |
4x 1G/10G fixed |
|
Default primary power supply |
315W HVDC/AC internal |
None (PD input or optional 80W adapter) |
PWR-C5-600WAC |
|
Network license |
Network Advantage |
Network Advantage |
Network Essentials |
|
Stack bandwidth |
Not supported |
Not supported |
80 Gbps |
|
Switching capacity |
60 Gbps |
70 Gbps |
128 Gbps |
|
Fan modules |
Fanless |
Fanless |
Fixed redundant fans |
C9200CX-8P-2XGH-A is the PoE+ compact model of this group: eight data ports with a 240W PoE budget from a fixed 315W HVDC/AC supply, while C9200CX-12T-2X2G-A has 12 data ports, no PoE output, and takes power through its PD uplink or an optional adapter. Sites with eight or fewer powered endpoints stay on this model. Sites that need 24 PoE+ ports, StackWise-80 stacking or fan-cooled closet mounting should look at C9200L-24P-4X-E, which offers 370W of PoE on one supply and 740W with a second one, on Network Essentials. Sites that need none of BGP, PTP or MACsec-256 can order C9200CX-8P-2XGH-E on identical hardware, and an installed -E unit upgrades later with C9200CX-LIC= (C9200CX-8-E-A), bought separately.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
Default PoE budget |
240W on the internal 315W HVDC/AC supply |
|
Power supply expansion |
Not applicable; this chassis has a single fixed internal supply with no second supply slot |
|
PoE standard supported |
802.3af (15.4W) and 802.3at PoE+ (30W per port) |
|
Device count check |
Confirm total endpoint power draw across all 8 ports against the 240W budget before finalizing the port assignment plan |
|
Power input check |
Confirm whether the install site provides 100-277 VAC or 120-418 VDC to match the supply’s accepted input range |
Ordering Checklist
- Power input: The internal 315W supply takes 120-418 VDC or 100-277 VAC through a Saf-D-Grid connector. No power cord is ordered; the customer supplies the cable and connector, confirmed with the Cisco representative, since the HVDC supply ships without a standard AC cord.
- Subscription tier: Select a Network Advantage subscription matching the -A suffix, such as C9200CX-DNA-A-8 (term PIDs C9200CX-DNAA8-3Y, -5Y or -7Y) or C9200CX-DNXA-8-3Y, -5Y or -7Y. The default is a 3-year Cisco DNA subscription; clear it first to switch to a Cisco Catalyst subscription.
- Console cable: Add a USB micro-B cable, or CAB-CON-USBRJ45 to convert to RJ45. A USB micro-B console cable is not included in the box.
Optional Add-ons
|
Add-on |
Description |
|---|---|
|
C9K-MGNT-TRAY |
Magnetic mounting tray for the compact chassis. |
|
C9K-CMPCT-DIN-MNT |
DIN rail mounting bracket for the compact chassis. |
|
RACKMNT-19-CMPACT |
19-inch rack mounting bracket for the compact chassis. |
|
C9K-WALL-TRAY |
Wall-mount bracket for the compact chassis. |
|
C9K-CMPCT-CBLE-GRD |
Cable guard accessory used with the wall-mount tray. |
|
C9K-CMPCT-DESK-MNT |
Under-desk mounting bracket for the compact chassis. |
|
C9K-ACC-RBFT |
Rubber feet for tabletop placement. |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9200CX-8P-2XGH-A | Network license | Network Advantage |
| PoE+ data ports | 8x 10/100/1000, 802.3af/802.3at | Copper uplinks | 2x 1G fixed |
| Fiber uplinks | 2x 10G SFP+ fixed | Default power supply | 315W HVDC/AC internal (Saf-D-Grid inlet) |
| Default PoE budget | 240W | Power input range | 100-277 VAC 50/60Hz or 120-418 VDC (380 VDC nominal) |
| Power supply count | Single fixed internal supply; not field-replaceable or add-on capable | Power output rating | -55V at 4.5A plus 5V at 14A |
| Switching capacity | 60 Gbps | Forwarding rate | 44.64 Mpps |
| MAC addresses | 32,000 | IPv4 routes (ARP + learned) | 14,000 (10,000 direct + 4,000 indirect) |
| IPv4 routes | 4,000 | IPv6 routes | 2,000 |
| Multicast routes | 1,000 | ACL entries | 1,600 |
| QoS entries | 1,000 | Packet buffer | 6 MB |
| FNF flows | 16,000 | DRAM / flash | 4 GB / 8 GB (plus up to 4 GB Micro-SD expansion) |
| VLAN IDs | 4094 | Jumbo frames | 9198 bytes |
| SVI | 512 | PVST instances | 128 |
| SD-Access virtual networks | 16 | Stacking | Not supported |
| Fan modules | Fanless | Console port | USB Micro-B (CAB-CON-USBRJ45 adapter available for RJ45) |
| USB port | USB Type-A port for 128 MB-8 GB flash drives | Micro-SD slot | Micro-SD card slot |
| Asset tracking | Built-in passive UHF RFID tag; front-only blue beacon LED | Dimensions | 1.73 x 10.6 x 9.6 in (4.4 x 26.9 x 24.4 cm) |
| Weight | 2.99 kg (6.6 lb) | Operating temperature | -5°C to 45°C (23°F to 113°F) |
| Storage temperature | -40°C to 70°C (-40°F to 158°F) | Operating humidity | 5% to 90% noncondensing |
| Operating altitude | Up to 10,000 ft (3000 m) | MTBF | 734,030 hours |
| Mounting | Magnetic tray, DIN rail, 19-inch rack bracket, wall-mount tray, under-desk mount, tabletop rubber feet | Safety certifications | IEC/UL/CSA/EN 60950-1 and 62368-1, AS/NZS 60950.1/62368.1, Class I Equipment |
| EMC certifications | CISPR 32/35 Class A, EN 55032/55035, FCC Part 15, ICES-003 Class A | Environmental compliance | RoHS 5 |
Get More Information
Need pricing, stock, or shipping details for the C9200CX-8P-2XGH-A ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What power input connectors does C9200CX-8P-2XGH-A use?
-
How many SD-Access access tunnels does C9200CX-8P-2XGH-A support in standalone mode?
-
Does C9200CX-8P-2XGH-A support Perpetual PoE and Fast PoE?
-
Which routing protocols does C9200CX-8P-2XGH-A run with Network Advantage?
-
Does C9200CX-8P-2XGH-A support VRF, VXLAN, LISP and SGT segmentation?
-
How many VLAN IDs does C9200CX-8P-2XGH-A support?
