C9200L-24P-4G-A – 24x1G PoE+ Ports – 4x1G SFP Uplinks – 370W PoE Budget
Shop Expert-Recommended Accessories for the C9200L-24P-4G-A
Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.-
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $1,260.58.$95.80Current price is: $95.80. -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $570.10.$70.00Current price is: $70.00. -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $633.46.$59.00Current price is: $59.00. -
GLC-EX-SMD
1000BASE-EX SFP - 40km SMF - DOMOriginal price was: $2,527.49.$205.00Current price is: $205.00. -
GLC-ZX-SMD
1000BASE-ZX SFP - 70km SMF - EXT DOMOriginal price was: $5,061.30.$215.70Current price is: $215.70. -
C9200L-STACK-KIT
StackWise-80 Bandwidth - 2 Adapters and Cable - Catalyst 9200L Stack KitOriginal price was: $1,628.51.$495.00Current price is: $495.00. -
STACK-T4-50CM
50 cm Data Stack Cable - Catalyst 9200 and 9200L Stack Kit Default - StackWise-160/80Original price was: $143.20.$66.00Current price is: $66.00. -
STACK-T4-1M
1 m Data Stack Cable - Catalyst 9200 and 9200L - StackWise-160/80Original price was: $277.26.$146.00Current price is: $146.00. -
STACK-T4-3M
3 m Type 3 Stacking Cable - Catalyst 9200 and 9200L - StackWise-160/80Original price was: $415.89.$194.00Current price is: $194.00. -
PWR-C5-600WAC
600W AC PSU - Catalyst 9200L PoE ModelsOriginal price was: $2,772.59.$425.00Current price is: $425.00.
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.

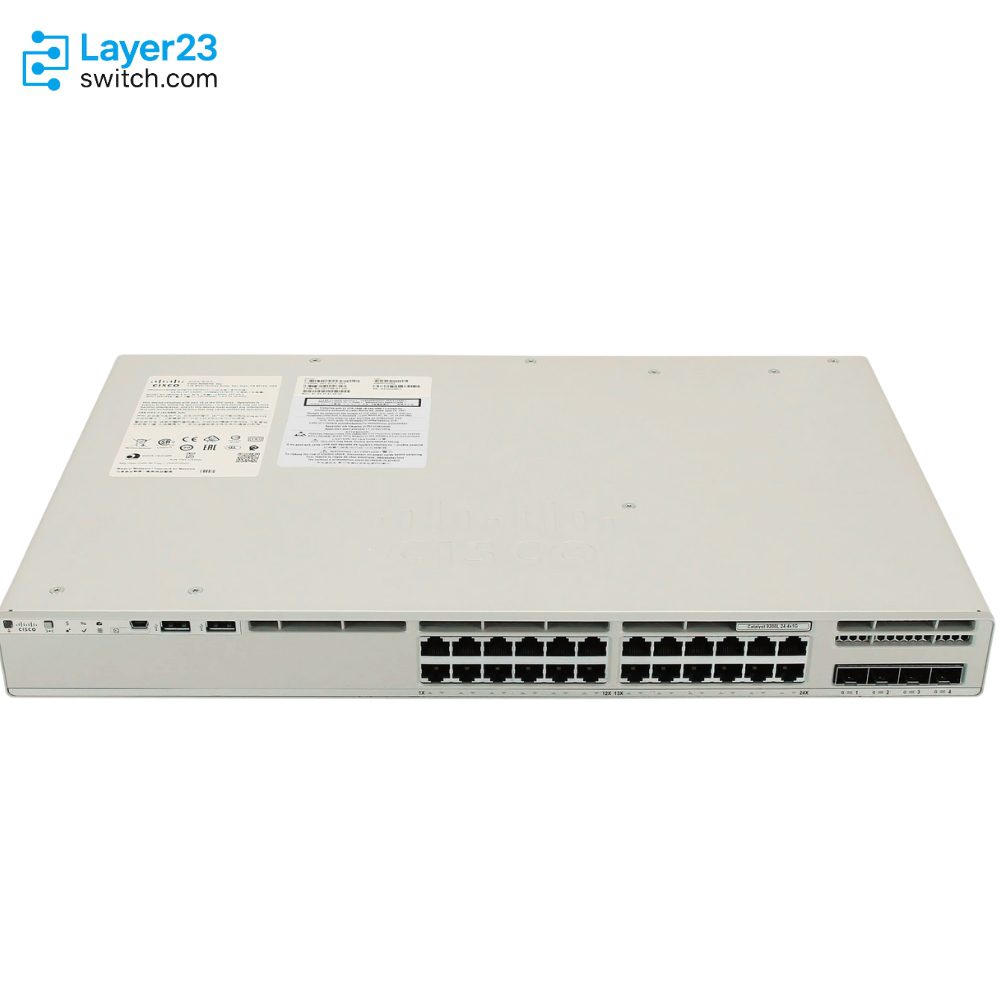

C9200L-24P-4G-A Description
The C9200L-24P-4G-A is a Cisco Catalyst 9200L fixed-uplink stackable access switch for wiring closets that power phones and access points over PoE+. The switch has 24 1G PoE+ ports and four fixed 1G SFP uplinks, with a 370W PoE budget from its default PWR-C5-600WAC supply, 740W with a second one, and StackWise-80 at 80 Gbps. The -A suffix carries Network Advantage, which adds HSRP, IS-IS and VRF segmentation, and stack members must share one license tier.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9200L-24P-4G-A |
|
Product type |
Fixed-uplink stackable access switch |
|
Downlink ports |
24 x 1G PoE+ copper ports |
|
Uplink ports |
4 x 1G SFP fixed uplink ports |
|
Network license |
Network Advantage |
|
Stacking architecture |
StackWise-80 |
|
Stack bandwidth |
80 Gbps |
|
Switching capacity |
56 Gbps standalone; 136 Gbps with stacking |
|
Forwarding rate |
41.67 Mpps standalone; 101 Mpps with stacking |
|
Default PoE budget |
370W with one PWR-C5-600WAC |
|
Expanded PoE budget |
740W with a second PWR-C5-600WAC |
|
Default power supply |
PWR-C5-600WAC |
Product Performance
Key Features
The default supply gives a 370W PoE budget, about 15W per port if all 24 ports draw power at once. That covers phones and most access points, while a full load of 30W devices needs more power.

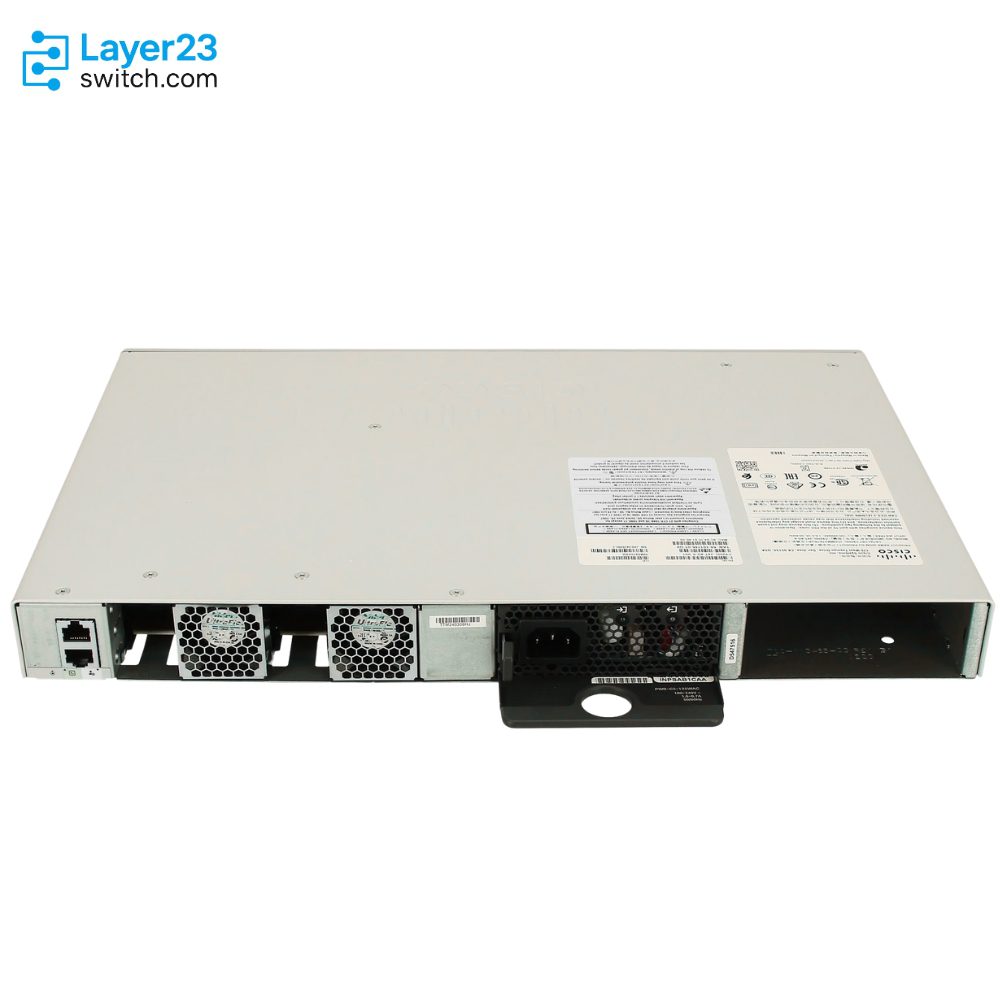

The chassis has two supply bays. A second PWR-C5-600WAC can back up the first or raise the budget to 740W, though 24 PoE+ ports cap total PoE at 720W.
Four 1G SFP uplinks are built in, and there is no network-module slot to change them. The 24 access ports can send 24 Gbps toward those uplinks, a 6:1 ratio when all four are in use.
Up to eight Catalyst 9200L switches stack at 80 Gbps and run with one management and control plane. All members need the same license tier, and Catalyst 9200 modular-uplink models cannot join.
This tier adds HSRP, IS-IS and fuller EIGRP over Network Essentials, together with VRF, VXLAN, LISP and SGT segmentation. The access layer can then take part in routing and tenant separation.
The tables hold 16,000 MAC addresses, 3,000 IPv4 and 1,500 IPv6 routing entries and 1,500 ACL entries on 2 GB of DRAM. Routes learned in a routed-access closet must fit inside those IPv4 entries.
Application Scenarios
In a branch wiring closet, the switch powers IP phones and wireless access points from its 24 PoE+ ports and sends their traffic to the site router over a 1G SFP uplink.
On a floor shared by several tenants or departments, the switch keeps each group in its own VRF at the access layer before traffic reaches distribution.
When a closet outgrows 24 ports, a second Catalyst 9200L on the same license tier joins the stack and the two switches are managed as one.
Product Comparison
|
Parameter |
C9200L-24P-4G-A | |||
|---|---|---|---|---|
|
Downlinks total 10/100/1000 or PoE+ copper ports |
24 x 1G PoE+ |
24 x 1G PoE+ |
24 x 1G PoE+ |
48 x 1G PoE+ |
|
Uplink configuration |
4 x 1G SFP fixed |
4 x 1G SFP fixed |
4 x 1G/10G SFP+ fixed |
4 x 1G SFP fixed |
|
Network license |
Network Advantage |
Network Essentials |
Network Advantage |
Network Advantage |
|
Default power supply |
PWR-C5-600WAC |
PWR-C5-600WAC |
PWR-C5-600WAC |
PWR-C5-1KWAC |
|
Default available PoE power |
370W |
370W |
370W |
740W |
|
Maximum PoE power with additional secondary power supply |
740W |
740W |
740W |
1440W |
|
Switching capacity |
56 Gbps |
56 Gbps |
128 Gbps |
104 Gbps |
|
Forwarding rate |
41.67 Mpps |
41.67 Mpps |
95.23 Mpps |
77.38 Mpps |
|
Stacking bandwidth support |
80 Gbps (StackWise-80) |
80 Gbps (StackWise-80) |
80 Gbps (StackWise-80) |
80 Gbps (StackWise-80) |
C9200L-24P-4G-A and C9200L-24P-4X-A share 24 PoE+ ports and a 370W default budget, but C9200L-24P-4X-A has 4 fixed 1G/10G uplinks and 128 Gbps of switching capacity against 4 fixed 1G SFP uplinks and 56 Gbps, so any distribution link that will run 10G needs the 4X model. Closets with more than 24 powered drops need C9200L-48P-4G-A, which comes with PWR-C5-1KWAC for a 740W default budget and 1440W with a second supply. Sites that use none of EIGRP, HSRP, IS-IS or VRF segmentation can take C9200L-24P-4G-E on the same hardware with Network Essentials; every stack member must carry the same tier.
PoE Power Planning
|
Planning Item |
Cisco Confirmed Value |
Order Impact |
|---|---|---|
|
PoE standard |
IEEE 802.3at PoE+ up to 30W per port on Catalyst 9200 Series switches |
Match endpoint count and endpoint power draw to the available power budget |
|
PoE budget with default supply |
PWR-C5-600WAC provides 370W available PoE power on C9200L-24P-4G-A |
Keep the endpoint budget within the single-supply limit if no second supply is ordered |
|
PoE with secondary supply |
A second PWR-C5-600WAC raises available PoE power to 740W |
Add the second supply when the access design needs more PoE headroom or redundancy |
|
DC spare option |
PWR-C5-715WDC= is spare-only and supported on C9200L PoE models with IOS XE 17.8.1 and later |
Treat DC power as a software and spare-part compatibility check |
Ordering Checklist
- Subscription: Select a Network Advantage 24-port term: Cisco DNA (C9200L-DNA-A-24, 3Y, 5Y or 7Y) or Cisco Catalyst (C9200L-DNX-A-24, 3Y, 5Y or 7Y). The subscription must match the -A hardware tier, and the order defaults to a 3-year Cisco DNA term.
- Second power supply: PWR-C5-600WAC is the default; a second PWR-C5-600WAC raises PoE from 370W to 740W. A single supply leaves the 24 PoE+ ports without full budget.
- Stack kit: Add C9200L-STACK-KIT, with two stack adapters and one STACK-T4-50CM cable; STACK-T4-1M and STACK-T4-3M are the longer options. The kit does not come with the switch and works only between C9200L models of the same license tier.
- Power cord: Order a CAB-TA-* cord for the destination country, such as CAB-TA-NA= or CAB-TA-UK=. The AC supply needs a country-specific cord ordered with it.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Stack kit for C9200L SKUs with two data stack adapters and one data stack cable | |
|
50 cm data stack cable supplied as the default cable with the stack kit | |
|
1 m data stack cable for Catalyst 9200 Series stacking | |
|
600W AC power supply used as the default and secondary AC power supply for C9200L-24P-4G-A | |
|
715W DC power supply spare supported on C9200L PoE models with IOS XE 17.8.1 and later | |
|
C9200L-DNA-A-24-3Y |
C9200L Cisco DNA Advantage 24-port 3-year term license |
|
C9200L-DNA-A-24-5Y |
C9200L Cisco DNA Advantage 24-port 5-year term license |
|
C9200L-DNA-A-24-7Y |
C9200L Cisco DNA Advantage 24-port 7-year term license |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9200L-24P-4G-A | Product type | Fixed-uplink stackable access switch |
| Network license | Network Advantage | Downlink ports | 24 x 1G PoE+ copper ports |
| Uplink ports | 4 x 1G SFP fixed uplink ports | Modular uplinks | No for C9200L fixed-uplink models |
| Power supply slots | 2 slots | Default power supply | PWR-C5-600WAC |
| Fan design | 2 fixed fans with redundancy support | Stacking architecture | StackWise-80 |
| Stack bandwidth | 80 Gbps | Supported stack members | Other C9200L models with the same license level |
| Switching capacity | 56 Gbps standalone; 136 Gbps with stacking | Forwarding rate | 41.67 Mpps standalone; 101 Mpps with stacking |
| PoE standards | IEEE 802.3at PoE+ up to 30W per port | Default PoE budget | 370W with PWR-C5-600WAC |
| PoE budget with second supply | 740W with second PWR-C5-600WAC | Optional DC power supply | PWR-C5-715WDC= spare supported on C9200L PoE models with IOS XE 17.8.1 and later |
| DRAM | 2 GB | Flash | 4 GB |
| MAC addresses | 16,000 | IPv4 routes | 11,000 total with 8,000 direct and 3,000 indirect routes |
| Packet buffer | 6 MB for 24- or 48-port Gigabit Ethernet C9200L models | Flexible NetFlow entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| Dimensions | 1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm) | Installed dimensions | 1.73 x 17.5 x 12.9 in. (4.4 x 44.5 x 32.9 cm) with fan FRUs and power supplies installed |
| Weight | 4.71 kg (10.4 lb) with one power supply installed | Operating temperature | -5°C to 45°C (23°F to 113°F) |
| Operating altitude | Up to 10,000 ft (3000 m) | MTBF | 392,210 hours |
Get More Information
Need pricing, stock, or shipping details for the C9200L-24P-4G-A ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What must be ordered to stack two C9200L-24P-4G-A switches?
-
Can C9200L-24P-4G-A run on a 715W DC power supply?
-
How long can C9200L-24P-4G-A run after a fan failure?
-
How many user VRFs does C9200L-24P-4G-A support as an SD-Access fabric edge?
-
What routing limit applies to C9200L-24P-4G-A under Network Advantage?
