Can C9200-24T-E be stacked?

Yes, C9200-24T-E joins a StackWise-160 stack of up to 8 Catalyst 9200 modular-uplink switches at the same license level. Catalyst 9200L switches cannot join, and each member needs C9200-STACK-KIT, which is ordered separately.

What does Network Essentials on C9200-24T-E include?

Network Essentials on C9200-24T-E covers Layer 2, static routes, PBR, VRRP and Routed Access with RIP, EIGRP Stub and OSPF up to 1,000 routes. Full EIGRP, HSRP, IS-IS and VRF, VXLAN or LISP segmentation need Network Advantage.

What MACsec key length does C9200-24T-E support?

C9200-24T-E supports MACsec-128, which Network Essentials includes. MACsec-256 requires Network Advantage, and on Catalyst 9200 only the C9200CX models implement it, so C9200-24T-E stays at 128-bit even after a license change. Catalyst 9300 and larger platforms support 256-bit MACsec with Network Advantage.

Must every member of a stack with C9200-24T-E run the same license?

Yes. Every member of a StackWise-160 stack with C9200-24T-E must share the same license tier, so Network Advantage members such as C9200-24T-A cannot join an Essentials stack. A stack holds up to 8 members and runs SSO with sub-50 ms failover, so order and license all members together.

Which stack kit and cables does C9200-24T-E use for StackWise-160?

Stack hardware for C9200-24T-E is a separate order line. C9200-STACK-KIT holds two data stack adapters and one data stack cable, and the default cable is STACK-T4-50CM. Longer runs use STACK-T4-1M or STACK-T4-3M, and spare units carry the = suffix.

Which STP and VLAN limits apply on C9200-24T-E?

C9200-24T-E is limited to 512 switched virtual interfaces and 128 PVST instances, with 13,000 STP virtual ports for PVST and MST. It handles 4,094 VLAN IDs, and jumbo frames are limited to 9198 bytes, per Table 8 of the Catalyst 9200 data sheet. Keep spanning-tree designs inside these values.

Can a second power supply in C9200-24T-E add PoE?

No. C9200-24T-E has no PoE, so a second supply adds redundancy only. The second supply is normally the same model as the first. The PWR-C6-715WDC= DC supply, which needs IOS XE 17.8.1 or later, is limited to PoE models and does not apply to this switch.

What does C9200-24T-E draw at idle with a C9200-NM-4G installed?

With a C9200-NM-4G installed and no PoE load, C9200-24T-E draws about 30.65W with no links up on 115 VAC. Under 100% traffic the draw reaches 42.27W. Both readings come from Table 20 of the Catalyst 9200 data sheet, which gives slightly higher values when a C9200-NM-4X is installed.

C9200-24T-E – 24x1G Data Ports – Modular Uplink – Network Essentials

Name: C9200-24T-E - Cisco 24-Port Modular Access Switch
Brand: Cisco
SKU: C9200-24T-E
Price: 1001.75 USD
Availability: InStock
Rating: 5.00 (14 reviews)

Brand: Cisco Category: Catalyst 9200 Switches Model: C9200-24T-E

Rated 5 out of 5 based on 14 customer ratings

5.014 reviews8 Questions15 sold this month

List Price: ~~$4,046.95~~ 75% OFF

$1,001.75

Price Alert

In StockShips in as little as 1 business day Brand New

Related models

Cisco SN CheckSN verification before shipment.Verify authenticity3-Year WarrantyExtended, enterprise-gradeWarranty terms14-Day ReturnsStraightforward RMA processReturn policyExpress Shipping2-6 Business Daysvia UPS, FedEx, DHL and more

Trusted & Secure Payments

Shop Expert-Recommended Accessories for the C9200-24T-E

Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.

SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMF
Original price was: $853.95.Current price is: $52.00.
SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4
Original price was: $1,213.85.Current price is: $91.68.
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMF
Original price was: $2,439.88.Current price is: $150.00.
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km Reach
Original price was: $4,873.66.Current price is: $149.00.
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOM
Original price was: $1,260.58.Current price is: $95.80.
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m Reach
Original price was: $570.10.Current price is: $70.00.
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOM
Original price was: $633.46.Current price is: $59.00.
GLC-EX-SMD
1000BASE-EX SFP - 40km SMF - DOM
Original price was: $2,527.49.Current price is: $205.00.
GLC-ZX-SMD
1000BASE-ZX SFP - 70km SMF - EXT DOM
Original price was: $5,061.30.Current price is: $215.70.
C9200-STACK-KIT
StackWise-160 Bandwidth - 2 Adapters and Cable - Catalyst 9200 Stack Kit
Original price was: $1,628.51.Current price is: $445.00.
STACK-T4-50CM
50 cm Data Stack Cable - Catalyst 9200 and 9200L Stack Kit Default - StackWise-160/80
Original price was: $143.20.Current price is: $66.00.
STACK-T4-1M
1 m Data Stack Cable - Catalyst 9200 and 9200L - StackWise-160/80
Original price was: $277.26.Current price is: $146.00.
STACK-T4-3M
3 m Type 3 Stacking Cable - Catalyst 9200 and 9200L - StackWise-160/80
Original price was: $415.89.Current price is: $194.00.
C9200-NM-4G
4x1G SFP Uplinks - Network Module - Catalyst 9200 Modular Switches
Original price was: $657.40.Current price is: $256.00.
C9200-NM-4X
4x10GE SFP+ Ports - Catalyst 9200 Module
Original price was: $2,578.21.Current price is: $658.00.
PWR-C6-125WAC=
125W AC PSU - Catalyst 9200 Data Switches
Original price was: $1,651.67.Current price is: $529.00.

Why Layer23-Switch

Stocked, Shipped and Supported by One Team

Founded

Customers

Units shipped

Countries

Inventory You Can See

Cisco stock on hand

Models ready to ship

Warehouse space

Ships in 1 Business Day

In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.

DHL FedEx UPS Duties included: US · CA · UK

LSCare Warranty

3years on enterprise equipment

Advance replacement for in-stock models
New unit for dead-on-arrival
14-day returns on sealed items

Free CCIE Support

Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.

Part number check Configuration Troubleshooting

Verify Before You Pay

100%factory-sealed

Get label and serial photos before shipment, and check every serial number with Cisco.

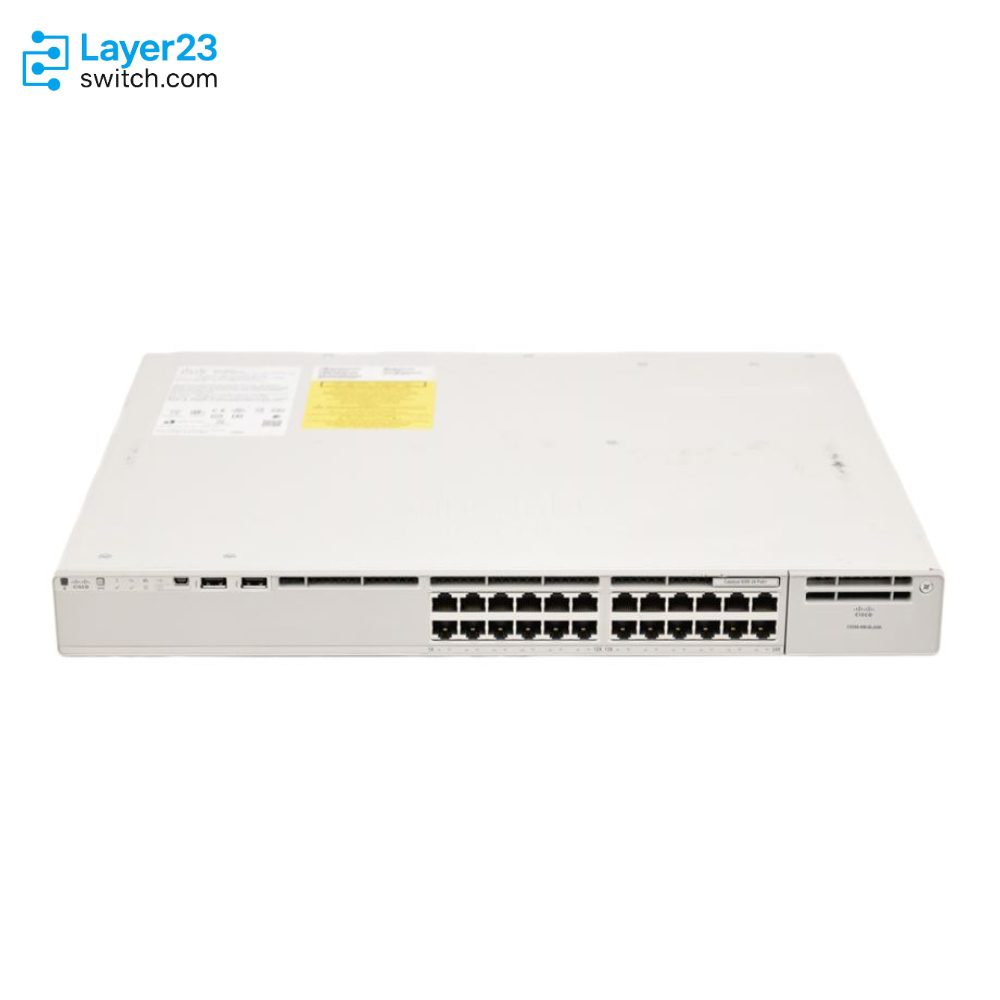

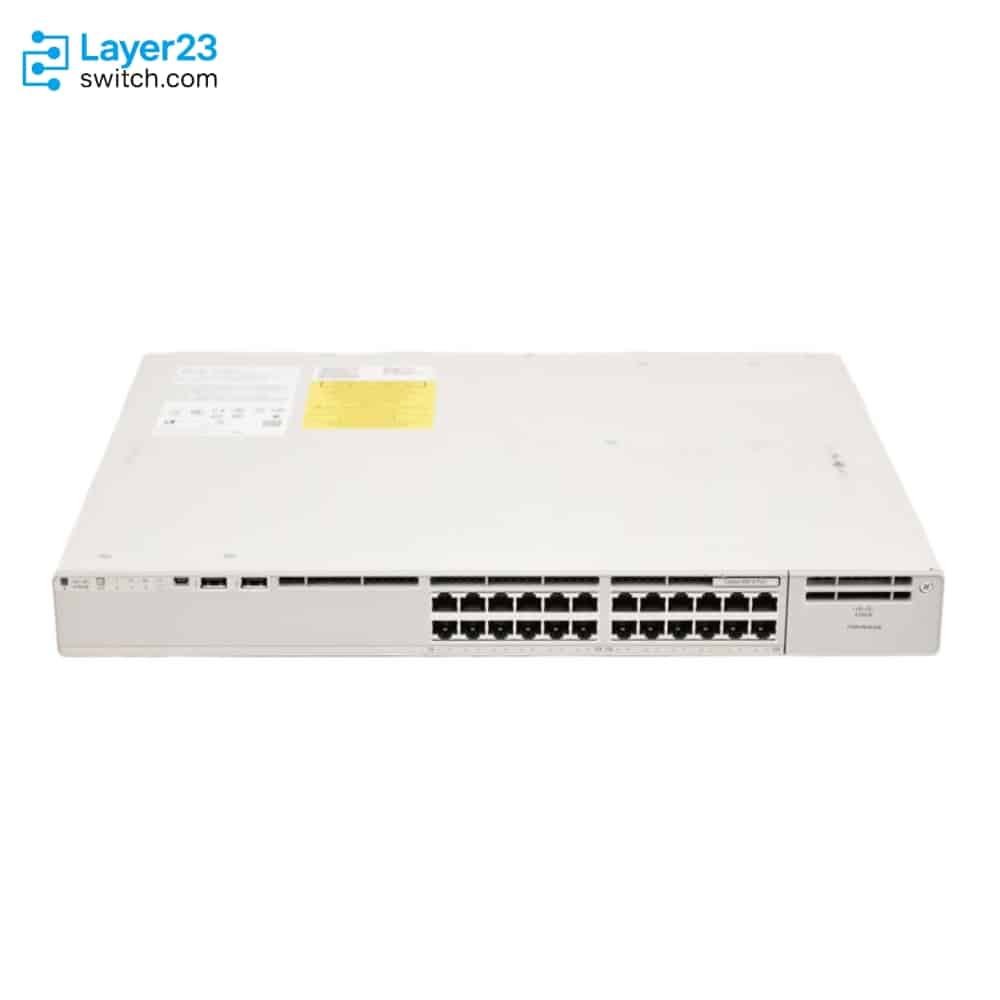

C9200-24T-E Description

The C9200-24T-E is a Cisco Catalyst 9200 Series stackable access switch for branch-office wiring closets that connect desktops, printers and other devices with their own power. The switch has 24 10/100/1000 data ports without PoE, one modular uplink slot for four 1G SFP or four 10G SFP+ ports, 128 Gbps of switching capacity and a 125W PWR-C6-125WAC supply. Network Essentials covers Layer 2, static routing and OSPF routed access up to 1,000 routes, and the switch stacks only with other Catalyst 9200 modular-uplink models at the same license tier.

Quick Specs

Parameter	Specification
Product ID	C9200-24T-E
Downlink ports	24 x 1G data copper ports
PoE support	No PoE; data-only ports
Uplink bay	1 modular network-module slot
Supported uplink modules	C9200-NM-4G, C9200-NM-4X, C9200-NM-BLANK
Network license	Network Essentials
Switching capacity	128 Gbps standalone; 288 Gbps with stacking
Forwarding rate	95.23 Mpps standalone; 214 Mpps with stacking
Stacking	StackWise-160, 160 Gbps, up to 8 members
Default power supply	PWR-C6-125WAC 125W AC
Power supply slots	2 field-replaceable slots
Minimum Cisco IOS XE release	16.10.1 (Gibraltar)

Product Performance

Switching Capacity

Switch Capacity With Stacking

Forwarding Rate

Key Features

Essentials Routing At The Closet

Routing on this license stops at Routed Access: RIP, EIGRP Stub and OSPF with a ceiling of 1,000 routes, plus static routes, PBR and VRRP. Full EIGRP, HSRP, IS-IS and VRF, VXLAN or LISP segmentation belong to Network Advantage.

Uplink Speed Set By The Module

The single slot takes C9200-NM-4G for four 1G SFP ports or C9200-NM-4X for four SFP+ ports at 1G or 10G. Moving a closet from 1G to 10G means swapping the hot-swappable module, not the switch, and an empty slot still needs C9200-NM-BLANK.

Second 125W Supply For Redundancy

One PWR-C6-125WAC ships in the first of two field-replaceable slots. Because the ports carry no PoE, a second identical supply adds redundancy rather than port power.

StackWise-160 Within One Tier

Up to eight Catalyst 9200 modular-uplink switches join one 160 Gbps stack that operates as a single switch with up to 384 access ports. Every member must run the same license level, and Catalyst 9200L switches cannot join.

Fans Replaced In The Field

The two fan modules are redundant and field-replaceable, as are both power supplies. A failed fan is replaced at the rack without changing the chassis.

Table Scale Of The Modular Line

The switch holds 32,000 MAC addresses, 14,000 IPv4 routes with 10,000 of them direct, 2,000 IPv6 routing entries and 1,600 ACL entries. A 6 MB packet buffer and 4 GB of DRAM sit behind those tables.

Application Scenarios

Branch Office Data Closet

A branch office places the switch in its wiring closet to give desktops, printers and local servers Gigabit ports, with a 1G or 10G uplink module carrying traffic to the site router.

School Computer Lab

In a school computer lab, each wired workstation takes one of the 24 copper ports, and 802.1X authentication keeps unknown laptops off the lab network.

Routed Access On A Campus Floor

On a campus floor built for routed access, the switch exchanges OSPF routes with the distribution layer over its uplink module while desks connect at Gigabit speed.

Product Comparison

Parameter	C9200-24T-E	C9200-24T-A	C9200-24P-E	C9200L-24T-4G-E
Downlinks total 10/100/1000 or PoE+ copper ports	24 ports data, no PoE	24 ports data, no PoE	24 ports full PoE+	24 ports data, no PoE
Default primary power supply	PWR-C6-125WAC	PWR-C6-125WAC	PWR-C6-600WAC	PWR-C5-125WAC
Available PoE power with default supply	Not applicable	Not applicable	370W	Not applicable
Available PoE power with two supplies	Not applicable	Not applicable	740W	Not applicable
Uplink configuration	Modular uplink options	Modular uplink options	Modular uplink options	4 x 1G SFP fixed
Network license	Network Essentials	Network Advantage	Network Essentials	Network Essentials
Stack bandwidth	StackWise-160, 160 Gbps	StackWise-160, 160 Gbps	StackWise-160, 160 Gbps	StackWise-80, 80 Gbps
Switching capacity	128 Gbps	128 Gbps	128 Gbps	56 Gbps
Switch capacity with stacking	288 Gbps	288 Gbps	288 Gbps	136 Gbps

C9200-24T-E and C9200-24T-A share the same 24 data ports, modular uplink slot and 128 Gbps of switching; the -E model runs Network Essentials, while the -A model adds full EIGRP, HSRP, IS-IS and VRF, VXLAN and LISP segmentation. A closet that needs those features on day one should order C9200-24T-A, and an installed C9200-24T-E moves up on the same hardware with a C9200-LIC= upgrade term, C9200-24-E-A-3, -5 or -7. Ports that must power phones, cameras or access points need C9200-24P-E, which gives 370W of PoE+ on a PWR-C6-600WAC and 740W with two. C9200L-24T-4G-E fixes its uplinks at four 1G SFP ports and stacks at 136 Gbps rather than 288 Gbps, so it suits only closets whose uplinks stay at 1G.

Ordering Checklist

Subscription: Add a 24-port Essentials term such as C9200-DNA-E-24-3Y or C9200-DNX-E-24-5Y, with a Smart Account on the order. An Advantage term does not match the Network Essentials hardware tier.
Uplink module: Add C9200-NM-4G, C9200-NM-4X or C9200-NM-BLANK to the order. The switch must run with a module or a blank in the slot.
Second power supply: Add PWR-C6-125WAC/2 when the closet needs supply redundancy. The switch ships with one supply, and the DC supplies PWR-C6-715WDC= and PWR-C5-715WDC= do not apply to this data model.
Stack kit: Add C9200-STACK-KIT for each switch joining a stack, with STACK-T4-1M or STACK-T4-3M when the default 50 cm cable is too short. The kit does not ship with the switch.
Power cord: Select the CAB-TA cord for the destination country, such as CAB-TA-NA=, CAB-TA-EU= or CAB-TA-UK=, because the AC supply needs a cord chosen on the order.

Optional Add-ons

Model	Description
C9200-NM-4G	Network module with four 1G SFP uplink ports
C9200-NM-4X	Network module with four 1G/10G SFP+ uplink ports
C9200-NM-BLANK	Blank module for the uplink slot when no network module is fitted
PWR-C6-125WAC/2	Second 125W AC power supply for redundancy
C9200-STACK-KIT	StackWise-160 kit with two data stack adapters and one data stack cable
STACK-T4-1M	1 m Type 3 stacking cable
STACK-T4-3M	3 m Type 3 stacking cable
ACC-KIT-T1=	19-inch Type 1 rack mount kit
RACK-KIT-T1=	19-, 23- and 24-inch and ETSI Type 1 rack mount kit
4PT-KIT-T2=	Four-point rack mount kit
REC-KIT-T1=	Recessed 1RU rack mount kit for Catalyst 9200 and 9200L

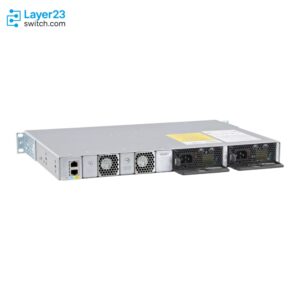

Catalyst 9200L Access Layer Switch Rear Panel

The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.

1	RJ-45 console port	4	Blue Beacon LED
2	Fixed fan modules on C9200L switches	5	MGMT (RJ-45 10/100/1000 management port)
3	Power supply module slots	6	StackWise-80 port connectors

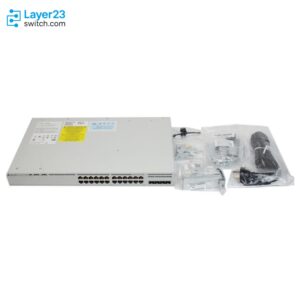

Catalyst 9200L Components Delivered in the Shipping Box

The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.

1	Cisco Catalyst 9200 Series switch¹ (power supply modules are not displayed)	8	Cable guide
2	AC power cord	9	M4.0 x 20mm Phillips pan-head screw
3	Four rubber mounting feet	10	RJ-45 USB console cable¹
4	Two 19-inch mounting brackets	11	(Optional) USB console cable ¹
5	4 number-12 pan-head screw	12	(Optional) StackWise cable¹ (0.5-meter, 1-meter, or 3-meter)
6	4 number-10 pan-head screws	13	Power cord retainer
7	8 number-8 Phillips flat-head screws	–	–

Specifications

Parameter	Specification	Parameter	Specification
Product ID	C9200-24T-E	Cisco ordering description	Catalyst 9200 24-port Data switch, modular uplinks, Network Essentials
Network license	Network Essentials	Minimum software release	Cisco IOS XE 16.10.1 (Gibraltar)
Downlink ports	24 x 10/100/1000 Mbps data copper ports, no PoE	Network module slot	1 modular network-module slot, field-replaceable and hot-swappable
Supported network modules	C9200-NM-4G, C9200-NM-4X, C9200-NM-BLANK	Console port	RJ-45 or mini-USB
Management port	RJ-45	Switching capacity	128 Gbps
Forwarding rate	95.23 Mpps	Switching capacity with stacking	288 Gbps
Forwarding rate with stacking	214 Mpps	Packet buffer	6 MB
DRAM	4 GB	Flash	4 GB
MAC addresses	32,000	VLAN IDs	4,094
Switched virtual interfaces	512	PVST instances	128
IPv4 routes	14,000 (10,000 direct + 4,000 indirect)	IPv6 routes	2,000
Multicast routes	1,000	ACL entries	1,600
QoS entries	1,000	Flexible NetFlow entries	16,000 flows
Virtual networks	4	Jumbo frames	9,198 bytes
Stacking	StackWise-160, 160 Gbps, up to 8 members	Stacking kit	C9200-STACK-KIT
Default power supply	PWR-C6-125WAC 125W AC	Power supply slots	2 field-replaceable slots; second PWR-C6-125WAC for redundancy
AC input voltage	100-240 VAC	AC input frequency	50-60 Hz
Power connector	IEC 320-C14	Power consumption	41.20W with C9200-NM-4G; 41.588W with C9200-NM-4X (ATIS IMIX weighted average, 115 VAC)
Heat dissipation	426.5 BTU/hr	Fan modules	2 field-replaceable redundant fan modules
Dimensions (H x W x D)	1.73 x 17.5 x 15.4 in. (4.4 x 44.5 x 39.1 cm) with FEP and fan	Operating temperature	-5°C to 45°C up to 1,500 m; -5°C to 40°C up to 3,000 m
Storage temperature	-40°C to 70°C	Operating humidity	5% to 90% noncondensing
Operating altitude	Up to 3,000 m (10,000 ft)	MTBF	587,800 hours
Safety certifications	IEC, UL, CAN/CSA and EN 60950-1 and 62368-1; AS/NZS 60950.1 and 62368.1; Class I Equipment	EMC certifications	47 CFR Part 15, CISPR 32 Class A, EN 55032 Class A, ICES-003 Class A, CISPR 35, EN 55035 and related regional standards
Environmental compliance	RoHS 5

Quality Certifications

Customer Reviews

Write A Review

5.0

Rated 5.00 out of 5

(14 reviews)

5 Stars

4 Stars

3 Stars

2 Stars

1 Stars

Mary Henderson

Posted on 23/02/2026

Verified Buyer

Rated 5 out of 5

5.0

Our accounts payable says Layer23’s invoicing is clean and easy to process.

Jacob Price

Posted on 11/01/2026

Verified Buyer

Rated 5 out of 5

5.0

Serial number matched the box label and invoice. Clean chain of custody.

Tyler Mendoza

Posted on 08/01/2026

Verified Buyer

Rated 5 out of 5

5.0

I’d vouch for Layer23 to anyone considering them as a vendor.

Trinity

Posted on 08/08/2025

Verified Buyer

Rated 5 out of 5

5.0

Secure transaction. Everything went according to plan.

Agent Smith

Posted on 12/05/2025

Verified Buyer

Rated 5 out of 5

5.0

It is inevitable… that we would receive good service. Acceptable.

Questions & Answers

Can C9200-24T-E be stacked?
Yes, C9200-24T-E joins a StackWise-160 stack of up to 8 Catalyst 9200 modular-uplink switches at the same license level. Catalyst 9200L switches cannot join, and each member needs C9200-STACK-KIT, which is ordered separately.
What does Network Essentials on C9200-24T-E include?
Network Essentials on C9200-24T-E covers Layer 2, static routes, PBR, VRRP and Routed Access with RIP, EIGRP Stub and OSPF up to 1,000 routes. Full EIGRP, HSRP, IS-IS and VRF, VXLAN or LISP segmentation need Network Advantage.
What MACsec key length does C9200-24T-E support?
C9200-24T-E supports MACsec-128, which Network Essentials includes. MACsec-256 requires Network Advantage, and on Catalyst 9200 only the C9200CX models implement it, so C9200-24T-E stays at 128-bit even after a license change. Catalyst 9300 and larger platforms support 256-bit MACsec with Network Advantage.
Must every member of a stack with C9200-24T-E run the same license?
Yes. Every member of a StackWise-160 stack with C9200-24T-E must share the same license tier, so Network Advantage members such as C9200-24T-A cannot join an Essentials stack. A stack holds up to 8 members and runs SSO with sub-50 ms failover, so order and license all members together.
Which stack kit and cables does C9200-24T-E use for StackWise-160?
Stack hardware for C9200-24T-E is a separate order line. C9200-STACK-KIT holds two data stack adapters and one data stack cable, and the default cable is STACK-T4-50CM. Longer runs use STACK-T4-1M or STACK-T4-3M, and spare units carry the = suffix.
Which STP and VLAN limits apply on C9200-24T-E?
C9200-24T-E is limited to 512 switched virtual interfaces and 128 PVST instances, with 13,000 STP virtual ports for PVST and MST. It handles 4,094 VLAN IDs, and jumbo frames are limited to 9198 bytes, per Table 8 of the Catalyst 9200 data sheet. Keep spanning-tree designs inside these values.
Can a second power supply in C9200-24T-E add PoE?
No. C9200-24T-E has no PoE, so a second supply adds redundancy only. The second supply is normally the same model as the first. The PWR-C6-715WDC= DC supply, which needs IOS XE 17.8.1 or later, is limited to PoE models and does not apply to this switch.
What does C9200-24T-E draw at idle with a C9200-NM-4G installed?
With a C9200-NM-4G installed and no PoE load, C9200-24T-E draws about 30.65W with no links up on 115 VAC. Under 100% traffic the draw reaches 42.27W. Both readings come from Table 20 of the Catalyst 9200 data sheet, which gives slightly higher values when a C9200-NM-4X is installed.

Warranty

100% Low Price Guarantee:

Layer23-Switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.

100% Quality Assurance:

All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.

Free CCIE Technical Support:

Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.

100% Money Back Guarantee:

If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly. Visit Return Policy page for more information.

Flexible & Secure Payment and Shipping:

We support multiple secure payment and logistics options, backed by industry-leading verification:

Visit How to Pay page for more information

Warranty Coverage & RMA Instructions

Extended, Worry-Free Warranty Coverage Factory New Sealed Enterprise Hardware:
· 3 Years Factory New Sealed
Visit Warranty Policy page for more information

FREE NETWORK TOOLS

Verify, plan, and comparewith confidence

Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.

Check lifecycle dates

Cisco Switch Selector Tool

Filter Cisco switches by ports, uplinks, PoE, performance, features, license, and budget.

Find matching switches >

Cisco Serial Number Lookup

Verify authenticity and identify exactmodel, coverage, and lifecycle detailsusing a Cisco serial number.

Verify a serial number >

Product Comparison

Compare specifications, capabilitiesand form factors side-by-side tochoose the right hardware.

Cisco Compare products >

DataSheet Downloads

C9200-24T-E Datasheet

Item	Qty	Amount
C9200-24T-ENew, factory-sealed · 3-year warranty · In stock
C9200-DNA-ERequired with each C9200-24T-E

C9200-24T-E – 24x1G Data Ports – Modular Uplink – Network Essentials

Shop Expert-Recommended Accessories for the C9200-24T-E

Stocked, Shipped and Supported by One Team

Inventory You Can See

Ships in 1 Business Day

LSCare Warranty

Free CCIE Support

Verify Before You Pay

C9200-24T-E Description

Quick Specs

Product Performance

Key Features

Application Scenarios

Product Comparison

Ordering Checklist

Optional Add-ons

Catalyst 9200L Access Layer Switch Rear Panel

Catalyst 9200L Components Delivered in the Shipping Box

Specifications

Quality Certifications

Customer Reviews

Questions & Answers

Can C9200-24T-E be stacked?

What does Network Essentials on C9200-24T-E include?

What MACsec key length does C9200-24T-E support?

Must every member of a stack with C9200-24T-E run the same license?

Which stack kit and cables does C9200-24T-E use for StackWise-160?

Which STP and VLAN limits apply on C9200-24T-E?

Can a second power supply in C9200-24T-E add PoE?

What does C9200-24T-E draw at idle with a C9200-NM-4G installed?

Warranty

Verify, plan, and comparewith confidence

Cisco Switch Selector Tool

Cisco Serial Number Lookup

Product Comparison

DataSheet Downloads

Related Searches of Catalyst 9200 Switches
