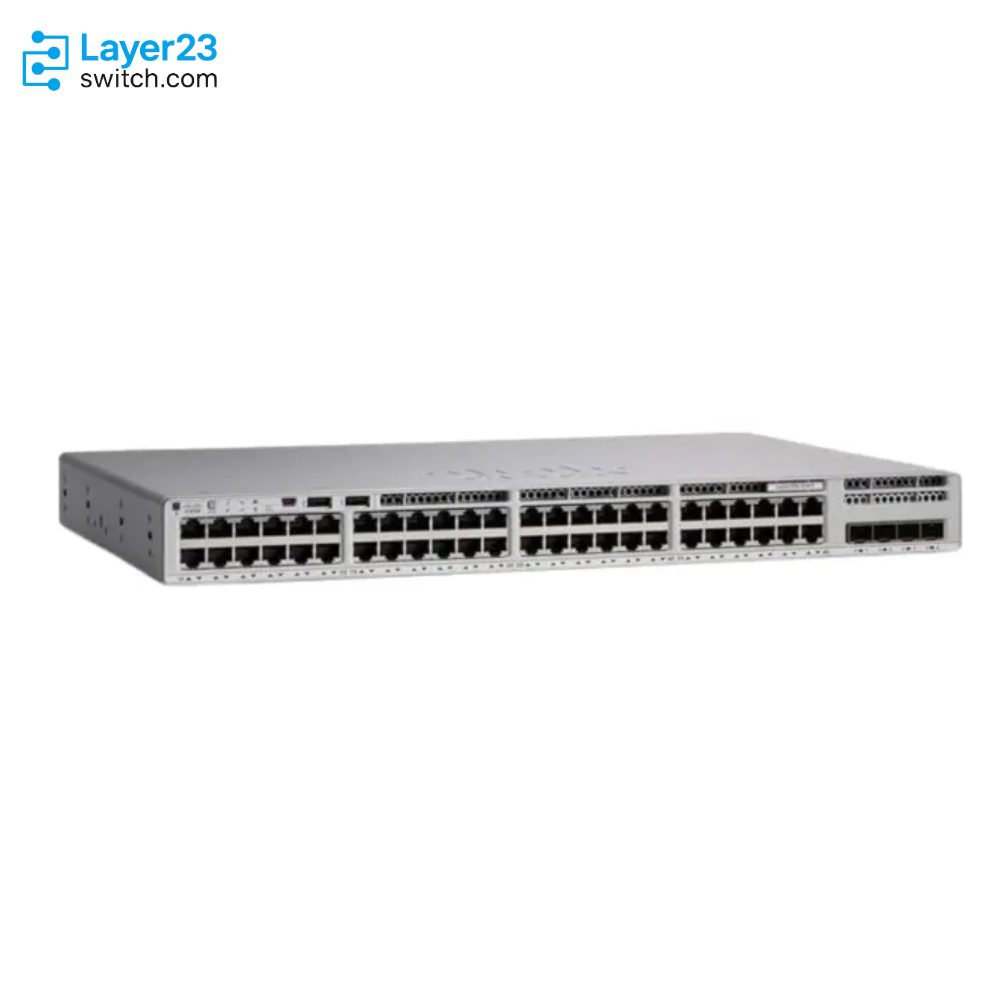

C9200L-48T-4G-E – 48x1G Data Ports – Fixed 4x1G Uplinks – Network Essentials
Cisco C9200L-48T-4G-E Compatible Accessories, Modules & Spare Parts
Find compatible network modules, power supplies, fans, optics, cables and spare parts for the Cisco C9200L-48T-4G-E. These accessories support fiber connectivity, hardware replacement, spare inventory and network maintenance projects.-
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $2,658.11.$95.80Current price is: $95.80. Condition: New Factory Sealed -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $1,202.16.$70.00Current price is: $70.00. Condition: New Factory Sealed -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $1,335.73.$57.00Current price is: $57.00. Condition: New Factory Sealed -
GLC-EX-SMD
1000BASE-EX SFP - 40km SMF - DOMOriginal price was: $5,329.57.$205.00Current price is: $205.00. Condition: New Factory Sealed -
GLC-ZX-SMD
1000BASE-ZX SFP - 70km SMF - EXT DOMOriginal price was: $10,672.47.$215.70Current price is: $215.70. Condition: New Factory Sealed
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9200L-48T-4G-E Description
Fixed at four 1G-only SFP uplinks with no 10G path and no modular bay, the C9200L-48T-4G-E is the Network Essentials build of this Catalyst 9200L hardware across 48 non-PoE copper data ports, reaching 104 Gbps standalone switching capacity and 184 Gbps once stacked into a StackWise-80 ring of up to eight members. The Essentials tier already covers Layer 2 switching, static routing, Routed Access with RIP, EIGRP Stub, and OSPF up to 1000 routes, PBR, PVLAN, VRRP, QoS, 802.1X, and MACsec-128, which is enough for a closet that stays within a 1G uplink ceiling and does not need EIGRP, HSRP, IS-IS, or VRF-lite/VXLAN/LISP segmentation. A single default PWR-C5-125WAC power supply covers normal operation, and because the model carries no PoE budget at either license tier, a second supply only buys redundancy against a unit failure rather than any added power headroom. Cisco ties this Essentials entitlement permanently to the C9200L-48T-4G-E hardware PID, and the fixed 1G-only uplink ceiling on this SKU is a separate hardware boundary from the license tier, distinct from the 4x1/10G uplink capability built into the otherwise identical C9200L-48T-4X-E chassis.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9200L-48T-4G-E |
|
Product type |
Fixed-uplink stackable data access switch |
|
Access ports |
48 x 10/100/1000 Mbps data copper ports |
|
Uplink ports |
4 x 1G-only fixed SFP uplink ports |
|
Network license |
Network Essentials |
|
Default power supply |
PWR-C5-125WAC |
|
Default power supply wattage |
125W AC |
|
Power supply slots |
2 slots |
|
Fan design |
2 fixed fans |
|
Stacking architecture |
StackWise-80 |
|
Switching capacity |
104 Gbps standalone; 184 Gbps with stacking |
|
Forwarding rate |
77.38 Mpps standalone; 137 Mpps with stacking |
|
Minimum software release |
Cisco IOS XE Fuji 16.9.2 |
Product Performance
Key Features
Network Essentials on this hardware already covers Layer 2 switching, static routing, and Routed Access with RIP, EIGRP Stub, and OSPF up to 1000 routes, so a 48-port closet running a 1G-only uplink backbone is not paying for VRF-lite, VXLAN, or LISP segmentation it will not use.
The four fixed SFP uplinks accept 1G optics only, with no 10G SFP+ path and no modular bay to add one, keeping the bill of materials to a single hardware PID for a closet whose uplink speed is already settled.
Up to eight C9200L-48T-4G switches join an 80 Gbps StackWise-80 ring behaving as a single virtual switch with sub-50ms stateful failover, letting an Essentials-tier closet scale port count without adding a second management plane.
Because this model ships with no PoE budget at either license tier, a second PWR-C5-125WAC only adds power-supply redundancy, which simplifies procurement for closets that are confirmed to terminate non-powered gear only.
The base Network Stack tier runs CLI/Web UI, and attaching a Cisco Catalyst or Cisco DNA subscription unlocks Catalyst Center or Meraki dashboard management on this same Essentials-tier hardware without changing the switch PID.

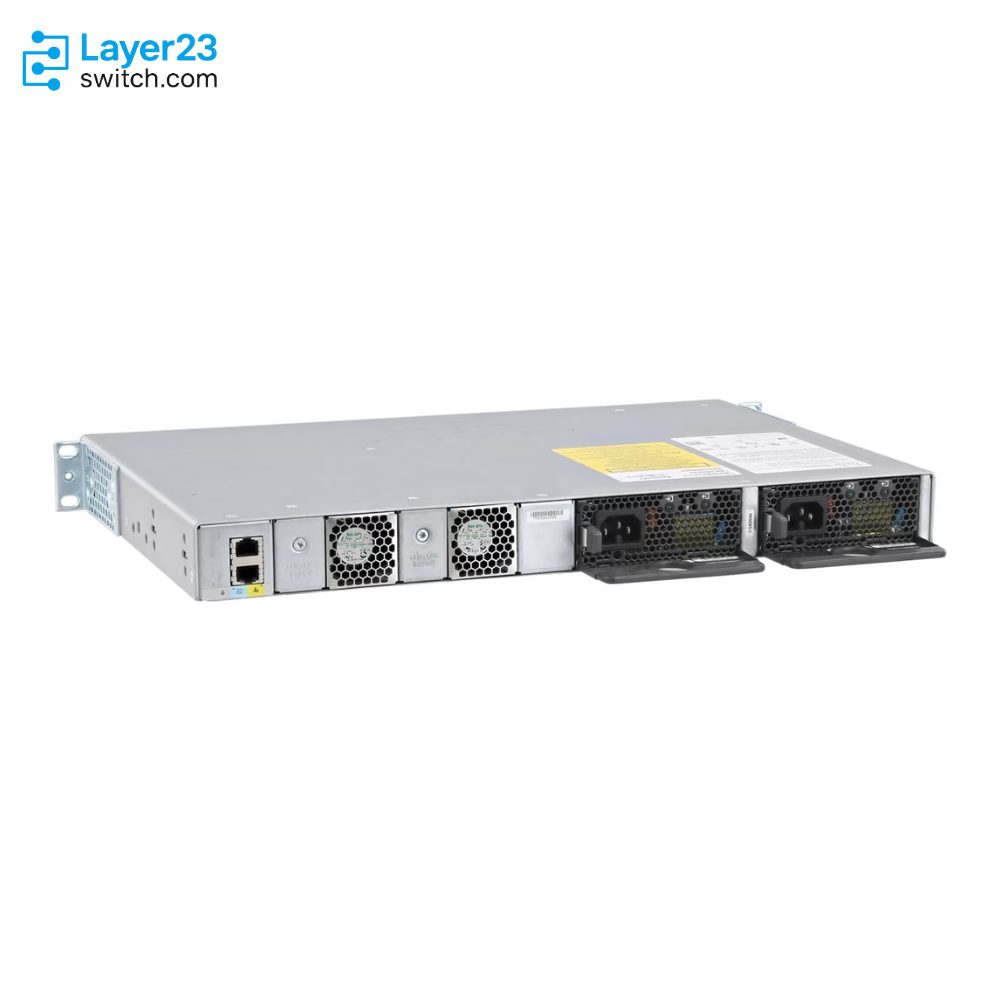

The two fans are permanently fixed to the chassis rather than pulled as separate field-replaceable units, so a closet’s spares budget for this hardware only needs to cover the power supply, not a second fan-tray part number the way the modular C9200 line requires.
Application Scenarios
Deployed where the closet’s uplink backbone is already confirmed to run at 1G and stay there, terminating 48 non-powered copper ports without a local requirement for EIGRP, HSRP, or segmentation features above the Essentials base.
Installed in a branch office wiring room where routing needs stop at static routes or RIP/EIGRP Stub-level Routed Access rather than a full dynamic routing or segmentation deployment.
Added as a member in an existing StackWise-80 ring of Essentials-tier C9200L-48T-4G switches to grow non-powered port count under one management plane without introducing an Advantage-tier license line.
Product Comparison
|
Parameter |
C9200L-48T-4G-E | |||
|---|---|---|---|---|
|
Access ports |
48 x 1G data copper ports |
24 x 1G data copper ports |
48 x 1G data copper ports |
48 x 1G PoE+ copper ports |
|
Uplink architecture |
4 x 1G-only fixed uplink ports |
4 x 1G-only fixed uplink ports |
4 x 1/10G fixed uplink ports |
4 x 1G-only fixed uplink ports |
|
Network license |
Network Essentials |
Network Essentials |
Network Essentials |
Network Essentials |
|
Default power supply |
PWR-C5-125WAC |
PWR-C5-125WAC |
PWR-C5-125WAC |
PWR-C5-1KWAC |
|
Default PoE budget |
No PoE |
No PoE |
No PoE |
740W with one supply |
|
Expanded PoE budget |
No PoE |
No PoE |
No PoE |
1440W with a second supply |
|
Stacking architecture |
StackWise-80 |
StackWise-80 |
StackWise-80 |
StackWise-80 |
|
Switching capacity |
104 Gbps standalone; 184 Gbps with stacking |
56 Gbps standalone; 136 Gbps with stacking |
176 Gbps standalone; 256 Gbps with stacking |
104 Gbps standalone; 184 Gbps with stacking |
|
Forwarding rate |
77.38 Mpps standalone; 137 Mpps with stacking |
41.67 Mpps standalone; 101 Mpps with stacking |
130.95 Mpps standalone; 190 Mpps with stacking |
77.38 Mpps standalone; 137 Mpps with stacking |
|
Minimum software release |
Cisco IOS XE Fuji 16.9.2 |
Cisco IOS XE Fuji 16.9.2 |
Cisco IOS XE Fuji 16.9.2 |
Cisco IOS XE Fuji 16.9.2 |
- C9200L-24T-4G-E carries the identical fixed 1G-only uplink ceiling and Network Essentials tier at half the access port count and a lower 56 Gbps standalone switching capacity, so a design that only needs 24 non-powered ports can settle for the smaller model instead of provisioning 48 ports it will not fill.
- Where C9200L-48T-4X-E keeps the same 48 ports, default power supply, and Network Essentials tier but replaces the 1G-only uplink ceiling with 4×1/10G fixed uplinks and reaches 176 Gbps standalone instead of 104 Gbps, C9200L-48T-4G-E has no path to add that 10G capability without a full hardware swap; a design that later needs a 10G backbone has to move to the 4X model rather than change a module here.
- C9200L-48P-4G-E matches the same 48 ports, fixed 1G-only uplink ceiling, switching capacity, and forwarding rate but swaps in a PWR-C5-1KWAC supply for a 740W PoE budget; C9200L-48T-4G-E has no power budget to draw on at all, so a design that later needs to power even a handful of phones or access points has to move to the PoE+ model rather than add a second supply here.
- Since Cisco has no in-place PID to move this hardware from Network Essentials to Network Advantage, a routing or segmentation requirement that grows past the Essentials Routed Access ceiling forces a new-hardware order of C9200L-48T-4G-A rather than a license-only change; for deciding which SKU to order, settle the uplink backbone speed and the routing requirement first, since those are the two dimensions this Essentials-tier, 1G-only group cannot absorb without either a hardware swap or a full reorder.
Selection Guide
1. 10G Backbone Plans Force A Move To The 4X Hardware
C9200L-48T-4G-E fixes its four uplink ports at 1G optics only with no modular bay to add 10G later; once a design anticipates the closet’s uplink backbone moving to 10G at any point in this switch’s service life, C9200L-48T-4X-E carries the identical Essentials tier, port count, and default power supply on a chassis that already supports that speed, avoiding a forced hardware swap down the line.
2. Segmentation Growth Has No License-Only Fix
Network Essentials on this hardware covers Layer 2 switching, static routing, and Routed Access with RIP, EIGRP Stub, and OSPF up to 1000 routes; once EIGRP, HSRP, IS-IS, or VRF-lite/VXLAN/LISP segmentation becomes a requirement, the only path is a new C9200L-48T-4G-A hardware order, since Cisco publishes no in-place upgrade PID between the tiers, so a design that expects segmentation within the deployment’s planning horizon belongs on the C9200L-48T-4G-A from the start.
3. No PoE Budget Means A PoE Requirement Changes The Order
Because C9200L-48T-4G-E carries no PoE budget at either license tier, a requirement to power IP phones, cameras, or access points on any of the 48 ports means moving to C9200L-48P-4G-E, which keeps the same port count, uplink ceiling, and switching capacity on a PWR-C5-1KWAC supply that adds a 740W PoE budget.
4. Smaller Closet Footprint Points To The 24-Port Build
Once the non-powered access footprint is confirmed to run near or under 24 ports rather than the full 48, C9200L-24T-4G-E carries the identical fixed 1G-only uplink layout and Network Essentials tier at a lower standalone switching capacity, avoiding a 48-port order for a closet that will not fill it.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact license suffix |
C9200L-48T-4G-E carries Network Essentials; the -A suffix on identical hardware carries Network Advantage |
The perpetual Network Stack tier is fixed by the hardware PID and cannot be license-upgraded in place |
|
Uplink speed ceiling |
The 4 fixed uplink ports accept 1G SFP optics only, with no 10G SFP+ path |
A future 10G backbone plan requires ordering C9200L-48T-4X-E instead of a module upgrade on this hardware |
|
Matching subscription tier |
An Essentials-tier term subscription from the 48-port group, such as C9200L-DNA-E-48 or C9200L-DNX-E-48-3Y/5Y/7Y |
Every Catalyst 9200L order requires a matching-tier Cisco DNA or Cisco Catalyst subscription under a mandatory Smart Account |
|
Stack kit inclusion |
C9200L-STACK-KIT plus stack members at the same license level |
The kit is not included by default, and StackWise-80 members must share the license tier and cannot mix with C9200 modular-uplink switches |
|
Second power supply |
Whether a second PWR-C5-125WAC is needed for redundancy |
This model has no PoE budget, so a second supply only protects against a single-unit failure and does not raise any power ceiling |
|
Uplink optics compatibility |
The 1G SFP optics selected for the fixed uplinks are on the Cisco TMG Compatibility Matrix for this platform |
An unlisted optic may be rejected by the fixed uplink port even if the form factor fits |
|
Power cord selection |
A country-specific CAB-TA cord rated for the 125W supply class (10A) |
An under-rated or wrong-plug cord blocks power-up at installation |
|
Software baseline |
Cisco IOS XE Fuji 16.9.2 or later |
16.9.2 is the platform introductory release for C9200L hardware, and earlier releases cannot run it |
Optional Add-ons
|
Add-on |
Description |
|---|---|
|
Second 125W AC power supply for redundancy (this model carries no PoE budget to expand) | |
|
StackWise-80 stack kit with two data stack adapters and one data stack cable (ordered separately) | |
|
Longer StackWise data stack cables in place of the default 50 cm cable | |
|
RACK-KIT-T1= |
19/23/24-inch or ETSI Type 1 rack mount kit |
|
4PT-KIT-T2= |
Four-point wall or rack mount kit |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9200L-48T-4G-E | Network license | Network Essentials |
| Access ports | 48 x 10/100/1000 Mbps data copper ports (RJ-45, 4-pair Cat 5E UTP) | Uplink ports | 4 x fixed SFP ports, 1G optics only |
| Management port | RJ-45 Ethernet management port (Cat 5) | Console port | RJ-45 or mini-USB (USB-C/USB adapter) |
| Switching capacity | 104 Gbps standalone; 184 Gbps with StackWise-80 stacking | Forwarding rate | 77.38 Mpps standalone; 137 Mpps with stacking |
| MAC address table | 16,000 entries | IPv4 routing entries | 3,000 entries (11,000 IPv4 routes with ARP/learned) |
| IPv6 routing entries | 1,500 entries | Multicast routes | 1,000 entries |
| ACL / QoS scale | 1,500 ACL entries; 1,000 QoS entries | VLAN IDs | 4094 |
| Packet buffer | 6 MB | FNF flows | 16,000 |
| DRAM / Flash | 2 GB DRAM; 4 GB flash | Jumbo frame | 9198 bytes |
| Default power supply | PWR-C5-125WAC (125W AC) | Power supply slots | 2 slots, FRU |
| Power input | 100-240 VAC, 50-60 Hz, IEC 320-C14 inlet | Power output / BTU | 12V @ 10.5A; 426.5 BTU/hr |
| PoE support | None | Fan design | 2 fixed fans (non-field-replaceable) |
| Stacking architecture | StackWise-80, up to 8 members, single virtual switch | Stacking accessory | C9200L-STACK-KIT (two data stack adapters, one cable) |
| Operating temperature | -5C to 45C (up to 1500 m); -5C to 40C (up to 3000 m) | Storage temperature | -40C to 70C |
| Humidity / Altitude | 5%-90% noncondensing; up to 3000 m operating | Acoustic noise | LpA 42 dB typical / 45 dB max; LwA 5.3 B typical / 5.6 B max |
| Physical dimensions | 1.73 x 17.5 x 11.3 in chassis (12.9 in with fan/power extension) | Weight | 9.97 lb (4.53 kg), single power supply |
| Safety certifications | IEC/UL/CSA/EN 60950-1 and 62368-1, AS/NZS 60950.1/62368.1, Class I Equipment | EMC certifications | FCC Part 15, CISPR 32 Class A, EN 55032 Class A, EN 300 386, ICES-003 Class A, CISPR 35, EN 55035 |
| Environmental compliance | RoHS 5 | Warranty | Cisco Enhanced Limited Lifetime Hardware Warranty (E-LLW) |
| MTBF | 508,700 hours | Minimum software release | Cisco IOS XE Fuji 16.9.2 |
Get More Information
Need pricing, stock, or shipping details for the C9200L-48T-4G-E ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is the main use case for C9200L-48T-4G-E?
-
Does C9200L-48T-4G-E support PoE devices directly?
-
What uplink design does C9200L-48T-4G-E use?
-
Can C9200L-48T-4G-E stack with C9200L-24T-4G-E?
-
What license tier is tied to C9200L-48T-4G-E?
-
When is C9200L-48T-4G-E a safer fit than a PoE SKU?
-
Is C9200L-48T-4G-E part of the compact C9200CX line?
-
What power supply profile applies to C9200L-48T-4G-E?
