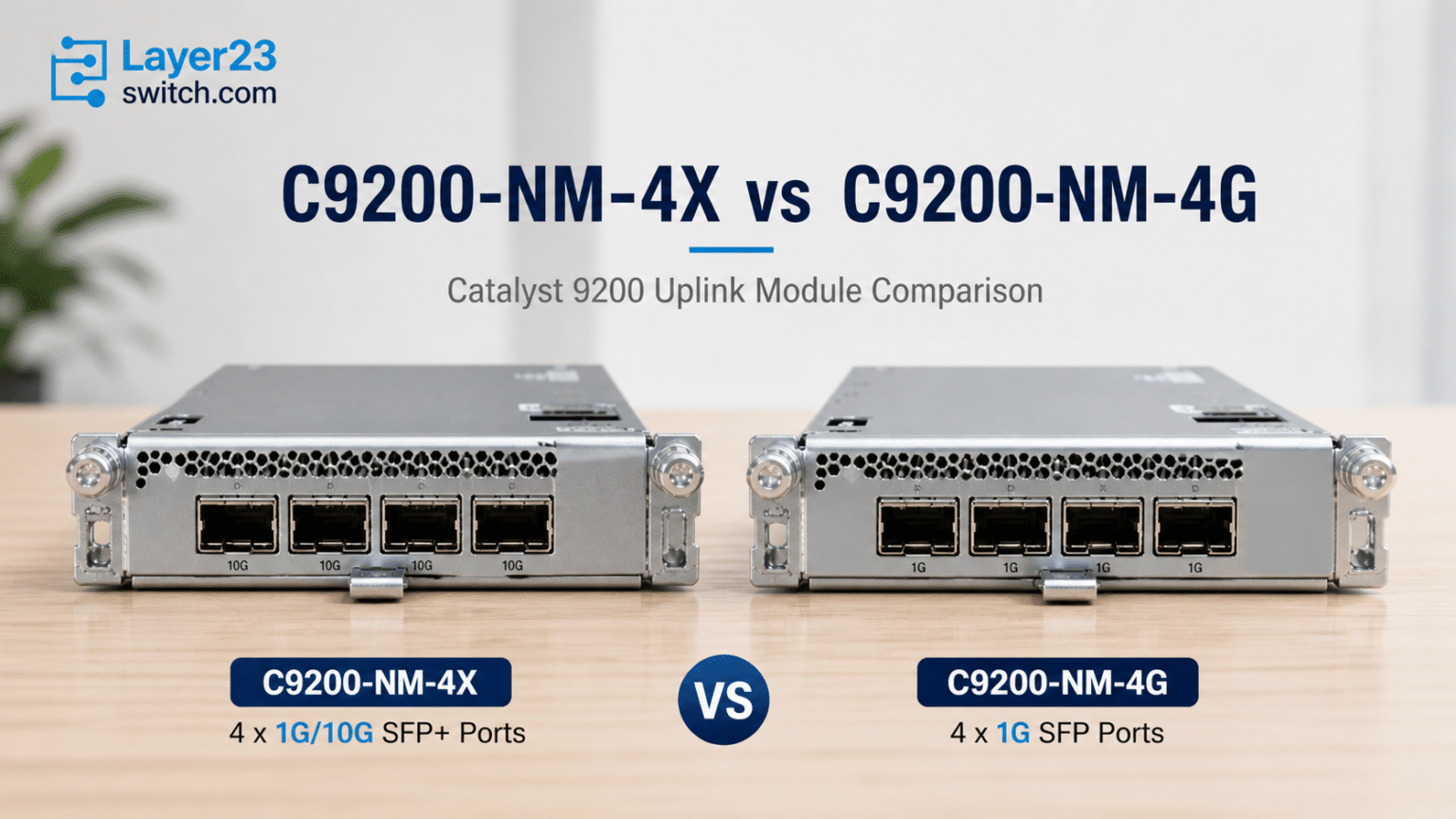

C9200-NM-4X vs C9200-NM-4G: Cisco Catalyst 9200 Uplink Module Guide
C9200-NM-4G is a 4-port 1G uplink module for Cisco Catalyst 9200 switches. C9200-NM-4X is a 4-port 1G/10G uplink module, making it the better choice when 10G uplinks or future 10G upgrades are required.
In real deployments, C9200-NM-4G is commonly paired with data-only models such as C9200-24T-E and C9200-48T-E. C9200-NM-4X is often preferred for PoE models such as C9200-24P-E and C9200-48P-E because APs, cameras, IP phones, and other powered endpoints can create higher uplink traffic.
For current availability, check the C9200-NM-4X product details or C9200-NM-4G product details before finalizing your BOM.
C9200-NM-4X vs C9200-NM-4G: Main Difference
| Item | C9200-NM-4G | C9200-NM-4X |
|---|---|---|
| Module Type | Catalyst 9200 uplink module | Catalyst 9200 uplink module |
| Ports | 4 uplink ports | 4 uplink ports |
| Supported Speed | 1G | 1G / 10G |
| Typical Use | Standard 1G uplinks | 10G uplinks or future 10G upgrade |
| Common Pairing | C9200-24T-E, C9200-48T-E | C9200-24P-E, C9200-48P-E |
| Best For | Data access, small branches, cost-sensitive projects | PoE access, APs, cameras, higher uplink traffic |
| Upgrade Flexibility | Limited to 1G uplinks | Supports 1G now and 10G later |
The main difference is uplink speed. C9200-NM-4G is selected when four 1G uplinks are enough. C9200-NM-4X is selected when the switch needs 10G uplinks now, may need 10G uplinks later, or supports traffic-heavy PoE endpoints.
For most buyers, the decision is not simply “which module is better?” The better question is:
Does this Catalyst 9200 switch only need 1G uplinks, or should the uplink module support 10G for APs, cameras, aggregation, or future growth?
Official Cisco Specs: 4×1G vs 4×1G/10G Uplink Modules
Cisco describes C9200-NM-4G as a 4×1G network module and C9200-NM-4X as a 4×1G/10G network module for Catalyst 9200 switches.
| SKU | Cisco Description | Practical Meaning |
|---|---|---|
| C9200-NM-4G | 4×1G network module | For 1G uplink deployments |
| C9200-NM-4X | 4×1G/10G network module | For 1G today or 10G upgrade path |
This detail is important. C9200-NM-4X should not be described only as a “4×10G module.” Its real value is flexibility: it can support 1G uplink use cases today and provide a path to 10G uplinks later.
That flexibility is useful when the buyer is not sure whether the current access layer will stay at 1G or move to 10G in the next upgrade cycle.
Common Buying Pattern: C9200-24T/48T with 4G, C9200-24P/48P with 4X
In real procurement, C9200-NM-4G is commonly paired with data-only Catalyst 9200 models such as C9200-24T-E and C9200-48T-E. These switches are often used for standard user access, where 1G uplinks may be enough.
C9200-NM-4X is commonly paired with PoE models such as C9200-24P-E and C9200-48P-E. PoE deployments often connect wireless access points, surveillance cameras, IP phones, badge readers, and other powered endpoints. These devices can create more upstream traffic, so a 10G-capable uplink module gives the network more headroom.
| Catalyst 9200 Model | Common Module Choice | Reason |
|---|---|---|
| C9200-24T-E | C9200-NM-4G | Data-only access; 1G uplinks are often enough |
| C9200-48T-E | C9200-NM-4G | More access ports, but still data-only |
| C9200-24P-E | C9200-NM-4X | PoE endpoints may create more uplink traffic |
| C9200-48P-E | C9200-NM-4X | Higher PoE endpoint density; 10G uplinks are safer |
This is a common deployment pattern, not a fixed Cisco rule. The final choice should be based on uplink bandwidth, endpoint type, aggregation design, optics, budget, and future upgrade plans.
When C9200-NM-4G Is the Better Choice
Choose C9200-NM-4G when the project only needs 1G uplinks and has no near-term 10G upgrade requirement.
C9200-NM-4G is usually the more cost-effective choice for:
- data-only access switches
- small branch offices
- standard office user access
- C9200-24T-E and C9200-48T-E deployments
- cost-sensitive projects
- networks where upstream aggregation is still 1G
- environments that do not need high uplink bandwidth
If the switch is mainly connecting PCs, printers, terminals, or standard office endpoints, and the upstream network is still 1G, the 4G module is often enough.
The main reason to choose C9200-NM-4G is simple: it avoids paying for 10G capability when the project does not need it.
When C9200-NM-4X Is the Better Choice
Choose C9200-NM-4X when the project needs 10G uplinks now, may upgrade to 10G later, or uses PoE access switches for APs, cameras, and other endpoints that can create higher uplink traffic.
C9200-NM-4X is usually the better choice for:
- C9200-24P-E and C9200-48P-E deployments
- wireless AP aggregation
- surveillance camera networks
- PoE-heavy access switches
- uplinks to 10G distribution switches
- future bandwidth upgrade planning
- projects where 1G uplinks may become a bottleneck
C9200-NM-4X is often the safer choice for PoE access switches because APs and cameras can generate more traffic than ordinary desktop endpoints. Even if the network uses 1G today, choosing 4X can provide a smoother path to 10G uplinks later.
Can C9200-NM-4X Replace C9200-NM-4G?
In many projects, yes. C9200-NM-4X can replace C9200-NM-4G as a higher-capability uplink module because it supports 1G/10G use cases.
If C9200-NM-4G is unavailable, or if the buyer wants future 10G flexibility, C9200-NM-4X may be the better option.
However, C9200-NM-4X is not always the most economical choice. If the project only needs 1G uplinks and budget is strict, C9200-NM-4G remains the more direct and cost-effective module.
| Situation | Better Choice |
|---|---|
| Need only 1G uplinks | C9200-NM-4G |
| Need 10G uplinks | C9200-NM-4X |
| Need 1G now but may upgrade later | C9200-NM-4X |
| C9200-NM-4G is unavailable | C9200-NM-4X can be a higher-capability alternative |
| Strict low-cost 1G-only project | C9200-NM-4G |
The correct way to think about it is:
C9200-NM-4X can be a higher-capability alternative to C9200-NM-4G, but C9200-NM-4G is still the better fit when the project only needs 1G uplinks.
SFP and SFP+ Planning for C9200-NM-4G and C9200-NM-4X
The network module is only one part of the BOM. Buyers also need to confirm whether the uplinks will use 1G SFP or 10G SFP+ transceivers.
C9200-NM-4G is normally planned with 1G SFP transceivers. C9200-NM-4X can be planned with 1G SFP or 10G SFP+ transceivers depending on the uplink design.
| Requirement | Recommended Module | Optics Planning |
|---|---|---|
| 1G fiber uplinks only | C9200-NM-4G | 1G SFP |
| 1G today, possible 10G later | C9200-NM-4X | 1G SFP now, 10G SFP+ later |
| 10G uplinks | C9200-NM-4X | 10G SFP+ |
| Cost-sensitive 1G-only project | C9200-NM-4G | 1G SFP |
If the uplink optics are not confirmed yet, review compatible Cisco SFP and SFP+ modules before placing the order.
Before ordering, buyers should confirm:
- required uplink speed
- fiber type
- transceiver type
- upstream switch port speed
- distance requirement
- project budget
- whether future 10G migration is expected
A common mistake is buying the network module but forgetting to order the required SFP or SFP+ transceivers. Another mistake is choosing a 10G-capable module while the upstream aggregation switch only supports 1G uplinks.
BOM Checklist Before Ordering a Catalyst 9200 Network Module
Before ordering C9200-NM-4X or C9200-NM-4G, confirm the complete BOM instead of buying the module alone.
| BOM Item | Why It Matters |
|---|---|
| Base switch model | Confirm the switch accepts C9200 network modules |
| Uplink module | Choose C9200-NM-4G or C9200-NM-4X |
| Uplink speed | Confirm 1G or 10G requirement |
| SFP/SFP+ optics | Match module and uplink speed |
| Fiber patch cables | Match fiber type and connector |
| Upstream switch ports | Confirm 1G or 10G support on the aggregation side |
| Project budget | 4X costs more but gives upgrade flexibility |
| Stock and lead time | Confirm availability before PO |
This article is focused on C9200-NM-4X vs C9200-NM-4G. If you are comparing fixed-uplink and modular-uplink switch families, check that topic separately before ordering, because the network module decision depends on the base switch design.
Common Mistakes When Choosing C9200-NM-4X or C9200-NM-4G
- Buying the module before confirming the base switch accepts C9200 network modules.
- Choosing C9200-NM-4G for AP or camera-heavy deployments that may need 10G uplinks.
- Buying C9200-NM-4X when the project only needs 1G uplinks and budget is strict.
- Forgetting to order the required SFP or SFP+ transceivers.
- Assuming C9200-NM-4X means 10G only and missing its 1G/10G flexibility.
- Not checking the upstream aggregation switch port speed before choosing the module.
Most of these mistakes happen because buyers treat the uplink module as a small accessory. In reality, the uplink module affects bandwidth, optics, aggregation design, and future upgrade flexibility.
Final Recommendation: Which Module Should You Choose?
| Scenario | Recommended Module |
|---|---|
| C9200-24T-E data-only access | C9200-NM-4G |
| C9200-48T-E data-only access | C9200-NM-4G |
| C9200-24P-E PoE access | C9200-NM-4X |
| C9200-48P-E PoE access | C9200-NM-4X |
| 1G uplinks only, strict budget | C9200-NM-4G |
| 10G uplinks now or later | C9200-NM-4X |
| AP or camera-heavy network | C9200-NM-4X |
| Unsure future bandwidth requirement | C9200-NM-4X |
For data-only Catalyst 9200 access switches such as C9200-24T-E and C9200-48T-E, C9200-NM-4G is often enough for standard 1G uplink deployments.
For PoE models such as C9200-24P-E and C9200-48P-E, C9200-NM-4X is usually the safer choice because APs, cameras, and other powered endpoints can create higher uplink traffic.
If budget is strict and the network will remain 1G, choose C9200-NM-4G. If the project needs 10G uplinks, future upgrade flexibility, or more bandwidth headroom, choose C9200-NM-4X.
FAQ
What is the difference between C9200-NM-4X and C9200-NM-4G?
C9200-NM-4G is a 4-port 1G network module for Cisco Catalyst 9200 switches. C9200-NM-4X is a 4-port 1G/10G network module. The 4G module is used for standard 1G uplinks, while the 4X module supports 10G uplinks and future upgrade flexibility.
Is C9200-NM-4X better than C9200-NM-4G?
C9200-NM-4X is better when the project needs 10G uplinks, future 10G upgrade flexibility, or higher uplink bandwidth for PoE access devices. C9200-NM-4G is better when the network only needs 1G uplinks and the buyer wants a more cost-effective module.
Which module is better for C9200-24T-E and C9200-48T-E?
For data-only models such as C9200-24T-E and C9200-48T-E, C9200-NM-4G is commonly enough when the deployment only needs 1G uplinks. If the project may upgrade to 10G later, C9200-NM-4X gives more flexibility.
Does C9200-NM-4G support 10G SFP+ uplinks?
No. C9200-NM-4G is a 4×1G network module. If the project requires 10G SFP+ uplinks, C9200-NM-4X is the correct module to consider.
Does C9200-NM-4X support 1G SFP modules?
C9200-NM-4X is described as a 4×1G/10G network module, so it is planned for both 1G and 10G uplink use cases. Buyers should still confirm the exact SFP or SFP+ transceiver, software version, and uplink design before ordering.
Can C9200-NM-4X replace C9200-NM-4G?
Yes, in many projects. C9200-NM-4X can act as a higher-capability alternative because it supports 1G/10G uplink use cases. However, if the project only needs 1G uplinks and budget is strict, C9200-NM-4G remains the more direct choice.
What should buyers confirm before ordering C9200-NM-4X or C9200-NM-4G?
Buyers should confirm the base switch model, required uplink speed, 1G or 10G optics, upstream switch port speed, fiber type, budget, stock, lead time, and whether future 10G upgrade is expected.
