FPR4115-ASA-K9 – 80G ASA Firewall – 8x10G SFP+ – 2 NM Bays
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
FPR4115-ASA-K9 Description

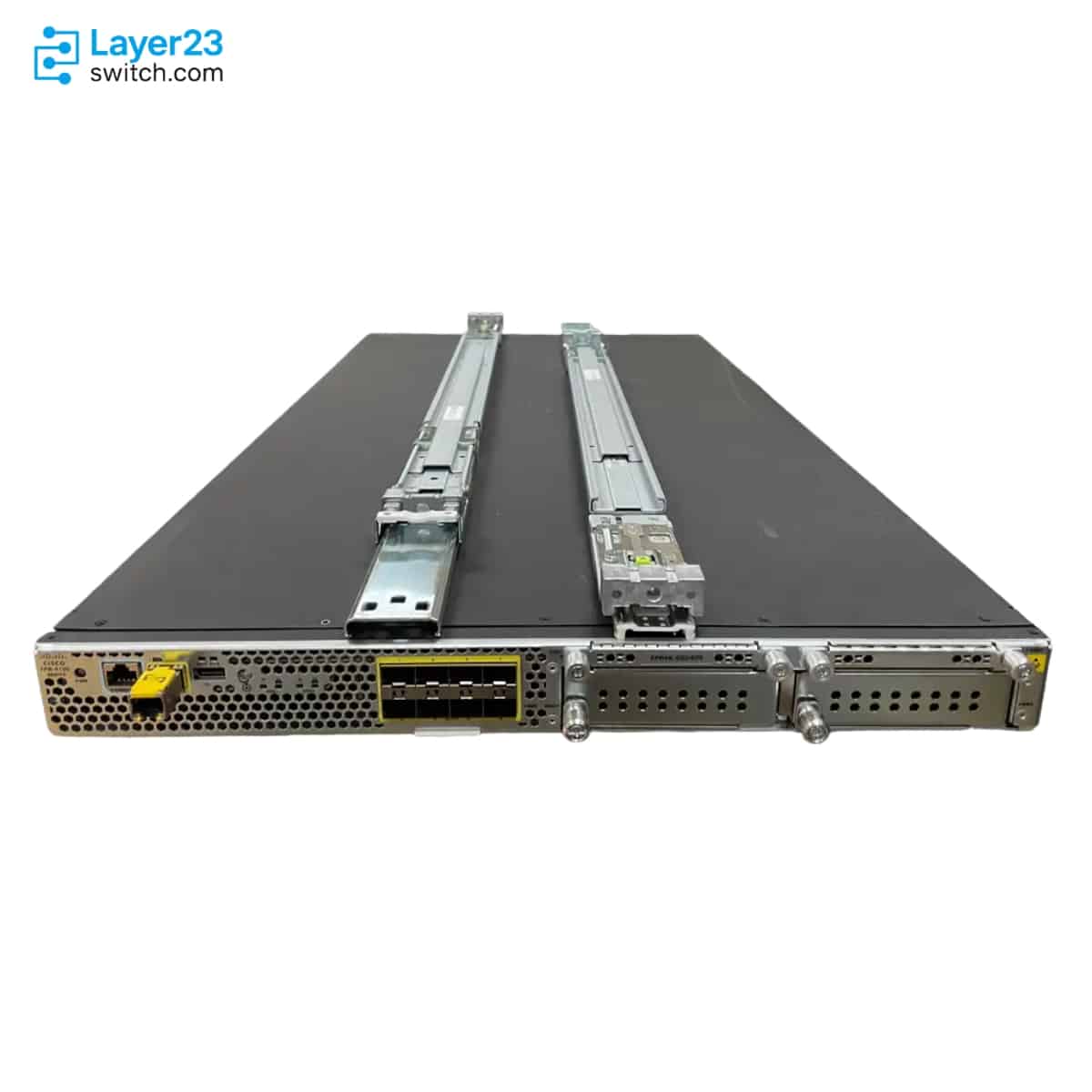

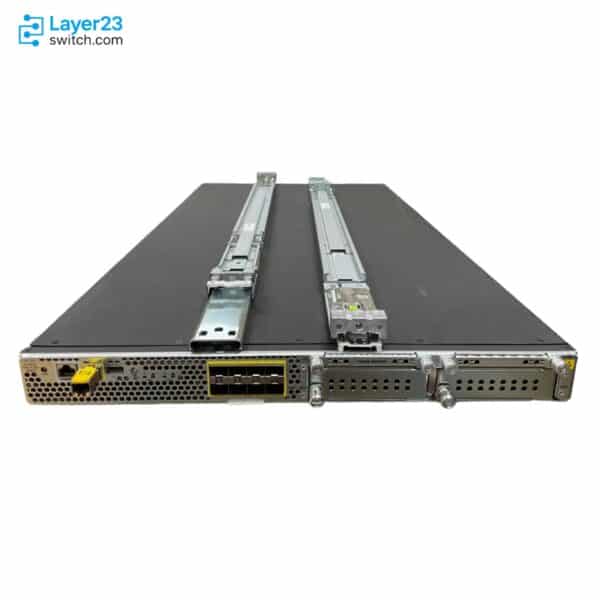

FPR4115-ASA-K9 is the Cisco Firepower 4115 ASA appliance in the Cisco Secure Firewall 4100 Series, a 1RU firewall for ASA-based internet edge, data center edge, or VPN deployments that need the 4115 performance tier. Cisco identifies this PID as a Firepower 4115 ASA appliance with two network module bays, and the 4115 platform provides eight on-chassis 10G SFP+ data ports, 80 Gbps stateful inspection firewall throughput, 40 Gbps ASA multiprotocol firewall throughput, 15 million concurrent firewall connections, and 15 Gbps IPsec VPN throughput.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
FPR4115-ASA-K9 |
|
Product family |
Cisco Firepower 4100 Series |
|
Product type |
Cisco Firepower 4115 ASA appliance |
|
Model |
FPR-4115 |
|
Form factor |
1RU |
|
Memory |
192 GB |
|
On-chassis data ports |
8 x 10 Gigabit Ethernet SFP+ |
|
Network module bays |
2 |
|
Stateful inspection firewall throughput |
80 Gbps |
|
Multiprotocol firewall throughput |
40 Gbps |
|
Concurrent firewall connections |
15 million |
|
New connections per second |
848K |
|
IPsec VPN throughput |
15 Gbps |
|
Maximum VPN peers |
15000 |
|
Security contexts |
10 included; 250 maximum |
|
Storage |
400 GB |
|
Power supply configuration |
Single 1100W AC; dual optional; single or dual 950W DC optional |
|
Fan modules |
6 hot-swappable fans |
Product Performance
Key Features
FPR4115-ASA-K9 is the Cisco-listed ASA appliance PID for the Firepower 4115, which keeps the order aligned with ASA operation instead of the NGFW or NGIPS appliance PIDs.
The 4115 ASA tier raises the Cisco-listed firewall throughput and connection scale above the 4112 model while preserving the 1RU two-network-module appliance format.
Eight on-chassis 10G SFP+ ports provide the base data interface set, and the two network module bays support Cisco-listed Firepower 4100 expansion modules.
Cisco’s 4115 hardware table lists 192 GB memory and 400 GB storage, which helps differentiate this appliance from the lower 4112 tier and the 800-GB 4125/4145 storage profile.
Cisco documentation introduces ASA support for the Firepower 4115 at ASA 9.12(1) with the related FXOS requirement, so the selected software bundle must be checked against the current Cisco compatibility matrix.
The hardware guide lists field-replaceable fans, power supply modules, SSDs, rack-mount kit, network modules, and power-cord rules, making accessory verification part of the technical quote check.
Application Scenarios
Choose FPR4115-ASA-K9 for an ASA-based internet edge or data center firewall refresh when the approved sizing document calls for the 4115 performance tier instead of the lower 4112 model.
Select this SKU when procurement must keep the Firepower 4115 hardware but the security design names ASA as the appliance role, making FPR4115-NGFW-K9 the wrong orderable PID.
Use this appliance when the rack plan requires a 1RU Firepower 4100 chassis and the interface plan depends on fixed 10G SFP+ ports plus Cisco-confirmed network module expansion.
Product Comparison
|
Parameter |
FPR4115-ASA-K9 | |||
|---|---|---|---|---|
|
Product family |
Firepower 4100 Series |
Firepower 4100 Series |
Firepower 4100 Series |
Firepower 4100 Series |
|
Cisco PID description |
Firepower 4115 ASA appliance |
Firepower 4115 NGFW appliance |
Firepower 4112 ASA appliance |
Firepower 4125 ASA appliance |
|
Model |
FPR-4115 |
FPR-4115 |
FPR-4112 |
FPR-4125 |
|
Form factor |
1RU |
1RU |
1RU |
1RU |
|
Memory |
192 GB |
192 GB |
96 GB |
192 GB |
|
Network module bays |
2 |
2 |
2 |
2 |
|
On-chassis interfaces |
8 x SFP+ |
8 x SFP+ |
8 x SFP+ |
8 x SFP+ |
|
Firewall performance summary |
80G |
80G |
40G |
80G |
|
NGFW performance summary |
33G |
33G |
19G |
38G |
|
IPS performance summary |
33G |
33G |
19G |
38G |
|
ASA multiprotocol firewall throughput |
40 Gbps |
40 Gbps |
30 Gbps |
45 Gbps |
|
Concurrent firewall connections |
15 million |
15 million |
10 million |
25 million |
|
Storage |
400 GB |
400 GB |
400 GB |
800 GB |
|
Power supply configuration |
Single 1100W AC; dual optional; single or dual 950W DC optional |
Single 1100W AC; dual optional; single or dual 950W DC optional |
Single 1100W AC; dual optional; single or dual 950W DC optional |
Dual 1100W AC |
- In a FPR4115-ASA-K9 vs FPR4115-NGFW-K9 comparison, Cisco lists the same FPR-4115 hardware model, memory, storage, ports, and performance summary, while the PID description separates the ASA appliance from the NGFW appliance.
- The FPR4115-ASA-K9 difference from FPR4112-ASA-K9 is the model tier: the 4115 has 192 GB memory, 80G firewall summary performance, 40 Gbps ASA multiprotocol throughput, and 15 million concurrent firewall connections, while the 4112 has lower listed values.
- For FPR4115-ASA-K9 vs FPR4125-ASA-K9, both are 80G firewall summary ASA appliances, but the 4125 moves to 800 GB storage, 45 Gbps ASA multiprotocol throughput, 25 million concurrent connections, and a dual 1100W AC power configuration.
- Buyers deciding which model to choose should order FPR4115-ASA-K9 only when the BOM needs the Firepower 4115 ASA PID and the 4115 performance and storage profile match the approved design.
Selection Guide
1. Anchor the order on ASA identity
Select FPR4115-ASA-K9 when the firewall design explicitly requires a Firepower 4115 ASA appliance PID and not the 4115 NGFW or NGIPS orderable identity.
2. Use the 4115 tier for the documented sizing target
Choose the 4115 ASA model when 80 Gbps stateful inspection throughput, 40 Gbps multiprotocol firewall throughput, and 15 million concurrent connections fit the project sizing file.
3. Move to another 4100 model only for a confirmed gap
Compare FPR4112-ASA-K9 for a lower 4112 ASA tier or FPR4125-ASA-K9 for the 4125 storage, connection, and power profile; do not substitute either model without changing the approved bill of materials.
4. Close the appliance and accessory plan together
Verify software release, network modules, optics, SSD, fan spares, rack kit, AC or DC power supplies, and regional power cords before price and availability are finalized.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact PID |
FPR4115-ASA-K9 rather than FPR4115-NGFW-K9 or FPR4115-NGIPS-K9 |
Cisco lists separate Firepower 4115 PIDs for ASA, NGFW, and NGIPS appliance roles |
|
Software plan |
ASA appliance requirement and the Cisco-supported ASA and FXOS release for the target deployment |
The 4115 ASA order should match the software image and compatibility plan |
|
Fixed-port optics |
Supported SFP/SFP+ transceivers for the eight on-chassis data ports |
Incorrect optics can delay cabling or support validation |
|
Network modules |
Required 1G, 10G, 40G, 100G, or hardware-bypass network module type |
The two module bays determine the firewall’s additional interface set |
|
Power design |
1100W AC, dual AC option, or 950W DC option plus regional power cords |
Power supply choice affects redundancy, rack power, and site installation |
|
Serviceable parts |
400-GB SSD, six fan modules, rack kit, cable management, and spare accessory needs |
The appliance should arrive with the parts needed for installation and support |
|
Commercial review |
Price, stock status, warranty support, and shipping destination after the technical BOM is locked |
Commercial checks should follow confirmed PID, power, module, and optics choices |
Optional Add-ons
|
Model |
Description |
|---|---|
|
FPR4K-NM-8X10G |
8-port 10-Gbps SFP+ network module |
|
FPR4K-NM-4X40G |
4-port 40-Gbps QSFP+ network module |
|
FPR4K-NM-2X100G |
2-port 100-Gbps single-wide network module |
|
FPR4K-NM-8X1G-F |
8-port 1-Gbps copper hardware bypass network module |
|
FPR4K-NM-6X10SR-F |
6-port 10-Gbps SR hardware bypass network module |
|
FPR4K-NM-6X10LR-F |
6-port 10-Gbps LR hardware bypass network module |
|
FPR4K-NM-2X40G-F |
2-port 40-Gbps SR hardware bypass network module |
|
FPR4K-PWR-AC-1100 |
1100-W AC power supply module |
|
FPR4K-PWR-DC-950 |
950-W DC power supply module |
|
FPR4K-SSD400 |
400-GB SSD for Firepower 4112 and 4115 |
|
FPR4K-RACK-MNT |
Rack-mount kit |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | FPR4115-ASA-K9 | Product Family | Cisco Firepower 4100 Series |
| Product Type | Cisco Firepower 4115 ASA appliance | Firewall Model | FPR-4115 |
| Form Factor | 1RU | Memory | 192 GB |
| Dimensions | 1.75 x 16.89 x 29.7 in. (4.4 x 42.9 x 75.4 cm) | Weight | 39.4 lb (17.87 kg) with 2 power supplies, 2 network modules, and 6 fans |
| On-chassis Data Ports | 8 x 10 Gigabit Ethernet SFP+ | Network Module Bays | 2 |
| Maximum Interface Expansion | Up to 4 x 100GE QSFP28, 24 x 10GE SFP+, 8 x 40GE QSFP+, or 24 x 1GE ports with network modules and fixed ports | Management Port | 1 Gigabit Ethernet SFP port |
| Serial Port | 1 x RJ-45 console | USB Port | 1 x USB 2.0 |
| Storage | 400 GB | Fan Modules | 6 hot-swappable fans |
| Power Supply Configuration | Single 1100W AC; dual optional; single or dual 950W DC optional | Power Redundancy | 1+1 |
| AC Input Voltage | 100 to 240V AC | AC Maximum Output Power | 1100W |
| DC Input Voltage | -40V to -60VDC | DC Maximum Output Power | 950W |
| Stateful Inspection Firewall Throughput | 80 Gbps | Multiprotocol Firewall Throughput | 40 Gbps |
| Concurrent Firewall Connections | 15 million | New Connections Per Second | 848K |
| Firewall Latency | 3.5 microseconds with UDP 64B test traffic | IPsec VPN Throughput | 15 Gbps |
| Maximum VPN Peers | 15000 | Security Contexts | 10 included; 250 maximum |
| High Availability | Active/active or active/standby | Clustering | Up to 16 appliances |
| ASA Introduction Release | ASA 9.12(1) for Firepower 4115 with FXOS 2.6.1 requirement | Fixed Port Transceiver Support | 1G and 10G SFP/SFP+ options listed for Firepower 4115 fixed ports |
| Rack Mount | 4-post EIA-310-D rack mount rails included | Operating Temperature | 32 to 104F (0 to 40C) |
| Operating Humidity | 5 to 95% noncondensing | Operating Altitude | 10000 ft maximum |
| Noise | 63 dBA typical; 74 dBA maximum | Supported SSD | FPR4K-SSD400 for Firepower 4112 and 4115 |
