FPR4112-ASA-K9 – 40G ASA Firewall – 8x10G SFP+ – 2 NM Bays
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
FPR4112-ASA-K9 Description

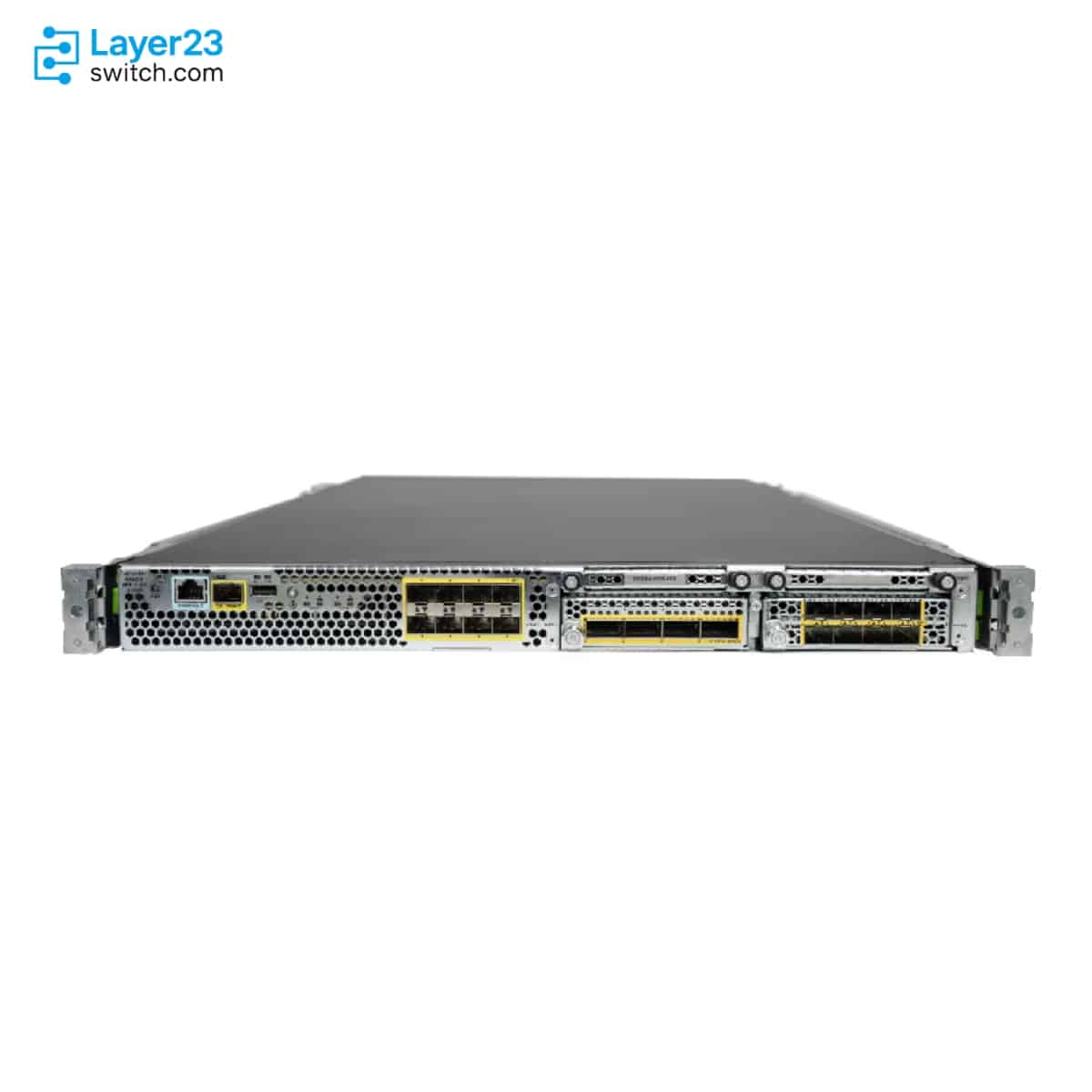

FPR4112-ASA-K9 is a Cisco Firepower 4112 ASA firewall appliance in the Firepower 4100 Series for ASA-based edge, data center, or service-provider firewall deployments. Cisco identifies this exact PID as a 1RU Firepower 4112 ASA appliance with two network module bays, and Cisco Firepower 4100 documentation confirms eight fixed 1G/10G SFP+ ports, support for 1/10/40/100G network-module expansion, a single shipped 1100W AC power supply with optional redundant AC or 950W DC supplies, and Firepower 4112 performance figures including 40 Gbps firewall throughput, 10 million concurrent sessions, and 8.5 Gbps IPsec VPN throughput.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
FPR4112-ASA-K9 |
|
Product type |
Cisco Firepower 4112 ASA appliance |
|
Form factor |
1RU |
|
On-chassis data ports |
8 x 10 Gigabit Ethernet SFP+ |
|
Network module bays |
2 |
|
Stateful inspection firewall throughput |
40 Gbps |
|
Multiprotocol firewall throughput |
30 Gbps |
|
Concurrent firewall connections |
10 million |
|
New connections per second |
400000 |
|
IPsec VPN throughput |
9 Gbps |
|
Power supply configuration |
Single 1100W AC; dual optional; single or dual 950W DC optional |
|
Fan modules |
6 hot-swappable fans |
Product Performance
Key Features
FPR4112-ASA-K9 is the Cisco-listed ASA appliance PID for the Firepower 4112, so procurement should not substitute the NGFW or NGIPS PID unless the approved design changes.
The appliance uses a 1RU chassis with two network module bays, which helps projects keep the 4112 footprint while adding the approved I/O module set.
Cisco lists eight on-chassis SFP+ interfaces for the 4112 model, giving the firewall a fixed 10G base port set before optional network modules are added.
The ASA performance table confirms 40 Gbps stateful inspection throughput, 30 Gbps multiprotocol throughput, 9 Gbps IPsec VPN throughput, and 10000 maximum VPN peers for the 4112 model.
Cisco’s ASA capability table lists active/active or active/standby high availability and clustering up to 16 appliances, with final design limits tied to the current Cisco configuration guidance.
Power supplies, fans, SSD options, and rack accessories are listed as Firepower 4100 orderable components, so spares and regional power choices should be part of the firewall BOM.
Application Scenarios
Use FPR4112-ASA-K9 when the existing design standardizes on Cisco ASA operation and needs a Firepower 4112 appliance with fixed 10G SFP+ interfaces plus modular I/O expansion.
This SKU is appropriate when asset records, support contracts, or compliance approvals specify the FPR4112-ASA-K9 orderable PID and a different 4112 NGFW PID would change the requested software role.
Deploy the 4112 ASA appliance when the firewall design needs two network module bays for approved 1G, 10G, 40G, or 100G Firepower 4100 modules while keeping the 1RU chassis class.
Product Comparison
|
Parameter |
FPR4112-ASA-K9 | ||
|---|---|---|---|
|
Cisco PID description |
Firepower 4112 ASA appliance |
Firepower 4112 NGFW appliance |
Firepower 4115 ASA appliance |
|
Form factor |
1RU |
1RU |
1RU |
|
Network module bays |
2 |
2 |
2 |
|
On-chassis interfaces |
8 x SFP+ |
8 x SFP+ |
8 x SFP+ |
|
Firewall performance summary |
40G |
40G |
80G |
|
NGFW performance summary |
19G |
19G |
33G |
|
IPS performance summary |
19G |
19G |
33G |
|
Storage |
400 GB |
400 GB |
400 GB |
|
Power supply configuration |
Single 1100W AC; dual optional; single or dual 950W DC optional |
Single 1100W AC; dual optional; single or dual 950W DC optional |
Single 1100W AC; dual optional; single or dual 950W DC optional |
- In a FPR4112-ASA-K9 vs FPR4112-NGFW-K9 comparison, the hardware model, 1RU form factor, two network module bays, and 4112 performance summary match, but Cisco’s PID description separates the ASA appliance from the NGFW appliance.
- The FPR4112-ASA-K9 difference from FPR4115-ASA-K9 is the model tier: the 4112 is listed with 40G firewall, 19G NGFW, and 19G IPS summary figures, while the 4115 is listed with 80G firewall, 33G NGFW, and 33G IPS summary figures.
- For buyers deciding which model to choose, order FPR4112-ASA-K9 when the BOM needs the 4112 ASA PID and move to FPR4115-ASA-K9 only when the approved firewall design calls for the higher 4115 ASA model.
Selection Guide
1. Match the exact ASA orderable PID
Select FPR4112-ASA-K9 when Cisco ASA operation is part of the approved firewall design and the requested PID is the Firepower 4112 ASA appliance.
2. Keep the 4112 tier when its ASA scale fits
Use the 4112 model when 40 Gbps stateful inspection throughput, 30 Gbps multiprotocol throughput, and 10 million concurrent firewall connections fit the sizing document.
3. Compare FPR4115-ASA-K9 for higher appliance scale
Move to FPR4115-ASA-K9 only if the design requires the 4115 model’s higher Cisco-listed performance summary while staying with an ASA appliance PID.
4. Finalize modules, optics, software, and power together
Confirm the two network module bays, supported transceivers, ASA software target, AC or DC power supply plan, rack accessories, and spare components before the quote is released.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact PID |
FPR4112-ASA-K9 rather than FPR4112-NGFW-K9 or FPR4112-NGIPS-K9 |
Cisco lists separate 4112 orderable PIDs for ASA, NGFW, and NGIPS appliance roles |
|
Software role |
ASA appliance requirement and target release for the deployment |
Prevents ordering an appliance PID that does not match the firewall software plan |
|
Fixed ports |
Eight on-chassis 10G SFP+ interfaces and supported Cisco transceivers |
Ensures the base 4112 port set matches the edge or data center cabling plan |
|
Network modules |
Required Firepower 4100 network module type for the two module bays |
Determines whether extra 1G, 10G, 40G, 100G, or FTW connectivity must be ordered |
|
Power design |
1100W AC or 950W DC supply choice and redundancy requirement |
Site power and spare planning depend on the selected PSU type |
|
Serviceable parts |
400 GB SSD, six fans, rack kit, and approved power cords |
Helps procurement avoid installation delays after appliance delivery |
Optional Add-ons
|
Model |
Description |
|---|---|
|
FPR4K-NM-8X10G |
8-port 10-Gbps SFP+ network module |
|
FPR4K-NM-4X40G |
4-port 40-Gbps QSFP+ network module |
|
FPR4K-NM-2X100G |
2-port 100-Gbps single-wide network module |
|
FPR4K-NM-8X1G-F |
8-port 1-Gbps copper hardware bypass network module |
|
FPR4K-NM-6X10SR-F |
6-port 10-Gbps SR hardware bypass network module |
|
FPR4K-NM-6X10LR-F |
6-port 10-Gbps LR hardware bypass network module |
|
FPR4K-NM-2X40G-F |
2-port 40-Gbps SR hardware bypass network module |
|
FPR4K-PWR-AC-1100 |
1100-W AC power supply module |
|
FPR4K-PWR-DC-950 |
950-W DC power supply module |
|
FPR4K-SSD400 |
400-GB SSD for Firepower 4112 and 4115 |
|
FPR4K-RACK-MNT |
Rack-mount kit |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | FPR4112-ASA-K9 | Product Type | Cisco Firepower 4112 ASA appliance |
| Firewall Model | FPR-4112 | Form Factor | 1RU |
| Dimensions | 1.75 x 16.89 x 29.7 in. (4.4 x 42.9 x 75.4 cm) | On-chassis Data Ports | 8 x 10 Gigabit Ethernet SFP+ |
| Network Module Bays | 2 | Maximum Interface Expansion | Up to 4 x 100GE QSFP28, 24 x 10GE SFP+, 8 x 40GE QSFP+, or 24 x 1GE ports with network modules and fixed ports |
| Management Port | 1 Gigabit Ethernet SFP port | Serial Port | 1 x RJ-45 console |
| USB Port | 1 x USB 2.0 | Storage | 400 GB |
| Fan Modules | 6 hot-swappable fans | Power Supply Configuration | Single 1100W AC; dual optional; single or dual 950W DC optional |
| Power Redundancy | 1+1 | AC Input Voltage | 100 to 240V AC |
| AC Maximum Output Power | 1100W | DC Input Voltage | -40V to -60VDC |
| DC Maximum Output Power | 950W | Stateful Inspection Firewall Throughput | 40 Gbps |
| Multiprotocol Firewall Throughput | 30 Gbps | Concurrent Firewall Connections | 10 million |
| New Connections Per Second | 400000 | Firewall Latency | 3.5 microseconds with UDP 64B test traffic |
| IPsec VPN Throughput | 9 Gbps | Maximum VPN Peers | 10000 |
| Security Contexts | 10 included; 250 maximum | High Availability | Active/active or active/standby |
| Clustering | Up to 16 appliances | Fixed Port Transceiver Support | 1G and 10G SFP/SFP+ options listed for Firepower 4112 fixed ports |
| Fixed Port First Supported Release | Threat Defense 6.4 / ASA 9.14 | Rack Mount | 4-post EIA-310-D rack mount rails included |
| Weight | 39.4 lb (17.87 kg) with 2 power supplies, 2 network modules, and 6 fans | Operating Temperature | 32 to 104F (0 to 40C) |
| Operating Humidity | 5 to 95% noncondensing | Operating Altitude | 10000 ft maximum |
| Noise | 63 dBA typical; 74 dBA maximum |
