FPR1150-ASA-K9 Description

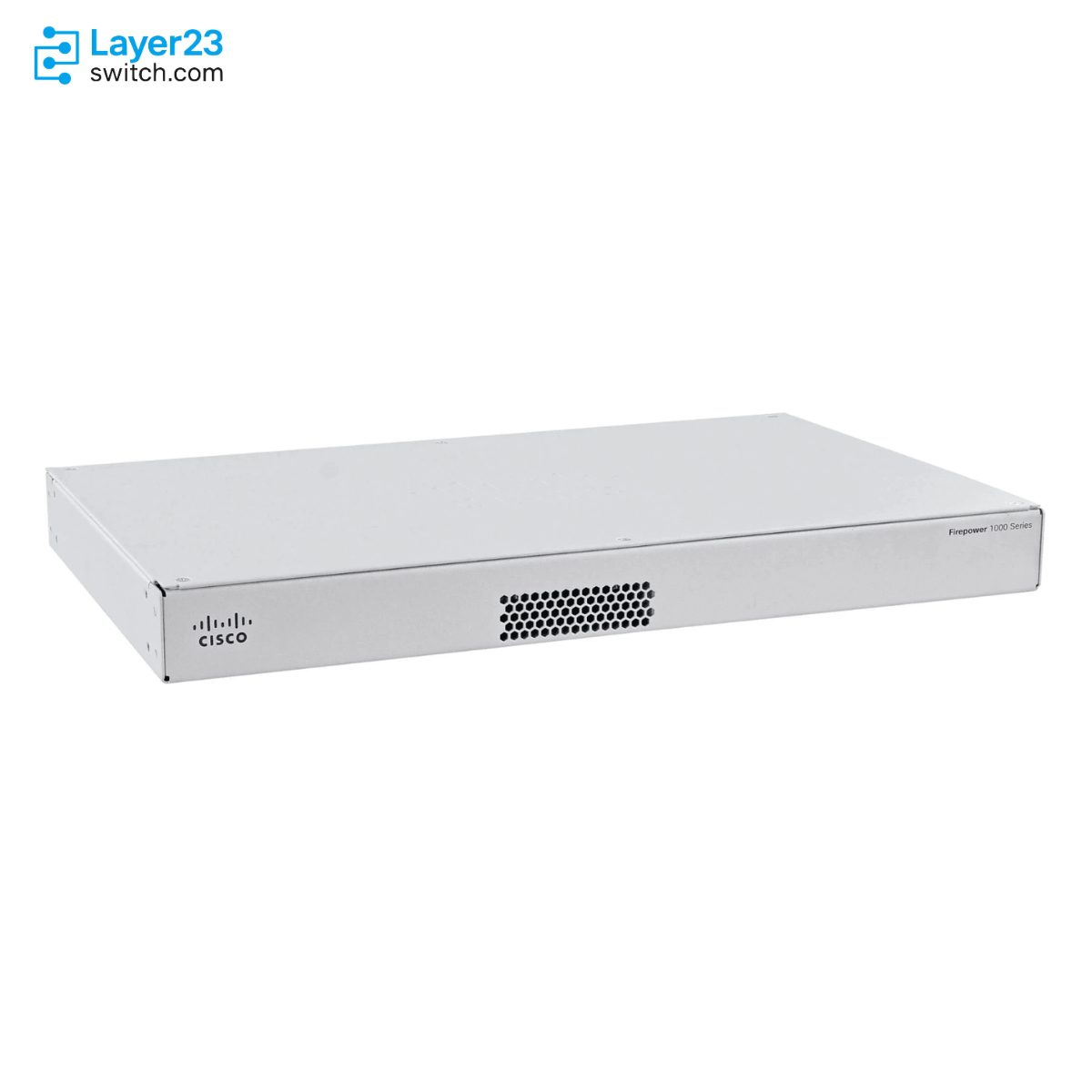

The FPR1150-ASA-K9 is a Cisco Firepower 1000 Series 1RU firewall appliance running ASA software for branch and internet-edge sites that need 10G uplinks. The appliance has eight RJ-45, two SFP and two SFP+ fixed ports, 7.5 Gbps of stateful inspection firewall throughput, 600000 concurrent firewall connections and up to 800 VPN peers. The appliance includes two security contexts out of a 25-context maximum and has a single fixed AC supply with no redundant option.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
FPR1150-ASA-K9 |
|
Product type |
Cisco Firepower 1150 ASA firewall appliance |
|
Security software role |
Cisco ASA software |
|
Form factor |
1RU rack-mount appliance |
|
Fixed data interfaces |
8 x RJ-45, 2 x SFP, and 2 x SFP+ |
|
Management interface |
1 x 1000BASE-T management port |
|
Storage |
1 x 200 GB 2.5-in SATA SSD |
|
Internal power input |
Single fixed internal AC power supply |
|
Fan design |
1 fixed fan |
|
Stateful inspection firewall throughput |
7.5 Gbps |
|
ASA multiprotocol firewall throughput |
4.5 Gbps |
|
Concurrent firewall connections |
600000 |
Product Performance
Key Features
Stateful inspection firewall throughput is 7.5 Gbps on 1500B UDP traffic, falling to 4.5 Gbps for the multiprotocol TCP mix. The multiprotocol figure is the more realistic one for mixed application traffic.
Two SFP+ ports sit beside two SFP and eight RJ-45 ports, so 10G uplinks need no module. Cisco publishes a separate supported list for the SFP+ ports covering 10G SFP, DAC and AOC options.
Two security contexts are included and up to 25 are supported, which suits a design that splits one firewall across several tenants. Contexts beyond the included two need add-on licenses.
Application Scenarios
A branch that connects to a provider or aggregation switch over 10G fiber can use the fixed SFP+ ports for the uplink while the eight RJ-45 ports serve the local network.
A site that terminates employee remote-access and site-to-site tunnels can use the appliance’s 1.7 Gbps of IPsec VPN throughput and support for up to 800 VPN peers.
A shared network that separates tenants or departments can divide the appliance into security contexts, with two included and a maximum of 25.
Product Comparison
|
Parameter |
FPR1150-ASA-K9 | |||
|---|---|---|---|---|
|
Stateful inspection firewall throughput |
7.5 Gbps |
Not applicable |
6 Gbps |
4.5 Gbps |
|
Stateful inspection firewall throughput (multiprotocol) |
4.5 Gbps |
Not applicable |
3.5 Gbps |
2.5 Gbps |
|
Concurrent firewall connections |
600000 |
Not applicable |
400000 |
200000 |
|
New connections per second |
150000 |
Not applicable |
100000 |
75000 |
|
IPsec VPN throughput (450B UDP L2L test) |
1.7 Gbps |
Not applicable |
1.2 Gbps |
1 Gbps |
|
Maximum VPN peers |
800 |
800 |
400 |
150 |
|
Security contexts (included; maximum) |
2; 25 |
Not applicable |
2; 5 |
2; 5 |
|
Network interfaces |
8 x RJ-45, 2 x SFP, 2 x SFP+ |
8 x RJ-45, 2 x SFP, 2 x SFP+ |
8 x RJ-45, 4 x SFP |
8 x RJ-45, 4 x SFP |
FPR1150-ASA-K9 and FPR1150-NGFW-K9 share the 1150 chassis with eight RJ-45, two SFP and two SFP+ ports, but FPR1150-ASA-K9 runs ASA software while FPR1150-NGFW-K9 runs Firewall Threat Defense software with optional subscriptions, so the software choice fixes the PID. On ASA, FPR1150-ASA-K9 is rated 7.5 Gbps stateful inspection, 600000 concurrent connections, 800 VPN peers and 2 included security contexts with a maximum of 25. Sites that need only 6 Gbps, 400 VPN peers and 5 contexts can use FPR1140-ASA-K9, and 4.5 Gbps with 150 peers fits FPR1120-ASA-K9, but both keep four 1G SFP ports with no SFP+.
Ordering Checklist
- ASA base and encryption licenses: Add L-FPR1000-ASA=, the free ASA Base license, and L-FPR1K-ENC-K9=, the free Strong Encryption (3DES/AES) license, which is unavailable in export-restricted regions. ASA licensing runs through Smart Licensing, and the encryption level follows the Smart Account export setting.
- Security contexts: The Base license includes 2 contexts; add L-FPR1K-ASASC-5= or L-FPR1K-ASASC-10= for paid contexts beyond them. Multi-context designs with more than 2 contexts need the add-on license on the order.
- Rack and cable accessories: Add the FPR1K-RM-BRKT=, FPR1K-CBL-MGMT=, FPR1K-RM-ACY-KIT= and FPR1K-RM-FIPS-KIT= accessory PIDs the install needs for the Firepower 1120, 1140 and 1150 chassis. A rack, cable-management or FIPS accessory left off the order has to be bought as a separate spare.
Optional Add-ons
|
Model |
Description |
|---|---|
|
L-FPR1000-ASA= |
Cisco Firepower 1000 Series ASA Essentials license |
|
L-FPR1K-ASASC-5= |
Cisco Firepower 1000 Series add-on 5 security context license |
|
L-FPR1K-ASASC-10= |
Cisco Firepower 1000 Series add-on 10 security context license |
|
L-FPR1K-ENC-K9= |
Cisco Firepower 1K Series ASA strong encryption license |
|
FPR1K-CBL-MGMT= |
Cable-management brackets for Firepower 1120, 1140, and 1150 appliances |
|
FPR1K-RM-ACY-KIT= |
Accessory kit for Firepower 1120, 1140, and 1150 appliances |
|
FPR1K-RM-BRKT= |
Rackmount brackets for Firepower 1120, 1140, and 1150 appliances |
|
FPR1K-RM-FIPS-KIT= |
FIPS kit for Firepower 1120, 1140, and 1150 appliances |
|
FPR1K-RM-SSD200= |
200 GB SSD for Firepower 1120, 1140, and 1150 appliances |
|
1000BASE-T SFP transceiver listed for Firepower 1120, 1140, and 1150 fixed ports | |
|
1000BASE-SX SFP transceiver listed for Firepower 1120, 1140, and 1150 fixed ports | |
|
1000BASE-LX/LH SFP transceiver listed for Firepower 1120, 1140, and 1150 fixed ports | |
|
1000BASE-EX SFP transceiver listed for Firepower 1120, 1140, and 1150 fixed ports | |
|
1000BASE-ZX SFP transceiver listed for Firepower 1120, 1140, and 1150 fixed ports | |
|
10G SFP transceiver listed for Firepower 1150 fixed ports | |
|
10G SFP transceiver listed for Firepower 1150 fixed ports | |
|
10G SFP transceiver listed for Firepower 1150 fixed ports | |
|
SFP-H10GB-CUxM |
10G SFP copper cable family listed for Firepower 1150 fixed ports |
|
SFP-10G-AOCxM |
10G active optical cable family listed for Firepower 1150 fixed ports |
FPR1150-NGFW-K9 Rear View
|
1 |
Power switchNote The power switch provides a way to gracefully shut down the system and place it in standby. The power supply and fan remain active and the fan may continue to spin at slow speed. To achieve total power shut down, unplug the power supply from the chassis. |
2 |
Power cord socket |
|
3 |
Management port |
4 |
SFP ports (numbered 9 through 12) |
|
5 |
USB Type A port |
6 |
USB Mini B console port |
|
7 |
RJ-45 (8P8C) console port |
8 |
Network data ports |
|
9 |
Status LEDs |
10 |
Reset button |
|
11 |
SSD LED |
12 |
SSD bay |
Rear Panel LEDs
|
1 |
NetworkStatus of the network ports:Link status (L):Off—No link, or port is not in use.Green—Link established.Green, flashing—Link activity. |
2 |
NetworkStatus of the network ports:Connection-speed status (S):Green, flashing—One flash every three seconds = 10 Mbps.Green, flashing—Two rapid flashes = 100 Mbps.Green, flashing—Three rapid flashes = 1000 Mbps. |
|
3 |
SFPStatus of the SFP transceiver:Link status (L):Off—No SFP.Amber—SFP present, but no link.Green, flashing—Link established and transmitting. |
4 |
PowerPower supply status:Off —Power supply off.Green—Power supply on. |
|
5 |
StatusSystem operating status:Off—System has not booted up yet.Green, flashing quickly—System is booting up.Green—Normal system function.Amber—Critical alarm indicating one or more of the following:Major failure of a hardware or software component.Over-temperature condition.Power voltage outside the tolerance range.Green, flashing slowly (twice in 5 seconds)—Cloud connected.Note Security Cloud Control is valid for FTD 6.7 and later.Green and amber, flashing—Cloud connection failure.Green—Cloud disconnected.Note The Security Cloud Control LED pattern applies to zero-touch provisioning (ZTP). See the Easy Deployment Guide for Cisco Secure Firewall Threat Defense with Cisco Security Cloud Control for more information. |
6 |
ActiveStatus of the failover pair:Off— Failover is not operational.Green—Failover pair operating normally. The LED is green always unless the chassis in a high availability pair.Amber—When the chassis is in a high availability pair, the LED is amber for the standby unit.Note For Active-Active cases with multi-context enabled, since there will be multiple groups with Active and Standby units, any unit can be in the Active or Standby state in each group, thus the LED behavior is not deterministic. Therefore, you must ignore the LED status for Active-Active cases. |
|
7 |
SSDStatus of the SSD:Off— No SSD present.Green—SSD detected.Green, flashing—Activity on the SSD.Note See Replace the SSD for the procedure for replacing a failed SSD. |
— |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | FPR1150-ASA-K9 | Product type | Cisco Firepower 1150 ASA firewall appliance |
| Firewall model | Firepower 1150 | Security software role | Cisco ASA software |
| Rack units | 1RU rack mount | Fixed RJ-45 ports | 8 x RJ-45 |
| Fixed optical ports | 2 x SFP and 2 x SFP+ | Management port | 1 x 1000BASE-T management port |
| Console port | RJ-45 serial console and USB Mini B serial console | USB port | 1 x USB 3.0 Type-A |
| SSD storage | 1 x 200 GB 2.5-in SATA SSD | Airflow | I/O side to non-I/O side |
| Fan modules | 1 fixed fan | Default power supply | 1 fixed internal AC power supply |
| Power redundancy | No redundant power supply option listed | AC input voltage | 100 to 240V AC |
| AC input frequency | 50 to 60 Hz | AC maximum power draw | 100 W |
| AC maximum current draw | Less than 2 A at 100V; less than 1 A at 240V | Mounting | 2-post mounting brackets included |
| Weight | 3.6 kg (8 lb) | Operating temperature | 32 to 104F (0 to 40C) |
| Operating humidity | 90% noncondensing | Operating altitude | 9843 ft (3000 m) maximum |
| Fixed SFP release baseline | Threat Defense 6.4 or ASA 9.15 for listed SFPs | Supported fixed 1G SFPs | GLC-TE, GLC-SX-MMD, GLC-LH-SMD, GLC-EX-SMD, GLC-ZX-SMD |
| Supported fixed 10G options | SFP-10G-SR, SFP-10G-SR-S, SFP-10G-LR, SFP-10G-LR-S, SFP-10G-ER, SFP-10G-ER-S, SFP-H10GB-CUxM, SFP-H10GB-ACUxM, SFP-10G-AOCxM | High availability | Active/active and active/standby |
| Stateful inspection firewall throughput | 7.5 Gbps | Multiprotocol firewall throughput | 4.5 Gbps |
| Concurrent firewall connections | 600000 | New connections per second | 150000 |
| IPsec VPN throughput | 1.7 Gbps | Maximum VPN peers | 800 |
| Security contexts | 2 included; 25 maximum | Local ASA management | Adaptive Security Device Manager |
| ASA centralized management | Cisco Security Manager or Cisco Defense Orchestrator | Required ASA license | Essentials license L-FPR1000-ASA= |
| Context license options | L-FPR1K-ASASC-5= and L-FPR1K-ASASC-10= |
