FPR2140-NGFW-K9 – 10.4G NGFW Firewall – 12xRJ45 4xSFP+ – Dual AC
1/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
FPR2140-NGFW-K9 Description
FPR2140-NGFW-K9 is the Cisco Firepower 2140 NGFW firewall appliance in the Firepower 2100 Series, built for perimeter security, VPN termination, and inspection roles where a 1RU Threat Defense platform is required. It combines 12 10M/100M/1GBASE-T RJ-45 ports, four 1/10G SFP+ ports, one network module bay for expansion up to 24 Ethernet interfaces, dual included 400W AC power supplies, and a 200 GB SSD, with Cisco-published performance of 20 Gbps firewall throughput, 10.4 Gbps FW + AVC + IPS throughput, 3 million concurrent AVC sessions, and 10,000 VPN peers.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
FPR2140-NGFW-K9 |
|
Product type |
Cisco Firepower 2140 NGFW firewall appliance |
|
Security software role |
Cisco Secure Firewall Threat Defense / NGFW |
|
Form factor |
1RU rack-mount appliance |
|
Fixed data interfaces |
12 x 10M/100M/1GBASE-T RJ-45 and 4 x 1/10G SFP+ |
|
Network module bay |
One network module slot |
|
Maximum Ethernet interfaces |
Up to 24 total Ethernet ports with network module |
|
Optional network modules |
1G SFP, 10G SFP+, and fail-to-wire options |
|
Storage |
1 x 200 GB SSD installed and 1 spare slot for MSP |
|
Power supply design |
Ships with dual 400W AC power supplies; DC optional |
|
Default power supply |
Two FPR2K-PWR-AC-400 400W AC supplies included |
|
Firewall throughput |
20 Gbps |
|
FW + AVC + IPS throughput |
10.4 Gbps |
Product Performance
Key Features
Cisco publishes FPR2140-NGFW-K9 as the Firepower 2140 NGFW appliance PID, keeping this buying path separate from FPR2140-ASA-K9 on the same hardware class.
The 2140 NGFW values sit above the lower Firepower 2100 Threat Defense rows for firewall throughput, FW + AVC + IPS throughput, IPS throughput, session count, and VPN scale.

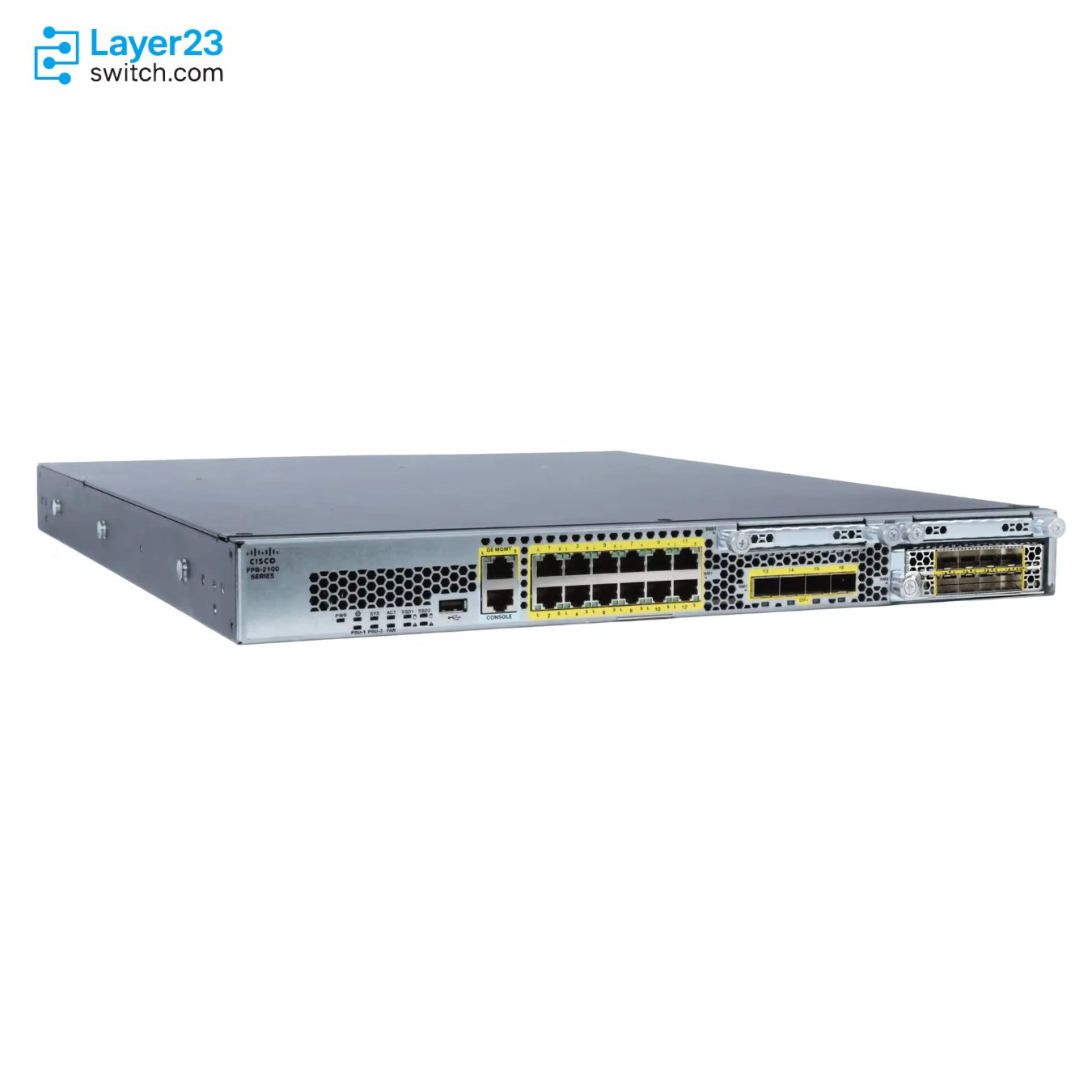

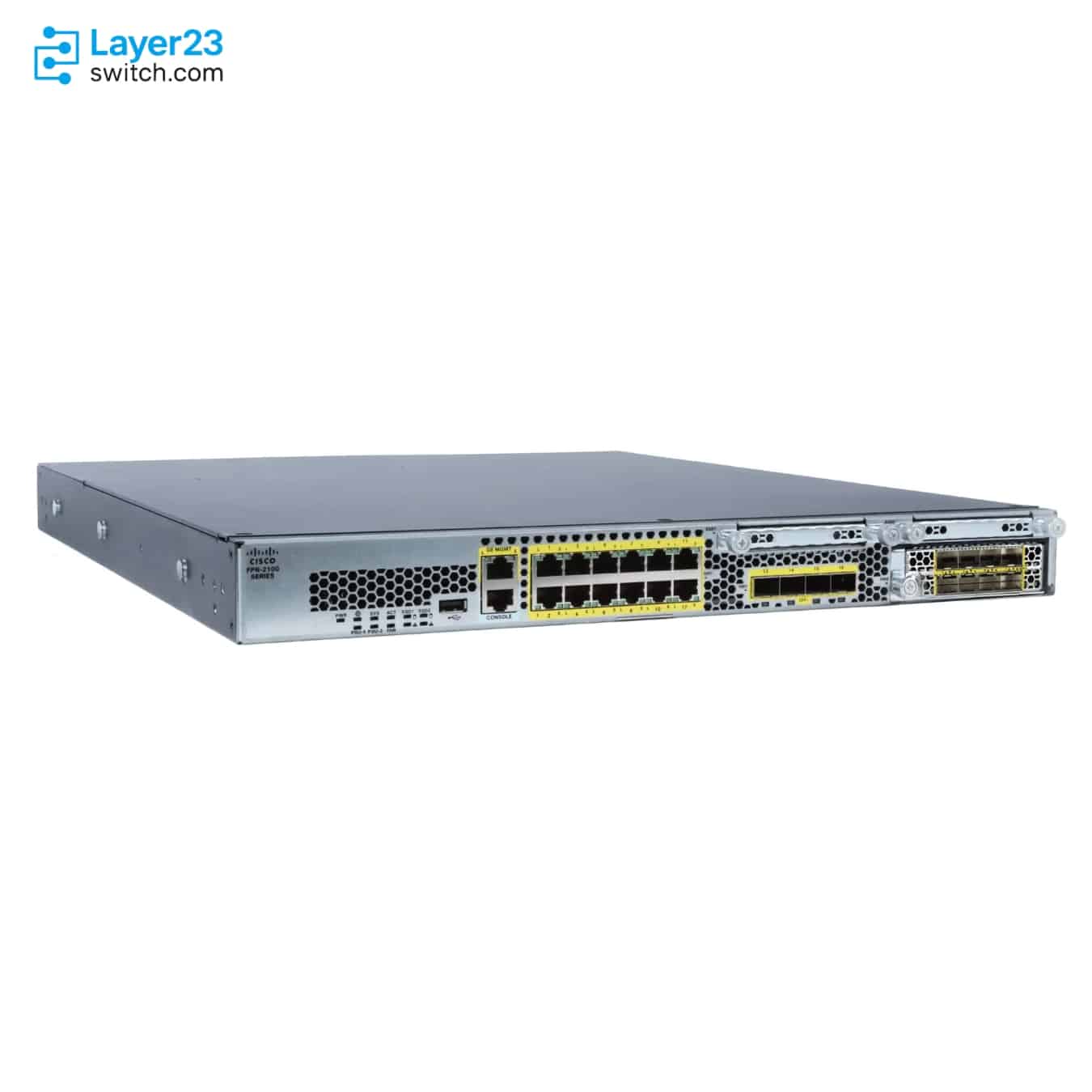

Twelve copper data interfaces and four fixed 1/10G SFP+ interfaces are built in, while the module slot lets the order add Cisco-listed 1G, 10G, or fail-to-wire network modules.

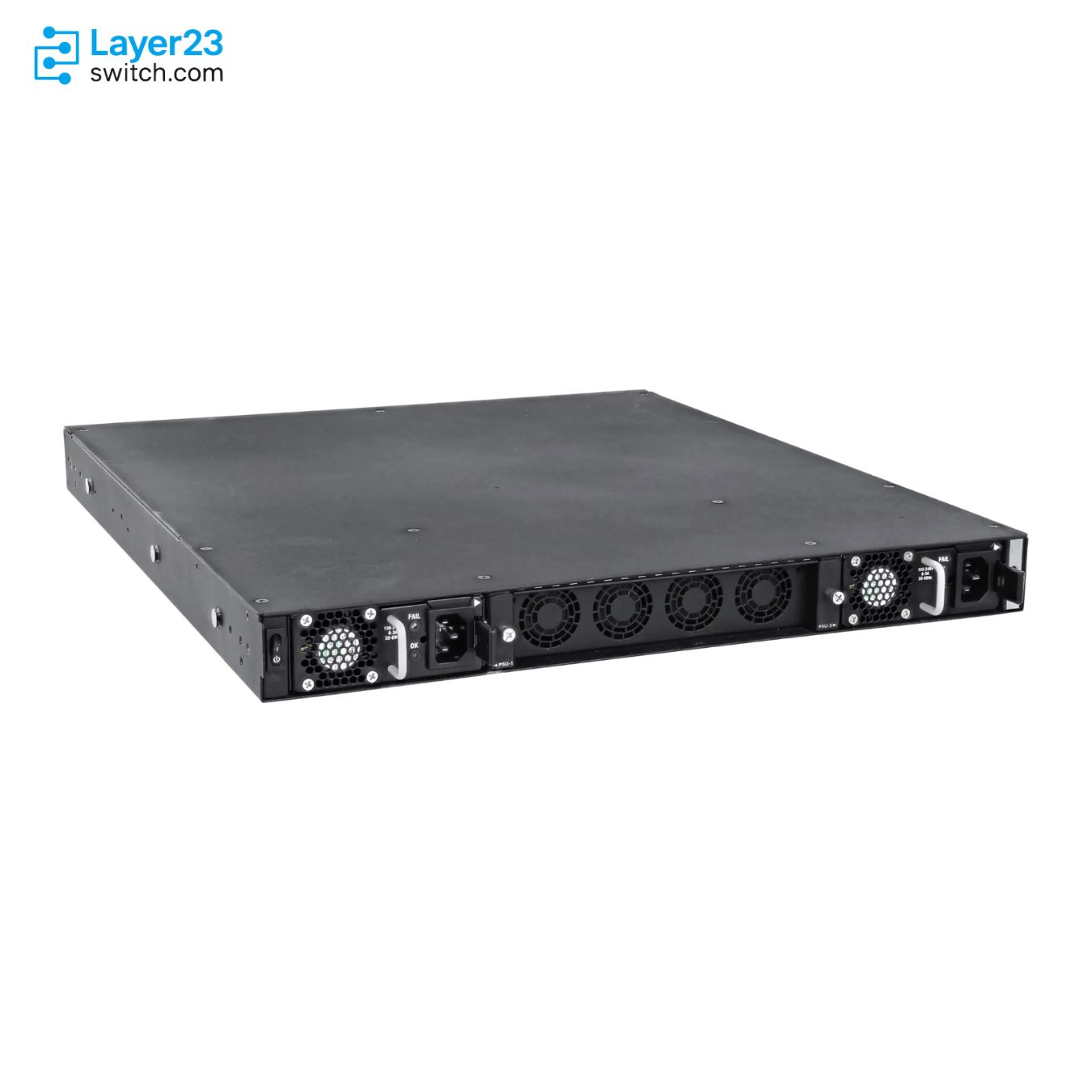

Cisco lists the 2140 appliance with two 400W AC power supplies, so the power decision is mainly whether the site stays on dual AC or moves to the optional DC supply path.
Threat Defense includes the base software entitlement automatically, while IPS, Malware Defense, URL Filtering, and remote-access VPN needs must be licensed through the Smart Account process.
The platform can be managed locally with Firepower Device Manager or centrally with Firewall Management Center or Cisco Security Cloud Control, depending on the deployment model.
Application Scenarios
Use FPR2140-NGFW-K9 when the approved design calls for Threat Defense and the sizing file depends on the 2140 firewall, inspection, session, or VPN figures.
Place this SKU where the base firewall must provide fixed SFP+ handoffs and still reserve a Firepower 2100 network module bay for additional Cisco-supported interfaces.
Keep this NGFW PID when the chassis family matches an existing Firepower 2140 standard but the software, licensing, and management path must remain Threat Defense instead of ASA.
Product Comparison
|
Parameter |
FPR2140-NGFW-K9 | |||
|---|---|---|---|---|
|
Cisco PID description |
Firepower 2140 appliance 1RU with one network module bay NGFW |
Firepower 2140 appliance 1RU with one network module bay ASA |
Firepower 2130 appliance 1RU with one network module bay NGFW |
Firepower 2120 appliance 1RU NGFW |
|
Default power supply |
Two FPR2K-PWR-AC-400 400W AC supplies included |
Two FPR2K-PWR-AC-400 400W AC supplies included |
FPR2K-PWR-AC-400 400W AC included; second AC supply optional |
Single integrated 250W AC power supply |
|
Firewall model |
Firepower 2140 |
Firepower 2140 |
Firepower 2130 |
Firepower 2120 |
|
Security software role |
Threat Defense / NGFW |
Cisco ASA software |
Threat Defense / NGFW |
Threat Defense / NGFW |
|
Form factor |
1RU |
1RU |
1RU |
1RU |
|
Fixed data interfaces |
12 x RJ-45 and 4 x 1/10G SFP+ |
12 x RJ-45 and 4 x 1/10G SFP+ |
12 x RJ-45 and 4 x 1/10G SFP+ |
12 x RJ-45 and 4 x 1G SFP |
|
Network module support |
One network module bay |
One network module bay |
One network module bay |
No network module bay |
|
Firewall throughput summary |
20 Gbps |
20 Gbps ASA stateful |
10 Gbps |
6 Gbps |
|
NGFW throughput summary |
10.4 Gbps |
Not a Threat Defense SKU |
5.4 Gbps |
3.4 Gbps |
|
IPS throughput |
10.5 Gbps |
Not a Threat Defense SKU |
5.4 Gbps |
3.5 Gbps |
|
FW + AVC + IPS throughput |
10.4 Gbps |
Not a Threat Defense SKU |
5.4 Gbps |
3.4 Gbps |
|
Concurrent sessions with AVC |
3 million |
ASA software role differs |
2 million |
1.5 million |
|
New connections per second with AVC |
57000 |
ASA software role differs |
30000 |
18000 |
|
TLS throughput |
1.4 Gbps |
ASA software role differs |
760 Mbps |
475 Mbps |
|
IPsec VPN throughput |
3.6 Gbps |
Not a Threat Defense SKU |
1.9 Gbps |
1.2 Gbps |
|
Maximum VPN peers |
10000 |
10000 |
7500 |
3500 |
|
TMC license PID |
L-FPR2140T-TMC= |
ASA license path differs |
L-FPR2130T-TMC= |
L-FPR2120T-TMC= |
|
Power supply design |
Dual 400W AC included; DC optional |
Dual 400W AC included; DC optional |
One 400W AC included; dual AC or DC optional |
Single integrated 250W AC |
- In a FPR2140-NGFW-K9 vs FPR2140-ASA-K9 comparison, the appliance model, fixed ports, module bay, and dual-AC hardware profile match, but the current SKU follows the Threat Defense / NGFW order path while the ASA PID follows Cisco ASA software.
- The FPR2140-NGFW-K9 difference from FPR2130-NGFW-K9 is the 2140 Threat Defense row: 20 Gbps firewall throughput, 10.4 Gbps FW + AVC + IPS throughput, 3 million AVC sessions, and the FPR2140 TMC license PID.
- For FPR2140-NGFW-K9 vs FPR2120-NGFW-K9, the comparison changes both capacity and interface planning because the 2140 adds fixed SFP+ ports, one network module bay, higher VPN values, and a dual-AC power profile.
- Buyers deciding which model to choose should confirm NGFW versus ASA first, then compare the SFP speed, module bay requirement, Threat Defense sizing row, TMC PID, and power supply design.
Selection Guide
1. Keep the software path on NGFW
Choose FPR2140-NGFW-K9 when the firewall design, license plan, and management tools are written for Cisco Secure Firewall Threat Defense rather than ASA.
2. Match the 2140 Threat Defense row
Use this SKU when the sizing worksheet requires 20 Gbps firewall throughput, 10.4 Gbps FW + AVC + IPS throughput, 3 million AVC sessions, or 10000 VPN peers.
3. Avoid a quiet interface downgrade
Move to FPR2120-NGFW-K9 only after the project accepts 1G SFP fixed fiber ports, no network module bay, lower inspection values, and the 2120 TMC license family.
4. Close licensing and power details together
Confirm the Smart Account, IPS, Malware Defense, URL, remote-access VPN needs, SFP+ optics, selected network module, AC or DC supplies, and regional cords before the commercial record is finalized.
Ordering Checklist
|
Review Area |
Required Decision |
Source-Based Risk |
|---|---|---|
|
Exact appliance PID |
Confirm FPR2140-NGFW-K9 instead of FPR2140-ASA-K9 |
Cisco lists separate NGFW and ASA order identities for the same Firepower 2140 hardware model |
|
Threat Defense deployment model |
Decide whether the appliance will be managed by Firepower Device Manager, Firewall Management Center, or Cisco Security Cloud Control |
The local or centralized management path affects license registration and day-two operations |
|
Smart Account licensing |
Attach required IPS, Malware Defense, URL Filtering, or remote-access VPN entitlements to the Smart Account process |
The base license is included automatically, but optional services are separate |
|
TMC term |
Select L-FPR2140T-TMC-1Y, L-FPR2140T-TMC-3Y, or L-FPR2140T-TMC-5Y when the combined subscription is required |
A 2130 or 2120 TMC PID does not match the 2140 appliance row |
|
Fixed SFP+ optics |
Match the four fixed 1/10G SFP+ ports to Cisco-supported transceivers or cables |
The 2140 fiber handoff differs from the 1G SFP ports used on 2110 and 2120 appliances |
|
Network module |
Choose the required Cisco 1G SFP, 10G SFP+, or fail-to-wire network module if the fixed ports are not enough |
The module is a separate interface planning item even though the 2140 chassis has one bay |
|
Power design |
Keep the included dual AC profile or order the supported DC power path with matching regional cords |
Cisco does not support mixing AC and DC power supplies in the same chassis |
Optional Add-ons
|
Model |
Description |
|---|---|
|
L-FPR2140T-TMC= |
Cisco Firepower 2140 Threat Defense IPS, Malware Defense, and URL license combination |
|
L-FPR2140T-TMC-1Y |
Cisco Firepower 2140 Threat Defense IPS, Malware Defense, and URL 1-year subscription |
|
L-FPR2140T-TMC-3Y |
Cisco Firepower 2140 Threat Defense IPS, Malware Defense, and URL 3-year subscription |
|
L-FPR2140T-TMC-5Y |
Cisco Firepower 2140 Threat Defense IPS, Malware Defense, and URL 5-year subscription |
|
FPR2K-NM-8X1G |
Firepower 2100 8-port 1G SFP network module |
|
FPR2K-NM-8X10G |
Firepower 2100 8-port 10G SFP+ network module |
|
FPR2K-NM-8X1G-F |
Firepower 2100 8-port 1G copper hardware bypass network module |
|
FPR2K-NM-6X1SX-F |
Firepower 2100 6-port 1G SX fiber hardware bypass network module |
|
FPR2K-NM-6X10SR-F |
Firepower 2100 6-port 10G SR hardware bypass network module |
|
FPR2K-NM-6X10LR-F |
Firepower 2100 6-port 10G LR hardware bypass network module |
|
FPR2K-PWR-AC-400= |
400W AC power supply spare for Firepower 2130 and 2140 |
|
FPR2K-PWR-DC-350= |
350W DC power supply spare for Firepower 2130 and 2140 |
|
FPR2K-FAN= |
Fan tray spare for Firepower 2130 and 2140 |
|
FPR2K-SSD200= |
200 GB SSD spare for Firepower 2130 and 2140 |
|
FPR-MSP-SSD= |
Malware Storage Pack SSD option |
|
FPR2K-SLIDE-RAILS= |
Slide rail kit spare |
|
SFP-10G-SR |
Cisco-listed 10G SFP+ option for Secure Firewall 2130 and 2140 fixed ports |
|
SFP-10G-SR-S |
Cisco-listed 10G SFP+ option for Secure Firewall 2130 and 2140 fixed ports |
|
SFP-10G-LR |
Cisco-listed 10G SFP+ option for Secure Firewall 2130 and 2140 fixed ports |
|
SFP-10G-LR-S |
Cisco-listed 10G SFP+ option for Secure Firewall 2130 and 2140 fixed ports |
|
SFP-10G-ER |
Cisco-listed 10G SFP+ option for Secure Firewall 2130 and 2140 fixed ports |
|
SFP-10G-ER-S |
Cisco-listed 10G SFP+ option for Secure Firewall 2130 and 2140 fixed ports |
|
SFP-10G-LRM |
Cisco-listed 10G SFP+ option for Secure Firewall 2130 and 2140 fixed ports |
|
SFP-H10GB-CUxM |
Cisco-listed 10G copper cable option for Secure Firewall 2130 and 2140 fixed ports |
|
SFP-H10GB-ACUxM |
Cisco-listed 10G active copper cable option for Secure Firewall 2130 and 2140 fixed ports |
|
SFP-10G-AOCxM |
Cisco-listed 10G active optical cable option for Secure Firewall 2130 and 2140 fixed ports |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | FPR2140-NGFW-K9 | Product Type | Cisco Firepower 2140 NGFW firewall appliance |
| Firewall Model | Firepower 2140 | Security Software Role | Cisco Secure Firewall Threat Defense / NGFW |
| Form Factor | 1RU rack mount | Dimensions | 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) |
| Fixed RJ-45 Ports | 12 x 10M/100M/1GBASE-T | Fixed SFP+ Ports | 4 x 1/10G SFP+ |
| Maximum Ethernet Interfaces | Up to 24 total Ethernet ports with network module | Network Module Bay | One network module slot |
| Network Module Options | 1G SFP, 10G SFP+, and fail-to-wire options | Management Port | 1 x 10M/100M/1GBASE-T RJ-45 |
| Console Port | 1 x RJ-45 console | USB Port | 1 x USB 2.0 Type-A |
| Airflow | Front to rear; cold aisle to hot aisle through the I/O side | Storage | 1 x 200 GB SSD installed; second slot reserved for MSP |
| Power Supply Included | Dual 400W AC power supplies | Power Supply Options | Single or dual 350W DC optional |
| Power Redundancy | 1+1 AC or DC with dual supplies | AC Input Voltage | 100 to 240V AC |
| AC Maximum Current | Less than 6A at 100V | AC Maximum Output Power | 400W |
| AC Frequency | 50 to 60 Hz | DC Input Voltage | -48V to -60VDC |
| DC Maximum Output Power | 350W | Fan Design | 1 hot-swappable fan module with 4 fans |
| Fan Redundancy | 3+1 redundant fan operation | Rack Mounting | 4-post EIA-310-D rack rails included; optional 2-post brackets |
| Weight | 21 lb (9.53 kg) with 2 power supplies, 1 network module, 1 fan module, and 2 SSDs | Operating Temperature | 32 to 104F (0 to 40C) |
| Operating Humidity | 10 to 85% noncondensing | Operating Altitude | 10000 ft maximum |
| Firewall Throughput | 20 Gbps | NGFW Throughput | 10.4 Gbps |
| FW + AVC Throughput | 10.4 Gbps | FW + AVC + IPS Throughput | 10.4 Gbps |
| IPS Throughput | 10.5 Gbps | TLS Throughput | 1.4 Gbps |
| Concurrent Sessions with AVC | 3 million | New Connections with AVC | 57000 per second |
| IPsec VPN Throughput | 3.6 Gbps | Maximum VPN Peers | 10000 |
| Local Management | Cisco Firepower Device Manager supported | Centralized Management | Firewall Management Center or Cisco Security Cloud Control |
| High Availability | Active/standby | Smart Licensing | Base license included automatically; optional feature licenses managed through Smart Software Licensing |
| TMC License PID | L-FPR2140T-TMC= | TMC Term Options | L-FPR2140T-TMC-1Y, L-FPR2140T-TMC-3Y, L-FPR2140T-TMC-5Y |
| Network Module Release Check | Verify the firmware package and Threat Defense software support for the selected module |
Get More Information
Need pricing, stock, or shipping details for the FPR2140-NGFW-K9 ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is Cisco FPR2140-NGFW-K9 designed for?
-
How much throughput does FPR2140-NGFW-K9 offer?
-
What interfaces are built into FPR2140-NGFW-K9?
-
Why is FPR2140-NGFW-K9 chosen for larger 2100 Series edge deployments?
-
Is FPR2140-NGFW-K9 still relevant beside the 3100 Series?
-
Does FPR2140-NGFW-K9 support ASA operation?
-
What licenses are needed for full security inspection on FPR2140-NGFW-K9?
-
Who should not choose FPR2140-NGFW-K9?
Warranty
Layer23-Switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.
All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.
Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.
If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly. Visit Return Policy page for more information.
We support multiple secure payment and logistics options, backed by industry-leading verification:
Visit How to Pay page for more information
Extended, Worry-Free Warranty Coverage Factory New Sealed Enterprise Hardware:
· 3 Years Factory New Sealed
Visit Warranty Policy page for more information
Verify, plan, and comparewith confidence
Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.
Standard Services
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
- Projects and Technical Support
- Easy Purchasing Supply
- Product Lifecycle Protection
- Exclusive F3 Team Support
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Needed expedited delivery for an urgent project. Layer23 made it happen.
Our deployment team had nothing to complain about. Smooth operation.
Layer23 provided a detailed comparison when I was unsure between two options.
Big investment, but worth it for the threat defense. Vendor is reliable.
Advanced technology. Secure and robust. We appreciate the discrete shipping.
