NIM-1CE1T1-PRI Description

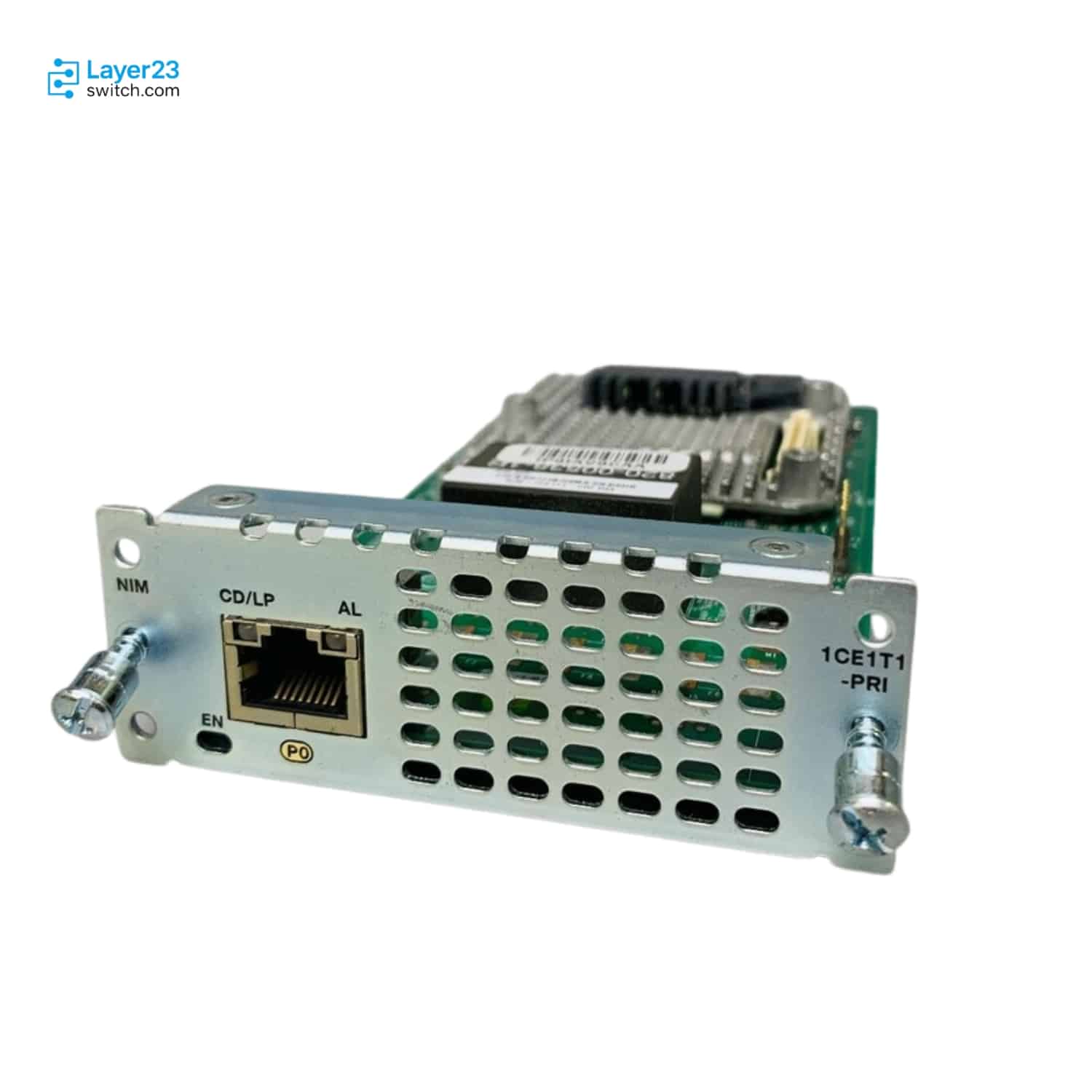

The NIM-1CE1T1-PRI is a Cisco 1-port T1/E1 PRI Network Interface Module for T1 and E1 circuits on Cisco 4000 Series ISR and Cisco ASR 1001-X routers. The port supports clear-channel data, unstructured E1 (G.703) and channelized data, with 24 channel groups on a T1 and 31 on an E1 in a Cisco 4000 Series ISR. Packet voice is supported on Cisco 4000 Series ISR hosts with a PVDM4 fitted to the module, while the Cisco ASR 1001-X supported-hardware table lists it as not supported.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
NIM-1CE1T1-PRI |
|
Product type |
1-port T1/E1 PRI Network Interface Module |
|
Supported host context |
Cisco 4000 Series ISR NIM slots; Cisco ASR 1001-X supported NIM table |
|
Module category |
Supported T1/E1 NIM |
|
Number of ports |
1 |
|
Clear-channel data |
Yes |
|
Packet voice |
Cisco 4000 Series ISR: supported, requires PVDM4; Cisco ASR 1001-X: No |
|
Unstructured E1 (G.703) support |
Yes |
|
Channelized data |
Yes |
|
Product category |
Network Interface Module |
|
Cisco source table |
Supported NIM-T1/E1s |
|
NIM-8CE1T1-PRI channel-group note |
Each port supports only 15 channel groups |
Application Scenarios
At a branch with a single carrier T1 or E1 circuit, the module terminates the line on a Cisco 4000 Series ISR and carries channelized data to the provider.
On a Cisco ASR 1001-X at an aggregation site, the module adds one T1/E1 port for a clear-channel or unstructured E1 (G.703) link.
Product Comparison
|
Parameter |
NIM-1CE1T1-PRI |
NIM-8CE1T1-PRI | |
|---|---|---|---|
|
Number of ports |
1 |
2 |
8 |
|
Supported hosts |
Cisco 4000 Series ISR NIM slots; Cisco ASR 1001-X |
Cisco 4000 Series ISR NIM slots; Cisco ASR 1001-X |
Cisco 4000 Series ISR NIM slots; Cisco ASR 1001-X |
|
Clear-channel data |
Yes |
Yes |
Yes |
|
Packet voice |
Cisco 4000 Series ISR: supported with PVDM4; Cisco ASR 1001-X: No |
Cisco 4000 Series ISR: supported with PVDM4; Cisco ASR 1001-X: No |
Cisco 4000 Series ISR: supported with PVDM4; Cisco ASR 1001-X: No |
|
Unstructured E1 (G.703) support |
Yes |
Yes |
Yes |
|
Channelized data |
Yes |
Yes |
Yes |
|
Channel groups per port |
24 for T1 or 31 for E1 (Cisco 4000 Series ISR) |
24 for T1 or 31 for E1 (Cisco 4000 Series ISR) |
15 (ASR 1001-X table note) |
NIM-1CE1T1-PRI is the one-port module of this CE1T1-PRI group, and NIM-2CE1T1-PRI differs from it only in port count, with two ports instead of one; all three modules in the table list clear-channel data, unstructured E1 (G.703) and channelized data, and packet voice depends on the host: supported on a Cisco 4000 Series ISR with a PVDM4, not supported on the Cisco ASR 1001-X. A site that needs eight T1/E1 circuits on one module moves to NIM-8CE1T1-PRI, where Cisco notes that each port supports only 15 channel groups. On a Cisco 4000 Series ISR, each NIM-1CE1T1-PRI port carries 24 channel groups for T1 or 31 for E1.
Ordering Checklist
- Cisco 4000 Series ISR hosts: Install the module in a Cisco 4000 Series ISR router with a free NIM slot. The T1/E1 NIM family is documented for Cisco 4000 Series ISR NIM slots and is not supported on Cisco 2900 and 3900 ISRs.
- Cisco ASR 1001-X: Use the module in a Cisco ASR 1001-X router only for data. The ASR 1001-X is the other documented host, and its supported-hardware table lists packet voice as No.
- Packet voice on ISR: Order a PVDM4 sized for the voice channels for the module when packet voice runs on a Cisco 4000 Series ISR. Without a PVDM4 on the NIM, the module carries data only.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | NIM-1CE1T1-PRI | Product category | Network Interface Module |
| Product type | 1-port T1/E1 PRI NIM | Supported host context | Cisco 4000 Series ISR NIM slots; Cisco ASR 1001-X |
| Cisco source table | Supported NIM-T1/E1s | Number of ports | 1 |
| Clear-channel data | Yes | Packet voice | Cisco 4000 Series ISR: supported, requires PVDM4; Cisco ASR 1001-X: No |
| Unstructured E1 (G.703) support | Yes | Channelized data | Yes |
| NIM-8CE1T1-PRI channel-group note | Each port supports only 15 channel groups |
Get More Information
Need pricing, stock, or shipping details for the NIM-1CE1T1-PRI ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Is NIM-1CE1T1-PRI supported in a Catalyst 8300 router?
-
Does NIM-1CE1T1-PRI need a PVDM4 for voice on a Cisco 4000 Series ISR?
-
How many channel groups does each NIM-1CE1T1-PRI port carry?
-
Is NIM-1CE1T1-PRI supported on Cisco 2900 and 3900 routers?
