NIM-2CE1T1-PRI Description

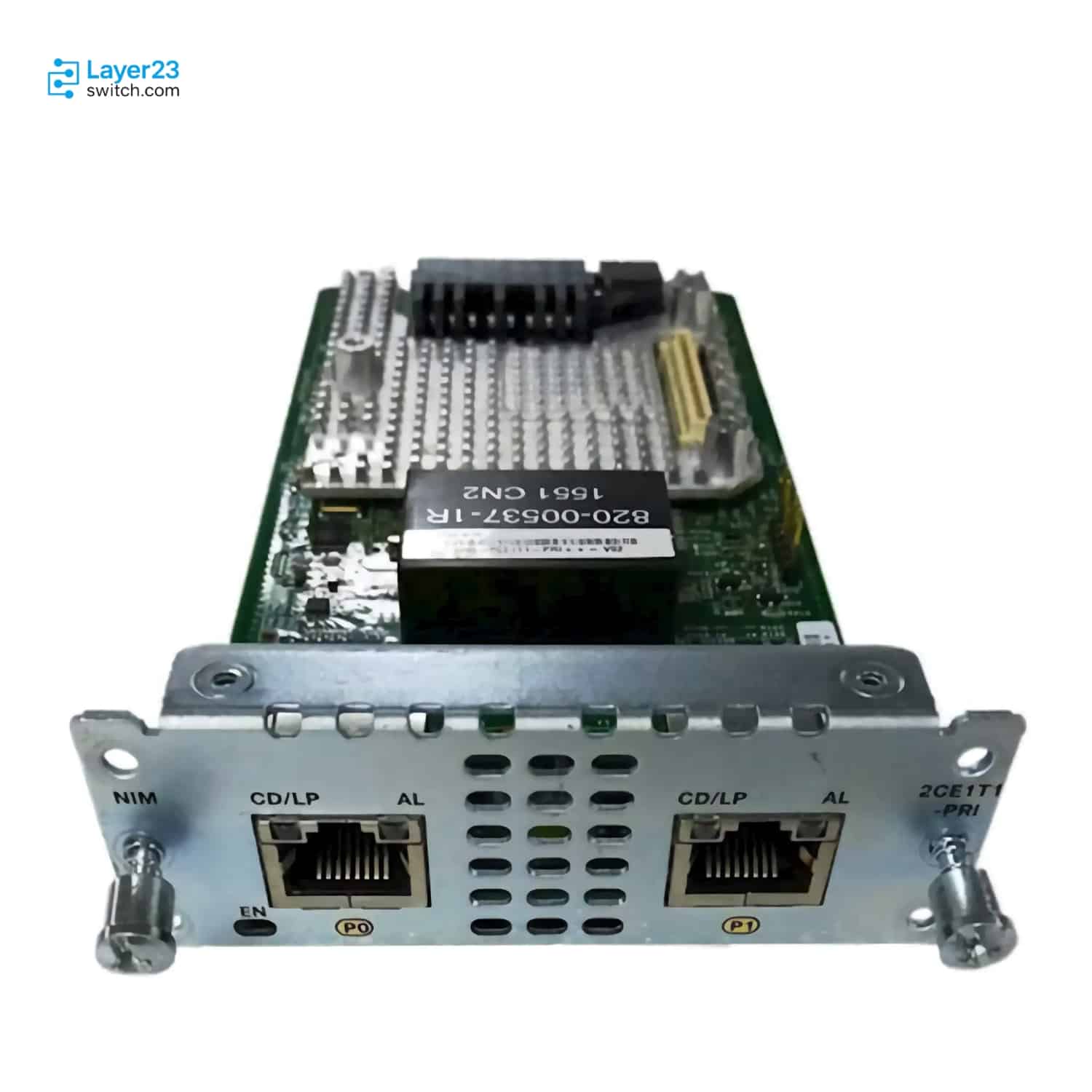

The NIM-2CE1T1-PRI is a Cisco 2-port T1/E1 PRI Network Interface Module for channelized and clear-channel WAN circuits on Cisco 4000 Series ISR and ASR 1001-X routers. The module has two T1/E1 ports that each carry 24 channel groups on T1 or 31 on E1, and it supports clear-channel data, unstructured E1 (G.703) and channelized data. The module is not supported on 2900 or 3900 routers, and packet voice is supported on Cisco 4000 Series ISR hosts with a PVDM4 fitted to the module, while the Cisco ASR 1001-X supported-hardware table lists it as not supported.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
NIM-2CE1T1-PRI |
|
Product type |
2-port T1/E1 PRI Network Interface Module |
|
Supported host context |
Cisco ASR 1001-X Router supported NIM table |
|
Module category |
Supported T1/E1 NIM |
|
Number of ports |
2 |
|
Clear-channel data |
Yes |
|
Packet voice |
Cisco 4000 Series ISR: supported, requires PVDM4; Cisco ASR 1001-X: No |
|
Unstructured E1 (G.703) support |
Yes |
|
Channelized data |
Yes |
|
Product category |
Network Interface Module |
|
Cisco source table |
Supported NIM-T1/E1s |
|
NIM-8CE1T1-PRI channel-group note |
Each port supports only 15 channel groups |
Application Scenarios
A branch router terminates two T1 or E1 PRI circuits from a carrier on this module and carries them as channelized WAN links into the 4000 Series ISR or ASR 1001-X.
A site with a point-to-point E1 leased line uses the unstructured E1 (G.703) mode, while a T1 data circuit runs in clear-channel mode, both from the same two-port module.
Product Comparison
|
Parameter |
NIM-2CE1T1-PRI |
NIM-8CE1T1-PRI | |
|---|---|---|---|
|
Number of ports |
2 |
1 |
8 |
|
Clear-channel data |
Yes |
Yes |
Yes |
|
Unstructured E1 (G.703) support |
Yes |
Yes |
Yes |
|
Channelized data |
Yes |
Yes |
Yes |
|
Packet voice |
Cisco 4000 Series ISR: supported with PVDM4; Cisco ASR 1001-X: No |
Cisco 4000 Series ISR: supported with PVDM4; Cisco ASR 1001-X: No |
Cisco 4000 Series ISR: supported with PVDM4; Cisco ASR 1001-X: No |
|
Channel groups per port |
24 on T1, 31 on E1 |
24 on T1, 31 on E1 |
15 on ASR 1001-X |
NIM-2CE1T1-PRI has two T1/E1 ports against one on NIM-1CE1T1-PRI and eight on NIM-8CE1T1-PRI, and all three are marked for clear-channel data, unstructured E1 (G.703) and channelized data. Port density decides the choice: one circuit fits NIM-1CE1T1-PRI, and eight circuits in one slot need NIM-8CE1T1-PRI. Cisco’s ASR 1001-X table limits each NIM-8CE1T1-PRI port to 15 channel groups, while CE1T1-PRI ports otherwise carry 24 channel groups on T1 and 31 on E1, so a design that needs more per port stays on NIM-2CE1T1-PRI. Packet voice depends on the host: it is supported on a Cisco 4000 Series ISR with a PVDM4 and not supported on the Cisco ASR 1001-X, where a voice trunk moves to an MFT model such as NIM-1MFT-T1/E1.
Ordering Checklist
- Supported hosts: Order for a Cisco ASR 1001-X or the NIM slots of Cisco 4000 Series ISR routers. The NIM-xCE1T1-PRI family is not supported on 2900 or 3900 routers. On a Cisco 4000 Series ISR, order a PVDM4 sized for the voice channels if packet voice is needed; the Cisco ASR 1001-X supports the module for data only.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | NIM-2CE1T1-PRI | Product category | Network Interface Module |
| Product type | 2-port T1/E1 PRI NIM | Supported host context | Cisco ASR 1001-X Router |
| Cisco source table | Supported NIM-T1/E1s | Number of ports | 2 |
| Clear-channel data | Yes | Packet voice | Cisco 4000 Series ISR: supported, requires PVDM4; Cisco ASR 1001-X: No |
| Unstructured E1 (G.703) support | Yes | Channelized data | Yes |
| NIM-8CE1T1-PRI channel-group note | Each port supports only 15 channel groups |
