SM-X-6X1G Description

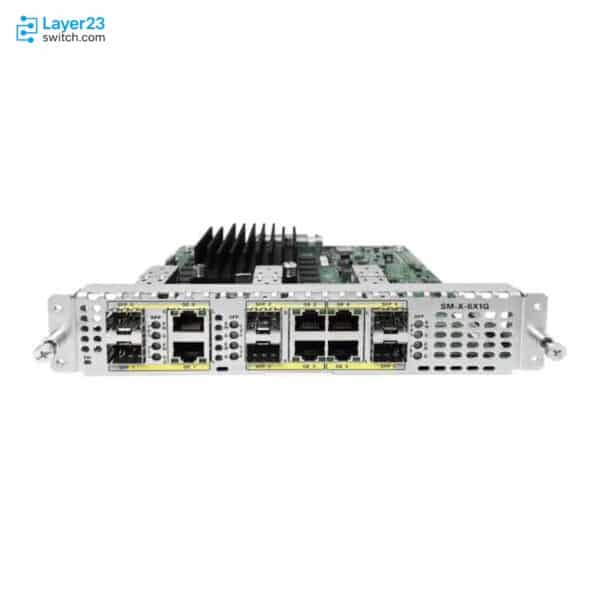

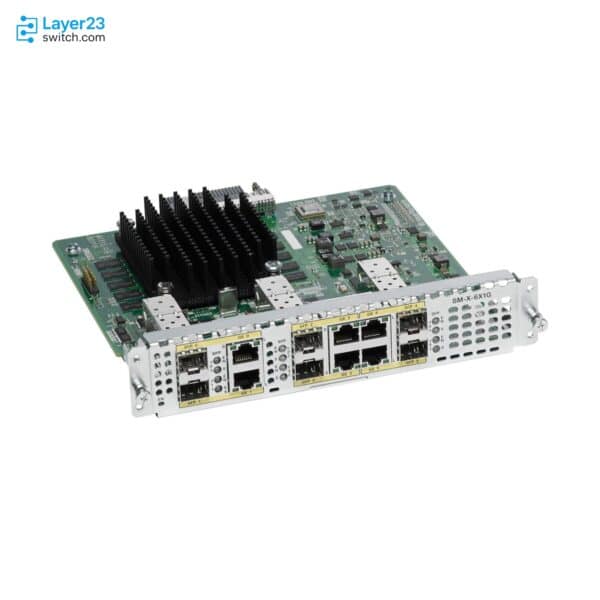

The SM-X-6X1G is a Cisco 6-port Gigabit Ethernet routed WAN service module for Cisco 4000 Series ISRs with an SM-X slot. The module has six dual-mode GE/SFP ports that run as Layer 3 interfaces, in a single-wide form factor of 40 x 206 x 207 mm. The module does not switch Layer 2 traffic between its ports and does not supply PoE.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
SM-X-6X1G |
|
Product type |
6-port high-density Gigabit Ethernet WAN service module |
|
Cisco ordering description |
6-port Gigabit Ethernet, dual-mode GE/SFP, SM-X Module |
|
Form factor |
Single-wide Enhanced Service Module (SM-X) |
|
Port profile |
Six 1GE routing ports |
|
Media options |
Dual-mode GE/SFP |
|
Layer operation |
Routed Layer 3 ports |
|
On-module Layer 2 switching |
Not supported |
|
Power over Ethernet |
Not supported |
|
Cisco 4000 series ISR support |
Platforms with an SM-X slot |
|
Physical size |
1.57 x 8.11 x 8.15 in. (40 x 206 x 207 mm) |
|
Connection media |
Dual-mode GE/SFP |
|
Input packet classification |
Supported on the module |
Application Scenarios
A branch router that terminates several 1G internet and WAN circuits gets six routed ports from one SM-X slot, with fiber circuits on SFP and copper circuits on RJ45.
In a data room, the module’s routed ports connect to external switches and terminate their Layer 2 trunks, so routing stays on the ISR and not on the switch.
Product Comparison
|
Parameter |
SM-X-6X1G |
SM-X-4X1G-1X10G |
NIM-2GE-CU-SFP | |
|---|---|---|---|---|
|
Form factor |
SM-X |
SM-X |
NIM |
NIM |
|
Ports |
Six Gigabit Ethernet dual-mode GE/SFP |
Four Gigabit Ethernet dual-mode GE/SFP or one 10G SFP+ |
Two Gigabit Ethernet dual-mode GE/SFP |
One Gigabit Ethernet dual-mode GE/SFP |
|
Cisco 4000 series ISR support |
Platforms with an SM-X slot |
Platforms with an SM-X slot |
Cisco 4321, 4331, 4351, 4431, 4451 and 4461 |
All Cisco 4000 Series ISRs |
|
Power over Ethernet |
No |
No |
No |
No |
|
MACsec |
No |
No |
256-bit |
No |
|
Input packet classification on module |
Yes |
Yes |
No |
No |
|
On-module Layer 2 switching |
Not supported |
Not supported |
Not supported |
Not supported |
SM-X-6X1G provides six dual-mode GE/SFP routed ports in an SM-X slot, while SM-X-4X1G-1X10G offers either four GE/SFP ports or one 10G SFP+ port, and using the 10G port disables the other ports. A 10G circuit therefore needs SM-X-4X1G-1X10G. Routers with only NIM slots take NIM-2GE-CU-SFP with two ports or NIM-1GE-CU-SFP with one port, and NIM-1GE-CU-SFP is the only one of the four that fits all Cisco 4000 Series ISRs. Of the four, only NIM-2GE-CU-SFP lists 256-bit MACsec, and only the two SM-X modules classify input packets on the module. None of them supplies PoE.
Ordering Checklist
- ISR 4000 hosts with an SM-X slot: Confirm the router is a Cisco ISR 4321, 4331, 4351, 4451 or 4461 with a free SM-X slot. The module fits an SM-X slot, not a NIM slot.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | SM-X-6X1G | Product type | 6-port high-density Gigabit Ethernet WAN service module |
| Cisco ordering description | 6-port Gigabit Ethernet, dual-mode GE/SFP, SM-X Module | Ordering form | SM-X-6X1G(=) |
| Form factor | Single-wide Enhanced Service Module (SM-X) | Port profile | Six 1GE routing ports |
| Connection media | Dual-mode GE/SFP | Layer operation | Routed Layer 3 ports |
| On-module Layer 2 switching | Not supported | Power over Ethernet | Not supported |
| Cisco 4000 series ISR support | Platforms with an SM-X slot | Input packet classification | Supported on the module |
| MACsec support | No | Auto-switchover | Supported with Cisco IOS XE Software Release 3.16 |
| Auto-failover | Supported with Cisco IOS XE Software Release 3.16 | Software baseline | Cisco IOS XE Release 3.11S or later required; Cisco IOS XE Release 3.13.1 or later recommended for SM-X-6X1G and SM-X-4X1G-1X10G |
| Installation verification | show diag identifies Product Identifier (PID): SM-X-6X1G | Dimensions | 1.57 x 8.11 x 8.15 in. (40 x 206 x 207 mm) |
| Weight | 872 grams | Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | -40°C to 70°C (-38°F to 150°F) | Relative humidity | 5% to 95% |
| Operating humidity | 5% to 85% |
Get More Information
Need pricing, stock, or shipping details for the SM-X-6X1G ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is SM-X-6X1G used for?
-
Which forwarding role do the SM-X-6X1G ports perform?
-
How much chassis space does SM-X-6X1G require?
-
Which difference separates SM-X-6X1G from SM-X-4X1G-1X10G?
-
Does SM-X-6X1G provide dual-mode GE/SFP ports?
-
Can SM-X-6X1G provide Power over Ethernet?
