SM-X-16G4M2X – 16x1G + 4×2.5G – 2x10G SFP+ – SM-X Switch Module
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
SM-X-16G4M2X Description

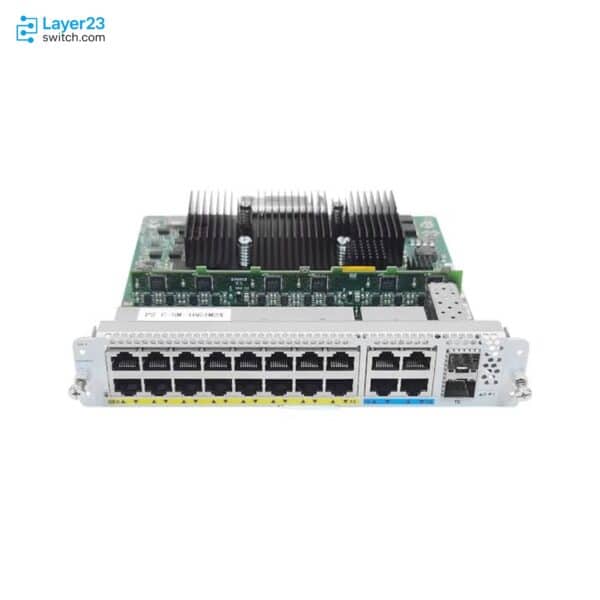

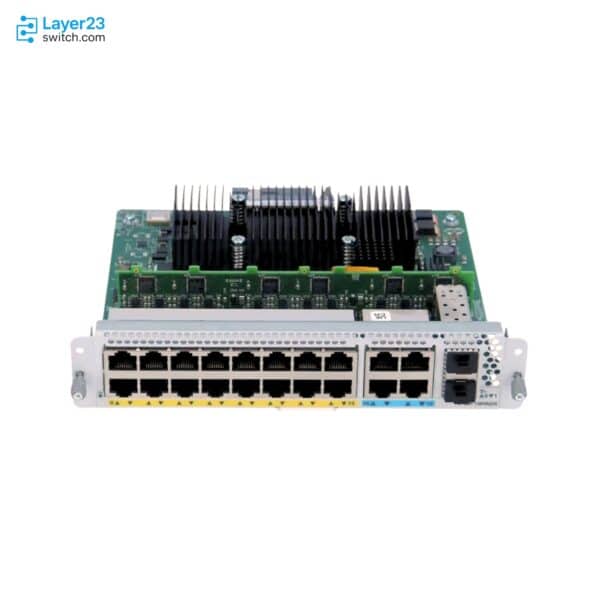

The SM-X-16G4M2X is a Cisco single-wide SM-X Layer 2 EtherSwitch service module for Cisco ISR 4000 branches that need local access switching and fiber uplinks. The module has 16 1G RJ-45 ports, four 2.5G mGig RJ-45 ports and two SFP/SFP+ ports, with PoE and PoE+ on copper ports and UPOE on up to eight. It is supported on the Cisco 4461, 4451, 4351 and 4331, and 128-bit LAN MACsec needs a SEC license.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
SM-X-16G4M2X |
|
Product type |
SM-X Layer 2 EtherSwitch service module |
|
Slot form factor |
Single-wide SM-X |
|
1G copper ports |
16 RJ-45 ports |
|
2.5G mGig ports |
4 RJ-45 ports |
|
10G fiber ports |
2 SFP/SFP+ ports |
|
Fiber-port mode |
Each SFP+ port can use a 1G SFP or 10G SFP+ interface |
|
PoE support |
PoE and PoE+ on copper ports with supported PoE router power supplies |
|
UPOE support |
Up to 8 copper interfaces per module |
|
MACsec support |
128-bit LAN MACsec on copper ports with required software and SEC license when configured |
|
Supported ISR 4000 platforms |
Cisco 4461, 4451, 4351, and 4331 per Cisco interface table |
|
Minimum IOS XE |
16.12.1 on supported ISR 4000 platforms |
|
Fiber port options |
1G SFP or 10G SFP+ per SFP+ port |
Application Scenarios
At a branch with a Cisco 4331 or 4451, the module provides 16 Gigabit copper ports for desktops, phones and printers inside the router chassis, so the site needs no separate access switch.
A site with wireless access points that need 2.5G links can connect them to the four mGig ports and hand traffic to an aggregation switch over the two SFP+ ports at 10G.
Product Comparison
|
Parameter |
SM-X-16G4M2X |
SM-X-40G8M2X | |
|---|---|---|---|
|
1G copper ports |
16 RJ-45 |
40 RJ-45 |
8 RJ-45 |
|
2.5G mGig ports |
4 RJ-45 |
8 RJ-45 |
Not applicable |
|
10G SFP/SFP+ ports |
2 |
2 |
Not applicable |
|
PoE capability |
PoE and PoE+ on copper ports; UPOE on up to 8 copper interfaces |
PoE and PoE+ on copper ports; UPOE on up to 8 copper interfaces |
PoE/PoE+ on eight ports |
|
Form factor |
Single-wide SM-X |
Double-wide SM-X |
Single-wide NIM |
|
Cisco 4000 ISR support |
Cisco 4461, 4451, 4351, 4331 |
Cisco 4461, 4451, 4351 |
Cisco 4321, 4331, 4351, 4431, 4451 |
SM-X-16G4M2X is the single-wide SM-X module of this group, with 16 RJ-45 1G ports, 4 RJ-45 2.5G mGig ports and 2 SFP/SFP+ ports, while SM-X-40G8M2X is double-wide with 40 1G ports, 8 mGig ports and the same 2 SFP/SFP+ ports. A branch that needs the 40-port profile and can give up a double-wide slot orders SM-X-40G8M2X, which is listed for Cisco 4461, 4451 and 4351 but not for Cisco 4331, where SM-X-16G4M2X is supported. Where the free slot is a NIM position and eight PoE/PoE+ Gigabit ports are enough, NIM-ES2-8-P is the option, but it has no mGig or SFP/SFP+ ports, so sites that need 2.5G access or 10G uplinks stay on SM-X-16G4M2X.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | SM-X-16G4M2X | Product type | SM-X Layer 2 EtherSwitch service module |
| Slot form factor | Single-wide SM-X | 1G copper ports | 16 RJ-45 ports |
| 2.5G mGig ports | 4 RJ-45 ports | 10G fiber ports | 2 SFP/SFP+ ports |
| Fiber port options | 1G SFP or 10G SFP+ per SFP+ port | Fiber media support | Single-mode and multimode fiber support listed by Cisco |
| Layer operation | Layer 2 switching | ASIC | UADP 2.0 Mini compliant ASIC |
| PoE | Supported on copper ports with supported router PoE power supplies | PoE+ | Supported on copper ports with supported router PoE power supplies |
| UPOE | Up to 8 copper Ethernet interfaces per module | MACsec | 128-bit LAN MACsec on copper ports with IOS XE 17.3.1 or later support |
| MACsec license | SEC license required where MACsec is configured on the router | Module software license | Supported at IP Base with no additional module-based license needed |
| Supported ISR 4000 platforms | Cisco 4461, 4451, 4351, and 4331 | Minimum IOS XE | 16.12.1 on supported ISR 4000 platforms |
| SD-WAN baseline | 17.3 on supported ISR 4000 platforms | Weight | 19.4 lb |
| Operating temperature | 0 to 40°C | Storage temperature | -20 to 65°C |
| Operational humidity | 5% to 85% | Nonoperational humidity | 5% to 95% |
Get More Information
Need pricing, stock, or shipping details for the SM-X-16G4M2X ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What role does SM-X-16G4M2X play?
-
Which slot does SM-X-16G4M2X require?
-
What power options are compatible with SM-X-16G4M2X copper ports?
-
How does SM-X-16G4M2X differ from SM-X-40G8M2X?
-
Can SM-X-16G4M2X provide UPOE on eight interfaces?
-
Which MACsec requirements apply to SM-X-16G4M2X?
