C9350-24T Description
Cisco C9350-24T is a high-performance enterprise access switch from the Cisco C9350 Series, designed to deliver reliable 24-port Gigabit Ethernet connectivity for data-only network environments. Built for modern campus and branch deployments, the C9350-24T provides a strong foundation for scalable and secure access-layer networking.
Quick Specs
|
Key Spec |
Cisco C9350-24T |
|---|---|
|
Downlink Ports |
24 × 10/100/1000M RJ-45 (non-PoE) |
|
Uplink |
Modular uplink network module slot (module not included by default) |
|
Max Uplink Bandwidth |
Up to 200G (with supported modules: C9350-NM-2C / C9350-NM-8Y) |
|
Stacking |
StackWise-1.6T, up to 8 switches, up to 1.6 Tbps stack bandwidth |
|
Bandwidth Spec |
448G (base) |
|
Switching Capacity with Stacking |
2048G |
|
Forwarding Rate |
333.312 MPPS (1523.712 MPPS with stacking) |
|
ASIC / Throughput |
Silicon One A100/L; chassis throughput up to 1.3 Tbps |
|
Default Power Supply |
PWR-C2-500WAC (No PoE) |
Product Performance
Ports
Switching capacity
Forwarding rate
Key Features
24-Port Gigabit Ethernet Access Switching
Provides stable 10/100/1000 Mbps copper connectivity for enterprise access-layer deployments where PoE is not required.
Modular Uplink Architecture
Equipped with a modular uplink slot, allowing flexible selection of uplink modules to scale aggregation bandwidth as network demands grow.
High-Capacity StackWise-1.6T
Supports stacking of up to 8 switches with an aggregate stacking bandwidth of up to 1.6 Tbps, delivering simplified management and high availability.
Enterprise-Scale Performance and Tables
Designed to support large MAC, routing, ACL, and NetFlow tables, suitable for modern campus networks with segmentation and traffic visibility requirements.
Cisco IOS XE Programmability
Supports model-driven programmability, automation, and telemetry, enabling integration with modern network management and orchestration platforms.
Resilient and Redundant Hardware Design
Features hot-swappable power supplies (up to three PSU bays) and redundant fan architecture to ensure continuous operation in critical environments.
Applications Scenarios
Enterprise Office Access (Non-PoE Endpoints)
Ideal for offices where endpoints such as desktop PCs, printers, and workstations do not require PoE, while still needing enterprise-grade reliability and scalability.
Branch or IDF Access Switch with Scalable Uplinks
Suitable for branch offices or intermediate distribution frames where 1G access ports are sufficient today, with the flexibility to upgrade uplinks as bandwidth needs increase.
Training Rooms and Lab Environments
A strong fit for labs, classrooms, or training facilities that require consistent wired access, centralized management, and high stack availability without PoE complexity.
Product Comparison
|
Parameter |
C9350-24T |
C9350-48T |
C9350-24P |
|---|---|---|---|
|
Downlink Ports |
24 × 1G |
48 × 1G |
24 × 1G |
|
PoE Support |
No |
No |
Yes |
|
PoE Budget |
N/A |
N/A |
Up to 720 W |
|
Uplink Type |
Modular |
Modular |
Modular |
|
Max Uplink Bandwidth |
Up to 200 Gbps |
Up to 200 Gbps |
Up to 200 Gbps |
|
Stacking Technology |
StackWise-1.6T |
StackWise-1.6T |
StackWise-1.6T |
|
Max Stack Members |
8 |
8 |
8 |
|
Stack Bandwidth |
1.6 Tbps |
1.6 Tbps |
1.6 Tbps |
|
Switching Capacity with Stacking |
2048 Gbps |
2096 Gbps |
2048 Gbps |
|
Forwarding Rate with Stacking |
1523.7 Mpps |
1559.4 Mpps |
1523.7 Mpps |
|
Typical Deployment |
Data-only access |
High-density access |
PoE access |

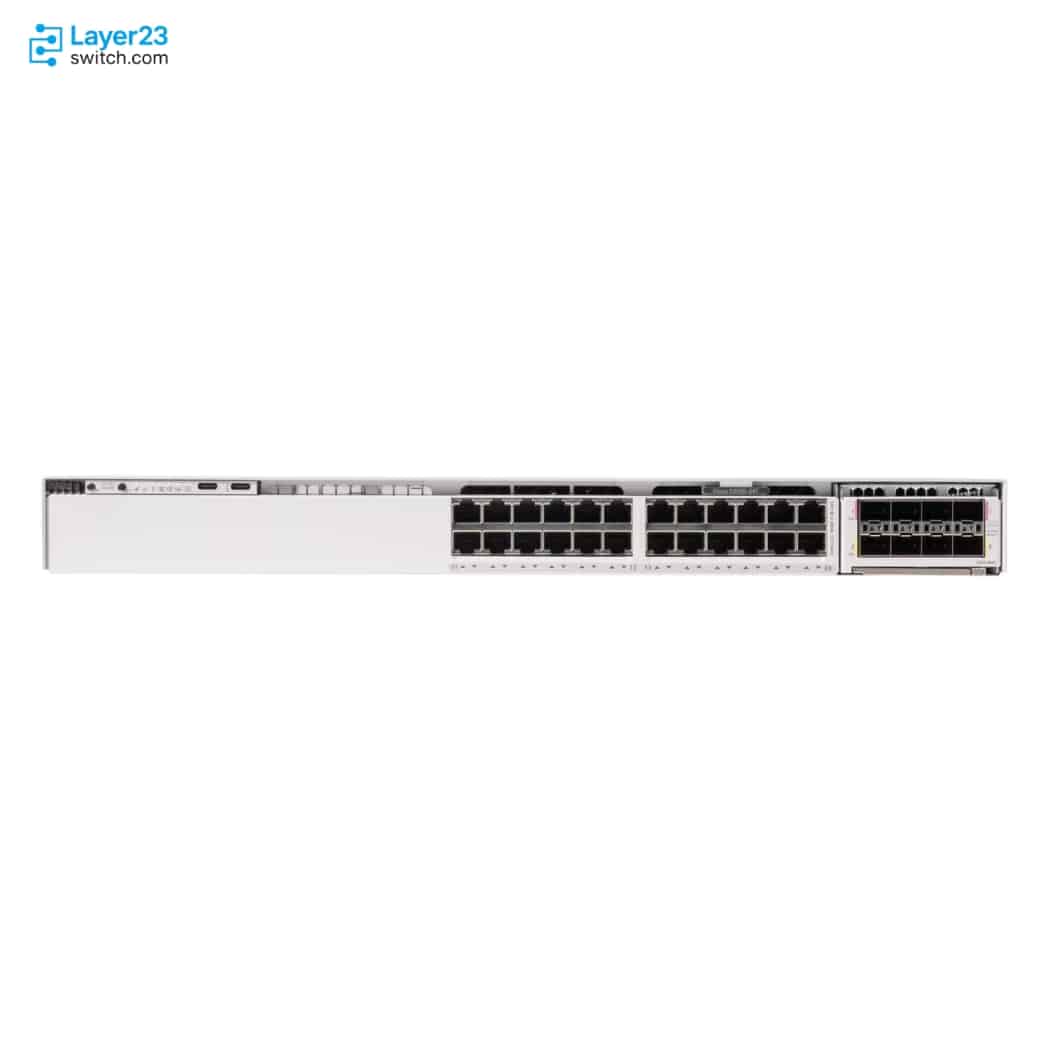

C9350-24T Switch Front Panel
|
Label |
Description |
|---|---|
|
1 |
System air intake |
|
2 |
Mode button |
|
3 |
USB Type C console port |
|
4 |
USB Type C host port |
|
5 |
Downlink fixed ports |
|
6 |
Uplink network module slot |
C9350-24T Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
|
Label |
Description |
|---|---|
|
1 |
Power supply modules |
|
2 |
Fan modules |
|
3 |
StackWise 1.6T port connectors |
|
4 |
StackPower connectors |
|
5 |
USB 3.0 SSD slot |
|
6 |
CONSOLE (RJ-45 console) |
|
7 |
MGMT (RJ-45 10/100/1000 management port) |
Specifications
| Parameter | Details | Parameter | Details |
|---|---|---|---|
| Product series | Cisco C9350 Series Smart Switches | SKU / PID | C9350-24T |
| Switch type | Enterprise access-layer fixed switch | Downlink ports | 24 x 10/100/1000 Mbps copper (non-PoE) |
| PoE support | No PoE | Uplink module | Modular uplink network module slot (module not included by default) |
| Supported uplink modules | C9350-NM-2C, C9350-NM-8Y (platform modules for C9350) | Maximum uplink bandwidth | Up to 200G (with C9350-NM-2C or C9350-NM-8Y) |
| Stacking technology | StackWise-1.6T | Stacking bandwidth | Up to 1.6 Tbps aggregate stacking bandwidth |
| Max stack members | Up to 8 switches | Power sharing | StackPower+ supported (power pooling across stack) |
| System bandwidth | 448G | Switching capacity with stacking | 2048G |
| Forwarding rate | 333.312 Mpps | Forwarding rate with stacking | 1523.712 Mpps |
| Chassis max bandwidth | 1.3 Tbps (chassis feature) | Packet processing | 1.5 Bpps packet processing (chassis description) |
| MAC address table | Up to 64,000 | IPv4 routes | Up to 192,000 |
| IPv6 routes | Up to 96,000 | ARP entries | Up to 64,000 |
| NDP entries | Up to 4,000 | Jumbo frames | 9216 bytes |
| SVIs | 2000 | VLAN IDs | 4094 |
| Active VLAN | Up to 4000 | DRAM | 16 GB |
| Flash | 18 GB | SSD | Up to 240 GB (via USB 3.0 SSD slot) |
| App hosting resources | 8 GB DRAM allocation; 4 vCPU; 2 x 1/10G appgig ports | Packet buffer | Up to 36 MB (18 MB per ASIC) |
| Power supply bays | 3 | Minimum PSUs | 1 |
| Default PSU (C9350-24T) | PWR-C2-500WAC | PSU hot-swappable | Yes (field-replaceable, hot-swappable) |
| Fan modules | 3 fan-tray bays; N+1 redundancy | Management port | RJ-45 10/100/1000 MGMT port |
| Console ports | USB Type-C console; RJ-45 console | Stack ports | Rear StackWise-1.6T connectors |
| Dimensions (chassis only) | 4.4 x 44.5 x 38.3 cm (1.73 x 17.5 x 15.1 in) | Dimensions (with default PSU) | 4.4 x 44.5 x 42 cm (1.73 x 17.5 x 16.5 in) |
| Weight (with default PSU) | 13.8 lb (6.26 kg) | Input voltage | AC: 100V to 230V; DC: -36V to -72 VDC |
| Operating temperature | -5 to 45°C (to 6000 ft); -5 to 40°C (to 10,000 ft) | Storage temperature | -40 to 75°C |
| Humidity | 10% to 95% non-condensing | MTBF | 346,560 hours |
| Warranty | Limited Lifetime Warranty (LLW) | OS | Cisco IOS XE |
