C9350-48P – 48x1G PoE+ Ports – Modular Uplink – 625W PoE Budget
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
C9350-48P Description
The C9350-48P is a Cisco C9350 Series Smart Switch for campus access closets that power IP cameras, sensors and other PoE devices at up to 30W per port. The switch has 48 10M/100M/1G copper ports with 30W PoE+, 625W of PoE on its default 850W supply, a modular uplink slot for up to 200G and 496 Gbps of switching capacity. The full 1440W budget, enough for 30W on every port, needs a second 850W or 1600W supply.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9350-48P |
|
Downlink ports |
48 x 10M/100M/1G RJ-45 |
|
PoE type |
PoE+, up to 30W per port |
|
Default power supply |
PWR-C2-850WAC-I, 850W AC |
|
Available PoE (default supply) |
625W |
|
Maximum PoE budget |
1440W with a second 850W or 1600W supply |
|
Power supply slots |
3 |
|
Uplinks |
Modular slot, up to 200G |
|
Supported network modules |
C9350-NM-2C, C9350-NM-8Y, C9350-NM-8M |
|
Switching capacity |
496 Gbps |
|
Stacking |
StackWise-1.6T, 1.6 Tbps, up to 8 members |
|
License tier |
Switching Essentials or Advantage, 48-port Access Tier 1 |
|
Minimum software |
Cisco IOS XE 17.18.1 |
Product Performance
Key Features
The default 850W supply leaves 625W for PoE, which covers 20 ports at a full 30W. A second 500W supply lifts the budget to 1125W, and a second 850W or 1600W supply reaches 1440W, the point where all 48 ports can draw 30W at once.
The default supply can be upgraded to a 1600W unit with PWR-C2-1600WAC-IUP, which gives 1375W of PoE from one supply and leaves two bays free. That supply delivers its full 1600W only on 180V to 264V input and is rated 1200W on 103.5V to 132V.
The slot ships empty and takes C9350-NM-2C for two 100G/40G QSFP28 ports, C9350-NM-8Y for eight 25G/10G/1G or four 50G SFP56 ports, or C9350-NM-8M for eight Multigigabit copper uplinks. Uplink bandwidth tops out at 200G on this switch, and the four-port C9350-NM-4C is not supported.
Up to eight C9350 switches stack over StackWise-1.6T at 1.6 Tbps, all at the same license level. StackPower+ pools the supplies of up to four switches on a 55V ring, so PoE load on one member can draw on power installed in another. Catalyst 9300 stack and StackPower cables do not fit.
Network Essentials or Advantage comes from a 48-port subscription, not from the hardware, and the switch boots at OS Advantage on Cisco IOS XE 17.18.1. Hardware IPsec arrives with Cisco IOS XE 26.2.1 and needs OS Advantage plus one HSECK9 key per switch.
The same hardware runs under Cisco Catalyst Center on premises or under the Meraki dashboard in the cloud. There is no regional or management-specific variant of the switch to choose.
Application Scenarios
In a building security closet, the switch powers fixed IP cameras on its 30W PoE+ ports and sends their streams to the recording servers over a 25G SFP56 uplink.
Office floor wiring closets connect desk phones and ceiling access points to the switch, which carries their power and traffic on the same Gigabit copper run of up to 100 m.
Facilities teams bring sensors and other low-power building devices onto a stack of these switches, with StackPower+ sharing supplies across members in the same closet.
Product Comparison
|
Parameter |
C9350-48P | ||
|---|---|---|---|
|
Downlink ports |
48 x 10M/100M/1G |
48 x 10M/100M/1G |
48 x 10M/100M/1G |
|
PoE type |
PoE+, 30W per port |
60W UPOE (802.3bt Type 3) |
No PoE |
|
Default power supply |
PWR-C2-850WAC-I |
PWR-C2-850WAC-I |
PWR-C2-500WAC-I |
|
Available PoE (default supply) |
625W |
625W |
Not applicable |
|
Maximum PoE budget |
1440W |
2880W |
Not applicable |
|
Uplink ports |
Modular, up to 200G |
Modular, up to 200G |
Modular, up to 200G |
|
License tier |
Essentials or Advantage, 48-port |
Essentials or Advantage, 48-port |
Essentials or Advantage, 48-port |
|
Stack bandwidth |
1.6 Tbps (StackWise-1.6T) |
1.6 Tbps (StackWise-1.6T) |
1.6 Tbps (StackWise-1.6T) |
|
Switching capacity |
496 Gbps |
496 Gbps |
496 Gbps |
C9350-48P and C9350-48T share 48 10M/100M/1G ports, a 200G uplink slot and 496 Gbps of switching, but C9350-48P adds 30W PoE+ on every port with 625W of PoE on its 850W supply, while the data-only model ships on a 500W supply and suits closets with no powered endpoints. Devices that draw more than 30W need C9350-48U, which carries 60W UPOE on all 48 ports and scales to 2880W with additional supplies; both PoE models start at the same 625W, so per-port wattage decides between them. Essentials or Advantage comes from the 48-port subscription rather than the hardware, and every stack member must run the same level.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
PoE type |
PoE+, up to 30W per port |
|
Default power supply |
PWR-C2-850WAC-I (850W AC) |
|
Default PoE budget |
625W: 20 ports at 30W, or about 13W on each of 48 ports |
|
With a second 500W supply |
1125W: 37 ports at 30W |
|
With a second 850W or 1600W supply |
1440W: 30W on all 48 ports |
|
Primary upgraded to 1600W |
1375W from one supply; 1440W with any second supply |
|
PoE ceiling |
1440W (48 x 30W), even when installed supplies provide more |
|
1600W supply input |
1600W on 180V to 264V; rated 1200W on 103.5V to 132V |
|
Device count check |
Add the class wattage of every powered device and compare the total with the budget of the supplies on the order |
Ordering Checklist
- Subscription tier: Add a 48-port Access Tier 1 subscription of at least 36 months, LIC-CS-AC1-L-E for Essentials or LIC-CS-AC1-L-A for Advantage. Switches on IOS XE 17.18.1 boot at OS Advantage, so Essentials needs license boot level essentials and a reload.
- Uplink module: Add C9350-NM-2C, C9350-NM-8Y or C9350-NM-8M as its own line. The base switch ships with an empty uplink slot, and C9350-NM-4C does not fit this model.
- Additional power supplies: Add PWR-C2-850WAC-I/2 or PWR-C2-1600WAC-I/2 when all 48 ports need 30W, or change the primary to PWR-C2-1600WAC-IUP. Without them the PoE budget stays at 625W.
- Stacking cables: Select STACK-T1A-50CM, STACK-T1A-1M or STACK-T1A-3M= and CAB-SPWR-35CM or CAB-SPWR-100CM for stacked switches. They do not ship by default, and Catalyst 9300 cables do not fit.
- Power cords: Select one cord for every supply, such as CAB-TA-NA, CAB-TA-EU or CAB-TA-UK for 500W and 850W supplies or C9K-PWR-CAB-AC-US for 1600W supplies. Each supply needs its own cord.
- HSEC key: Add one HSECK9 per switch when IPsec will run on it. IPsec needs OS Advantage and Cisco IOS XE 26.2.1 or later.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Cisco C9350 network module, 2 x 100G/40G QSFP28, up to 200 Gbps | |
|
Cisco C9350 network module, 8 x 25G/10G/1G or 4 x 50G SFP56 | |
|
C9350-NM-8M |
Cisco C9350 network module, 8 x Multigigabit RJ-45, up to 80 Gbps |
|
PWR-C2-500WAC-I/2 |
500W AC Platinum secondary power supply |
|
PWR-C2-850WAC-I/2 |
850W AC Platinum secondary power supply |
|
PWR-C2-1600WAC-I/2 |
1600W AC Titanium secondary power supply |
|
PWR-C2-1600WAC-IUP |
1600W AC Titanium primary power supply upgrade |
|
PWR-C2-850WAC-I= |
850W AC Platinum power supply, spare |
|
StackWise-1.6T stacking cable, 50 cm | |
|
StackWise-1.6T stacking cable, 1 m | |
|
StackWise-1.6T stacking cable, 3 m | |
|
CAB-SPWR-35CM |
StackPower cable, 35 cm |
|
CAB-SPWR-100CM |
StackPower cable, 100 cm |
|
C9350-FAN-I= |
C9350 port inlet fan module, spare |

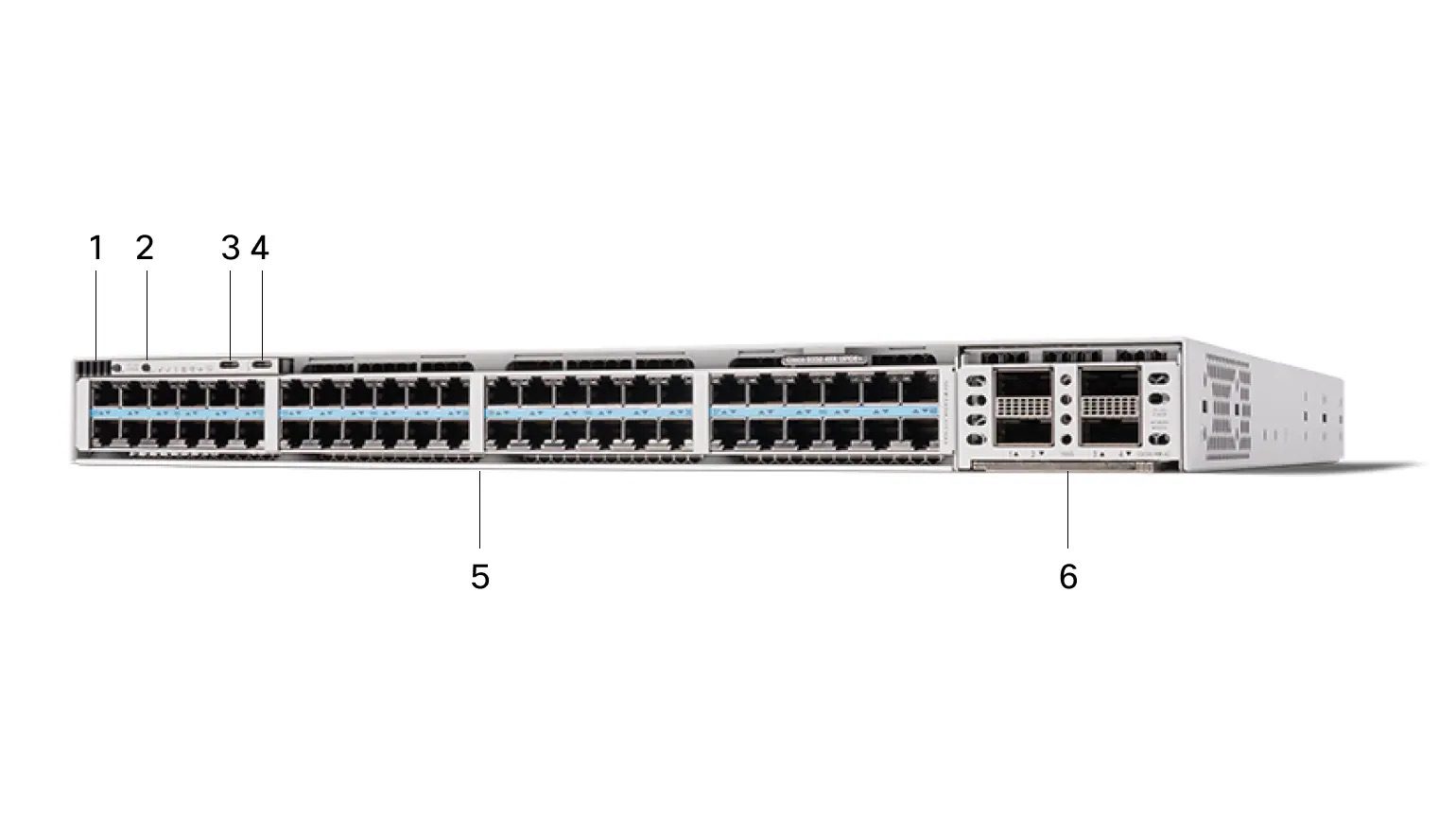

C9350-48P Switch Front Panel
|
Label |
Description |
|---|---|
|
1 |
System air intake |
|
2 |
Mode button |
|
3 |
USB Type C console port |
|
4 |
USB Type C host port |
|
5 |
Downlink fixed ports |
|
6 |
Uplink network module slot |

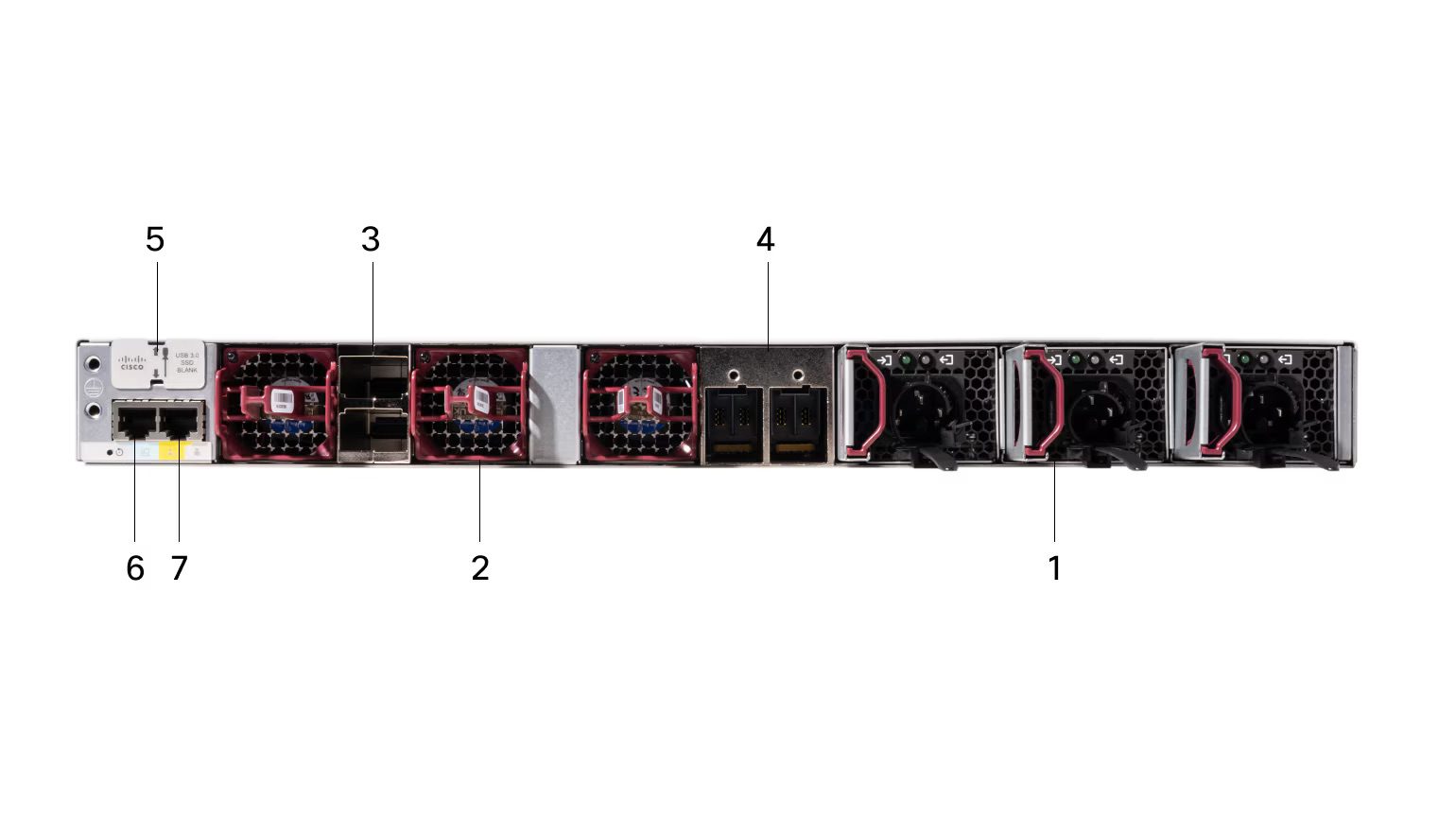

C9350-48P Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
|
Label |
Description |
|---|---|
|
1 |
Power supply modules |
|
2 |
Fan modules |
|
3 |
StackWise 1.6T port connectors |
|
4 |
StackPower connectors |
|
5 |
USB 3.0 SSD slot |
|
6 |
CONSOLE (RJ-45 console) |
|
7 |
MGMT (RJ-45 10/100/1000 management port) |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9350-48P | Network license | Switching Essentials or Advantage, Access Tier 1 Large (48 port) |
| Minimum software release | Cisco IOS XE 17.18.1 | Downlink ports | 48 x 10M/100M/1G RJ-45 |
| Network module slot | 1, up to 200G | Supported network modules | C9350-NM-2C, C9350-NM-8Y, C9350-NM-8M |
| Copper cabling | Up to 100 m; Cat5 or higher for 100BASE-TX and 1000BASE-T | Console port | USB Type-C and RJ-45 |
| Management port | Ethernet management port | USB port | USB Type-C |
| Switching capacity | 496 Gbps | Forwarding rate | 369.024 Mpps |
| Switching capacity with stacking | 2,096 Gbps | Forwarding rate with stacking | 1,559.424 Mpps |
| Packet buffer | 18 MB per ASIC | ASIC | 1 x Cisco Silicon One A100/L |
| DRAM | 16 GB | Flash | 18 GB |
| SSD storage | Up to 240 GB (USB 3.0 SSD slot) | App hosting resources | 2 x 1G/10G AppGig ports; 4 vCPU; 8 GB DRAM |
| MAC addresses | Up to 64,000 | VLAN IDs | 4,094 |
| Active VLANs | Up to 4,000 | Switched virtual interfaces | Up to 4,000 |
| PVST instances | Up to 1,000 | IPv4 routes | Up to 192,000 |
| IPv6 routes | Up to 96,000 | ARP entries | Up to 64,000 |
| NDP entries | Up to 32,000 | Multicast routes | Up to 8,000 (IPv4) / 4,000 (IPv6) |
| IGMP snooping groups | Up to 8,000 IGMP / 4,000 MLD | ACL entries | Up to 5,000 (IPv4) / 2,500 (IPv6) |
| QoS entries | Up to 2,000 (IPv4) / 1,000 (IPv6) | Flexible NetFlow entries | Up to 64,000 (IPv4) / 32,000 (IPv6) |
| Jumbo frames | 9,216 bytes | Stacking | StackWise-1.6T, 1.6 Tbps, up to 8 C9350 members |
| StackPower | StackPower+ 55V power sharing, up to 4 switches per ring | Management features | Cisco Catalyst Center or Meraki Dashboard |
| Default power supply | PWR-C2-850WAC-I 850W AC | Power supply slots | 3, hot-swappable |
| Power redundancy | Combined (default) or N+1 redundant | Power connector | AC IEC 60320 C16 |
| Power consumption | 92.3W with no uplink module; 109.8W with C9350-NM-2C; 119.4W with C9350-NM-8Y (115 VAC, full-port traffic, no PoE load) | Default PoE budget | 625W |
| PoE budget with other supplies | 1125W with second 500W supply; 1440W with second 850W or 1600W supply; 1375W with 1600W primary supply, 1440W when it has any second supply; 1440W maximum (48 x 30W) | PoE standards | PoE+, up to 30W per port |
| Fan modules | 3 field-replaceable, N+1 redundant, rear access | Airflow | Front to back |
| Dimensions (H x W x D) | 1.73 x 17.5 x 16.5 in. (4.4 x 44.5 x 42 cm) with 500W or 850W supply | Operating temperature | -5°C to 45°C up to 6,000 ft; -5°C to 40°C up to 10,000 ft |
| Cold start temperature | 0°C | Storage temperature | -40°C to 75°C |
| Operating humidity | 10% to 95% noncondensing | Operating altitude | Up to 3,000 m |
| Storage altitude | Up to 4,500 m | MTBF | 391,980 hours |
| Safety certifications | IEC 62368-1, UL 62368-1, IEC 60950-1, CAN/CSA-C22.2 No. 62368-1-14, AS/NZS 60950.1 | EMC certifications | 47 CFR Part 15 Class A, EN 55032 Class A, CISPR 32 Class A, EN 55024, ICES-003 Class A, KN 32, KN 35 |
