C9350-48U – 48x1G UPOE – 200G Modular Uplink – 2880W PoE Budget
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.

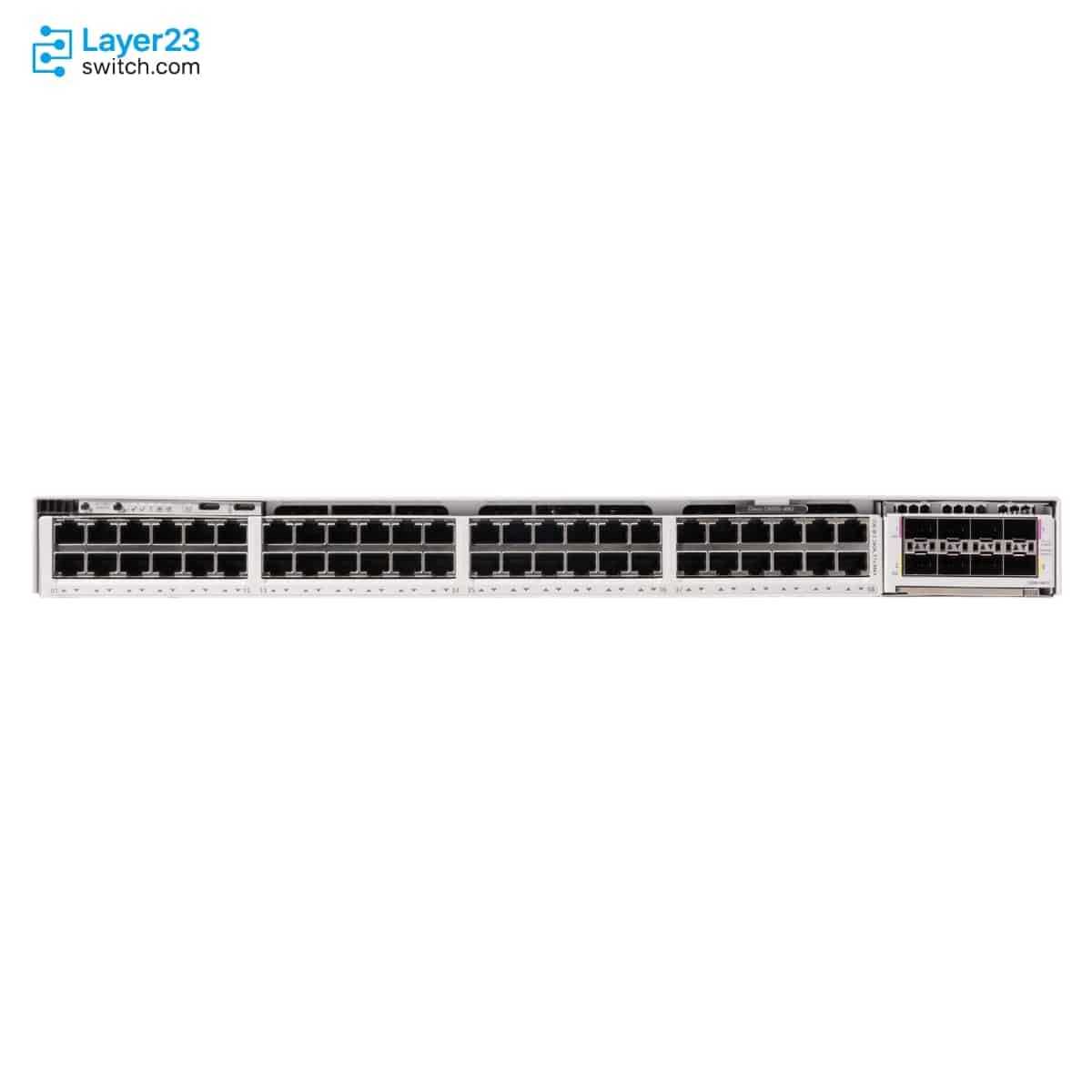

C9350-48U Description
The C9350-48U is a Cisco C9350 Series Smart Switch for dense wiring closets that power cameras, access points and building devices over 60W UPOE. The switch has 48 10M/100M/1G copper ports with IEEE 802.3bt Type 3 UPOE, a 2880W PoE budget, a modular uplink slot for up to 200G and 496 Gbps of switching capacity. The default 850W supply makes 625W available for PoE, and reaching the 2880W ceiling takes additional supplies.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9350-48U |
|
Switch type |
Stackable enterprise access switch |
|
Downlink ports |
48 x 10M/100M/1G copper |
|
PoE type |
UPOE / IEEE 802.3bt Type 3 |
|
Maximum PoE per port |
60W |
|
PoE power budget |
2880W |
|
Default power supply |
PWR-C2-850WAC-I |
|
Available PoE with default PSU |
625W |
|
Modular uplink support |
Up to 200G with C9350-NM-2C or C9350-NM-8Y |
|
Supported network modules |
C9350-NM-2C and C9350-NM-8Y |
|
Power supply slots |
3 |
|
Fan modules |
3 |
|
SSD capacity |
Up to 240 GB |
Product Performance
Key Features
Each port supplies up to 60W under IEEE 802.3bt Type 3, for a 2880W ceiling when every port draws full power.
One 850W supply leaves 625W for PoE, a 1600W primary raises that to 1375W, and the 2880W ceiling needs a 1600W pair or three supplies.
Hot-swappable supplies fill up to three bays, which is where the extra PoE capacity comes from.
C9350-NM-2C, C9350-NM-8Y and C9350-NM-8M fit the slot, and C9350-NM-4C is not supported.
Up to eight C9350 members stack at 1.6 Tbps, with the supplies pooled across the stack.
The 48-port hardware maps to the Access Tier 1 Large Essentials or Advantage subscription, and IOS XE 17.18.1 boots at OS Advantage.
Application Scenarios
In a closet serving HD IP cameras, access control readers and intelligent lighting, the switch supplies 60W UPOE on each of 48 copper ports.
A campus floor with Wi-Fi access points that draw more than 30W can land them on the switch and run their traffic to the aggregation layer through the uplink module.
Several of the switches joined over StackWise-1.6T share power through StackPower+, so a powered stack can ride out the loss of one supply.
Product Comparison
|
Parameter |
C9350-48U | |||
|---|---|---|---|---|
|
Downlink ports |
48 x 10M/100M/1G |
48 x 10M/100M/1G |
48 x 10M/100M/1G |
48 x 10M/100M/1G/2.5G/5G/10G |
|
PoE support |
60W UPOE (IEEE 802.3bt Type 3) |
30W PoE+ |
No PoE |
90W UPOE+ (IEEE 802.3bt Type 4) |
|
Default power supply |
PWR-C2-850WAC |
PWR-C2-850WAC |
PWR-C2-500WAC |
PWR-C2-1600WAC |
|
Available PoE (default power supply) |
625W |
625W |
No PoE |
Not published |
|
Maximum PoE budget |
2880W |
1440W |
No PoE |
4320W |
|
Modular uplink bandwidth |
Up to 200G (C9350-NM-2C, C9350-NM-8Y, C9350-NM-8M) |
Up to 200G (C9350-NM-2C, C9350-NM-8Y, C9350-NM-8M) |
Up to 200G (C9350-NM-2C, C9350-NM-8Y, C9350-NM-8M) |
Up to 400G (C9350-NM-4C, C9350-NM-2C, C9350-NM-8Y, C9350-NM-8M, C9350-NM-8L) |
|
Cisco networking subscription tier |
Access Tier 1, Large (48 port) |
Access Tier 1, Large (48 port) |
Access Tier 1, Large (48 port) |
Not published |
|
Stack bandwidth |
1.6 Tbps (StackWise-1.6T) |
1.6 Tbps (StackWise-1.6T) |
1.6 Tbps (StackWise-1.6T) |
1.6 Tbps (StackWise-1.6T) |
|
Switching capacity |
496 Gbps |
496 Gbps |
496 Gbps |
1,760 Gbps |
C9350-48U is the 60W UPOE model of this group: its 48 copper ports share a 2880W PoE budget under IEEE 802.3bt Type 3, while C9350-48P limits each port to 30W PoE+ on a 1440W budget and C9350-48T has no PoE. Closets that power only phones and access points fit C9350-48P, and closets with no powered devices fit C9350-48T. Cameras, displays and other devices that need 90W per port, multigigabit copper up to 10G, or 400G of uplink on C9350-NM-4C require C9350-48HX, which ships with a PWR-C2-1600WAC-I supply and a 4320W budget. C9350-48U takes C9350-NM-2C or C9350-NM-8Y for up to 200G of uplink.
PoE Power Planning
|
Planning Item |
Confirmed Data |
Buyer Check |
|---|---|---|
|
Maximum Per-Port PoE |
60W UPOE / IEEE 802.3bt Type 3 |
Confirm whether connected devices require 60W or lower PoE classes |
|
Maximum Total PoE Budget |
2880W |
Required if planning 60W across all 48 ports |
|
Default PSU Available PoE |
625W with PWR-C2-850WAC-I |
Enough for partial PoE loads, not full 48 x 60W deployment |
|
PSU Expansion |
Three internal PSU slots |
Use Cisco power planning before quoting additional PSUs or StackPower |
Ordering Checklist
- Subscription tier: Order a Large Access Tier 1 (48 ports) subscription, LIC-CS-AC1-L-E (Essentials) or LIC-CS-AC1-L-A (Advantage), 36 months minimum. Match other stack members. IOS XE 17.18.1 boots at OS Advantage, so an Essentials order needs license boot level essentials.
- Uplink module: Add C9350-NM-2C or C9350-NM-8Y as a separate order line; C9350-NM-4C is not supported on this model. The base switch ships without an uplink module.
- Power supplies for PoE: Choose from default PWR-C2-850WAC-I, primary upgrade PWR-C2-1600WAC-IUP, and second or third supplies such as PWR-C2-850WAC-I/2 or PWR-C2-1600WAC-I/2. A single 850W supply gives 625W of available PoE, and the full 2880W needs a third supply.
- Power cords: Order one cord per power supply, such as CAB-TA-NA for 850W supplies or C9K-PWR-CAB-AC-EU for 1600W supplies. Each supply takes its own cord, and 1600W supplies use different cords from 500W and 850W supplies.
- Stacking cables: Select data cable STACK-T1A-50CM, STACK-T1A-1M or STACK-T1A-3M, and StackPower cable CAB-SPWR-35CM or CAB-SPWR-100CM. Stacking and StackPower cables are selected explicitly at order and do not ship by default.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Cisco C9350 2 x 100G/40G QSFP28 network module | |
|
Cisco C9350 8 x 25G/10G/1G or 4 x 50G/25G/10G/1G SFP56 network module | |
|
50cm Type 1A stacking cable | |
|
1m Type 1A stacking cable | |
|
3m Type 1A stacking cable | |
|
CAB-SPWR-35CM |
StackPower cable, 35cm |
|
CAB-SPWR-100CM |
StackPower cable, 100cm |
|
PWR-C2-850WAC-I |
850W AC 80+ Platinum Config 2 port-inlet power supply |
|
PWR-C2-1600WAC-I |
1600W AC 80+ Titanium Config 2 port-inlet power supply |
|
LIC-CS-AC1-L-E |
Cisco Switching Essentials License Access Tier 1, Large / 48 port |
|
LIC-CS-AC1-L-A |
Cisco Switching Advantage License Access Tier 1, Large / 48 port |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9350-48U | Product type | Stackable enterprise access switch |
| Downlink ports | 48 x 10M/100M/1G copper | Network module slot | Up to 200G |
| Supported network modules | C9350-NM-2C and C9350-NM-8Y | Management port | 10/100/1000/2.5G RJ-45 |
| DRAM | 16 GB | Flash | 18 GB |
| SSD storage | Up to 240 GB | Stacking | StackWise-1.6T |
| Default power supply | PWR-C2-850WAC-I | Power supply slots | 3 |
| Default PoE budget | 625W | PoE budget with other supplies | 2880W maximum |
| PoE standards | UPOE (IEEE 802.3bt Type 3) | Per-port PoE power | 60W |
| Fan modules | 3 | Dimensions (H x W x D) | 1.73 x 17.5 x 15.1 in. (4.4 x 44.5 x 38.3 cm) |
Quality Certifications
Customer Reviews
Questions & Answers
-
Can C9350-48U be stacked?
-
What license does C9350-48U use and what does it include?
-
What does IPsec on C9350-48U require?
-
What subscription term range applies to C9350-48U and what happens when it ends?
-
How many MAC addresses and unicast routes does C9350-48U support in the default Access SDM template?
-
Is SD-Access available on C9350-48U and from which release is BGP EVPN listed?
-
Which software does C9350-48U need for Catalyst Center energy reporting?
-
How should power supplies be placed across a StackPower+ stack of C9350-48U?
-
How does SmartPower manage the devices that C9350-48U powers?
-
Which release and commands enable post-quantum MACsec between C9350-48U uplinks?
-
How much power must be planned for 60W on all 48 ports of C9350-48U with N+1 protection?
-
How much input power does C9350-48U draw at 100% PoE load at 230V?
