C9350-48T Description
C9350-48T is a Cisco C9350 Series Smart Switch for stackable 48-port 1G copper access deployments that need data-only RJ-45 downlinks, StackWise-1.6T, and optional modular uplinks.
The main order decision is port density without switch-powered endpoints. C9350-48T keeps the data-only profile of C9350-24T but doubles the copper downlinks to 48; C9350-48P and C9350-48U add PoE classes that this SKU does not provide.
For quote review, confirm the project really needs a non-PoE 48-port switch, then align the C9350 uplink module, Access Tier 1 large Cisco Networking Subscription, stack cables, 500W PSU plan, regional power cord, stock review, warranty support, and shipping destination.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9350-48T |
|
Product family |
Cisco C9350 Series Smart Switches |
|
Product type |
Stackable enterprise access switch |
|
Downlink ports |
48 x 10M/100M/1G copper RJ-45 |
|
PoE support |
No PoE |
|
Default power supply |
PWR-C2-500WAC-I |
|
Supported network modules |
C9350-NM-2C and C9350-NM-8Y |
|
Modular uplink bandwidth |
Up to 200G |
|
Stacking |
StackWise-1.6T |
|
Switching capacity |
496 Gbps standalone; 2096 Gbps with stacking |
|
Forwarding rate |
369.024 Mpps standalone; 1559.424 Mpps with stacking |
|
License size |
Access Tier 1 large / 48 port |
|
Minimum software release |
Cisco IOS XE 17.18.1 or later |
Product Performance
Key Features
C9350-48T is for access closets that need many 1G wired endpoints but do not need the switch to deliver PoE to phones, cameras, APs, or building devices.
The port-speed class matches C9350-48P and C9350-48U at 10M, 100M, and 1G, while the order profile stays data-only with a 500W default PSU.
C9350-48T supports C9350-NM-2C and C9350-NM-8Y, giving the BOM a choice between QSFP28-based 100G/40G uplinks and SFP56-based 50G, 25G, 10G, or 1G uplinks.
StackWise-1.6T keeps this 48-port access switch aligned with the current C9350 stack architecture and stack accessory family.
The 48-port hardware maps to Access Tier 1 large Cisco Switching Essentials or Cisco Switching Advantage subscription SKUs.
C9350-48T is the 1G data-only choice, while C9350-48TX moves to multigigabit downlinks and a higher modular uplink bandwidth class.
Application Scenarios
Use C9350-48T when a wiring closet has dense copper endpoint demand and endpoint power is already handled outside the switch. This keeps the switch order focused on 1G data access, uplink module choice, licensing, and installation parts.
C9350-48T fits floor-level access stacks where many desks, printers, terminals, or local network devices need 1G connectivity without PoE draw. The stack plan should match the same C9350 platform, license level, and Type 1A cable lengths.
Choose this SKU when C9350-24T is too small but PoE is still not required. If powered endpoints appear in the same refresh, compare C9350-48P or C9350-48U before finalizing the bill of materials.
Product Comparison
|
Parameter |
C9350-48T | ||||
|---|---|---|---|---|---|
|
Product family |
C9350 Series Smart Switches |
C9350 Series Smart Switches |
C9350 Series Smart Switches |
C9350 Series Smart Switches |
C9350 Series Smart Switches |
|
Product type |
Stackable access switch |
Stackable access switch |
Stackable access switch |
Stackable access switch |
Stackable access switch |
|
Downlink port count |
48 |
24 |
48 |
48 |
48 |
|
Downlink speeds |
10M/100M/1G |
10M/100M/1G |
10M/100M/1G |
10M/100M/1G |
10M/100M/1G/2.5G/5G/10G |
|
Downlink media |
Copper RJ-45 |
Copper RJ-45 |
Copper RJ-45 |
Copper RJ-45 |
Copper RJ-45 |
|
PoE support |
No PoE |
No PoE |
30W PoE+ |
60W UPOE |
No PoE |
|
Default power supply |
PWR-C2-500WAC-I |
PWR-C2-500WAC-I |
PWR-C2-850WAC-I |
PWR-C2-850WAC-I |
PWR-C2-500WAC-I |
|
Supported network modules |
C9350-NM-2C and C9350-NM-8Y |
C9350-NM-2C and C9350-NM-8Y |
C9350-NM-2C and C9350-NM-8Y |
C9350-NM-2C and C9350-NM-8Y |
C9350-NM-4C C9350-NM-2C and C9350-NM-8Y |
|
Modular uplink bandwidth |
Up to 200G |
Up to 200G |
Up to 200G |
Up to 200G |
Up to 400G |
|
Stacking |
StackWise-1.6T |
StackWise-1.6T |
StackWise-1.6T |
StackWise-1.6T |
StackWise-1.6T |
|
Switching capacity |
496 Gbps |
448 Gbps |
496 Gbps |
496 Gbps |
1760 Gbps |
|
Forwarding rate |
369.024 Mpps |
333.312 Mpps |
369.024 Mpps |
369.024 Mpps |
1309.44 Mpps |
|
License size |
Access Tier 1 large / 48 port |
Access Tier 1 medium / up to 24 port |
Access Tier 1 large / 48 port |
Access Tier 1 large / 48 port |
Access Tier 1 large / 48 port |
- In a C9350-48T vs C9350-24T comparison, the difference is port count and performance table values: C9350-48T has 48 data-only ports with 496 Gbps switching capacity, while C9350-24T has 24 data-only ports with 448 Gbps.
- The C9350-48T vs C9350-48P comparison is about PoE class and default PSU; both are 48-port 1G models, but C9350-48T has no PoE and C9350-48P adds 30W PoE+ with an 850W PSU.
- For C9350-48T vs C9350-48U, the key difference is UPOE support: C9350-48T is data-only, while C9350-48U is the 48-port 1G model for 60W UPOE.
- A C9350-48T vs C9350-48TX comparison separates 1G access from multigigabit access; C9350-48TX adds 2.5G, 5G, and 10G downlink speeds plus up to 400G modular uplink bandwidth.
Selection Guide
1. Use C9350-48T for dense data-only access
C9350-48T fits the BOM when the access layer needs 48 copper 1G ports and endpoint power is not part of the switch requirement.
2. Keep C9350-24T for smaller non-PoE closets
Select C9350-24T instead when 24 downlinks are enough and the project should stay on the Access Tier 1 medium license size.
3. Move to C9350-48P or C9350-48U for powered endpoints
Choose the 48-port powered alternatives when phones, cameras, APs, sensors, or lighting must draw PoE from the access switch.
4. Compare C9350-48TX for multigigabit access
C9350-48TX is the data-only alternative when the downlink design requires 2.5G, 5G, or 10G copper ports instead of 1G access.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Port density |
48 x 10M/100M/1G copper RJ-45 |
Confirms the order is the 48-port data-only C9350 model rather than the 24-port variant |
|
PoE boundary |
No PoE required on downlinks |
Prevents using C9350-48T where C9350-48P or C9350-48U is needed for powered endpoints |
|
Uplink module |
C9350-NM-2C or C9350-NM-8Y |
The base switch depends on a compatible module for the aggregation connection |
|
License tier |
Cisco Switching Essentials or Advantage Access Tier 1 large |
Keeps the 48-port hardware aligned with the correct Cisco Networking Subscription tag |
|
Stack materials |
StackWise-1.6T accessory plan and same-platform C9350 members |
Required when the switch will be installed as part of a C9350 stack |
|
Power kit |
PWR-C2-500WAC-I and the correct regional AC power cord |
Avoids missing power items when the non-PoE chassis ships into a specific region |
Optional Add-ons
|
Model |
Description |
|---|---|
|
C9350-NM-2C |
Cisco C9350 2 x 100G/40G QSFP28 network module |
|
C9350-NM-8Y |
Cisco C9350 8 x 25G/10G/1G or 4 x 50G/25G/10G/1G SFP56 network module |
|
STACK-T1A-50CM |
50cm Type 1A stacking cable |
|
STACK-T1A-1M |
1m Type 1A stacking cable |
|
STACK-T1A-3M= |
3m Type 1A stacking cable spare |
|
CAB-SPWR-35CM |
StackPower cable 35cm |
|
CAB-SPWR-100CM |
StackPower cable 100cm |
|
PWR-C2-500WAC-I |
500W AC 80+ Platinum Config 2 Port-Inlet Power Supply |
|
PWR-C2-500WAC-I= |
500W AC 80+ Platinum Config 2 Port-Inlet Power Supply spare |
|
LIC-CS-AC1-L-E |
Cisco Switching Essentials License Access Tier 1 large / 48 port |
|
LIC-CS-AC1-L-A |
Cisco Switching Advantage License Access Tier 1 large / 48 port |

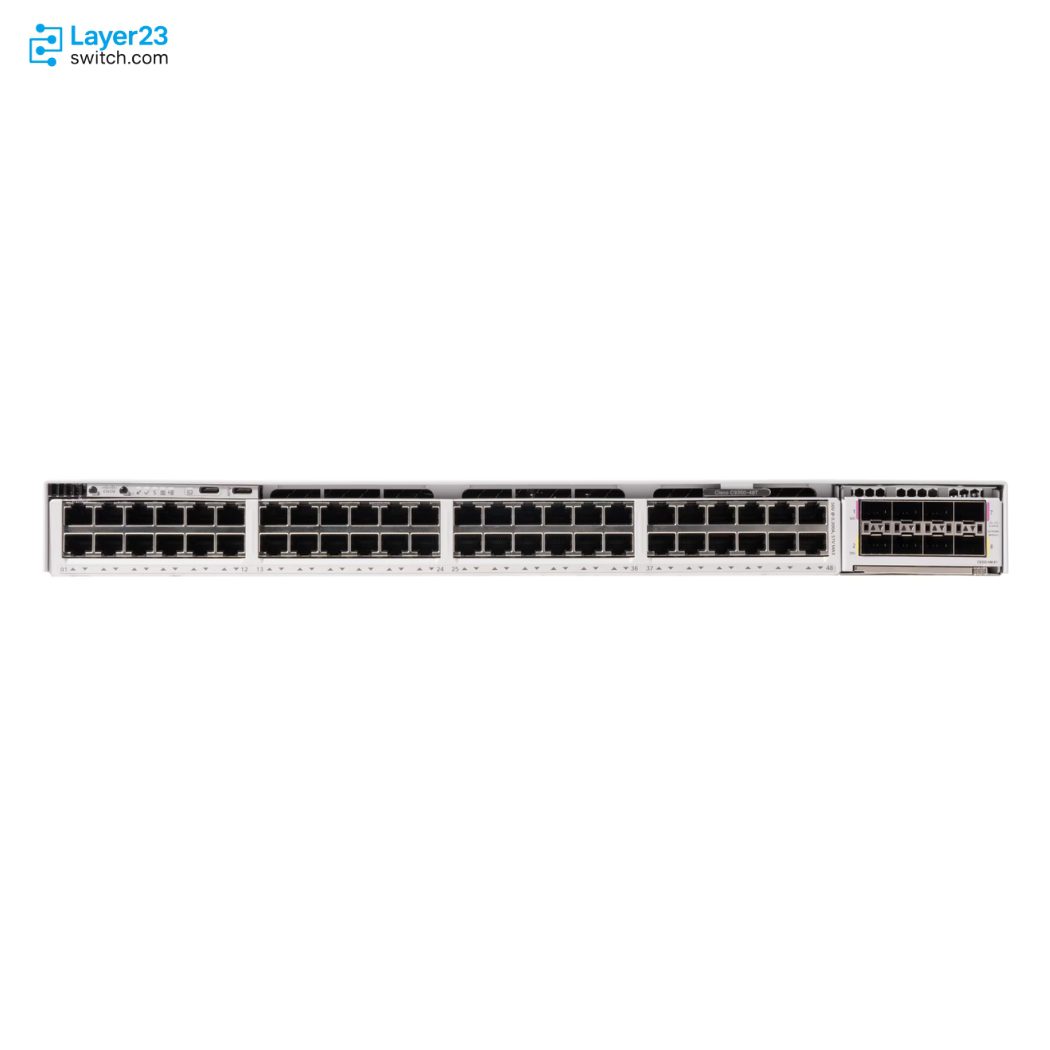

C9350-48T Switch Front Panel
|
Label |
Description |
|---|---|
|
1 |
System air intake |
|
2 |
Mode button |
|
3 |
USB Type C console port |
|
4 |
USB Type C host port |
|
5 |
Downlink fixed ports |
|
6 |
Uplink network module slot |
C9350-48T Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
|
Label |
Description |
|---|---|
|
1 |
Power supply modules |
|
2 |
Fan modules |
|
3 |
StackWise 1.6T port connectors |
|
4 |
StackPower connectors |
|
5 |
USB 3.0 SSD slot |
|
6 |
CONSOLE (RJ-45 console) |
|
7 |
MGMT (RJ-45 10/100/1000 management port) |
Specifications
Packaging weight and dimensions included:| Weight | 17.78 kg |
|---|---|
| Dimensions | 56 × 54 × 23 cm |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9350-48T | Product family | Cisco C9350 Series Smart Switches |
| Product type | Stackable enterprise access switch | Downlink ports | 48 x 10M/100M/1G copper RJ-45 |
| PoE support | No PoE | Default power supply | PWR-C2-500WAC-I |
| Power supply slots | 3 | Supported network modules | C9350-NM-2C and C9350-NM-8Y |
| Modular uplink bandwidth | Up to 200G | Stacking | StackWise-1.6T |
| Switching capacity | 496 Gbps standalone | Switching capacity with stacking | 2096 Gbps |
| Forwarding rate | 369.024 Mpps standalone | Forwarding rate with stacking | 1559.424 Mpps |
| ASIC | 1 x Cisco Silicon One A100/L | License model | Cisco Networking Subscription |
| License options | Switching Essentials or Switching Advantage | License size | Access Tier 1 large / 48 port |
| Minimum software release | Cisco IOS XE 17.18.1 or later | Power supply input | 90V to 264V AC / 47 to 63 Hz for PWR-C2-500WAC |
| Fan modules | 3 field-replaceable fan modules | Power supply output | 500W for PWR-C2-500WAC |
| Dimensions | 1.73 x 17.5 x 15.1 in / 4.4 x 44.5 x 38.3 cm | Weight | 13.8 lb / 6.26 kg with default power supply |
| Operating temperature | -5 deg C to 45 deg C up to 6000 ft | MTBF | 357320 hours |
